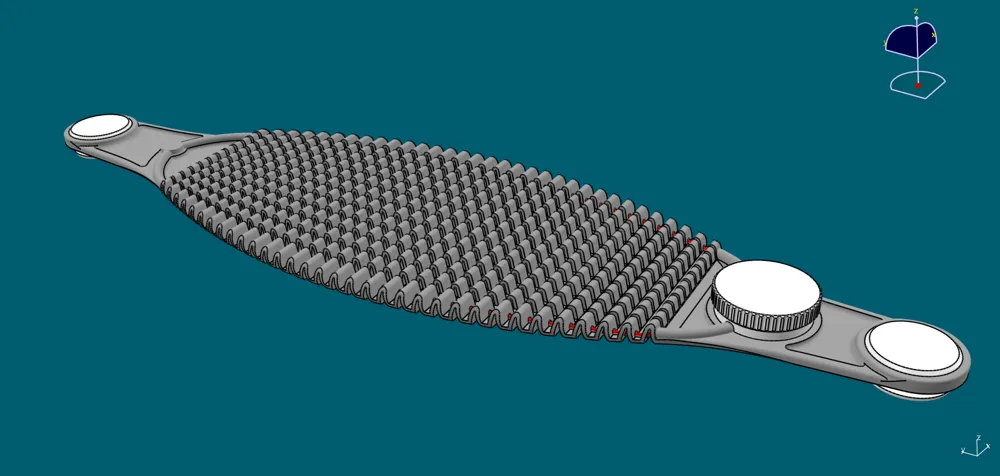

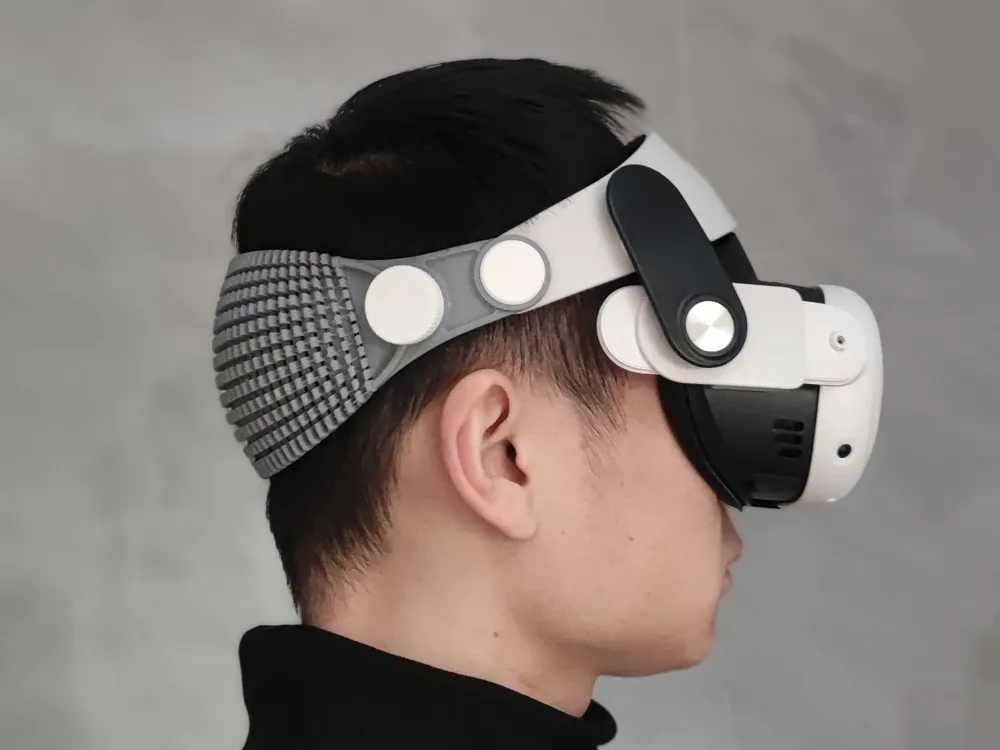

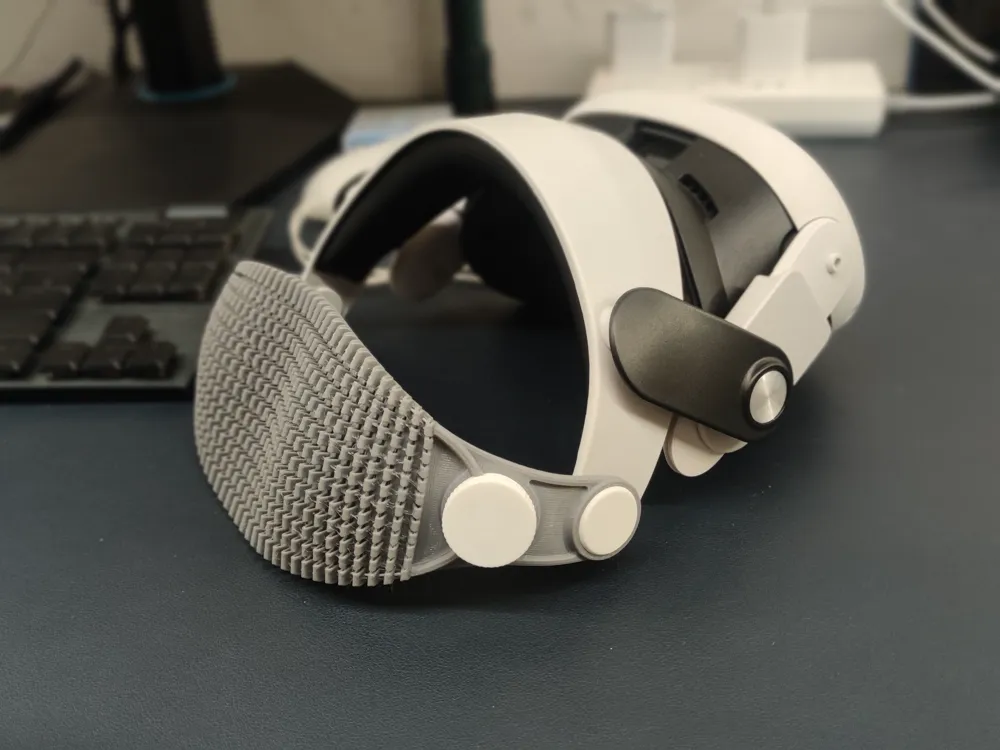

This is a VR device head strap accessory similar to the VisionPro's comfortable head strap. It must be used with other third-party straps for optimal comfort.

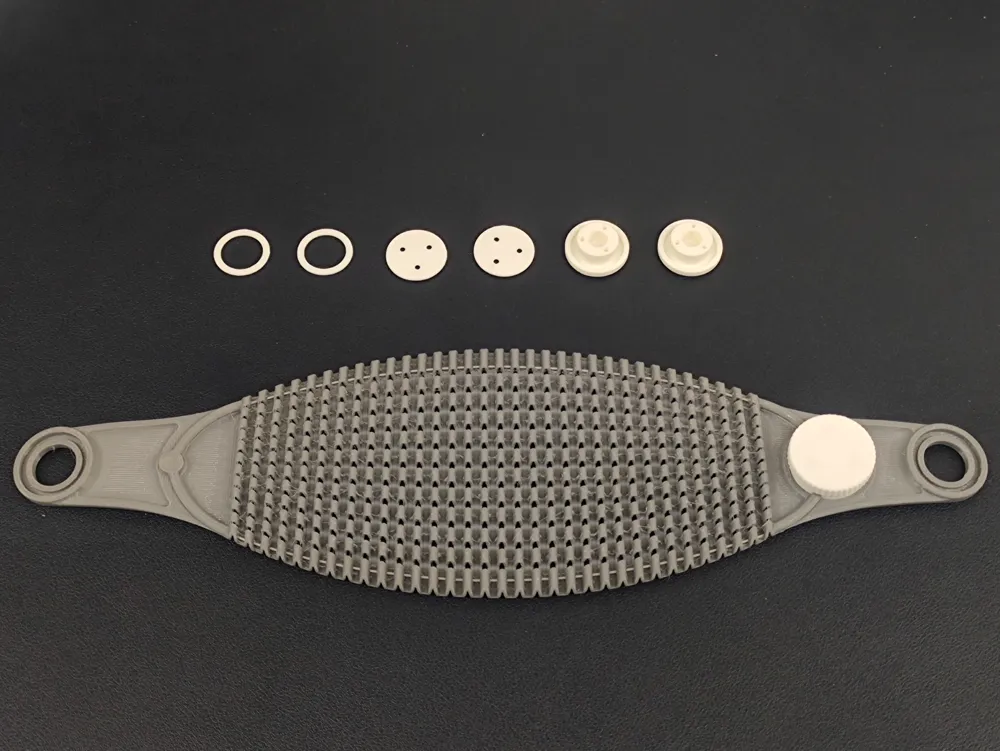

The main body of the strap must be printed using TPU; other components should be printed using ABS or PETG.

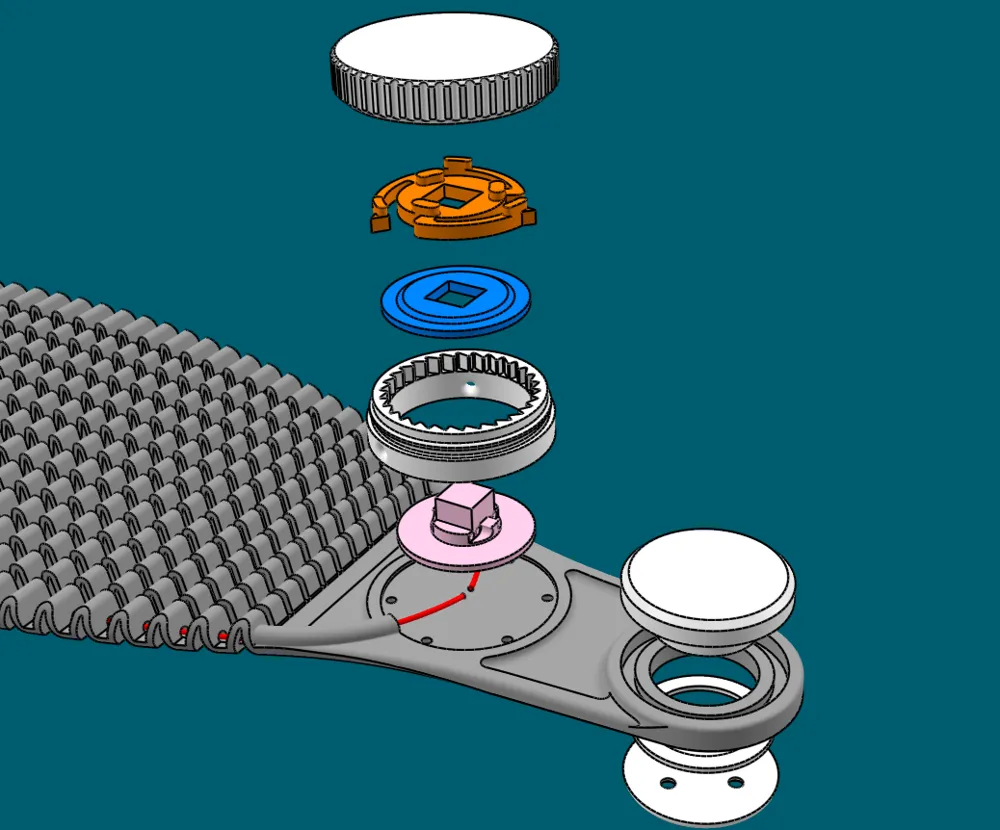

Secured and released via a knob, it fits snugly against the back of the head, showcasing its advantages when used while reclining on a sofa or lying down. If you don't have this need, it's not recommended to make it.

Currently, only two adapter connectors for head straps are available, and their STP files are provided. Different third-party head straps have different structures, and the size and style of the connecting holes also vary. You need to determine for yourself whether they are usable and modify the connectors accordingly.

In addition to the printed parts, you will also need:

M2*6 countersunk self-tapping screws 6 pieces

M1.5*4 countersunk self-tapping screws 6 pieces

Badminton racket string 60 centimeters
