SabreDesign

Polymaker

Overture

cover

Japandi vase 05.png

Japandi vase 06.png

Japandi Vase print 01.jpg



Two plates, one with large and one with small version vase. Both 0.24mm layer height, 2 walls and 10% gyroid infill.

Vases 0.24mm layer

Manuel B.




Habe die Schichthöhe reduziertMaße: H/B/T 180mm/110mm/110mm

Reduced the layer heightDimensions: H/W/D 180mm/110mm/110mm

0.20mm finer optics 18cm high

EMMEDESIGN


Dual Color



Habe die Schichthöhe reduziertMaße: H/B/T: 120mm/80mm/80mm

Reduced the layer heightDimensions: H/W/D: 120mm/80mm/80mm

0.20mm, finer optics, 120mm high

140 diameter- 160high

Eisbaer17


Wasserfeste Version,  falls es euch gefällt, würde ich mich über eine positive Bewertung freuen :-)

Waterproof version, if you like it, a positive rating would be appreciated :-)

0.24mm layer height, 2 walls, 10% infill, water resistant



0,20mm SchichthöheSpiralvasenmodusDa die Vase im Spiralvasenmodus gedruckt ist, ist diese natürlich auch nicht Wasserdicht. Aber für Trockenblumen oder andere Deko trotzdem voll einsetzbar.

0.20mm layer heightSpiral vase modeSince the vase is printed in spiral vase mode, it is naturally not waterproof However, it is still perfectly usable for dried flowers or other decorations

120mm Spiral Vase Mode 1h 50min 31g 0.2mm layer height

Rocket6578

Green Small Japandi 2.jpg

Green Small Japandi 4.jpg

Picture shown is printed using Overture Matte Light Green PLA, this profile saves time and uses less material, but still keeps strength and thickness. Also reduces stringing on the inside of the vase. Happy Printing!<ul><li>0.24mm layer height</li><li>20% (1.5 hours) less print time compared to default profile</li><li>13% (27g) less material used</li><li>varying infill percentages</li></ul>

smaller vase, 0.24mm layer, 2 walls, varying infill

Nikki



vase settings V2.png

I spent another 5 hours and several test printes to present to you another V2 Improvements: Watertight, better print quality but also faster than the original! Took inspiration and ideas from all the other print profiles (as of 02.05.2025)<ul><li>Completely eliminated stringing between the ribs, reduced print time in the process by adjusting the settings only for the upper part:<ul><li>no Infill between the ribs, also no solid layer infill and fine tuned layer width. this ensures solid lines in the upper part of the vase and the print comes out faster, cleaner, and in overall pristine shape (see black version)</li></ul></li><li>Added the small vase vase with optimized settings</li><li>Changed layer height from 0.16 to .24 like the original to print faster as is was not needed for waterproofness.</li></ul>&nbsp;Made some adjustments to increase the vases ability to hold water without leaking after longer periods of time, which happend to me after about 2 days slowly. This eliminates the need to post process for waterproofness. If you want to read further into making prints waterproof, there is a great article from Prusa, that can be found here: <a target="_blank" rel="noopener noreferrer ugc" href="https://blog.prusa3d.com/watertight-3d-printing-pt1-vases-cups-and-other-open-models_48949/">https://blog.prusa3d.com/watertight-3d-printing-pt1-vases-cups-and-other-open-models_48949/</a>Measures i took to improve the water holding capabilites:<ul><li>4 walls instead of 2</li><li>6 bottom layers and concentric layer construction (Leaks happened at the bottom between the 2 walls and connection to the diagonal rest of the bottom layers) instead of 4</li><li>I also decreased Aux fan cooling (Case fan on my P1s) to only 50% and shut it off for the first 6 Layers in my Filament settings. This should increase layer bonding and also reduce gaps</li></ul>

V2 watertight & perfect quality 0.24 - orginal leaks water






Hier einmal die Vase in hoch und schmal. Habe die Schichthöhe auf 0,20mm reduziert damit die Qualität höher ist.

Here is the vase in tall and slender. I reduced the layer height to 0.20mm to improve the quality.

20cm tall 7cm wide 0.20mm finer optics




Hat logischer Weise eine etwas dünnere Wand, aber das ist beim Spiralvasenmodus ja normal und zum dekorieren nicht von Bedeutung.

It naturally has a somewhat thinner wall, but this is normal for the spiral vase mode and not significant for decoration

Japandi Vase, 220mm, 4h 38min print time, Spiral Vase Mode

bamboozled


SpiralVase (1).jpg

SpiralVase (2).jpg

SpiralVase (3).jpg


The print profile is 220mm, it is using the Spiral Vase mode and as a result, it uses much less filament and prints quicker. The total Printing time, including prep, is 3h 57m on a Bambu Labs P2S. Due to it being in spiral vase mode, it is thinner compared to a standard model, however, I have adjusted the default, Initial layer, and outer wall thickness to make it more sturdy and good-looking. It was test printed in Matte Beige/Coffee PLA.

220mm, Spiral Vase Mode, 3h57m Print Time, 0.65mm Outer Wall

White Big Japandi 4.jpg

White Big Japandi 1.jpg

Picture shown is printed using Overture Matte White PLA, this profile saves time and uses less material, while keeping strength and thickness. Also reduces stringing on the inside of the vase. Happy Printing!<ul><li>0.24mm layer height</li><li>30% (3 hours, 48 mins) less print time compared to default profile</li><li>13% (40g) less material used</li><li>varying infill percentages</li></ul>

bigger vase, 0.24mm layer, 2 walls, varying infill

Jonathan K.





Die Vase ist nicht Wasser dicht, man kann sie trotz dem für Trocken Blumen nehmen.Die Vase kann man auch mit der Größe mit einem A1 mini drucken. 0,2 Schichthöhe für feinere Schichten und Optik.

The vase is not watertight, but you can still use it for dried flowersThe vase can also be printed in size for the A1 mini0.2 layer height for finer layers and appearance

0.2mm layer, 1 walls, 0% infill

Felix



Dieses Druckprofil ist optimiert für den A1 mini.Schichthöhe: 0,12 mm Infill: 10 %Die Schichten sind kaum sichtbar, und der Druck überzeugt durch eine besonders saubere Oberfläche.

This print profile is optimized for the A1 miniLayer height: 0.12 mm Infill: 10%The layers are barely visible, and the print boasts an exceptionally smooth surface

0.12mm layer, 2 walls, 10% infill

David Ogilvy



.24mm layer 2 wall 0.4mm nozzleMain body is white all the way up, only the fins are black, which gives it a nice visual illusion effect.The bottom part is set with mild fuzzy skin and random seam so you can&#39;t see any seam line.Best printed on a H2D. The prime tower is needed otherwise the first few fins on each layer might be missing some bits. It only prints a tiny bit on each fin before retracting, so even a small bit of ooze getting wiped away messed it up.H2D = initial 2 purge poops only. A1/P1/X1 its 491! (200g)&nbsp;Profile is only enabled for H2D because you probably won&#39;t read this anyway :)

Full Height Dual Colour (H2D Recommended) 0.24mm layer

Steakhouse1988

Japandi Vase A1Mini.jfif

Ich habe dieses 75%-Profil der Japandi Vase(n) erstellt, da die Originalversion zu groß für selbst gedruckte Blumen war.Erprobt für den A1Mini.&nbsp;Viel Spaß beim Drucken.

Japandi Vase 75% - 120mm für A1 Mini optimiert

SomeBoredGuy


Tall Vase with Rim

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

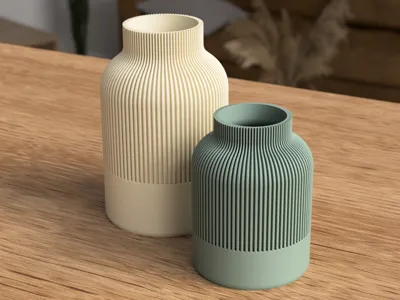

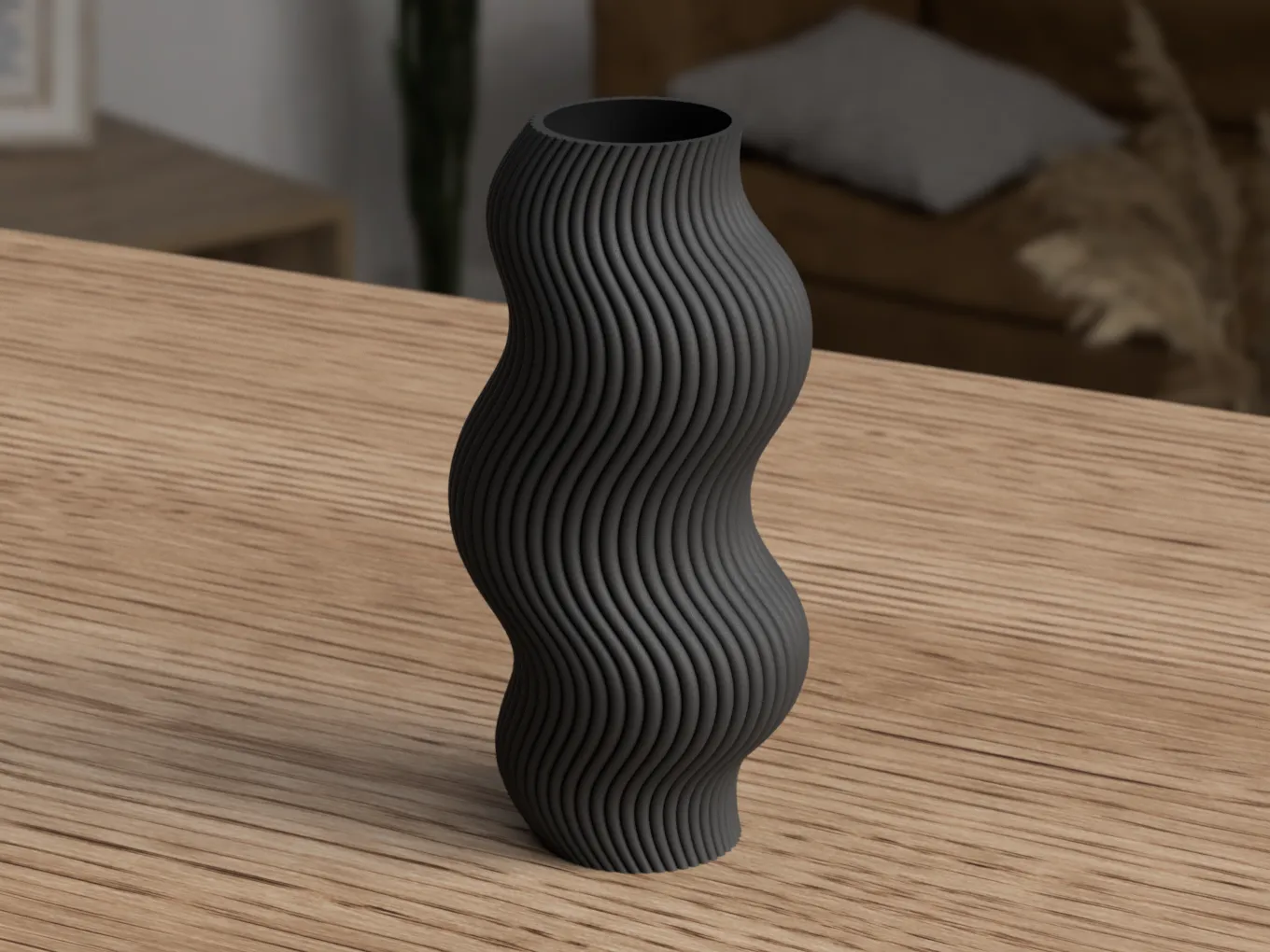

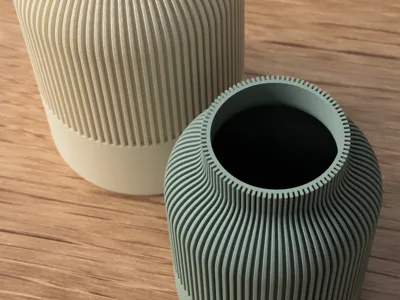

&nbsp;Modern Vases where japanese and scandinavian styles meet, great for this spring&#39;s home decoration. Big vase is 220 mm tall and 140 mm wide, small vase is 160 mm tall and 120 mm wide. The new Bambulab Woodfill filament gives the design a modern and stylish look while making the vase feel solid and sophisticated. If you want to support me or get commercial licenses you can join a patreon membership: <a target="_blank" href="https://www.patreon.com/SabreDesign" rel="nofollow noopener">https://www.patreon.com/SabreDesign</a>&nbsp;For one time support you can also buy me a coffee here: <a target="_blank" href="https://buymeacoffee.com/sabredesign" rel="nofollow noopener">https://buymeacoffee.com/sabredesign</a><boostme><boosttitle>Boost Me</boosttitle></boostme>Check out more of my designs below and on my profile:<figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000964016/design/2025-01-14_0d561278112b2.png"></figure>
