Tamping Station (Customizable)
Print Profile(2)
Description
Tamping station and holder of your tamper, coffee distributor, WDT, puck screen and brush. The original model is for 51mm portafilter and tools but I've attached the Fusion 360 file if you want to modify the dimensions.

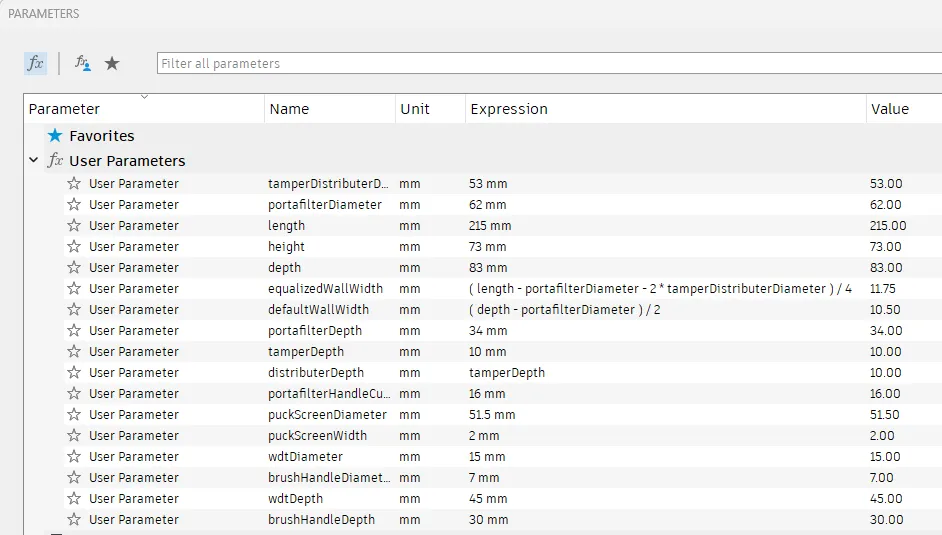

See below the paramter list:
I hope they are self explanatory, if not, try to modify and check which dimansion changed or make a comment.
Notable dimensions for other standard portafilter sizes:
| Portafilter Size | ||
| Parameters | 53mm | 58mm |
| length | 215 | 243 |
| heigth | 73 | 76 |
| depth | 83 | 94 |
| portafilterDiameter | 62 | 72 |
| tamperDistributerDiameter | 55 | 60 |
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
