Description
In the print profile is a negative part “hole” added. (not in .stl file)
If you want the bookmark without a hole so remove only it before final print.
I have given two version size models in one (same) profile, the first is size 50x150mm and the second is 65x200mm. The color change settings are identical. You can remove the one that you don't want to print (the larger one in the case of A1 Mini).
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm. You may print at higher layer heights below the Min Depth of 0.64mm The Max Depth is 1.8mm and the Actual Depth is 1.8mm. You can only modify the X and Y dimensions. Do not adjust the height (Z) in your slicer!
It is possible to print without AMS by manually changing the filament (setting filament change or pause) in the slicer, depending on your printer and sw support.

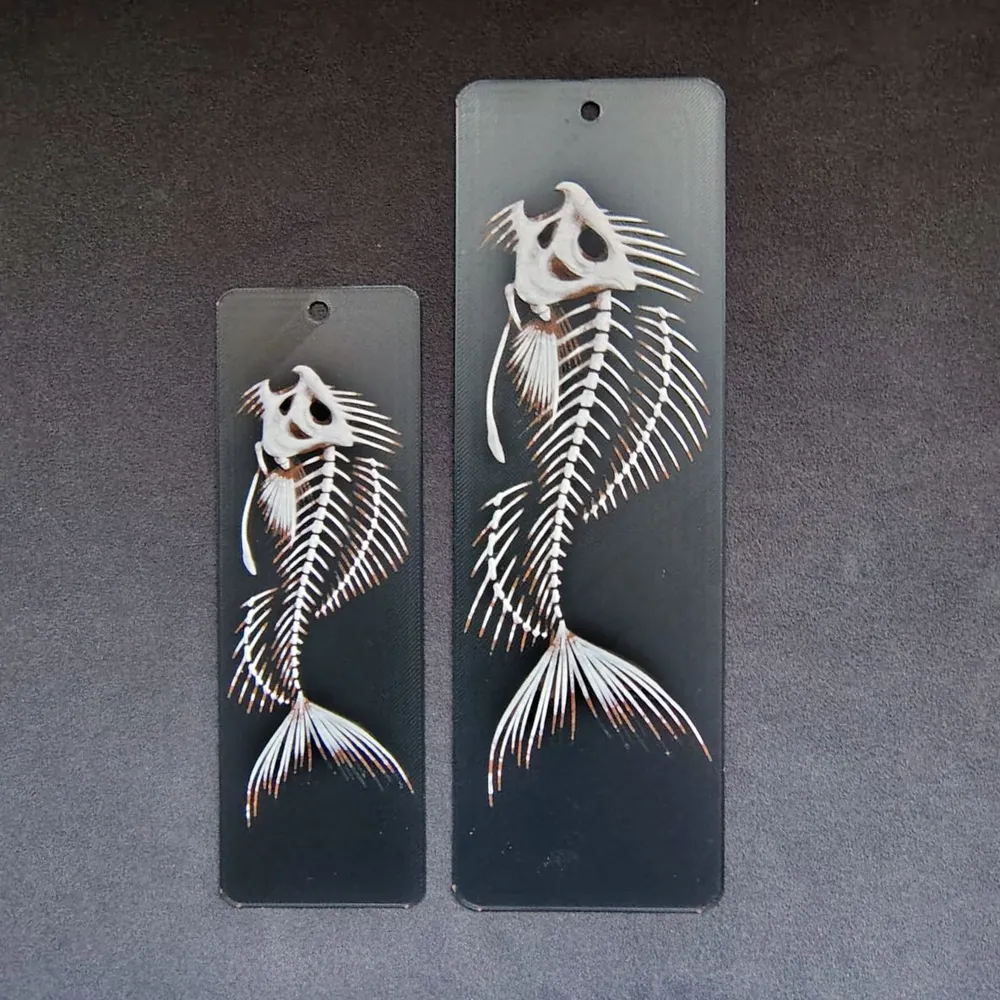

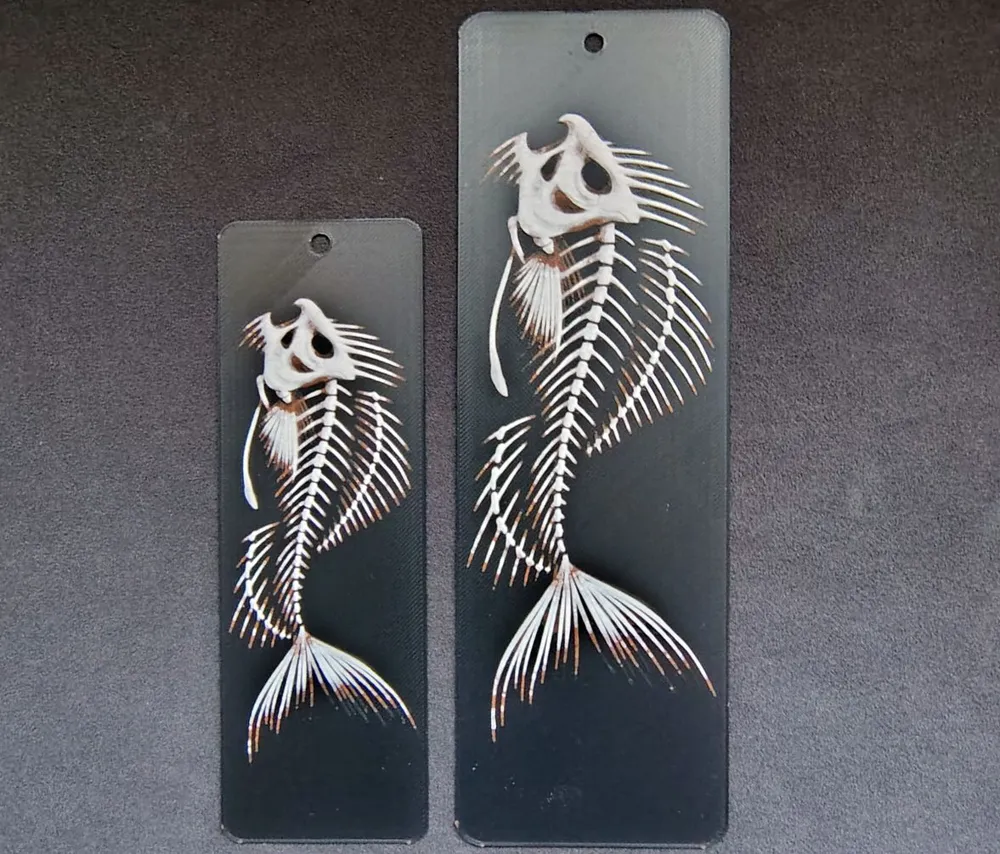

These were my settings and colors for my print that you see in the picture. Your results may be depending on the filament you use.
Filaments Used:
PLA Elegoo+ Black Transmission Distance: 0.3
PLA Bambulab Basic Brown Transmission Distance: 2
PLA Elegoo + White Transmission Distance: 7
This print uses 3 unique filaments
Swap Instructions:
Start with Black
At layer #9 (0.8mm) swap to Brown
At layer #11 (0.96mm) swap to White for the rest.
Share your prints and…
Boost Me (for free)
Thank you!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
