UPDATES:
08.Dec.2025 |  |

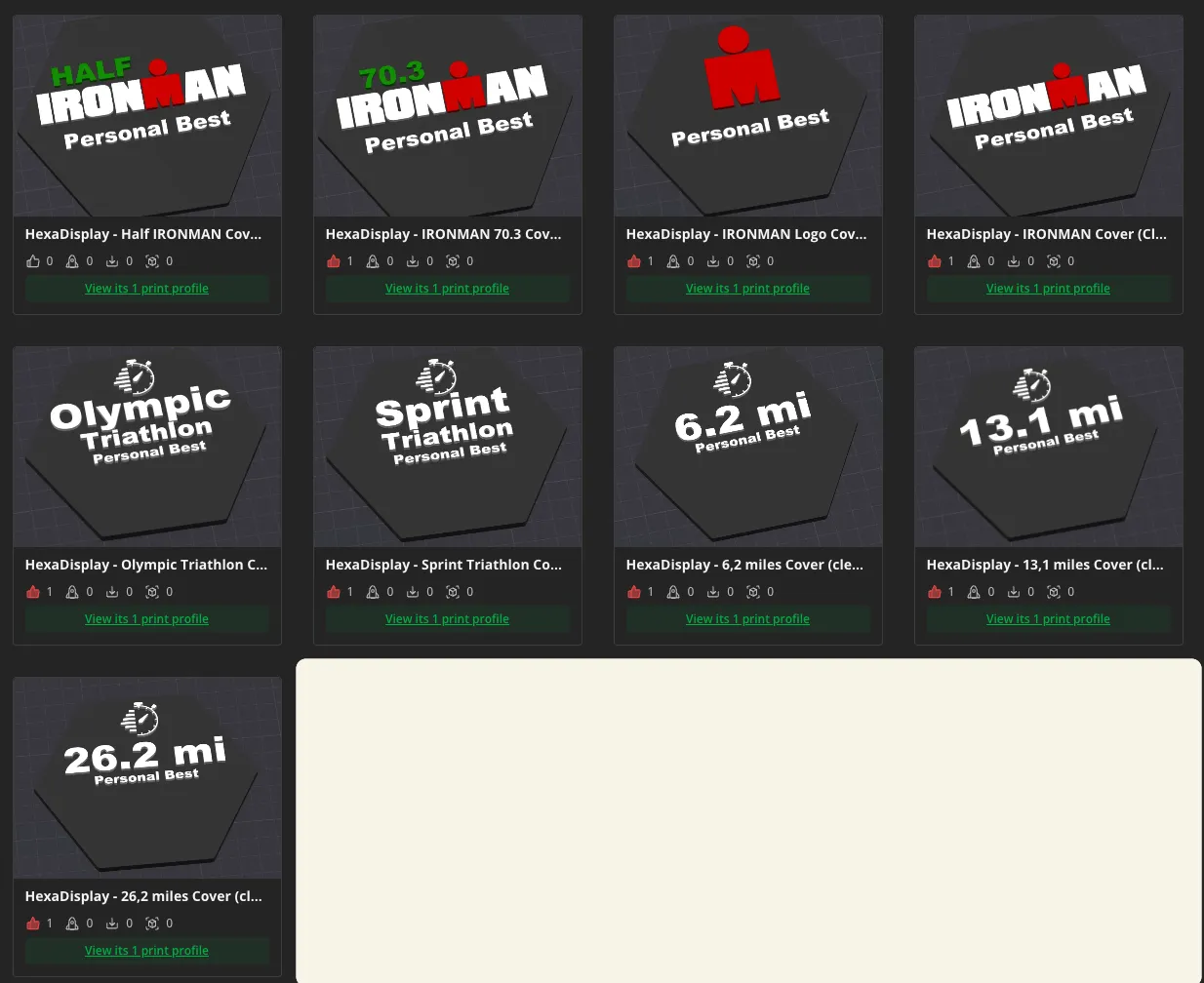

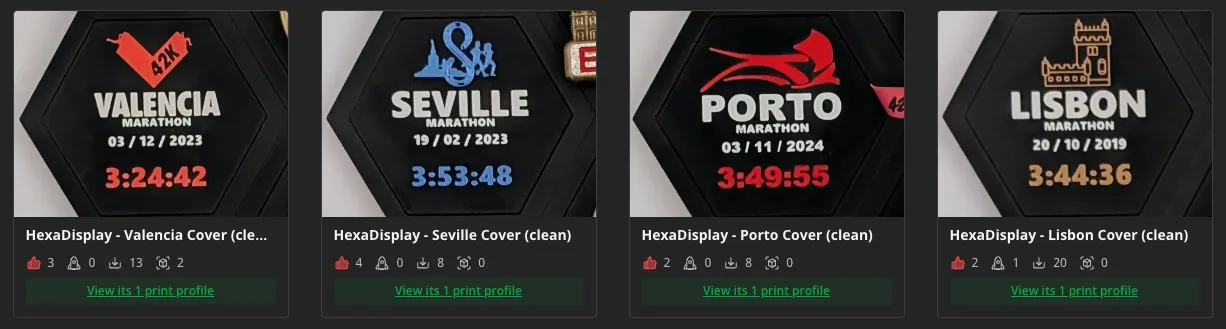

14.April.2025 Added the cover models for: |  |
Boost Me (for free)

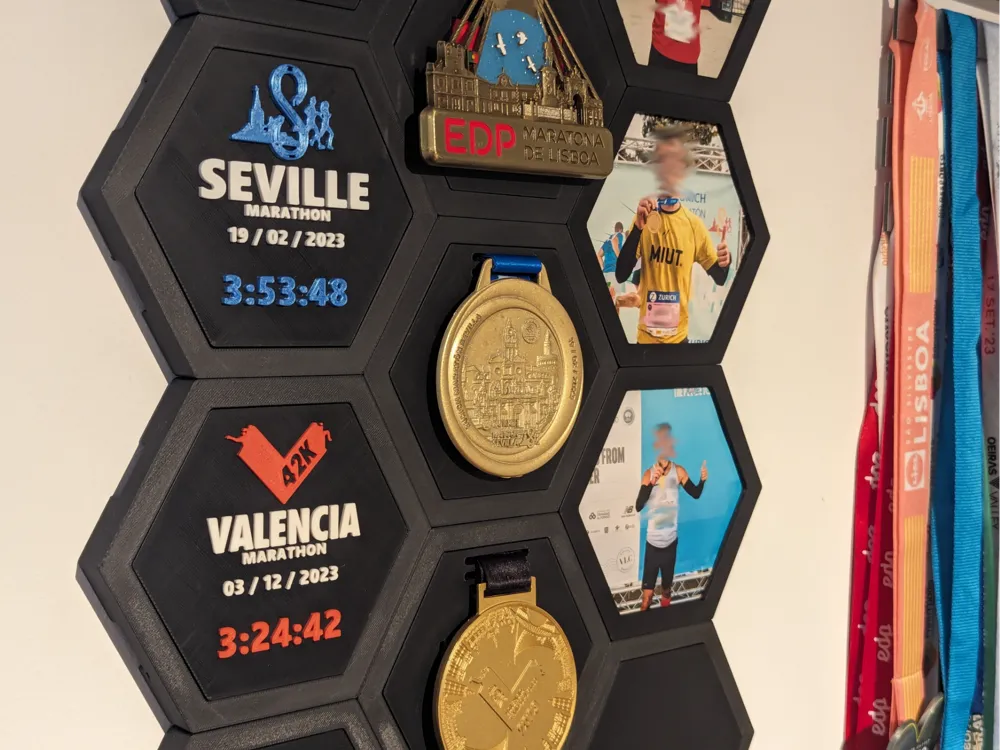

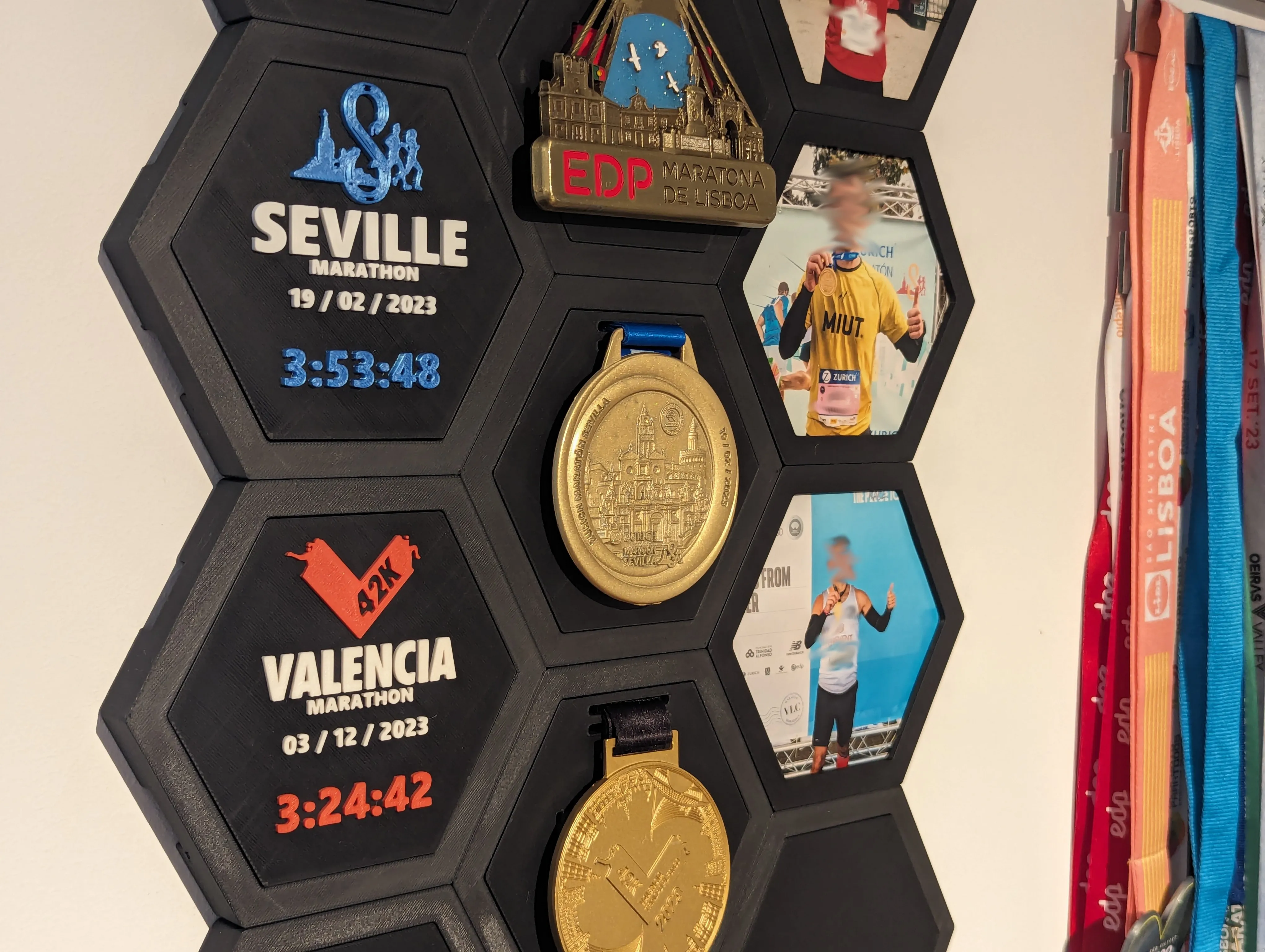

Hexa Display allows you to display your medals on the wall and enrich it with additional details and photos,
…or create a Hexa Photo Wall, or “just” medals, or, or, or…
If you like it, don't forget to Boost!
Hexagonal shaped, it include a small section in the back of each hexagon side so you can attach another hexagon and create your Hexa Wall.
In this model I include designs for several objectives:
- Displaying medals;
- Displaying photos;
- Displaying personal records;
- Displaying your own logos/designs
All models where design to incorporate 6x3 magnets.
Models take up to 10 magnets each, but generally only the medal covers require all 10 magnets to sustain the medal weight.
List of all parts, corresponding plates and description
Plate # | Part name | Description |
1 | Main Hexa | Base hexagon to hold a medal or a plate with your text/design. Include 5 magnet points, as some medals could require additional strength . |
2 | Main Hexa Light | Equal in function as the Main Hexa, but only with 4 magnet points. Can be used for simple and lighter plates |
3 | Cover Medal | Take advantage of the multiple openings and intertwine the medal strap so the medal stands in the middle of the plate. Back side has 4 magnet points |
4 | Cover Clean | Clean plate. STEP file shared in attach so you can add/print your text/design. Back side has 5 magnet points |
5 | Photo Hexa | Together with the parts included on Plate 6 (Photo Frame Top & Back), this base hexagon allows you to include a photo/drawing into your Hexa Wall. This part goes in the back of the photo frame. Magnets should be glued to outside frame points and they should be “sticking out” in order to go thru the Photo Frame Back. |
6 | Photo Frame Back | Function as the middle part of the Photo Hexa, and it's essential to keep the photo straight and not “wavy”. The magnets from the Photo Hexa part go thru the side holes of this part. |
6 | Photo Frame Top | Front part of the Photo Hexa frame Has a small overhang in the inside to hold the photo paper in place. You should use the Photo Frame Cut, part available on plate 7, to cut the photo with the perfect dimensions. Back side has 5 magnet points. |
7 | Photo Frame Cut | Use this part to cut the photo with the perfect dimensions. |
8, 9 | Clips | Use the clips to fix the hexagons together, side by side, composing the shape and size you want. Plate 8 has 6 clips (suitable for 1 hexagon), while the plate 9 has 30 clips (suitable for 6 hexagons). |
10, 11, 12 | 10k, 21k & 42k personal bests | These parts are very specific but since I created those for myself, why not sharing them :) Use these to register your best results on the 10k, half marathon (21k) and marathon (42k). Personally I write on the plate with a blackboard white chalk pen from IKEA, that way I can always update my best results :) |

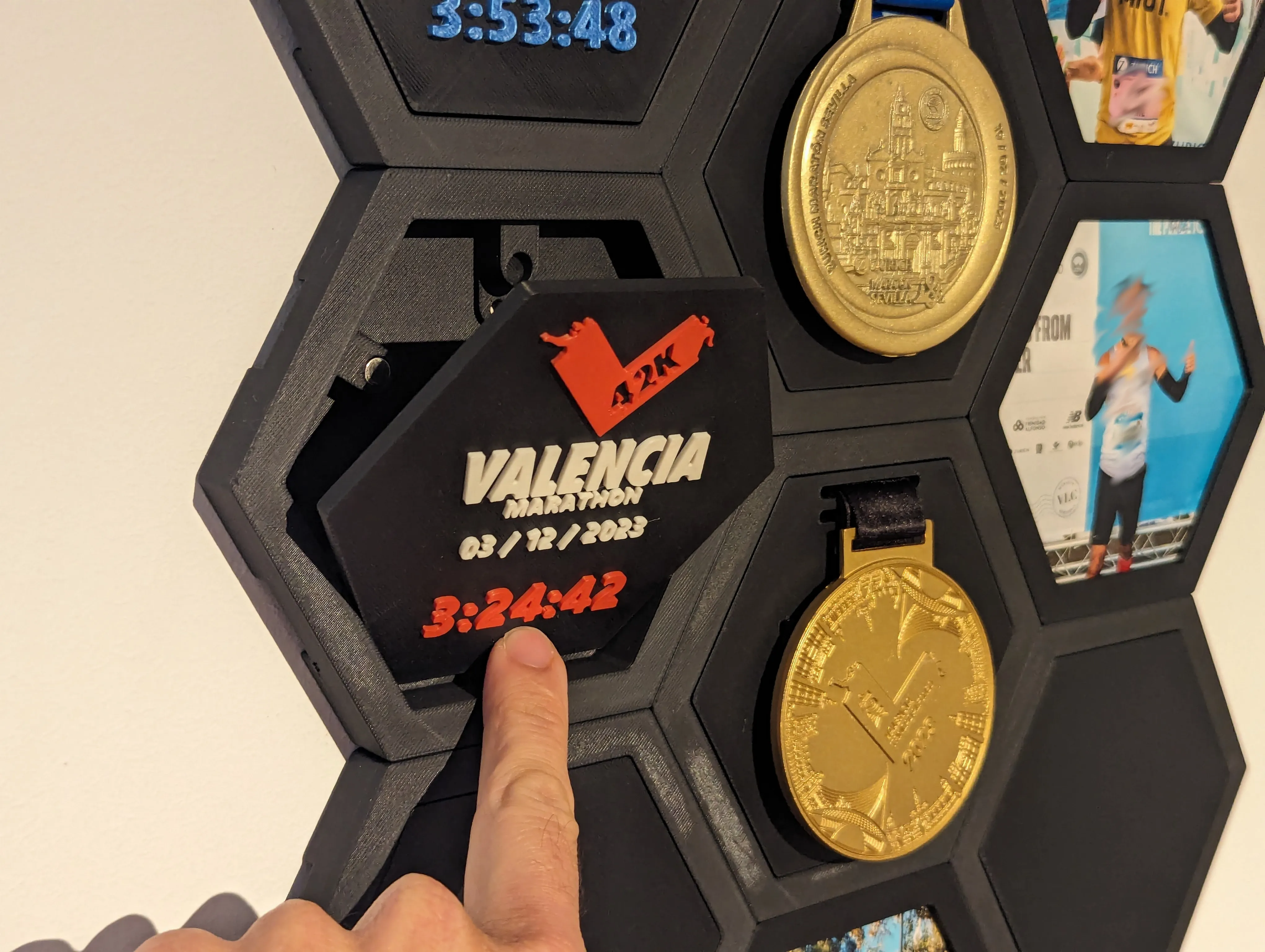

The hexagons don't have magnets on the bottom part (inside) so we can easily push the plate in and be able to swap it.
There's no need to fix all hexagons to the wall.
It depends on the amount of heavy medals/elements you include in you Hexa Wall, but in most cases, fixing/bolting only a few hexagons are enough to keep the Hexa Wall fixed and stable.

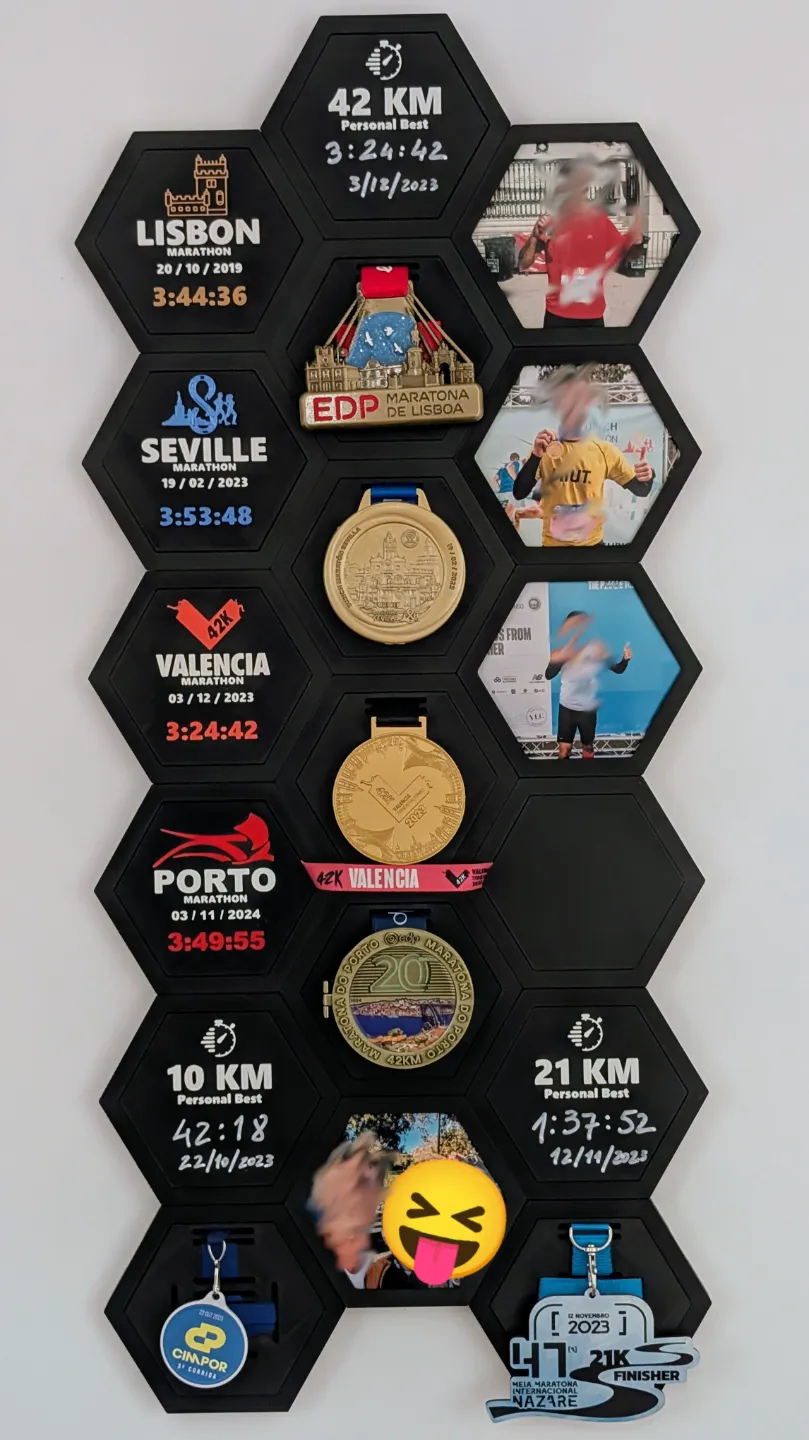

In the case bellow (my Hexa Wall :P ), only 3 hexagons are fixed to the wall.
