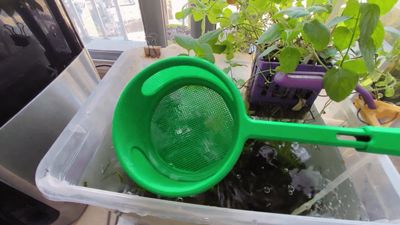

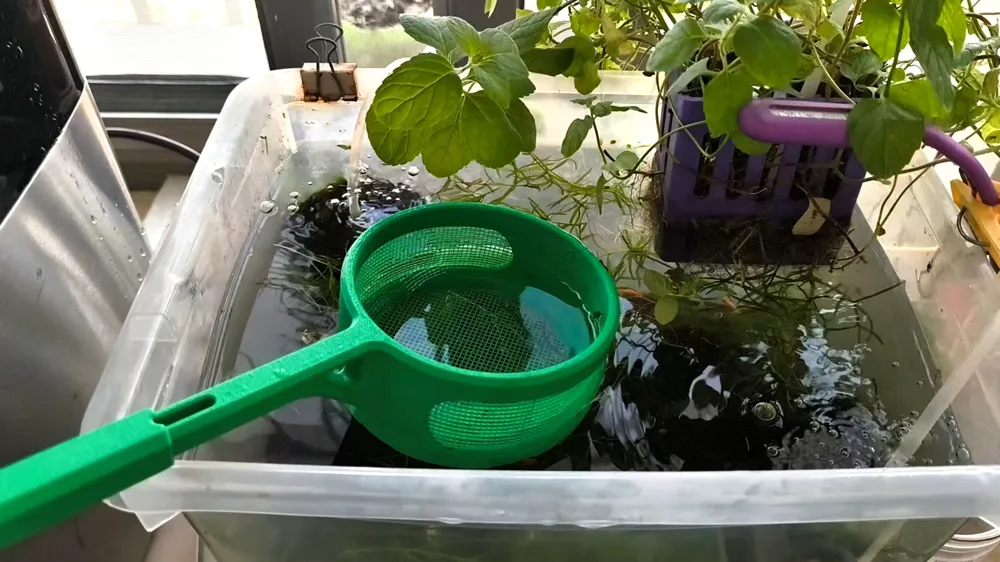

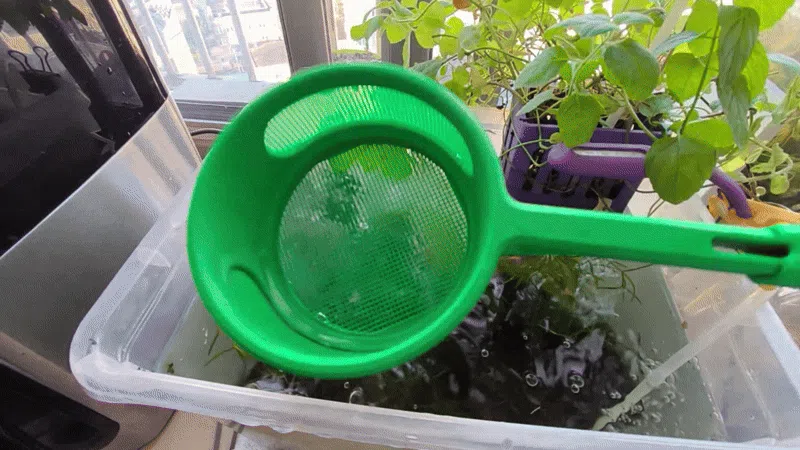

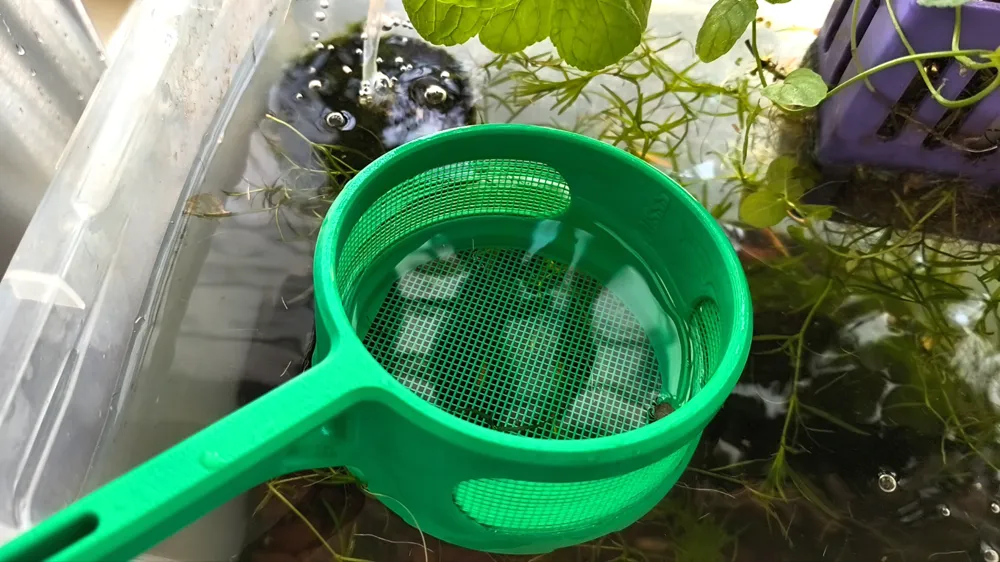

Aquarium Fish Net
The fishing nets can be quickly printed and replaced.

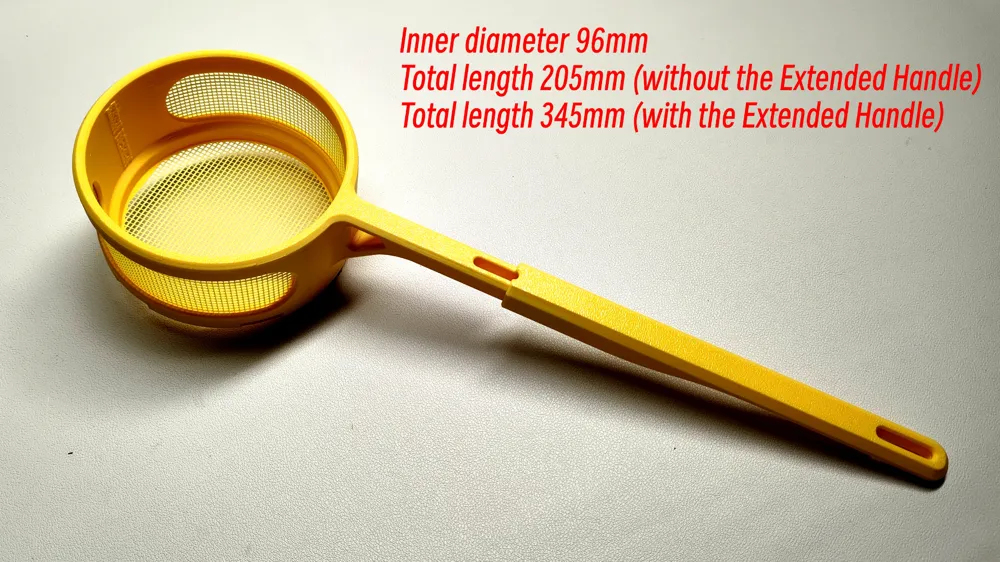

Dimensions:
Inner diameter 96mm.
Total length 205mm (without the Extended Handle).

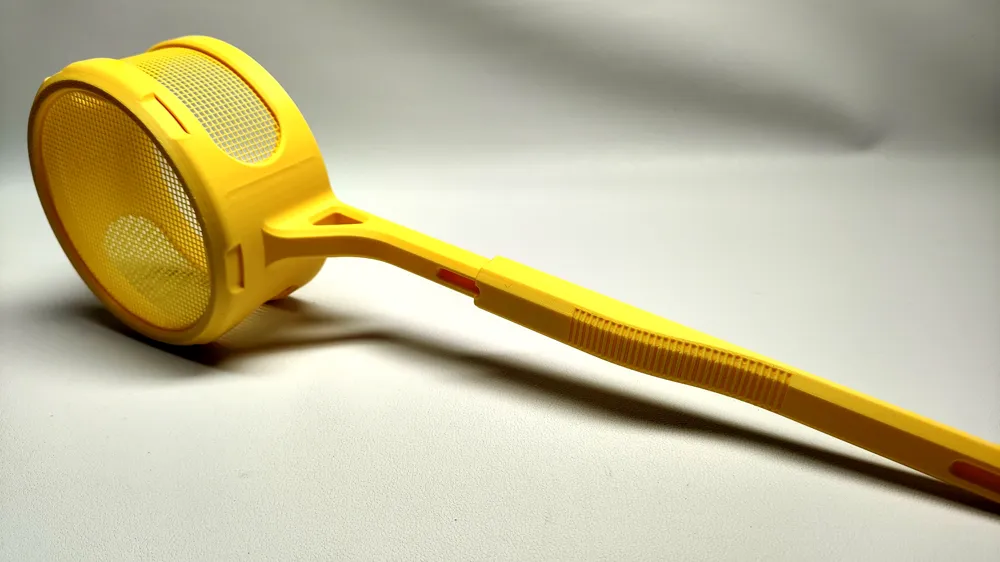

total length 345mm (with the Extended Handle).
Frame structure printing requires support.
A small amount of support can be added at the head of the Extended Handle. If no support is added, it can be cleaned up later with a blade.
Nets printing does not require support. Use PETG material and set the layer height to 0.2mm.

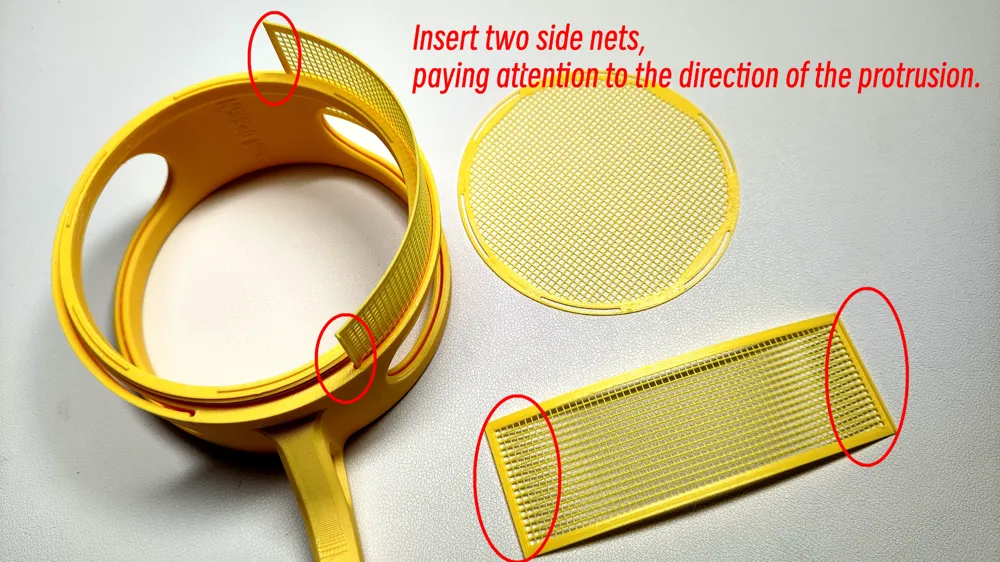

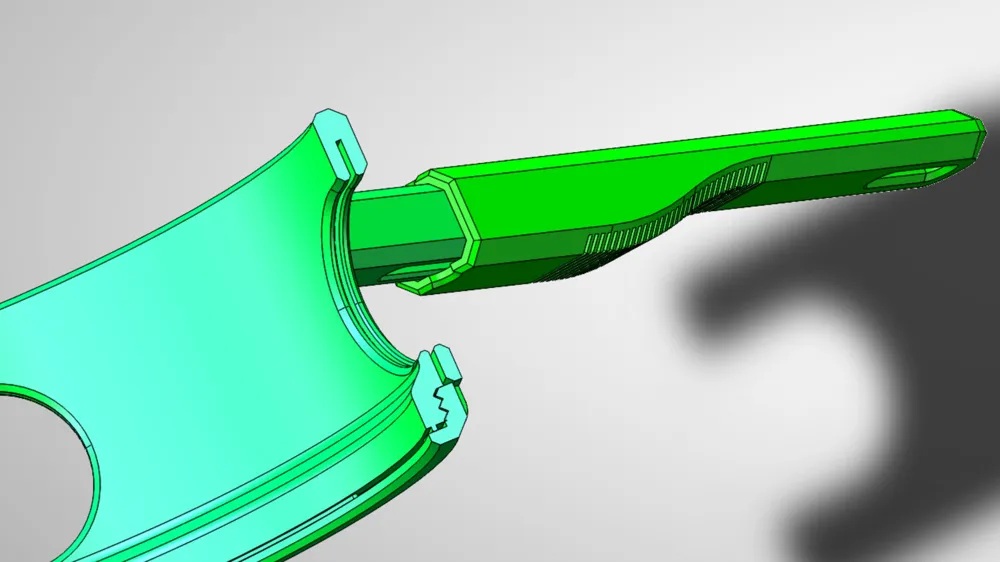

For the side nets, pay attention to the direction of the protrusions during installation.

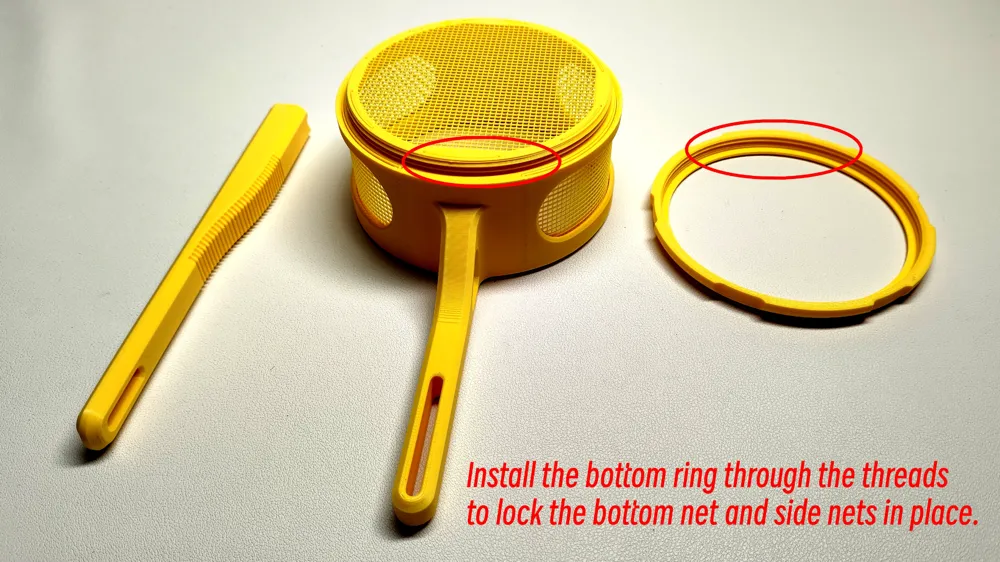

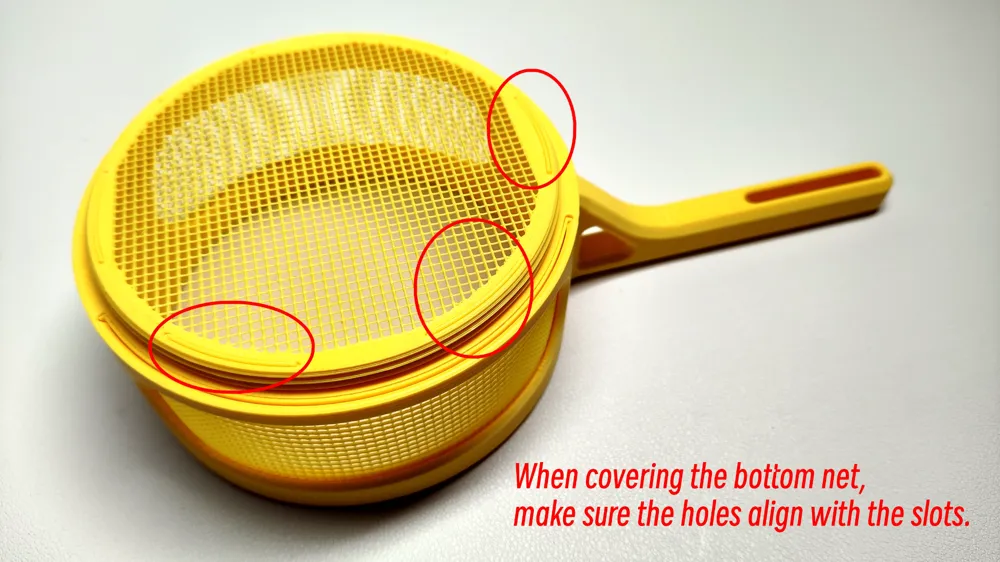

For the bottom net, align the slots with the protrusions on the Frame.
If the length of the Extended Handle still doesn’t meet your needs, you can further scale the axial proportion in the slicing software.

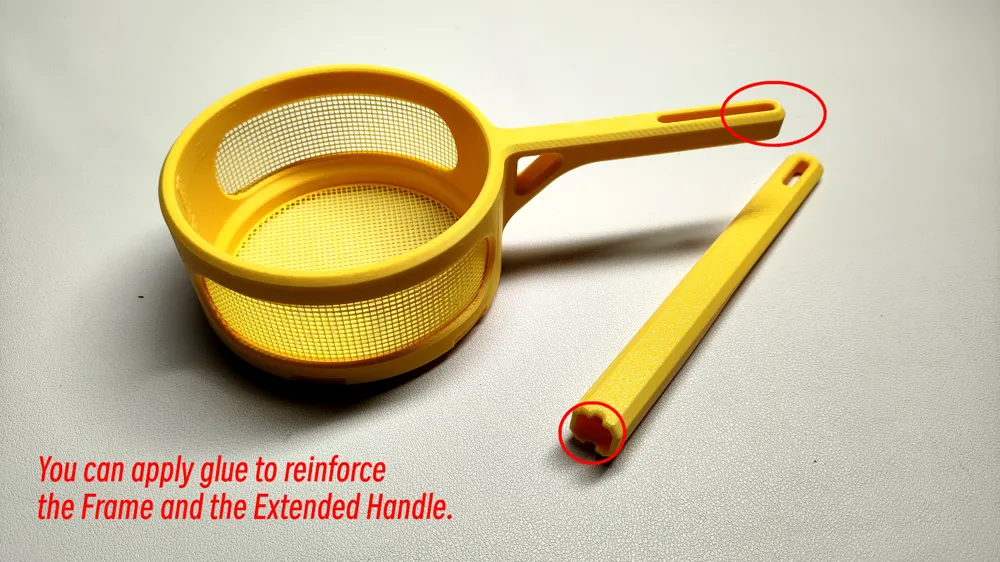

If needed, use glue to secure the Frame and Extended Handle.
