Tesla Driver's Seat Button

Preface: It's cheaper to buy a complete assembly from Taobao for 80 yuan, but if you don't want to wait two days for delivery, you can waste two hours doing this.

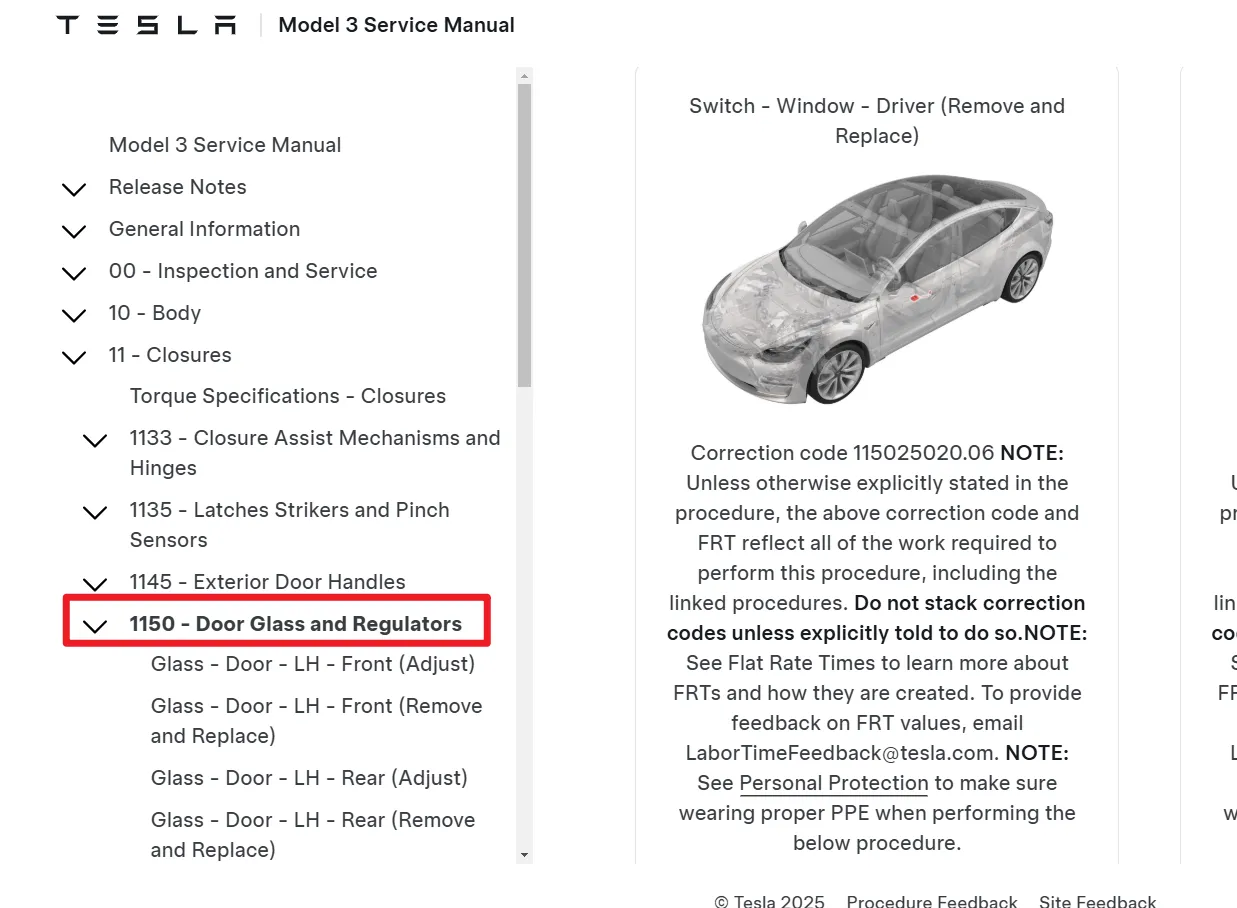

How to disassemble the module: Instructions are available in the official manual.

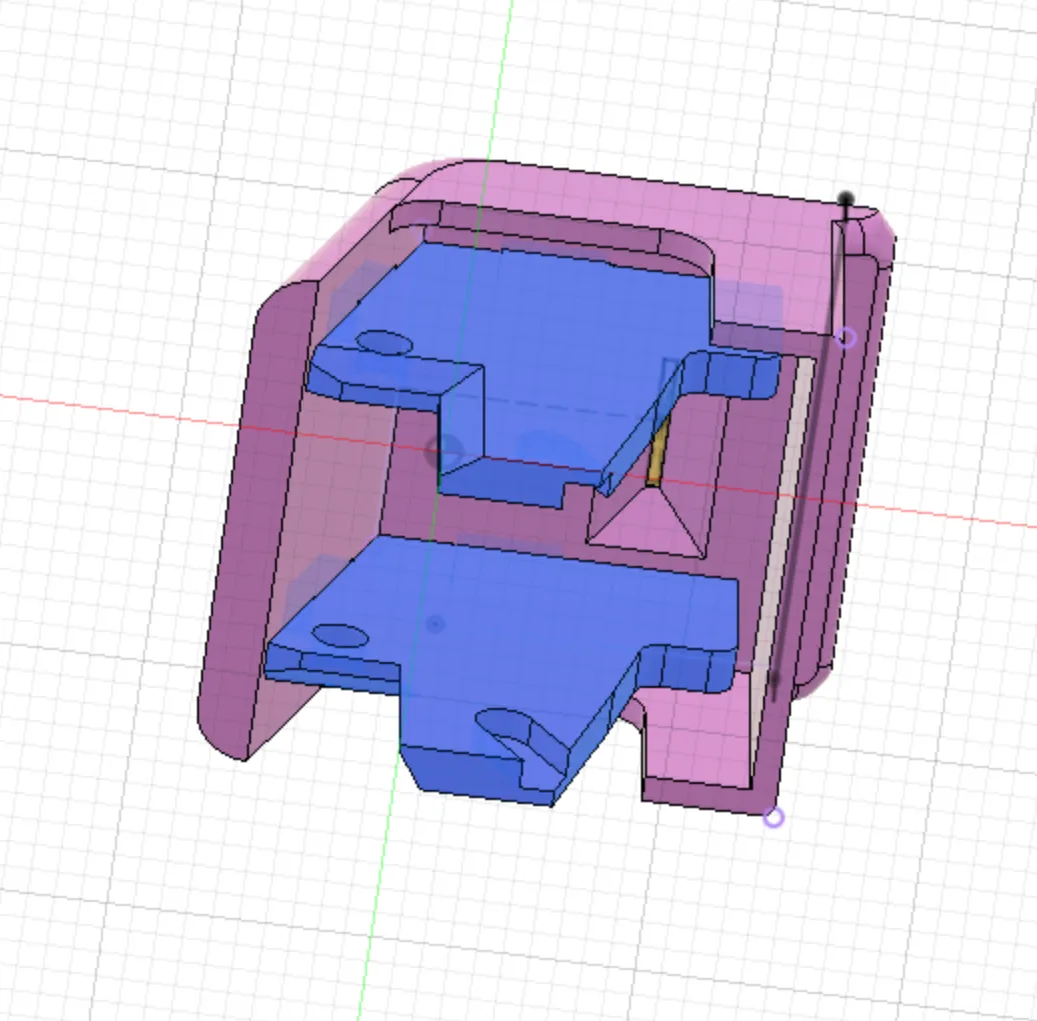

I didn't use a window switch removal tool (1988906-00-A), I just pried it off, seemingly breaking a clip inside, but it doesn't affect the function. You can 3D print one yourself.

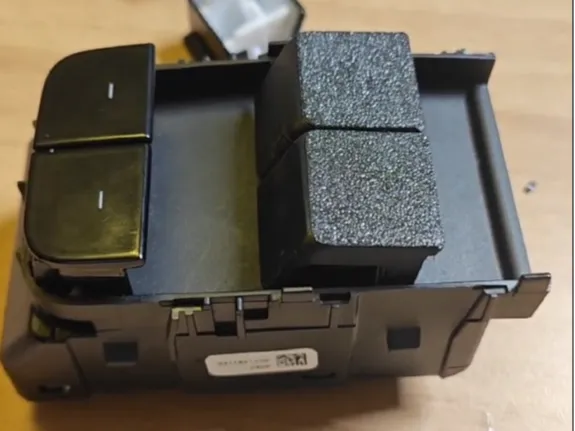

The printed button may be a tight fit, requiring trimming with a knife and filing to ensure smooth operation.

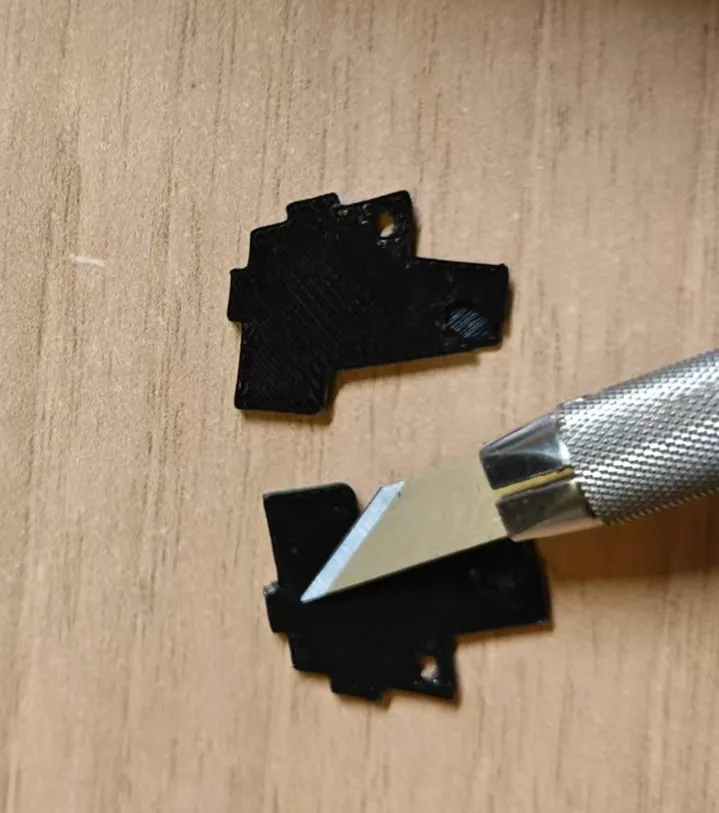

Trimming:

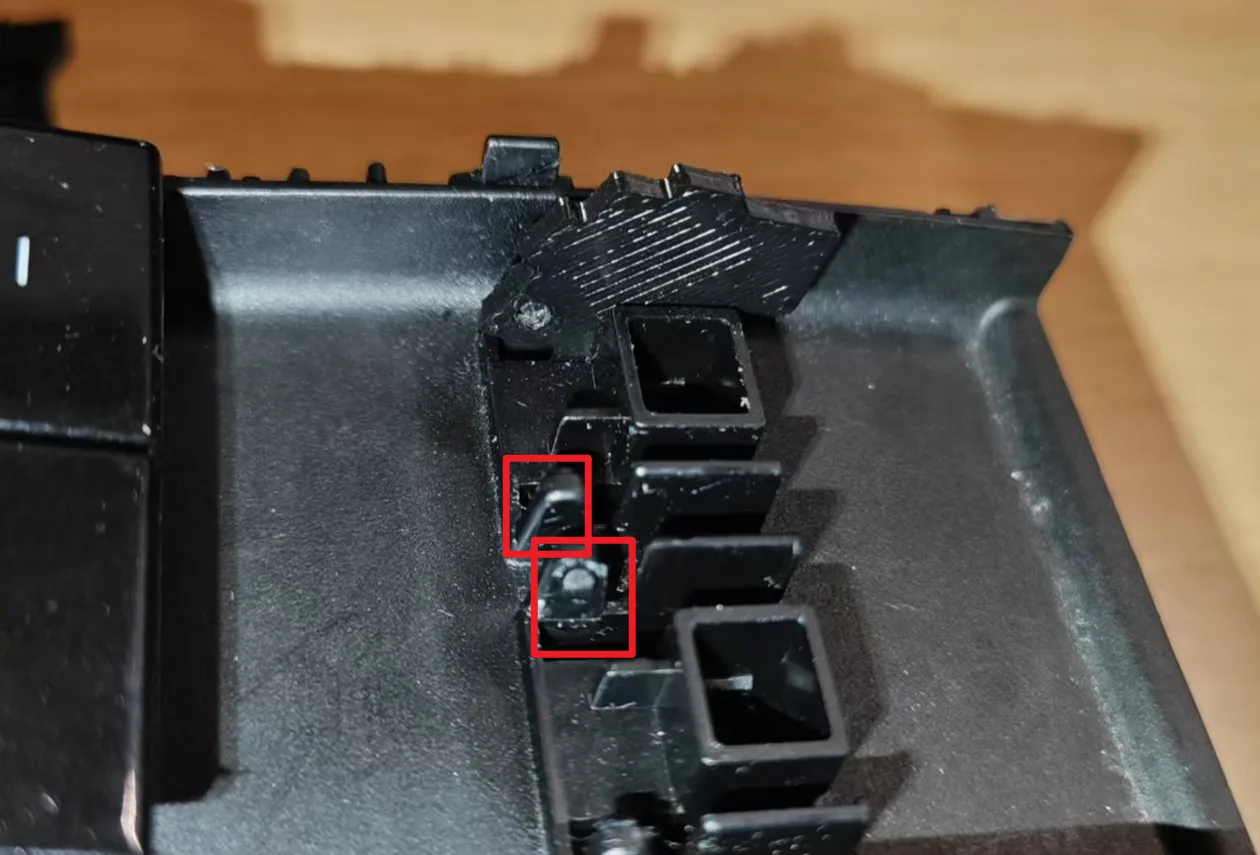

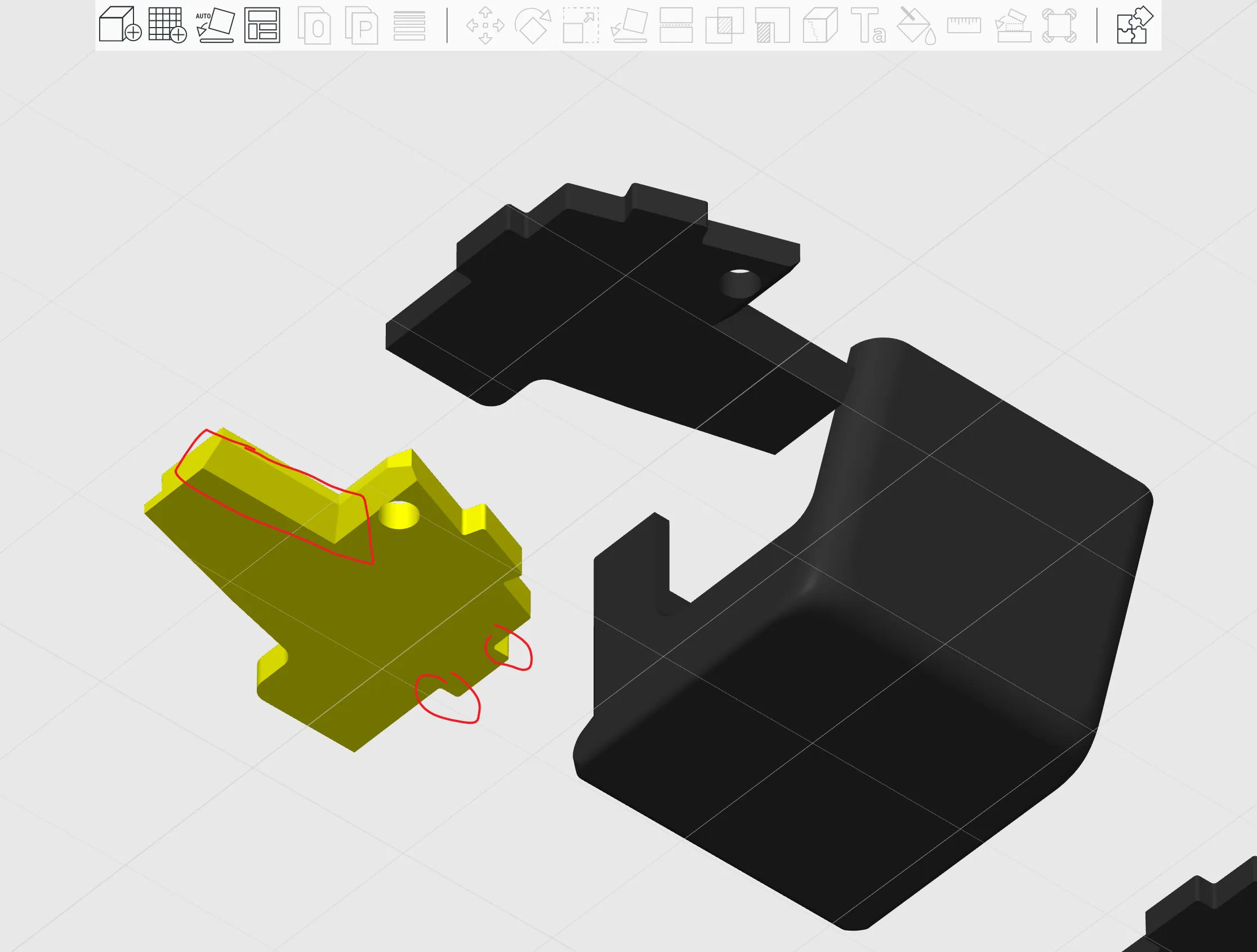

These two areas need to be thinned.

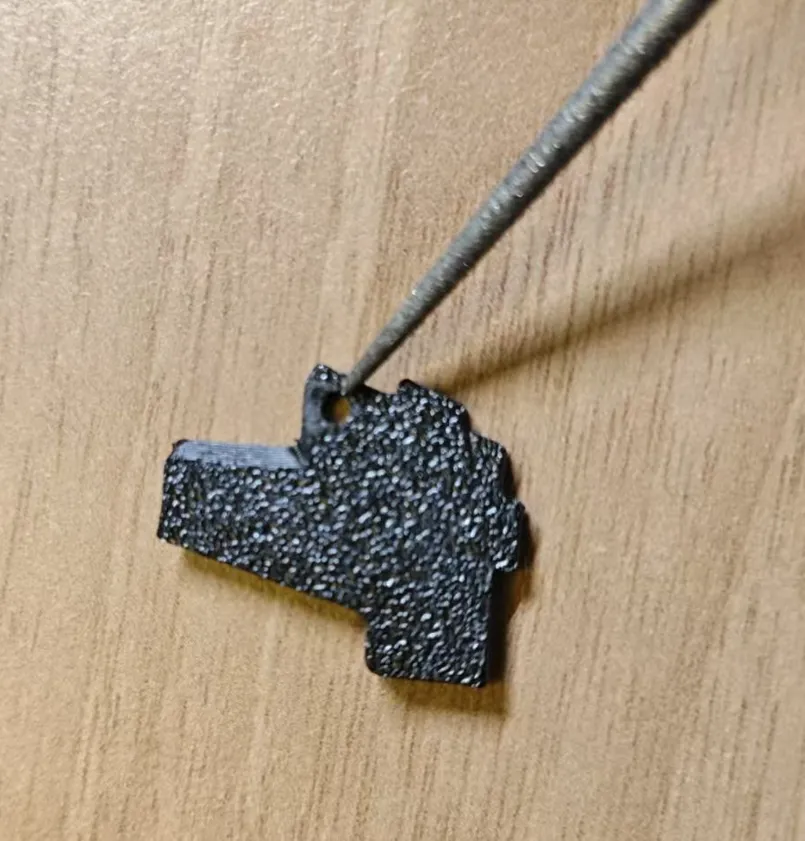

Filing:

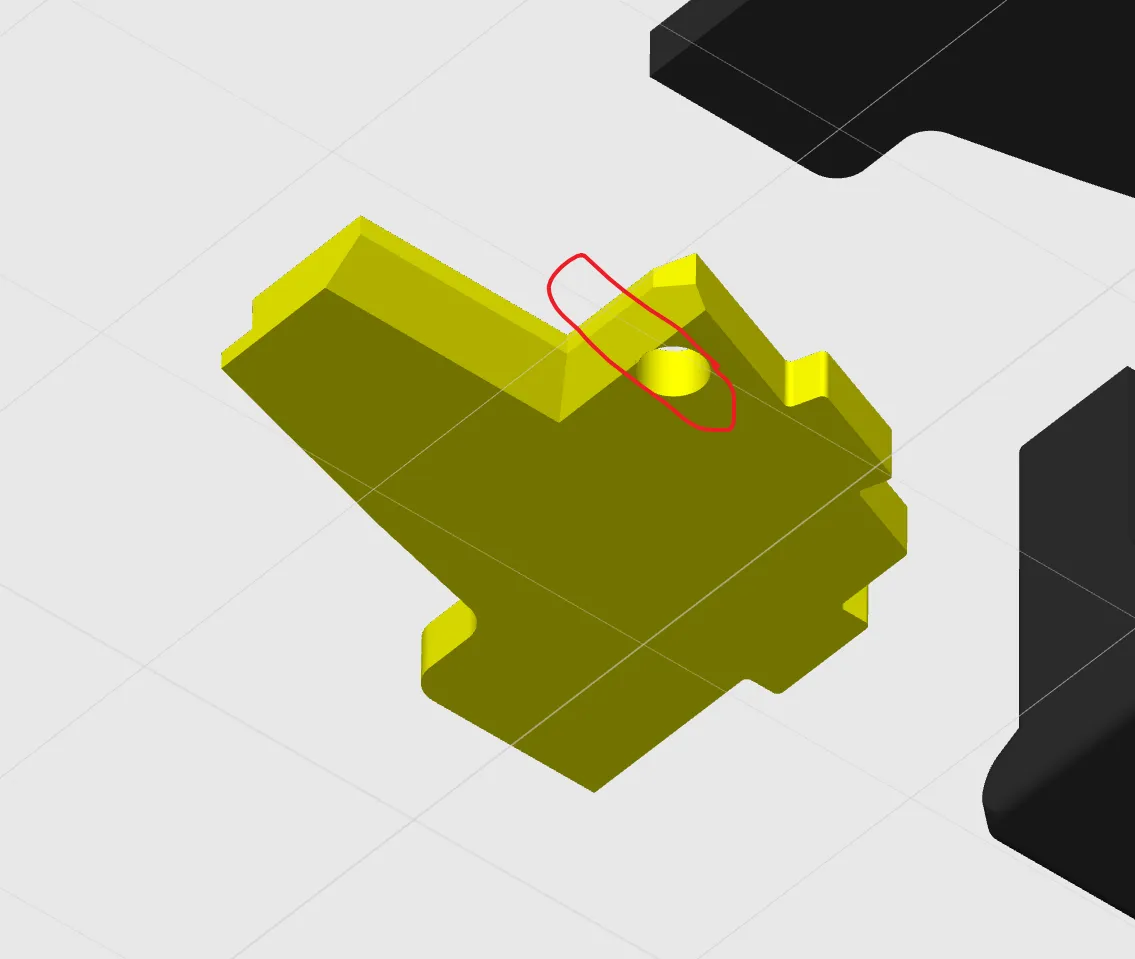

This hole needs to be filed to create a recess.

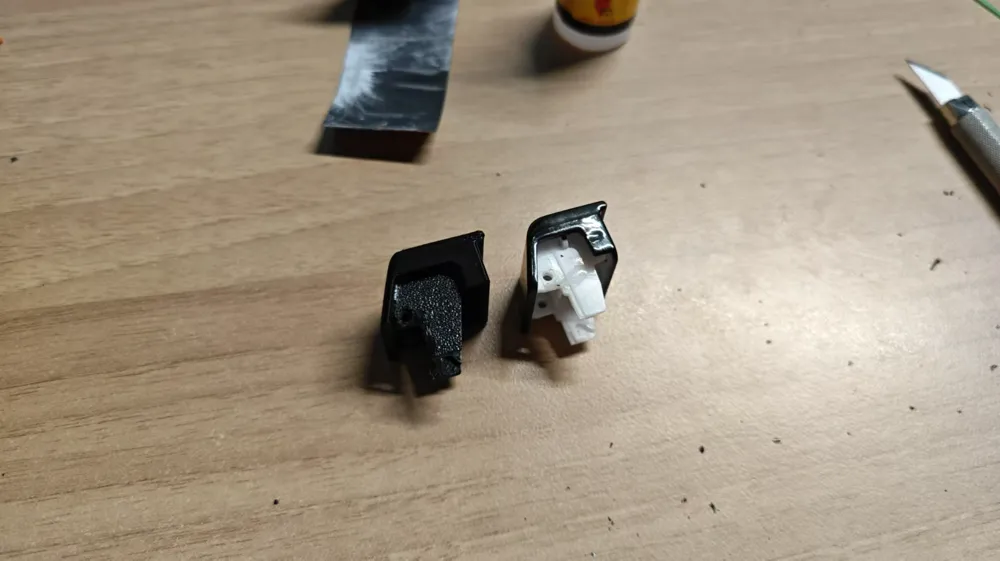

Adhesive Application (502 Glue): The slot may not fit properly, just use a knife to trim it if needed.

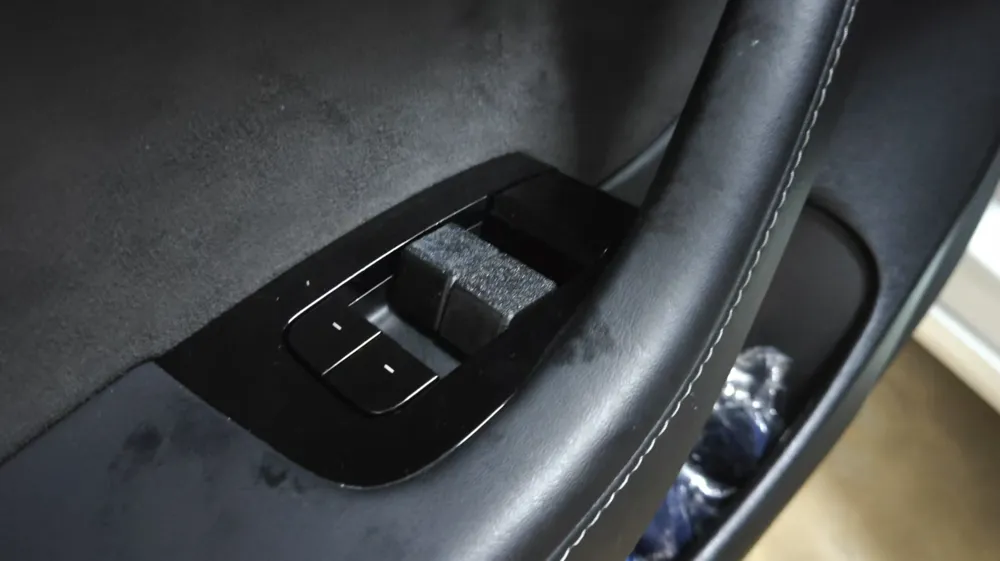

Reassembly: Be careful not to crack the base lugs.
