F18 AOA indicator
Print Profile(1)
Bill of Materials
Description

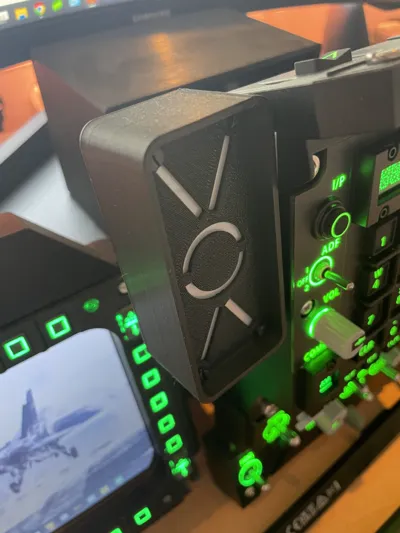

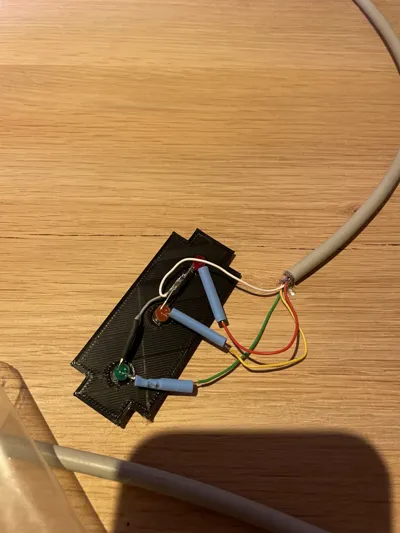

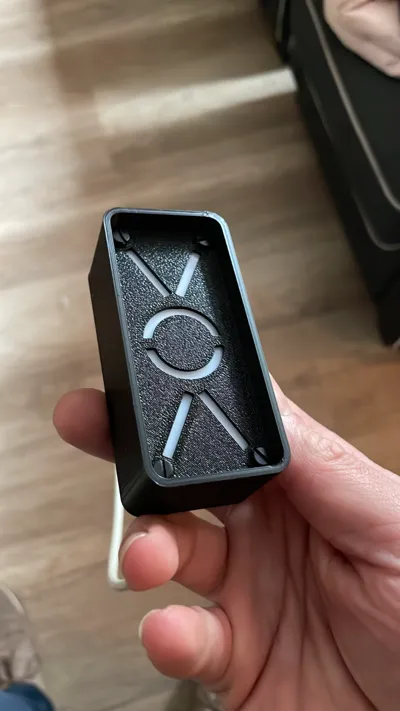

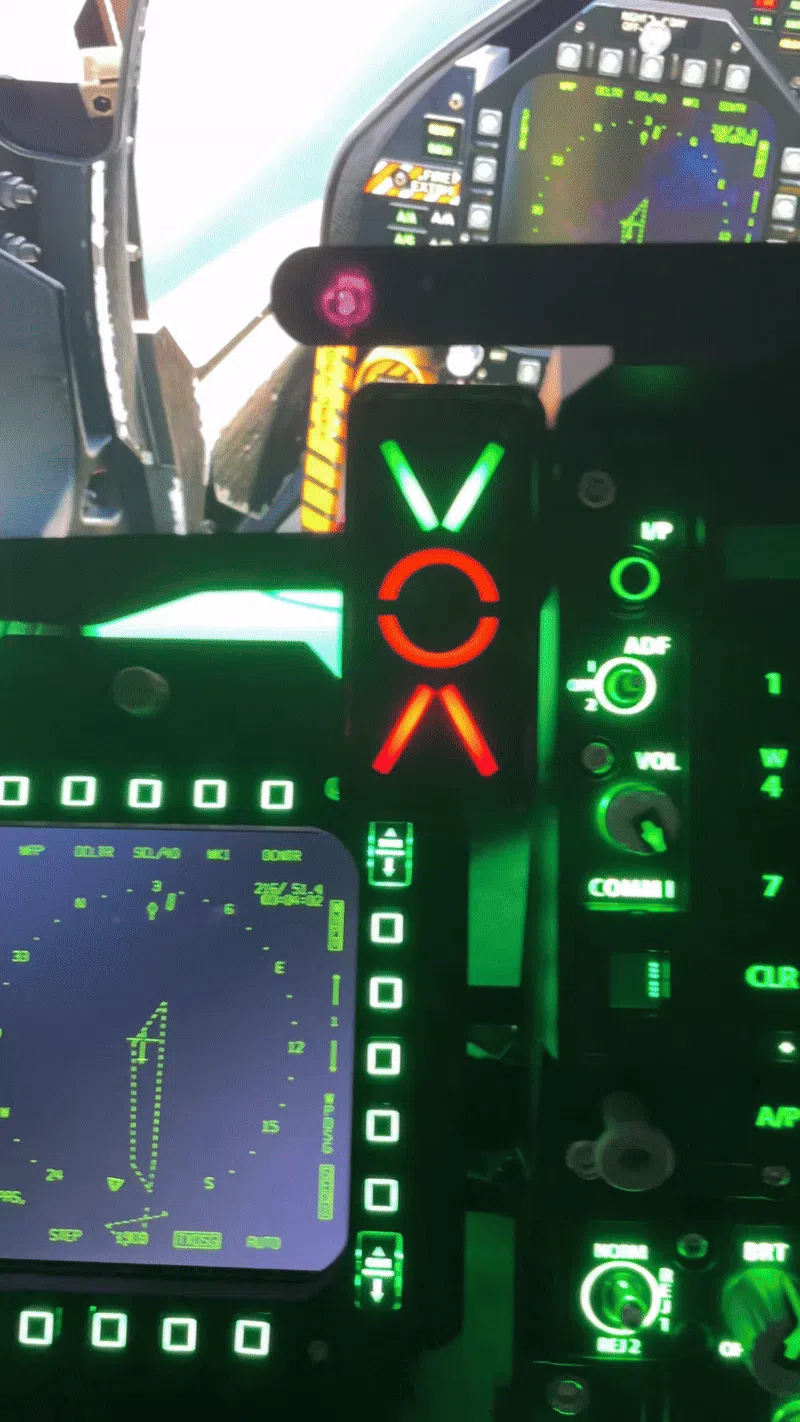

This is the angle of attack indicator of the F18 hornet. I build this for my home simulator and it works like a charm. It is printed in 3 parts. The housing, the AOA indicator and the ledholder. You have to glue the LED holder to the AOA indicator. I build 3 (5mm) leds into the led holder in the colours (red, green and orange). I connected these to an Arduino to make it work. I also glued 3 white acrylic plates on the back of the AOA indicator plate to spread the light a little better.
What you also need:
- 4x. M3x16
- 4x. Brass insert m3xL6xD4
- 3x. 5mm led
