Description

Chamfer cutter made for accu drill. Used standard blade for hand cutter and suitable for various pipe diameter and various pipe material (PP, PVC…). You are able to chamfer the pipes from 20mm up to 60mm.

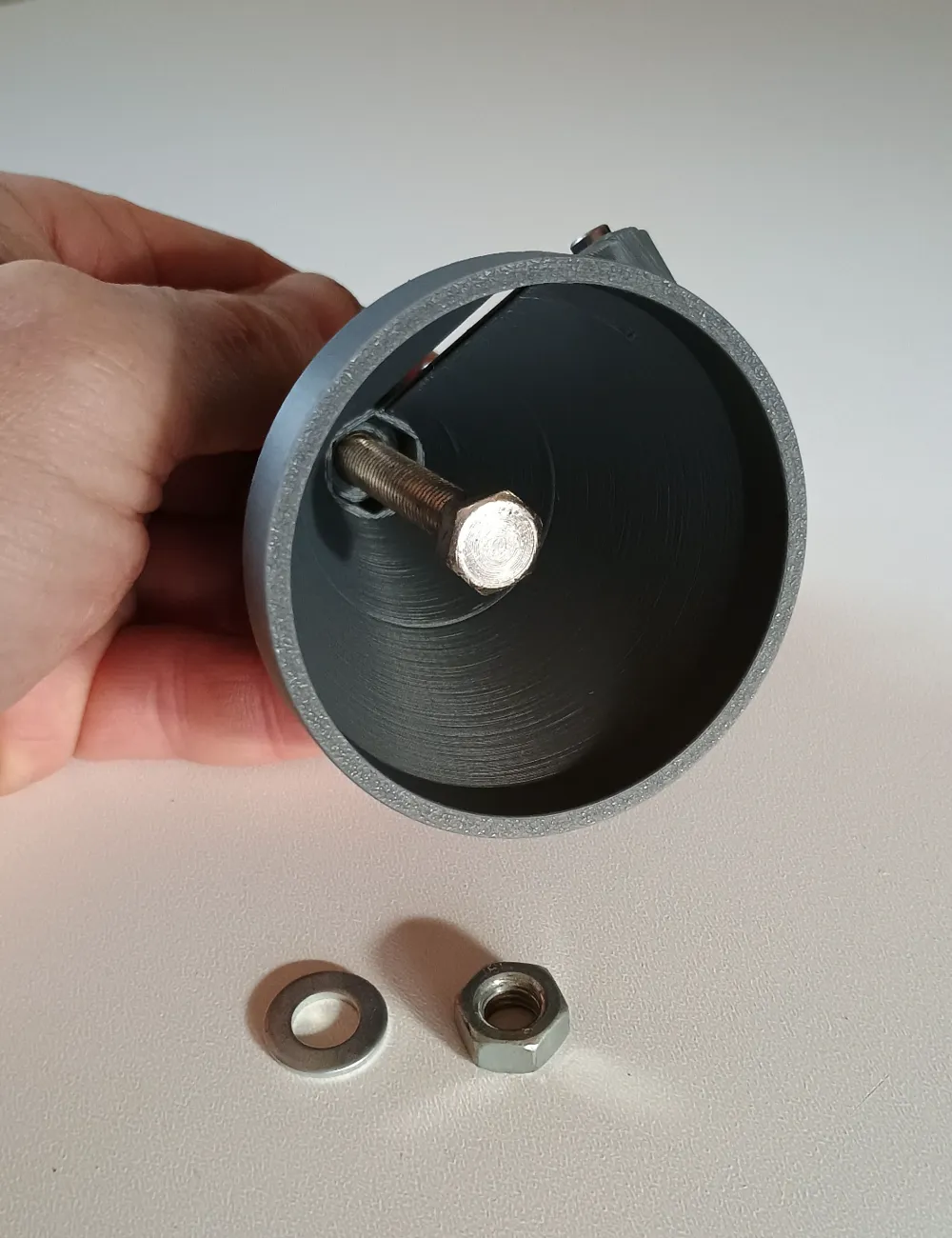

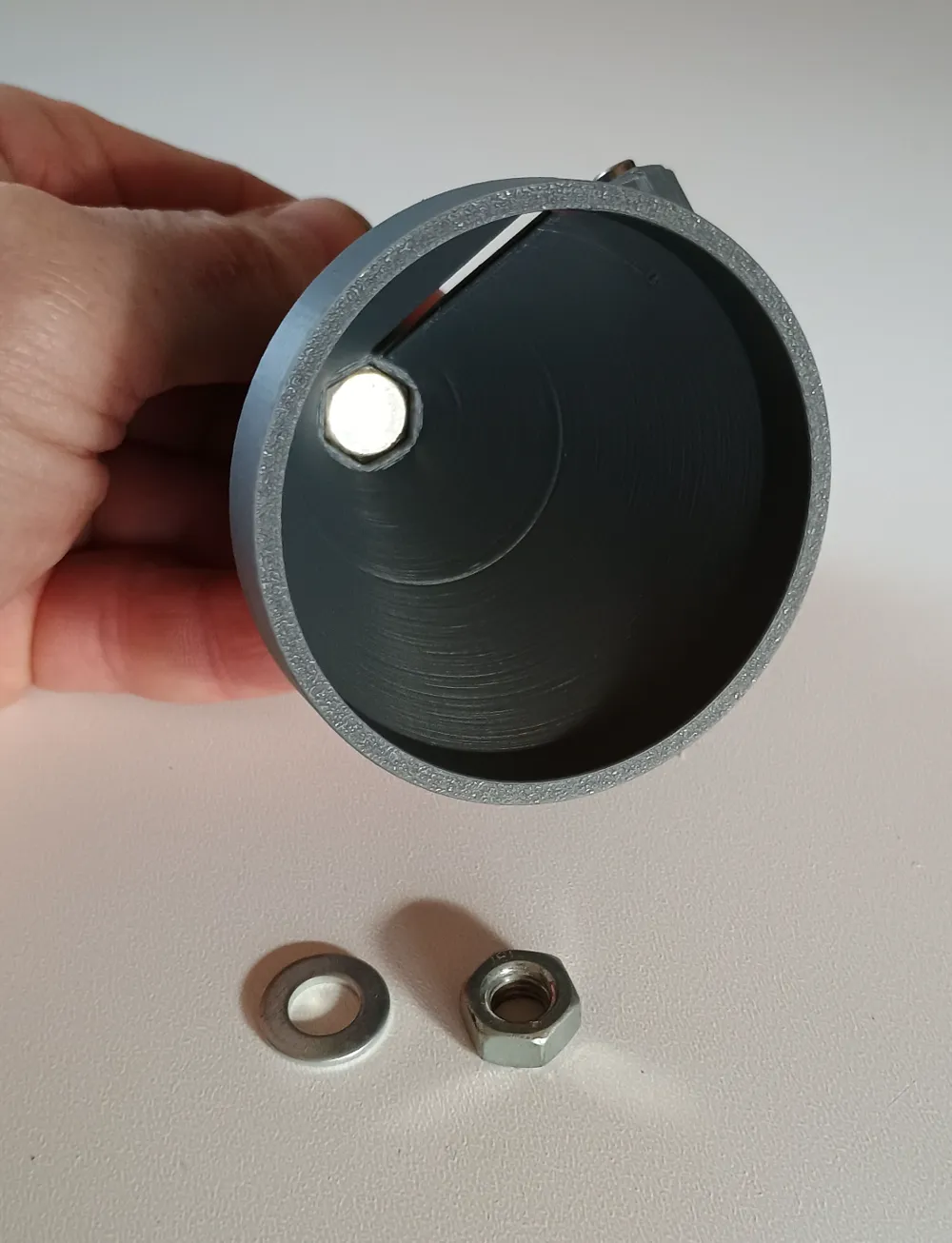

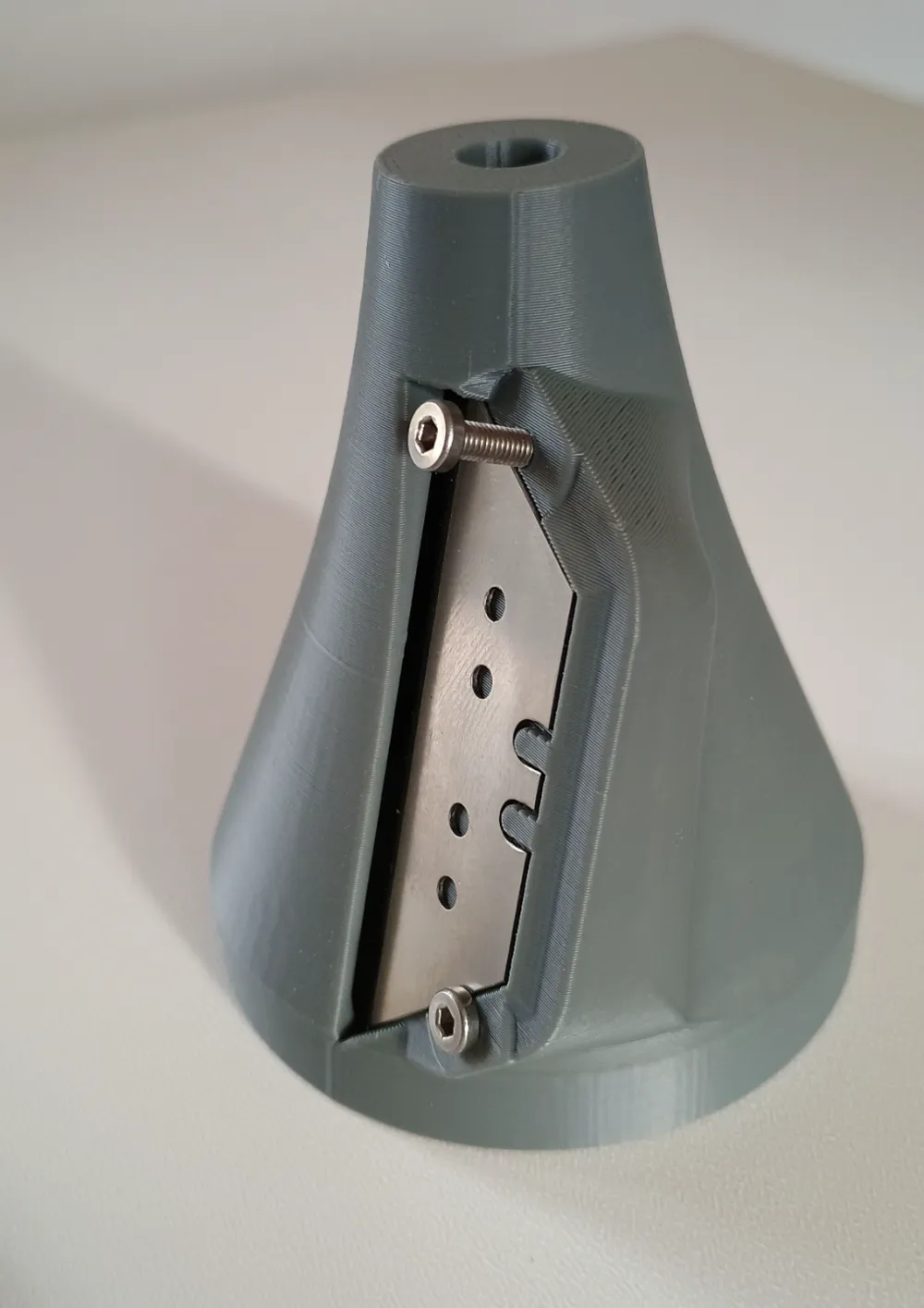

Shaft is the HEX screw M8x45 (40-60mm lenght), washer and nut M8. Blade is fixed by two M3x10 screws.

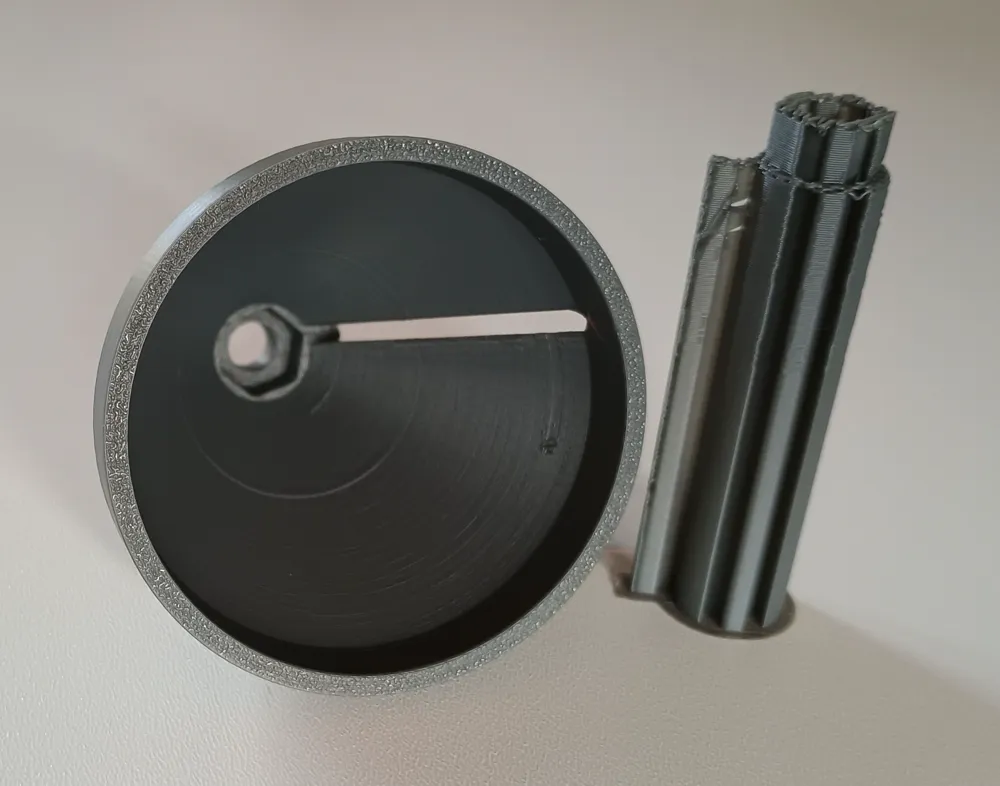

Printed with PETG with supports. The cutter I printed repeatedly with PETG for my friends and still solid for many years.

Tip:

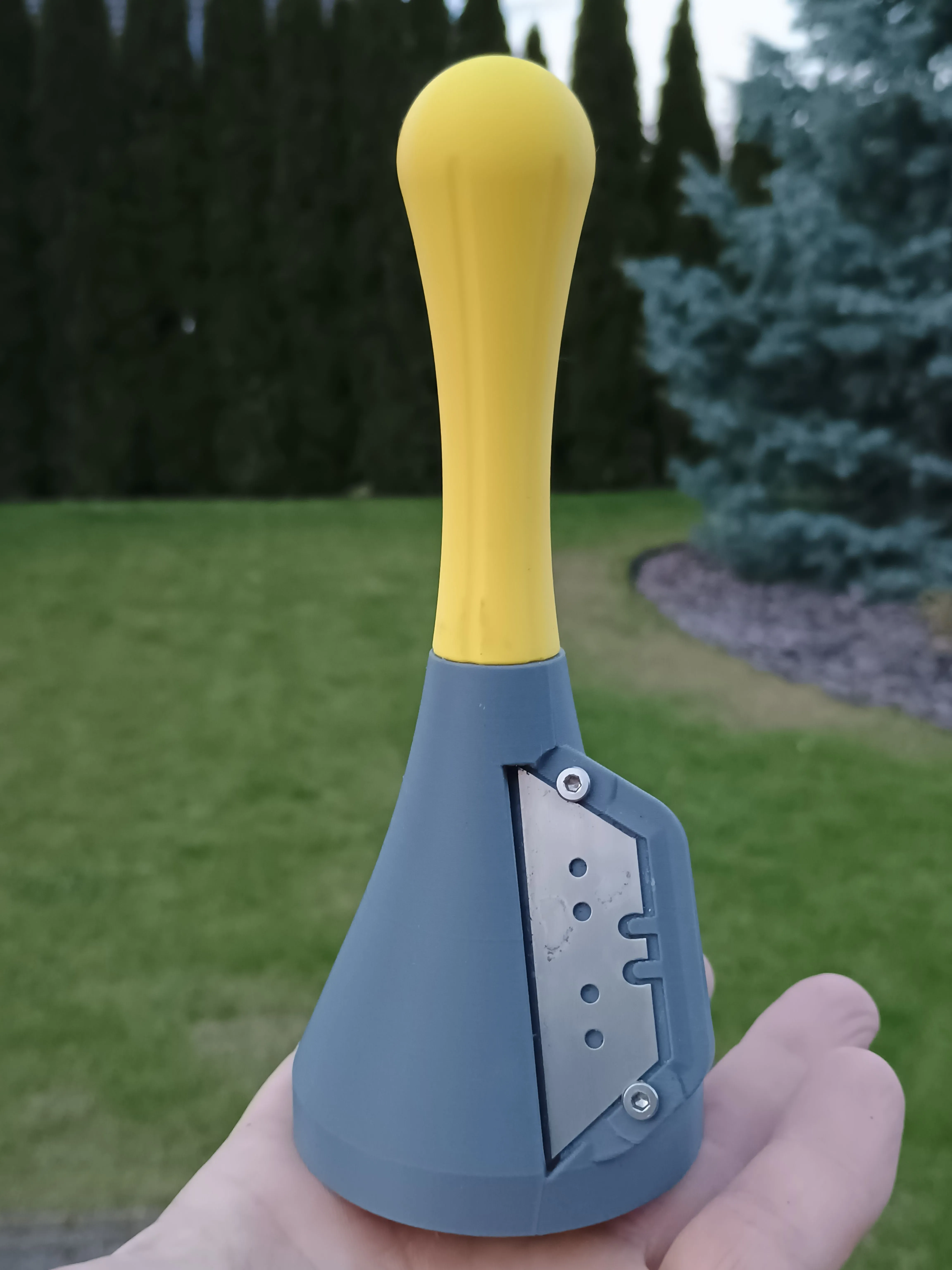

Inspired by @Nibelungen has been added print profile for handle so you can use it without a drill machine.

For KG 110mm pipe you can find the modification here https://makerworld.com/en/models/2959267-chamfer-cutter-for-110mm-kg-pipe#profileId-3316810
