phone holder for New Holland tractors

I created this simple phone holder to mount in the cab of my New Holland T5070 tractor.

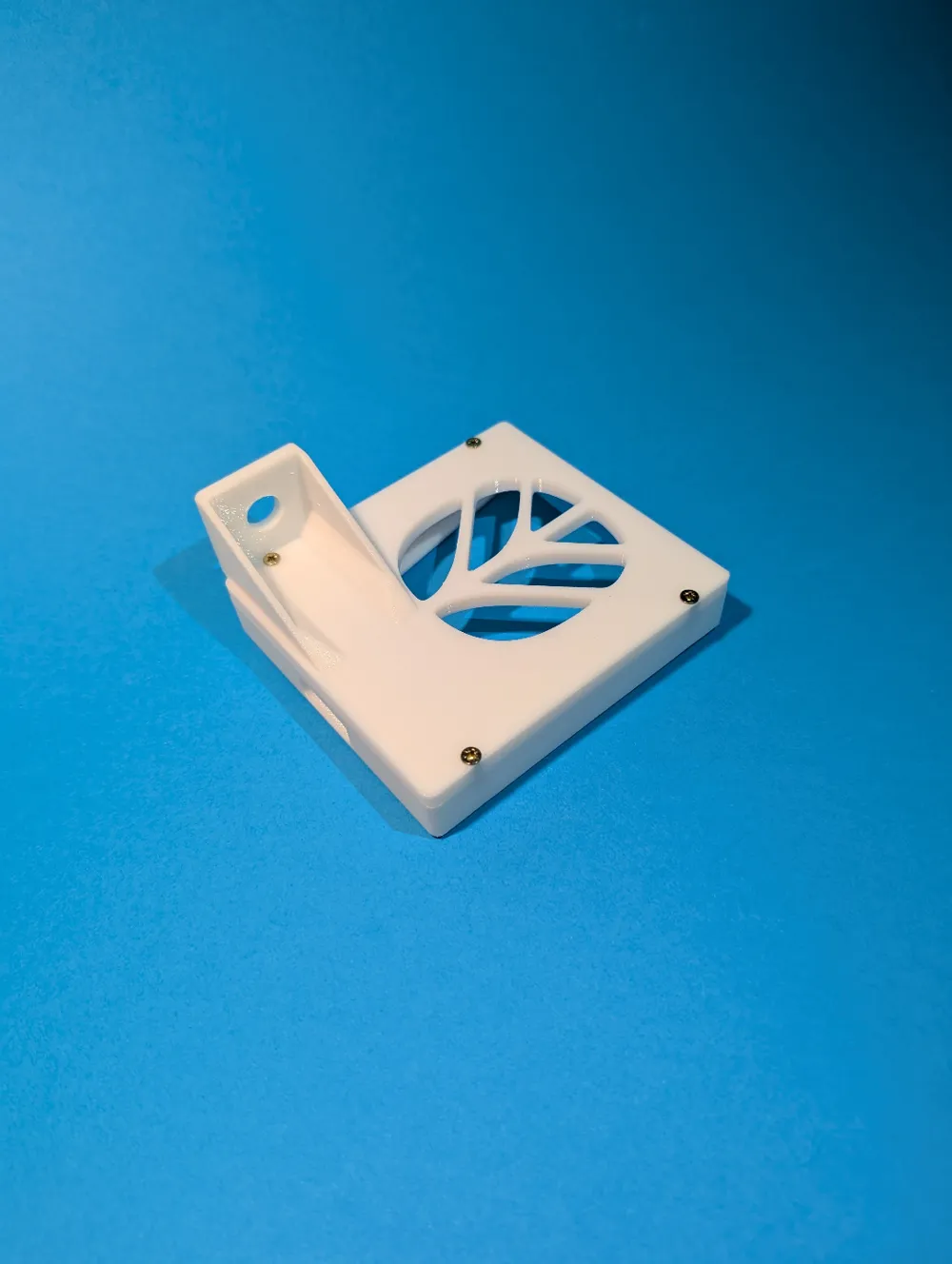

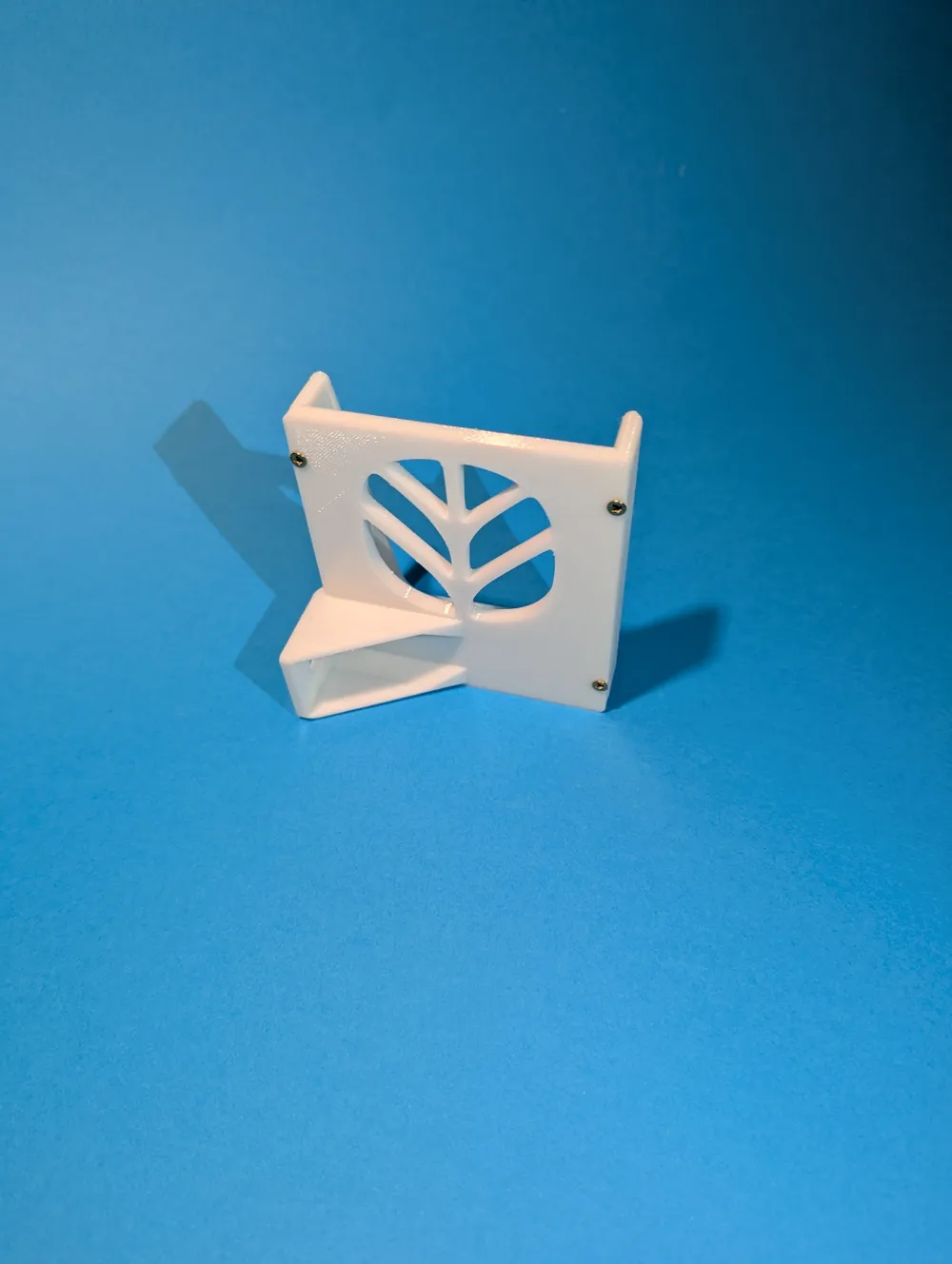

The design is very simple and easy to print. To make printing even easier, the model consists of 2 parts that are assembled with 4 small screws. (2.5mm wood/plastic screws, min 8mm/max 18mm long)

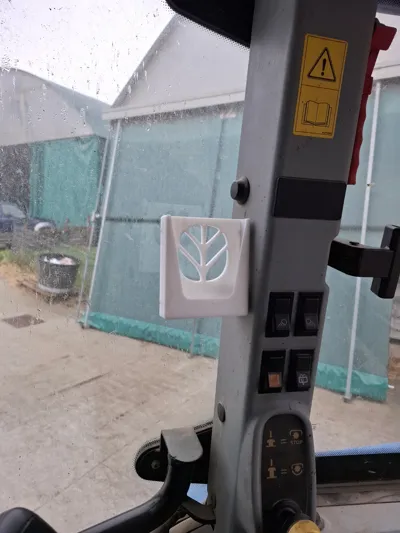

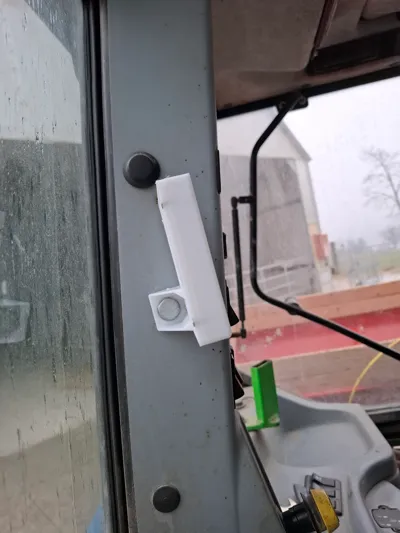

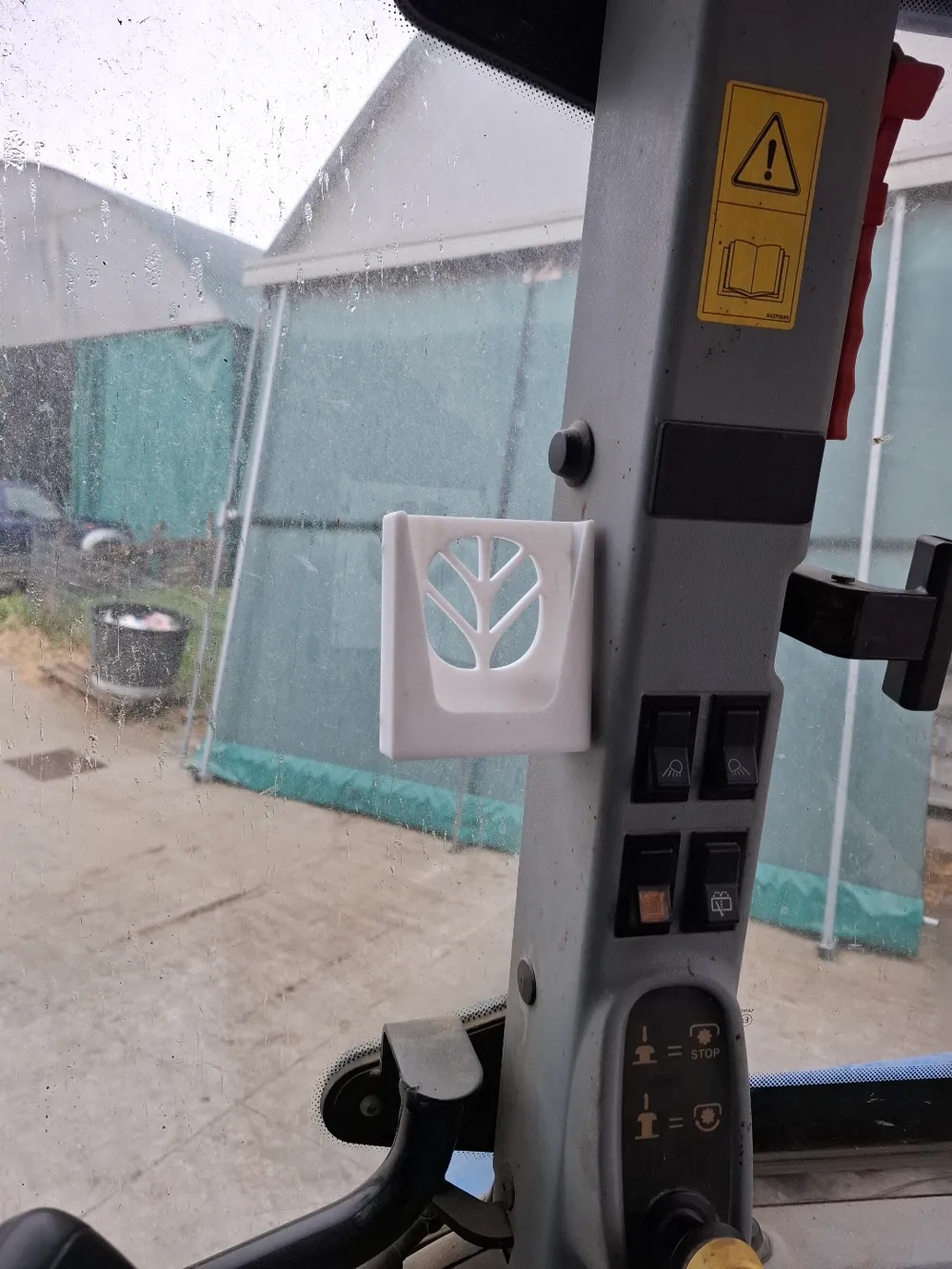

The phone holder attaches to the right-hand pillar of the cab via an M10 bolt from the tractor's original equipment.

This accessory is compatible with several New Holland tractors equipped with the same cab as mentioned above. (Alternatively, it can be screwed onto any bracket with an M10 thread)

It is advisable not to print this item in PLA to prevent damage from the sun.

p.s.

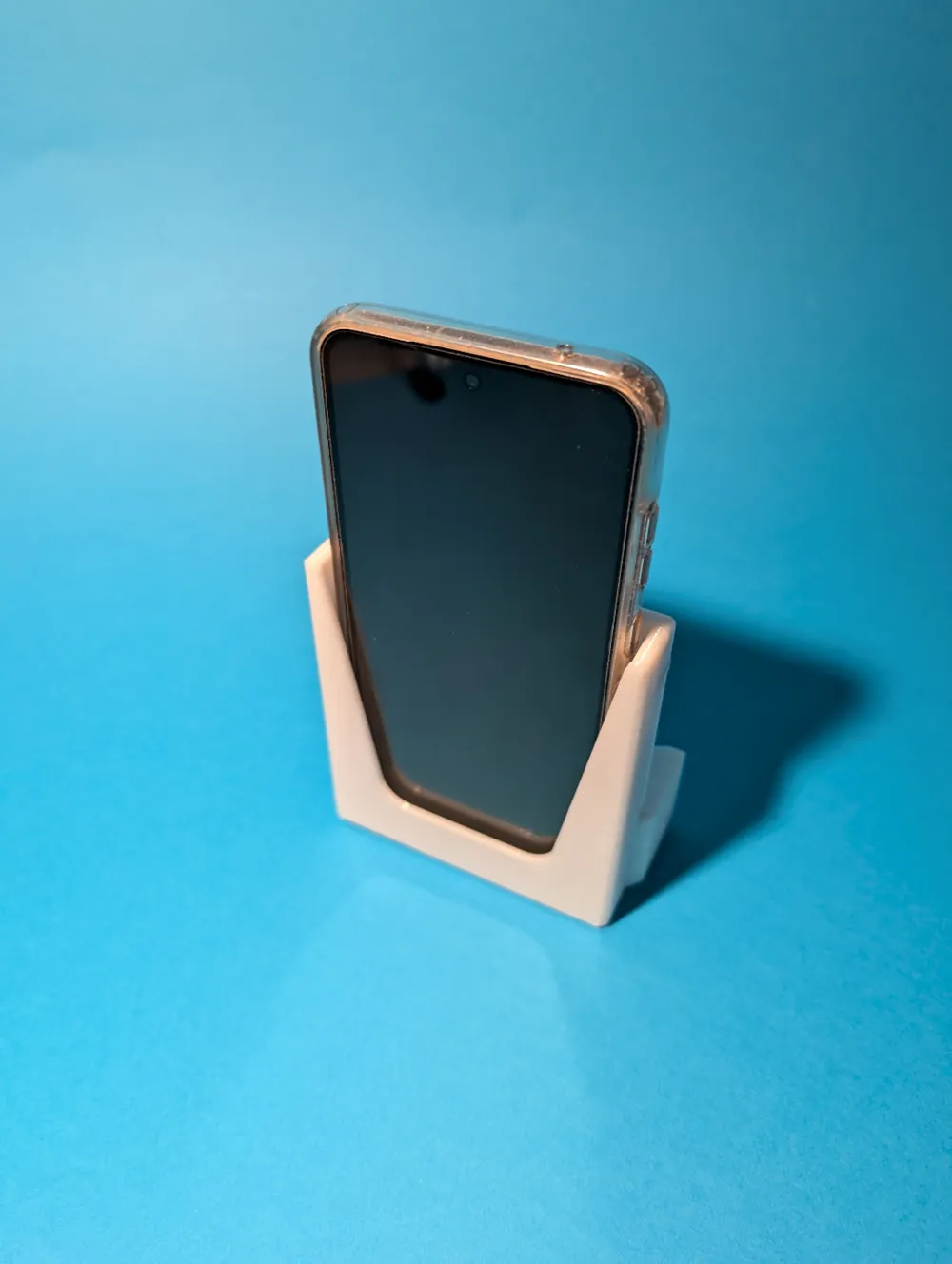

Being completely rigid, I designed the phone holder to the dimensions of my Samsung Galaxy A55, it can also accommodate many other phones, but before printing this model check if it is compatible with yours.

In the future, I might create a larger version.

Internal width     84 mm

Internal thickness    14 mm
