Teufel Home Theater Speaker Mount

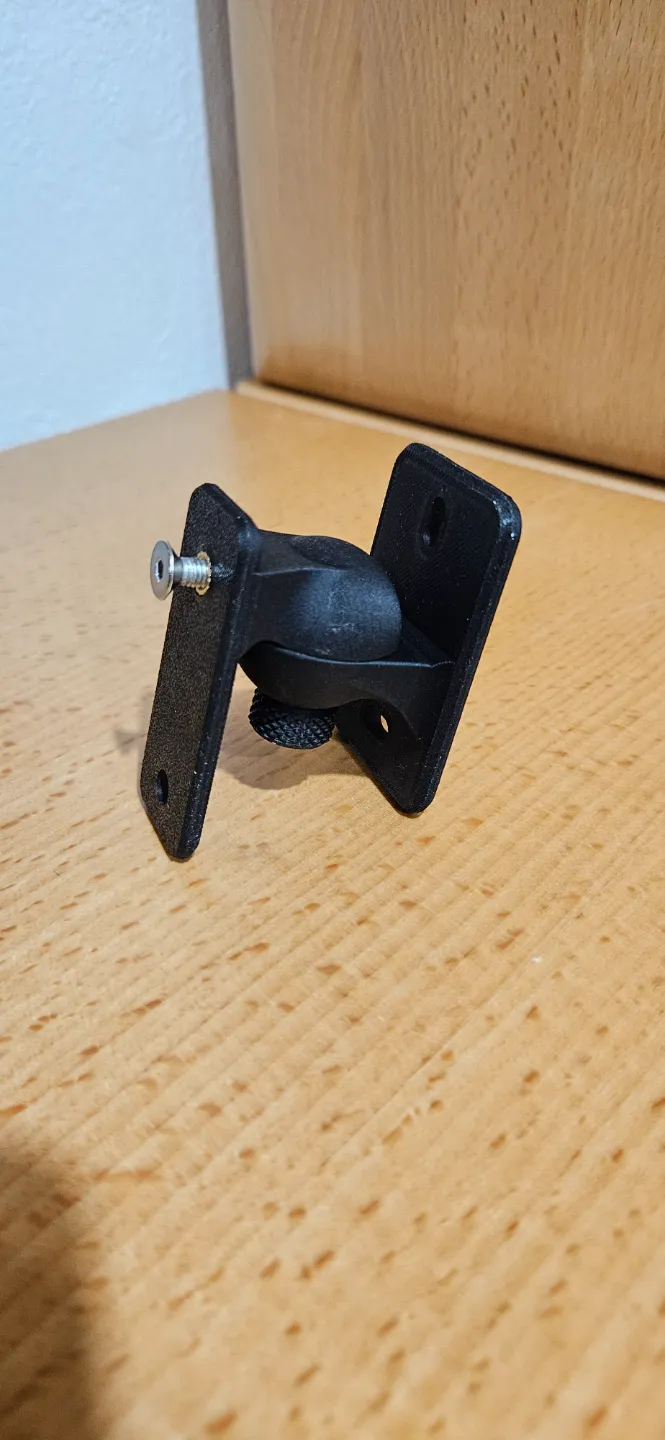

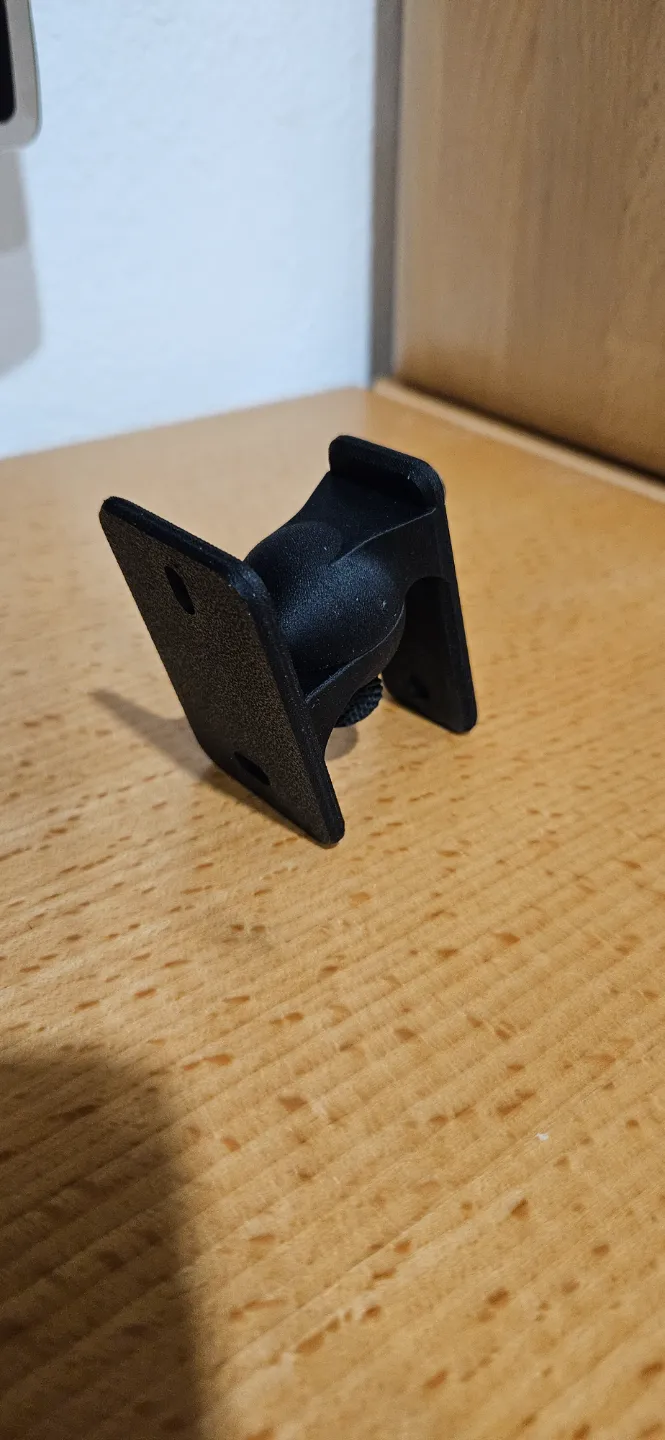

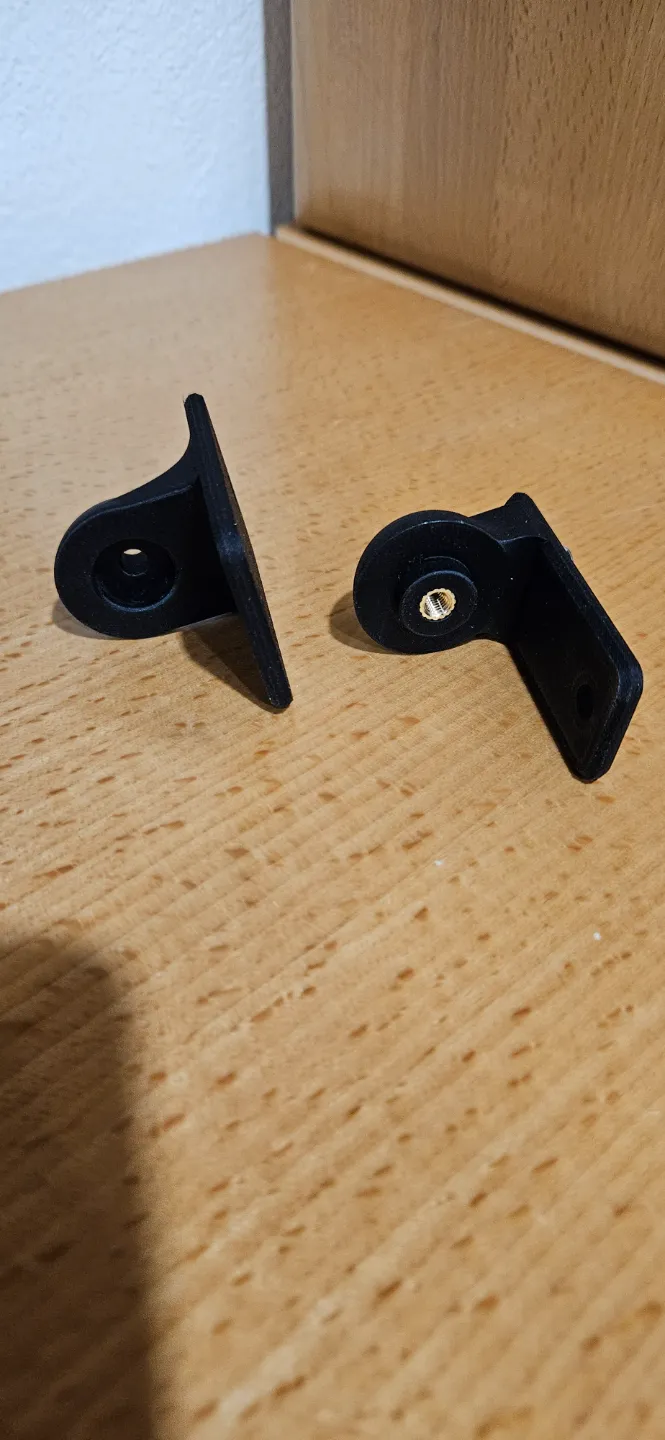

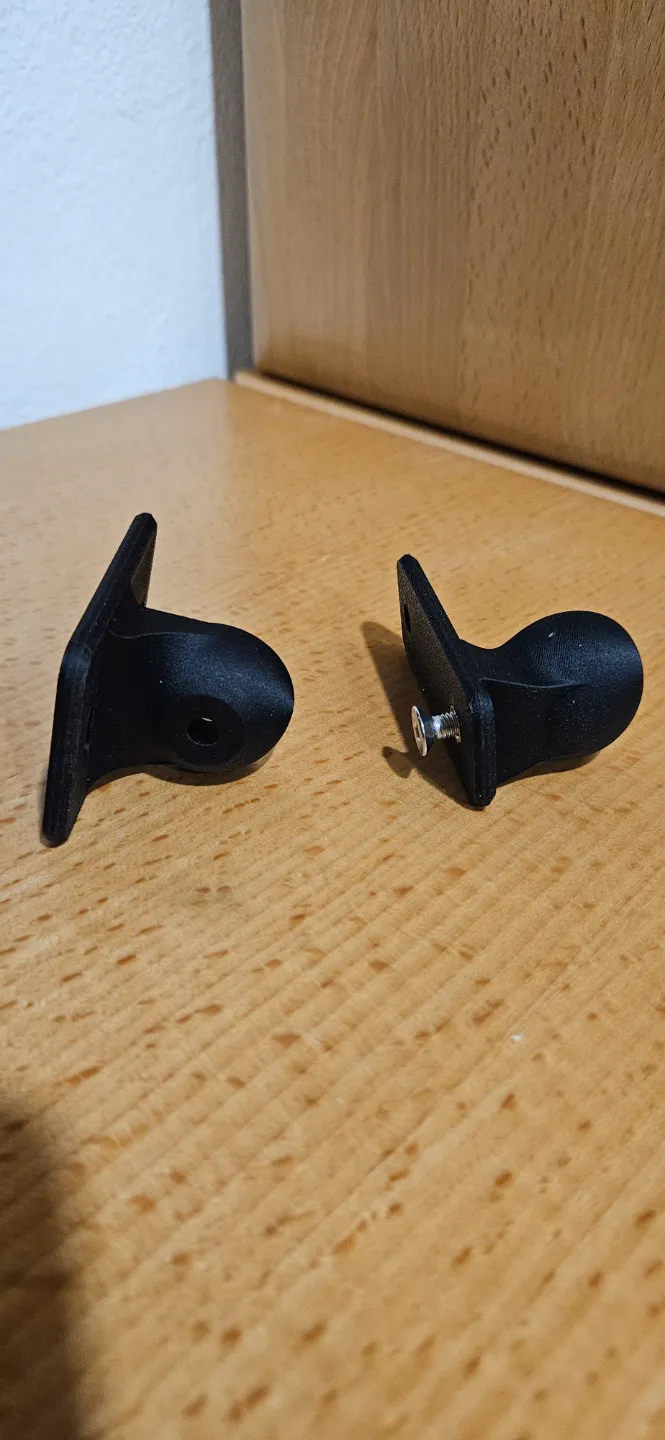

To wall-mount my home theater speakers, I designed these mounts with adjustable angles.
Printed in PLA-CF, other materials are equally suitable.

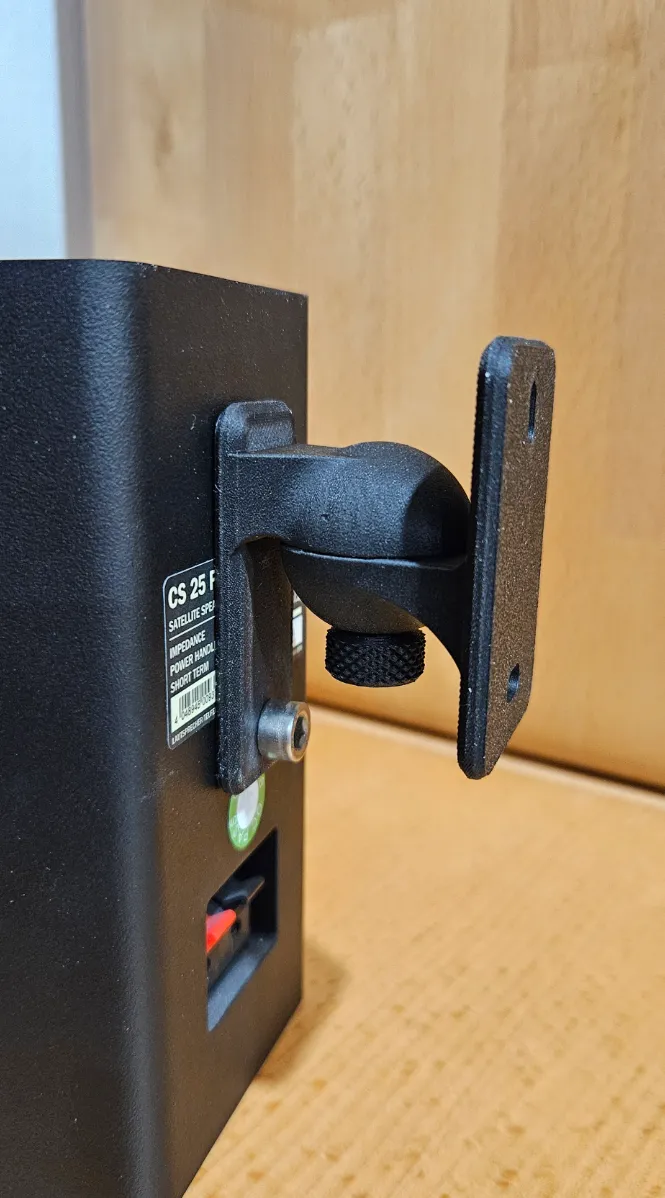

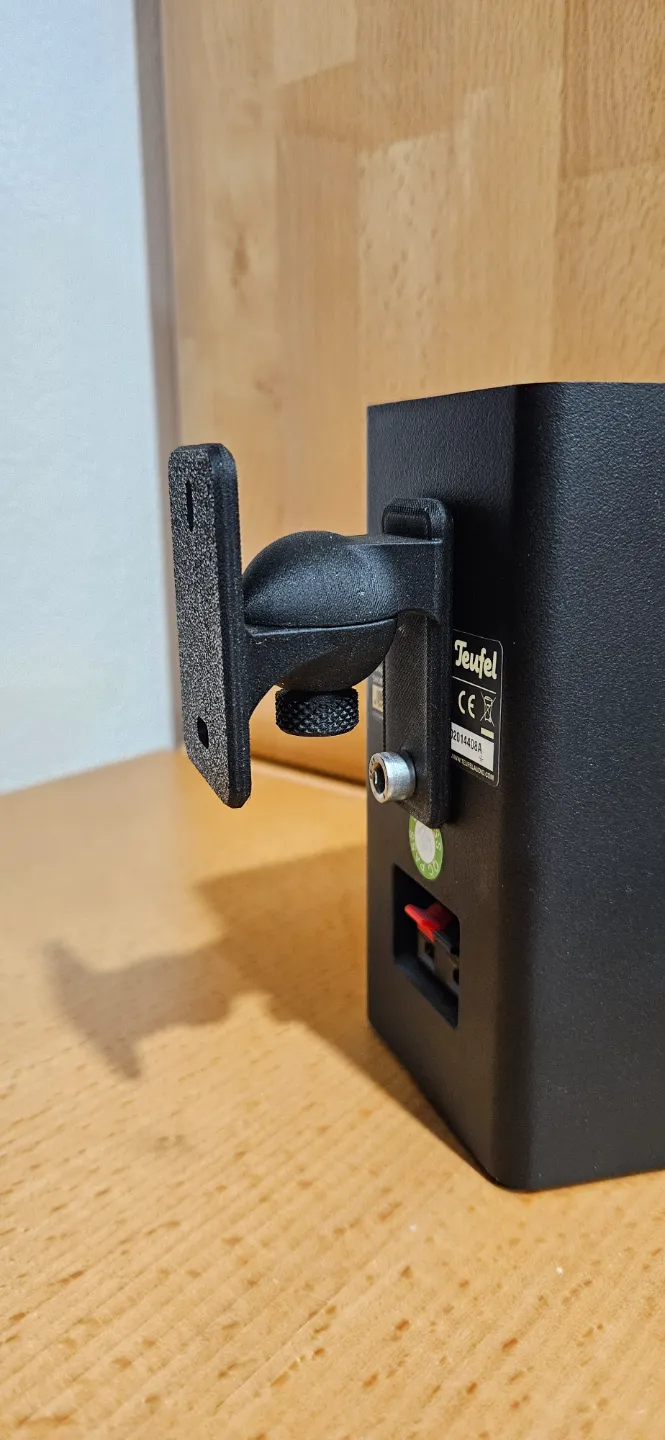

The mount is adapted to the CS 25 FCR Mk3 speaker model, so I don't know if other models can also be bolted on.
Assembly requires:

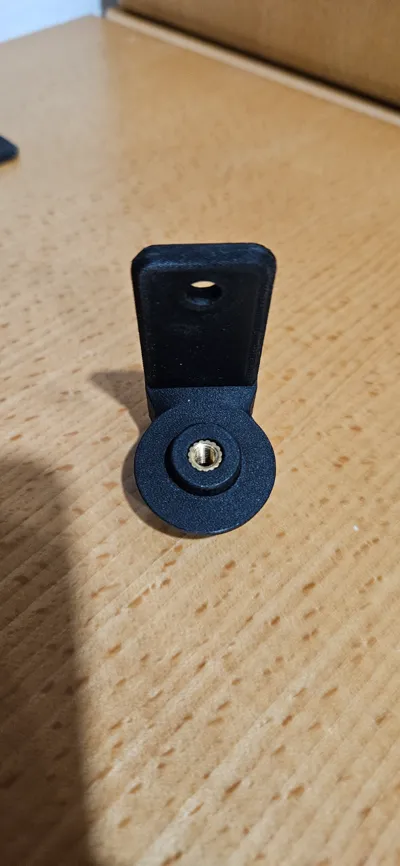

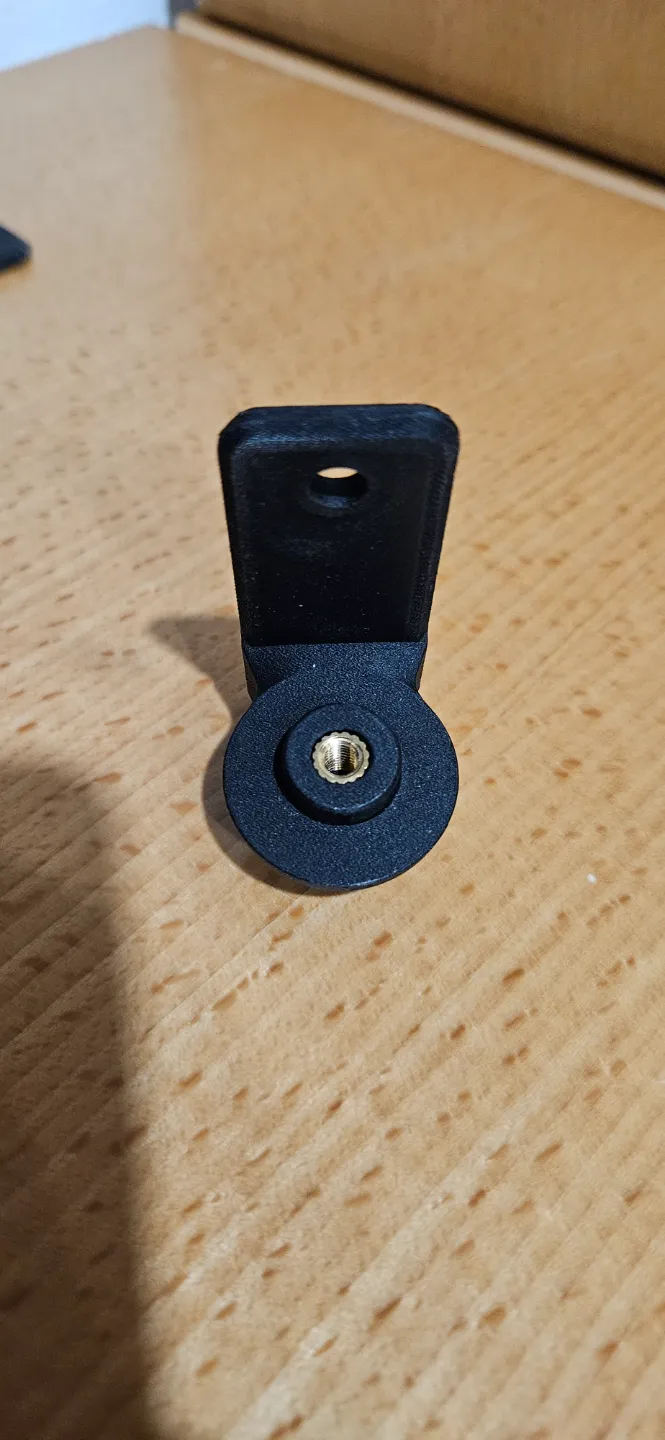

2x M5 threaded inserts

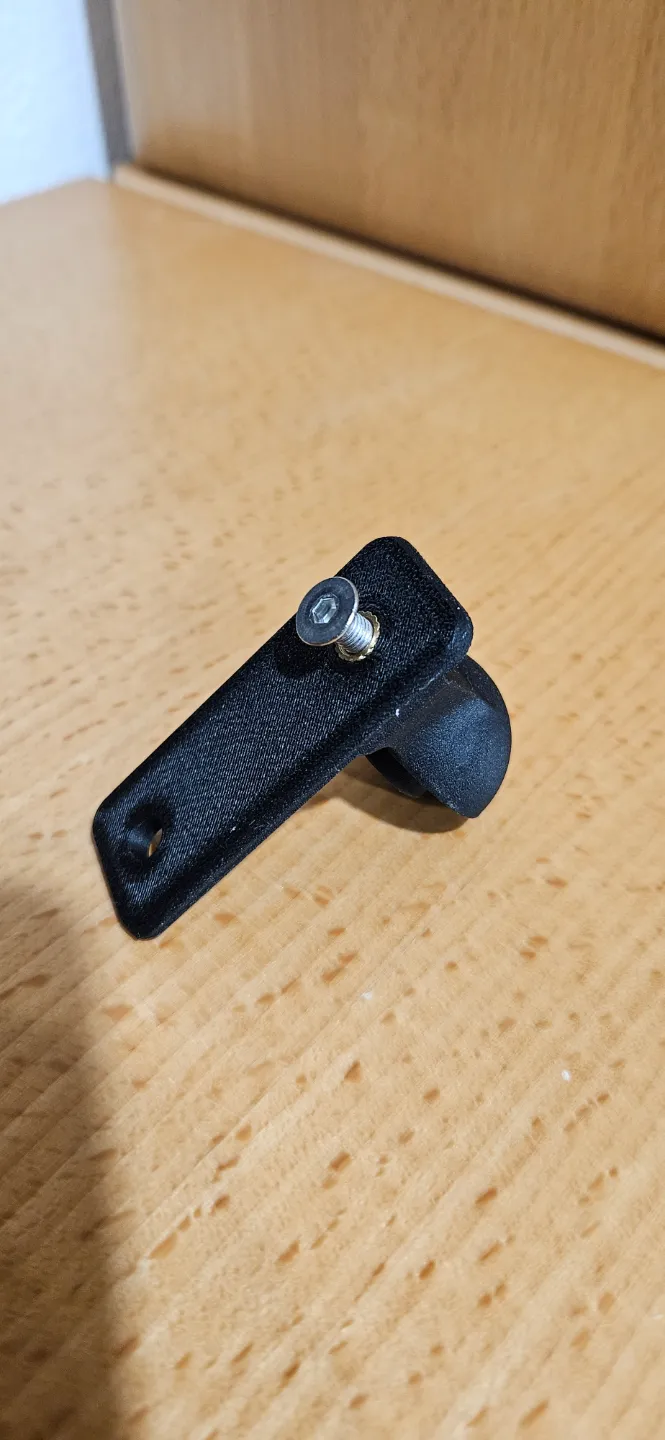

1x M5x10 countersunk screw
1x M5x16 hex screw
1x M6x20 cap screw
I used a head cap for the hex screw to allow for easy hand tightening and loosening.
I used a random one from Maker World.
