Pogo pin test probe for multimeter

This is a test probe designed for multimeters, compatible with pogo pins available in various shapes.

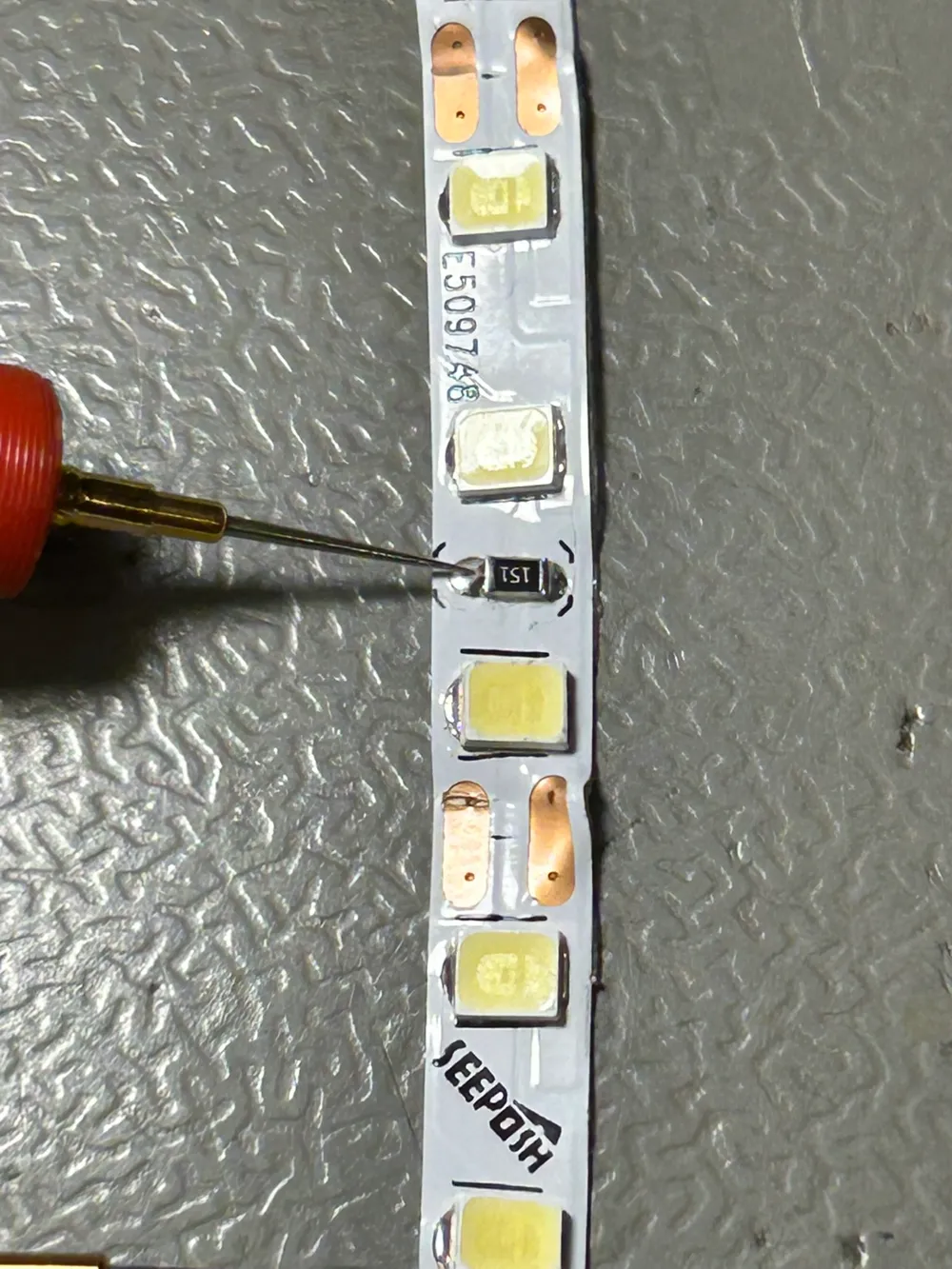

I wanted a probe that could accommodate pogo pins, making it ideal for troubleshooting electronics with small SMD components. Using a sharp needle pogo pin ensures secure contact and prevents the probe from slipping off the measurement point.

The pogo pins used here are 48mm long with a 1.6mm diameter, and the tube/socket dimensions are 2mm x 49mm (from Ingum).

You may need to modify the model to fit your specific pogo pins.
