Double Din Radio Bracket Toyota Matrix 03-08
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 25% infill, 100% infill bolt holes
Designer
2.1 h
1 plate
Open in Bambu Studio
Boost
25
54
7
2
70
40
Released
Description

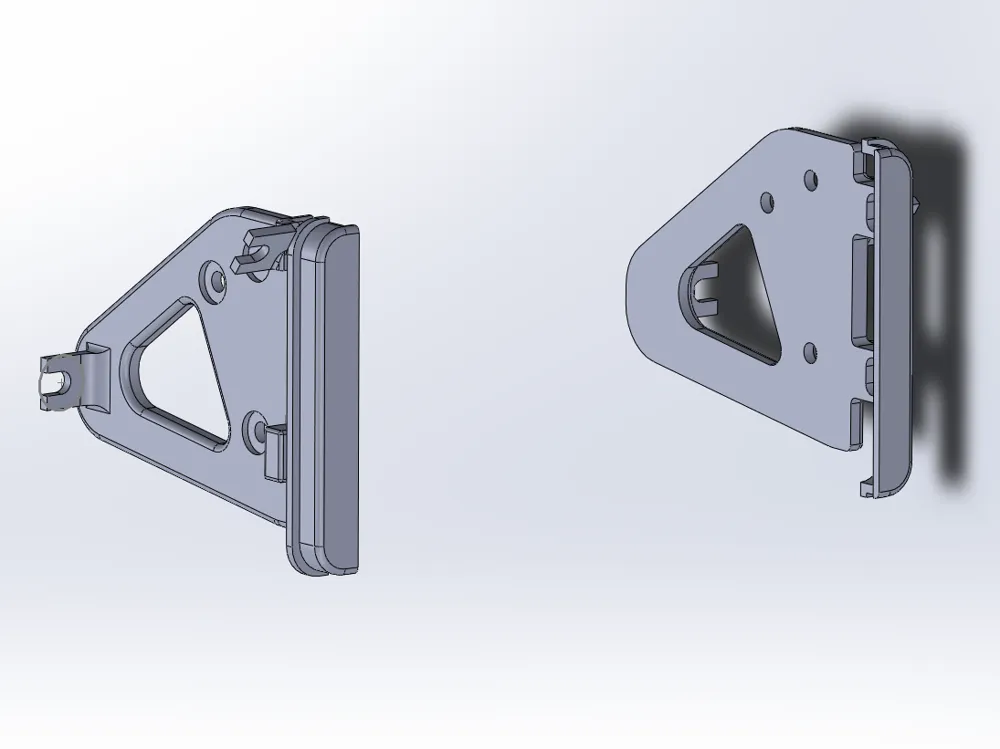

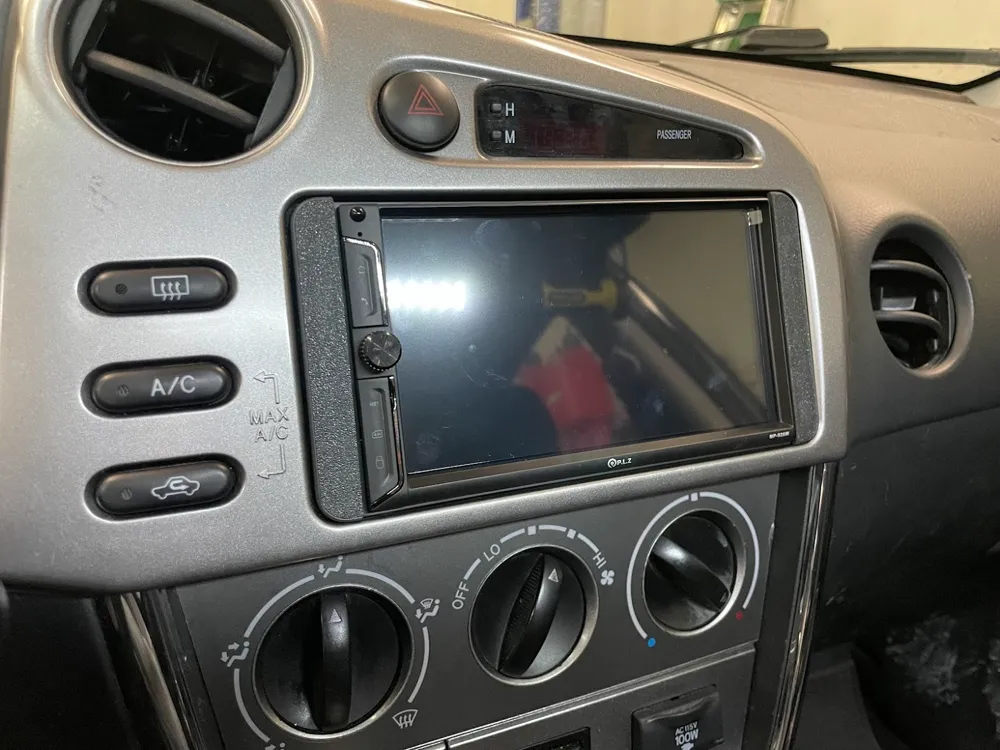

This print allows mounting of a double din radio in an 03-08 Toyota Matrix WITHOUT the stock radio mounts. My car was missing the stock mount, making the cheap amazon kit useless. This was modeled for a cheap Chinese PLZ radio, but should be close for other models. Reach out if you need a variation and can't edit the provided 3d model files (SolidWorks 2019).

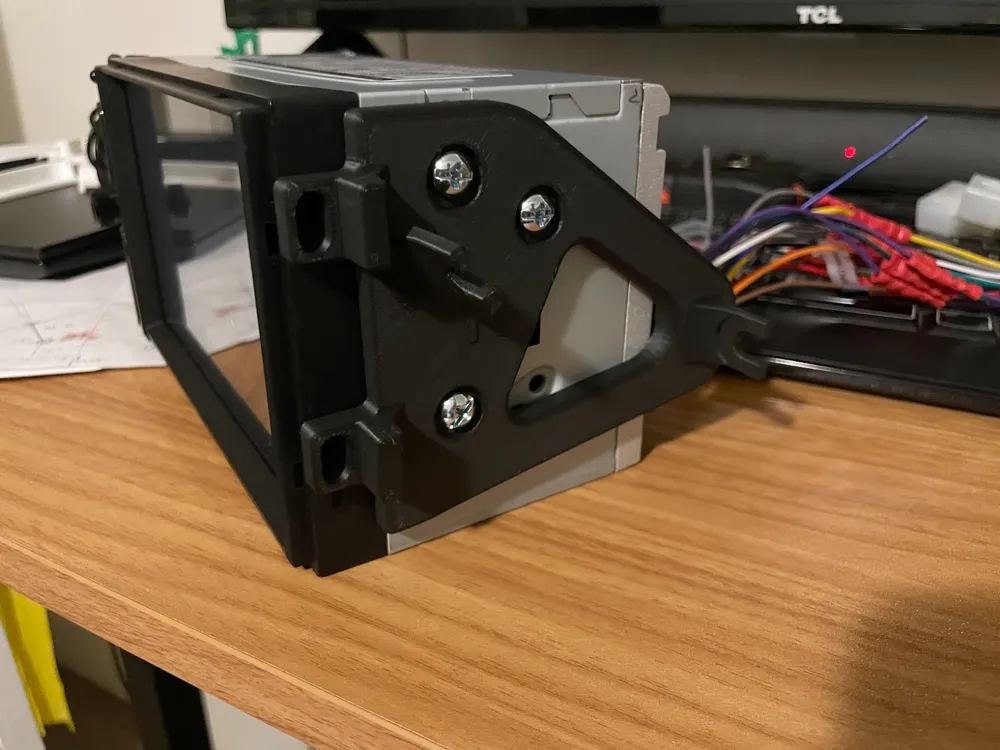

The side bezels must be glued on. Made printing way easier and I wasn't sure exactly how it would line up in the car vertically. I mocked it up with some soft elmer's glue, test fit, adjusted and then did the final gluing with super glue. So far so good!
This was my first 3d print model, so let me know if you see room for improvement!
