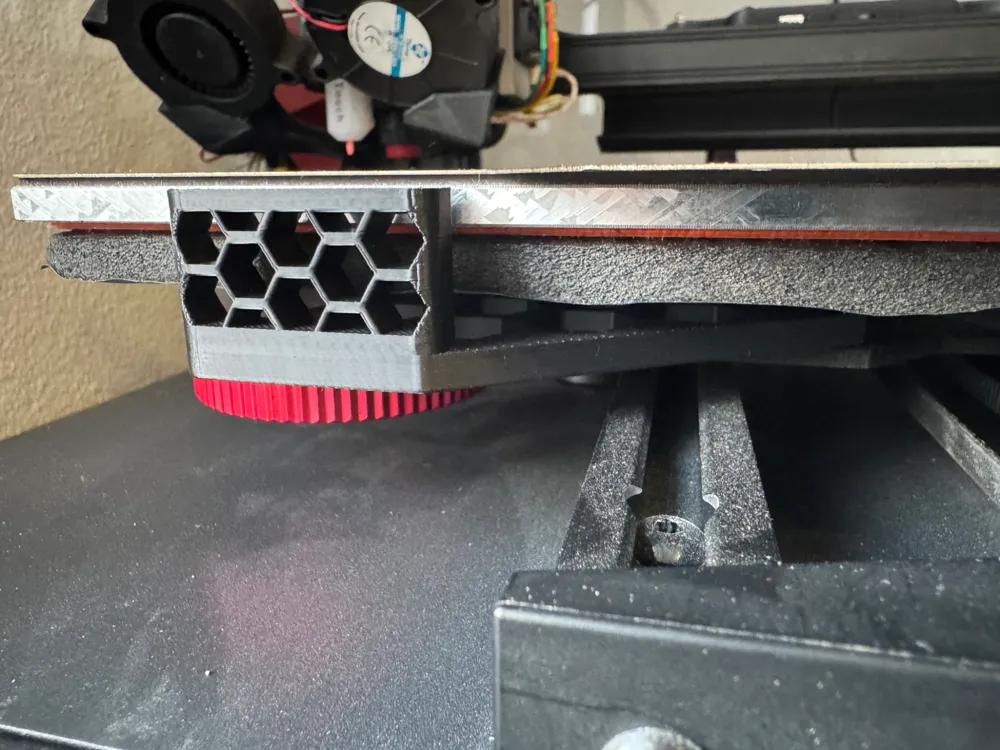

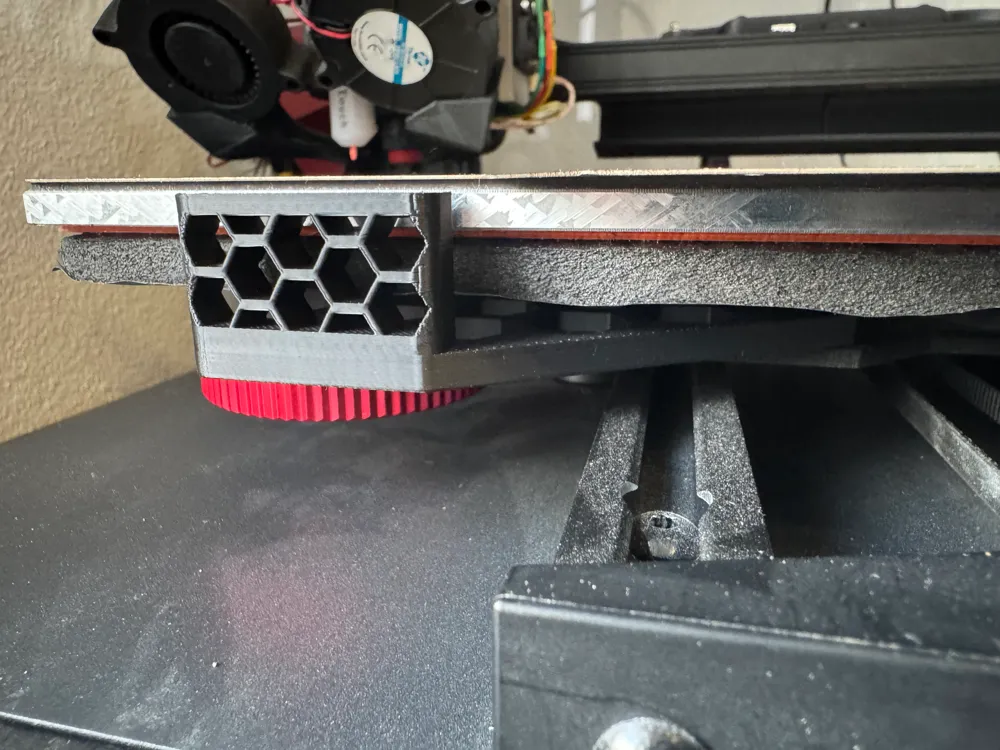

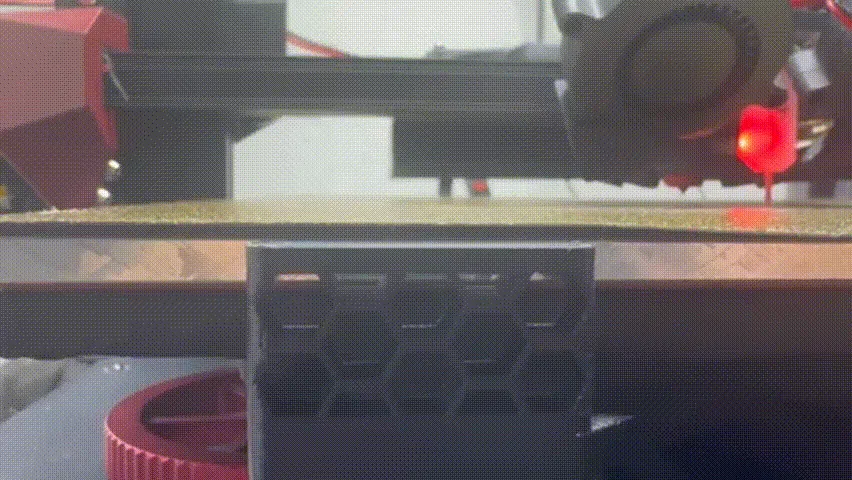

I have designed a nozzle cleaning tool for my CR-10 smart pro. It needs to be screwed to the heated bed carrier with 3 screws
A silicone part from the Bambu A1 model is placed on top, then the print bed may need to be adjusted higher or lower
I have added the start G-code in Orca Slicer
G1 F12000 X28 Y-5 Z6
G1 F2400 Z0
G92 E0
G1 F300 E30
M106 S255
G92 E0
G1 E5 F300
M109 S{nozzle_temperature_initial_layer[initial_no_support_extruder]-20} ; drop nozzle temp, make filament shink a bit
G92 E0
G1 E-0.5 F300
G1 X73 F19000
G1 Y-3.2 F15000
G1 X30 F15000
G1 Y-5 F15000
G1 X73 F15000
G1 Y-3.2 F15000
G1 X30 F15000
G1 Y-5 F15000
G1 X73 F15000
G1 Y-3.2 F15000
G1 X30 F15000
G1 Y-5 F15000
G1 Z3
M107
The silicone part has been ordered, a picture will follow upon completion
