Description

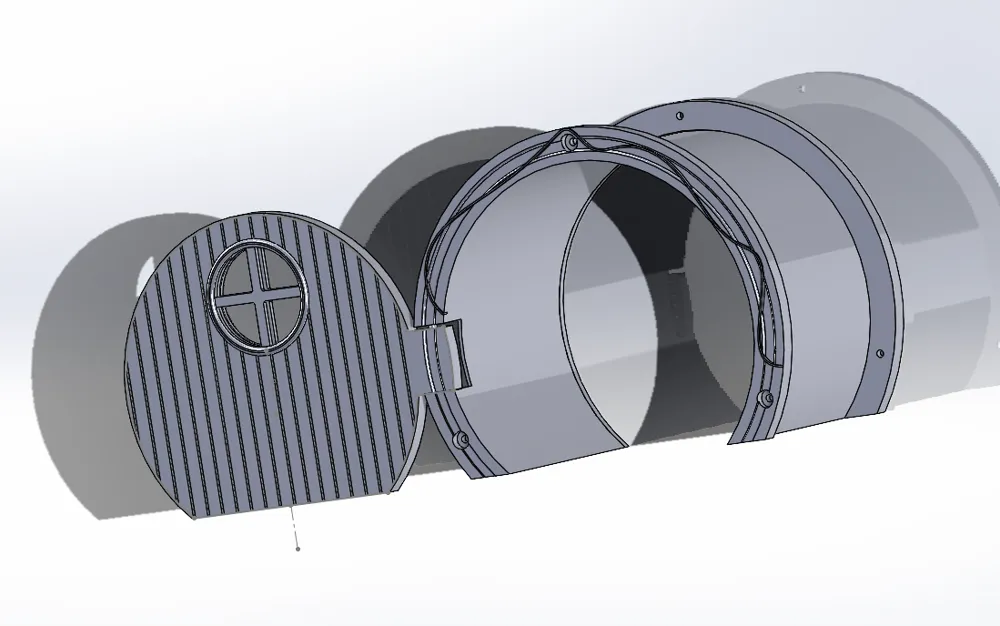

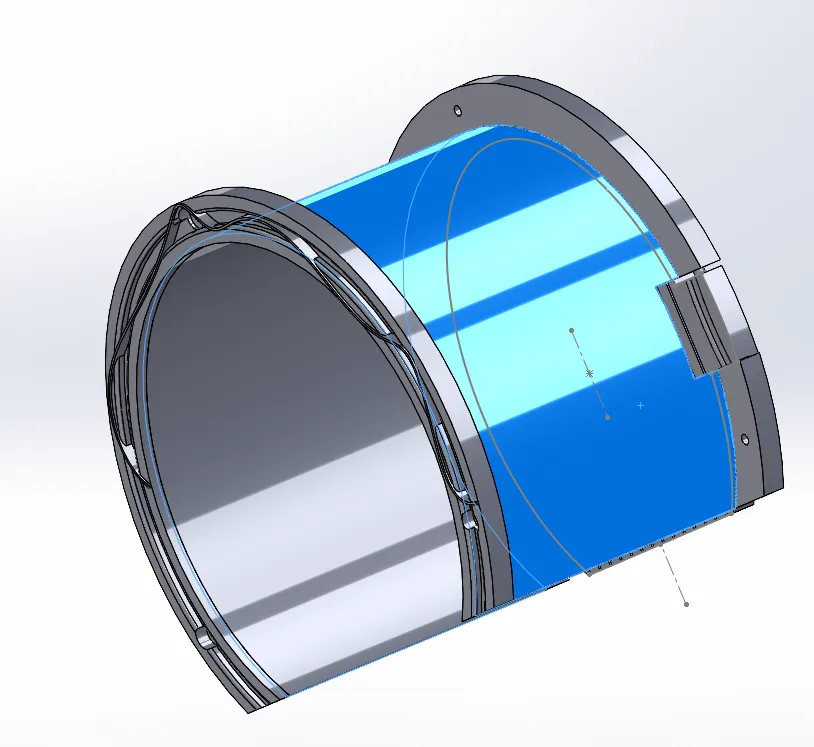

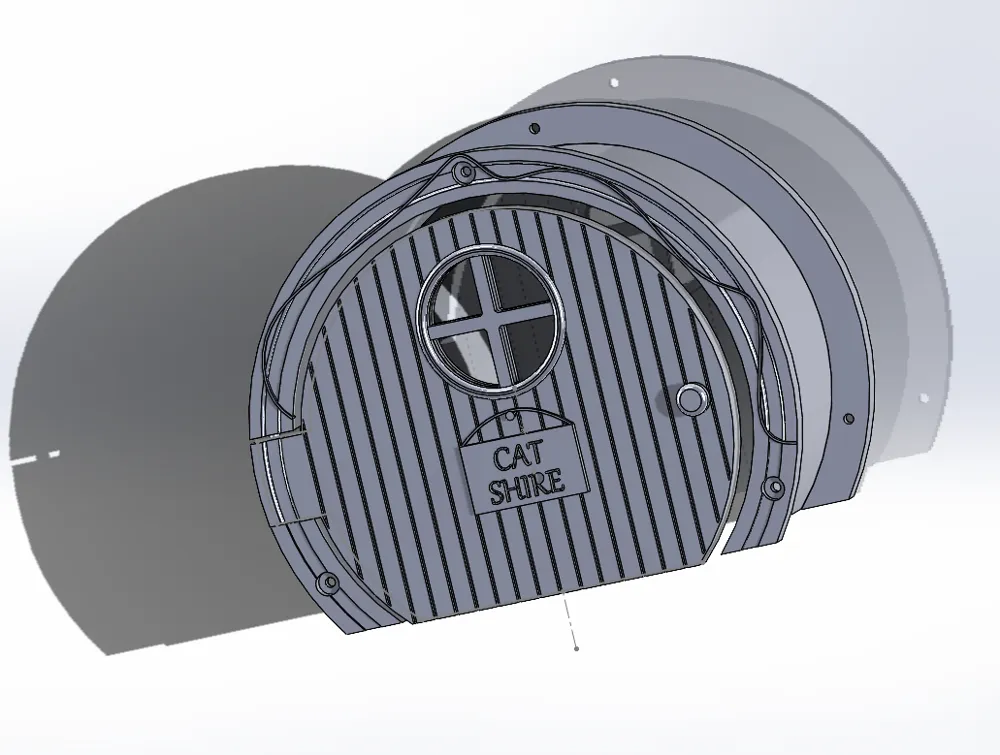

A cat door with a tunnel that is 133mm long. The door and tunnel is one print, the hinges for the door prints in place.

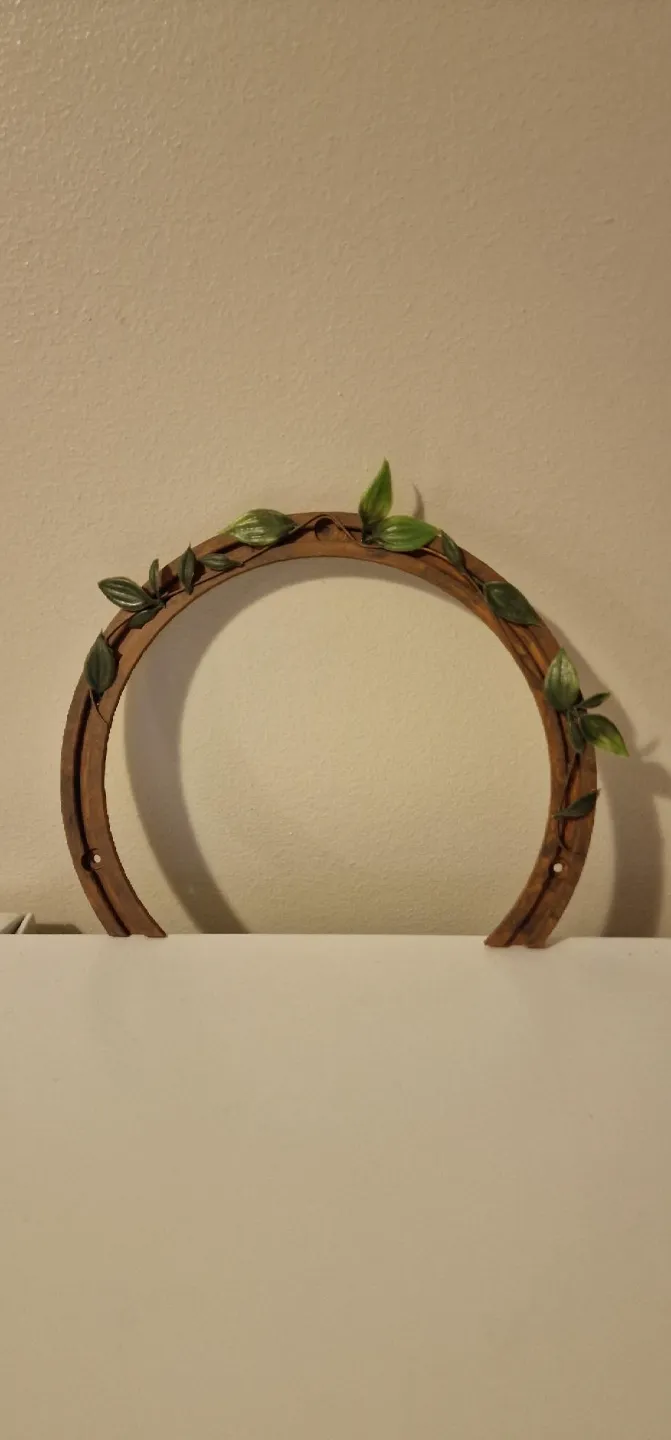

The frame for the other side is a separate print that will fit with the end of the tunnel. The frame and the door has 3 holes for screws.
-UPDATE!-
I have improved the hinge for both models 50mm and 133mm tunnels.
Thank you for commenting when there is something wrong with the model!

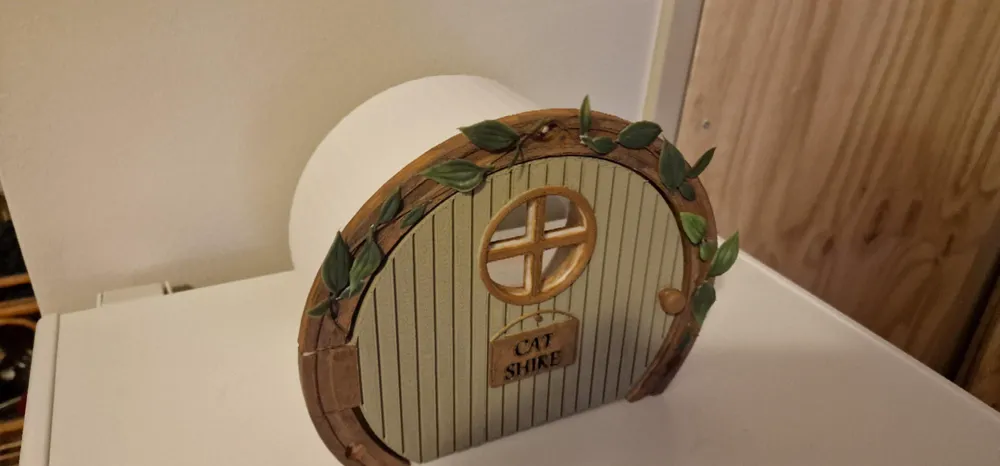

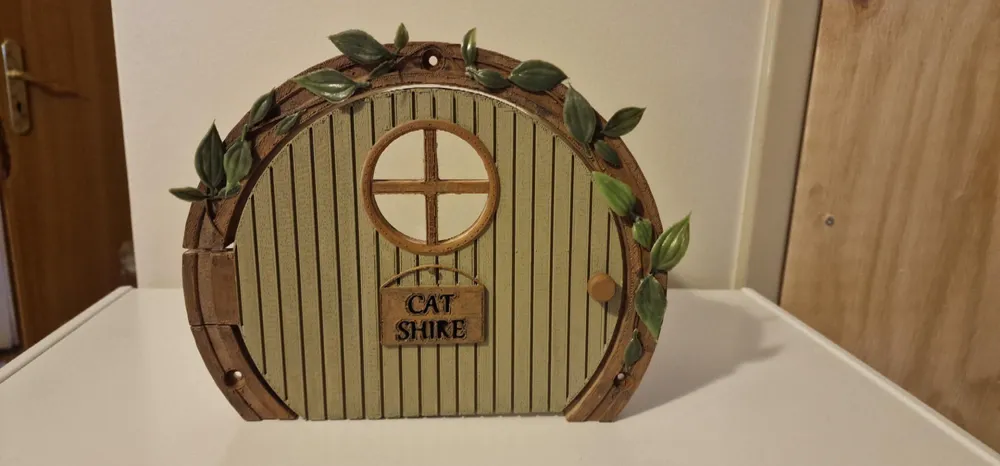

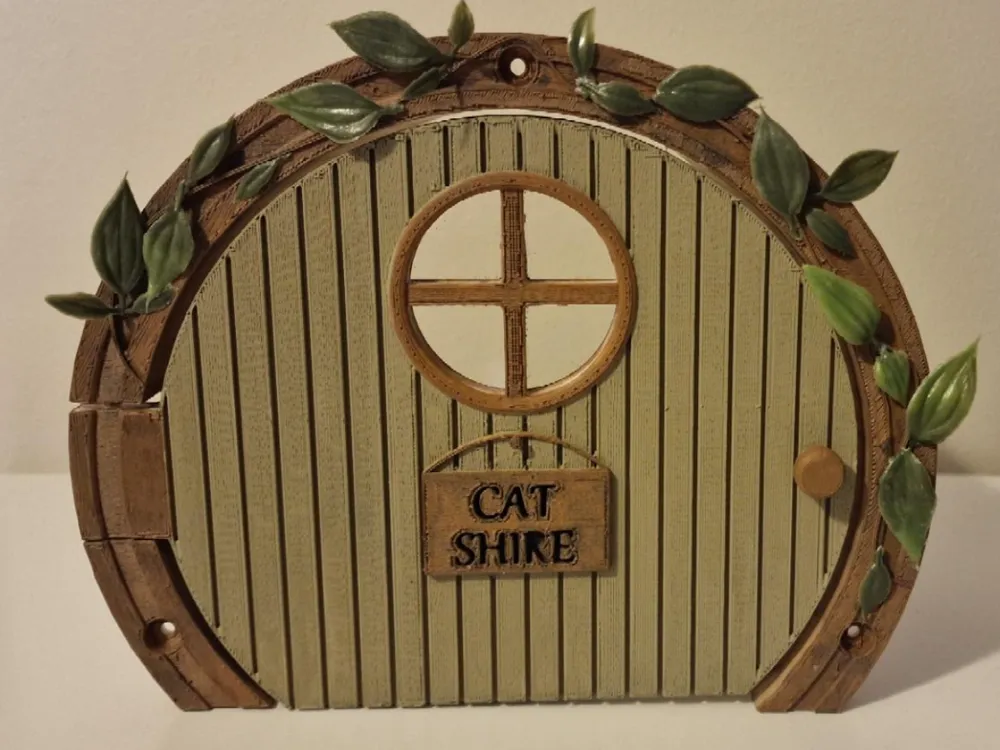

I chose to paint my print afterwards and glue some plastic leafs on to it. I also paused my print to place a piece of acryllic plastic as a window
(there is a space for that). In this model i have chosen to have support in that space so if you choose to have a plastic window please remove the support between the window frames!!
There is also room for a smaller magnet to put in to the handle of the door if you would like to leave the door open and a bit secure towards the wall. For this i drilled a hole that matched the magnet size and glued it in the door.
To put the magnet in the handle you must pause the print when the printer gets to the empty space in the handle.
The pauses can be sceduled in the preview in bambu studio.
Let me know in the comments if you want a diffetent length of the tunnel for your specific door thickness!
