Lexus RX350 Backup Camera Adapter, Toyota Part Number 86790

Use to fit an aftermarket back up camera to a 2007 Lexus RX350


Recently fit an android head unit to my 07 Lexus RX350 which did not work with the OEM reversing camera. The head unit manufacturer supplied an aftermarket camera however this did not interface with the OEM mounting hardware.

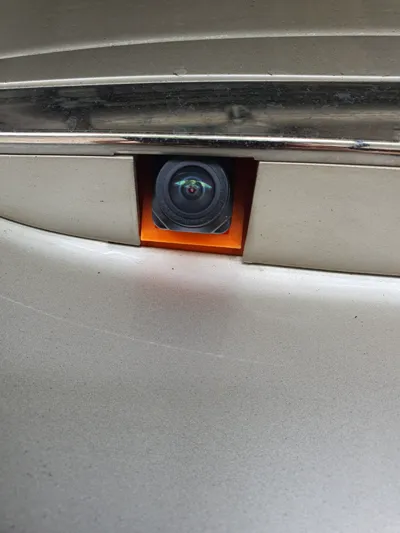

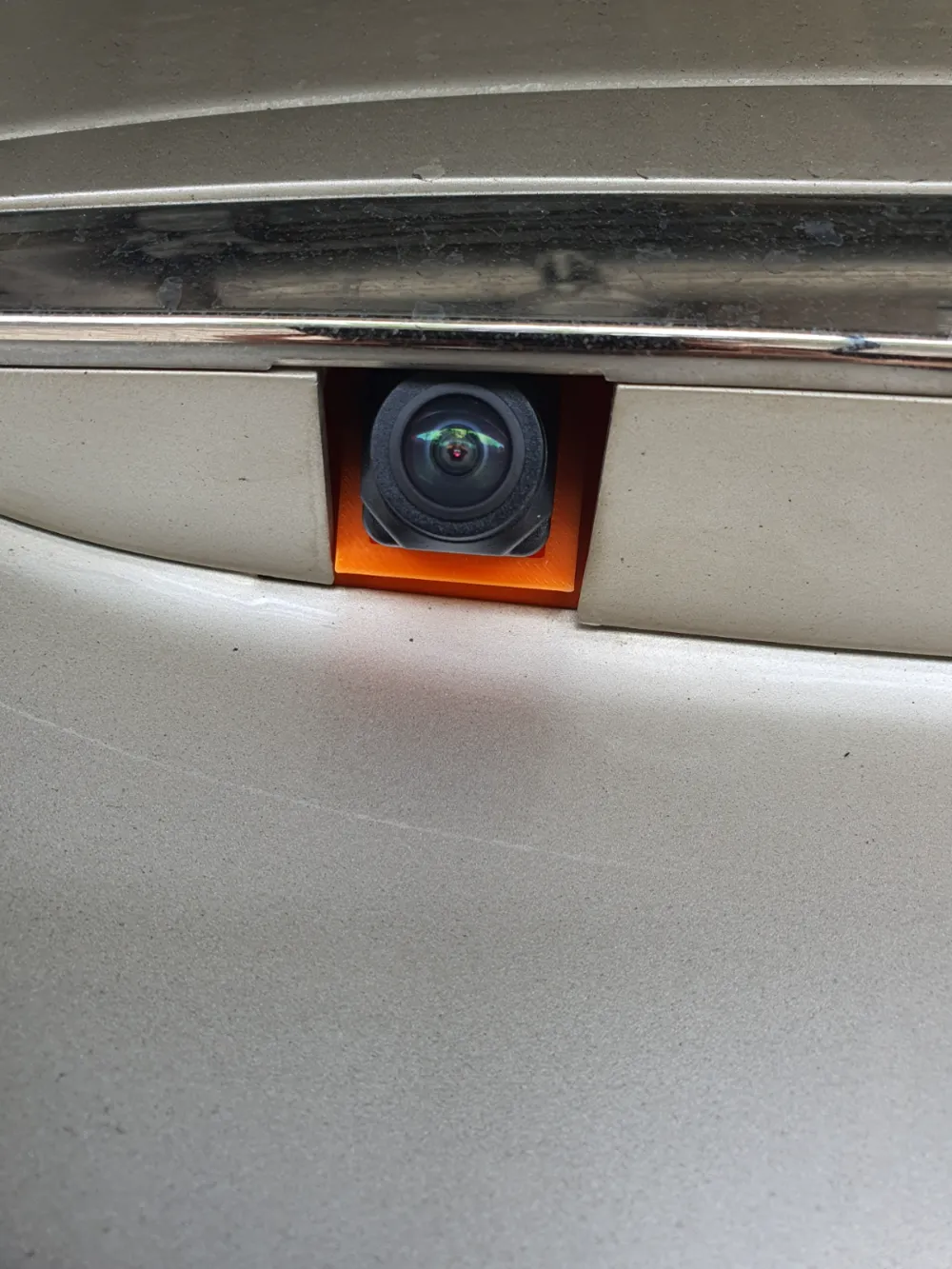

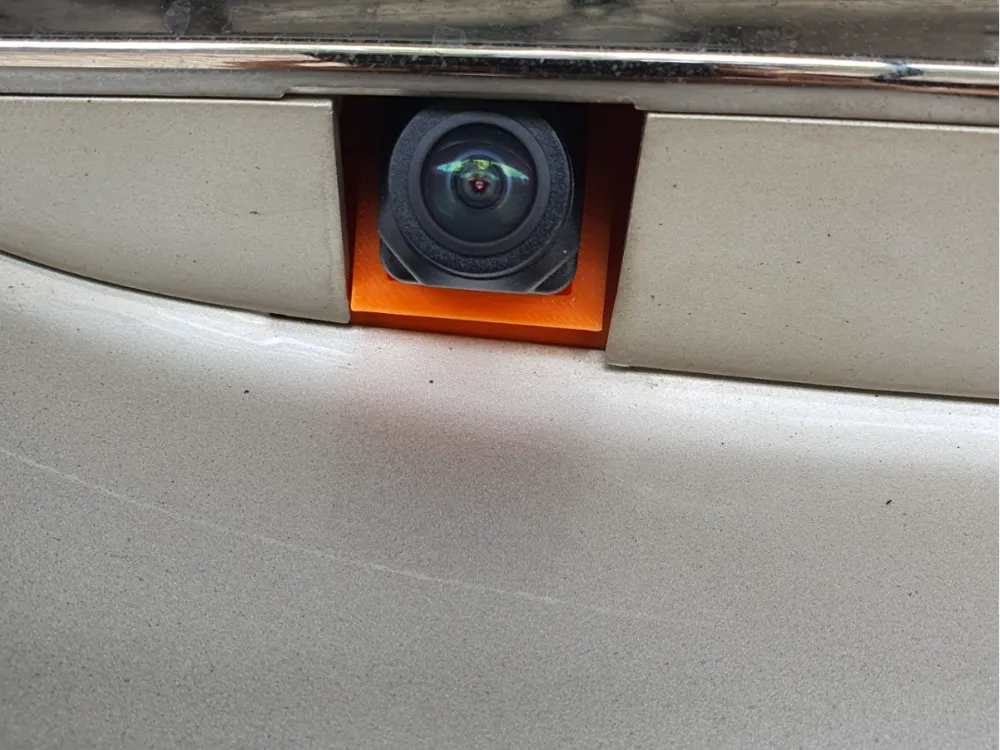

This mount suits the camera type as shown in the pictures attached, and can be purchased from AliExpress for ~$6USD. Search terms 'AHD back up reversing camera'

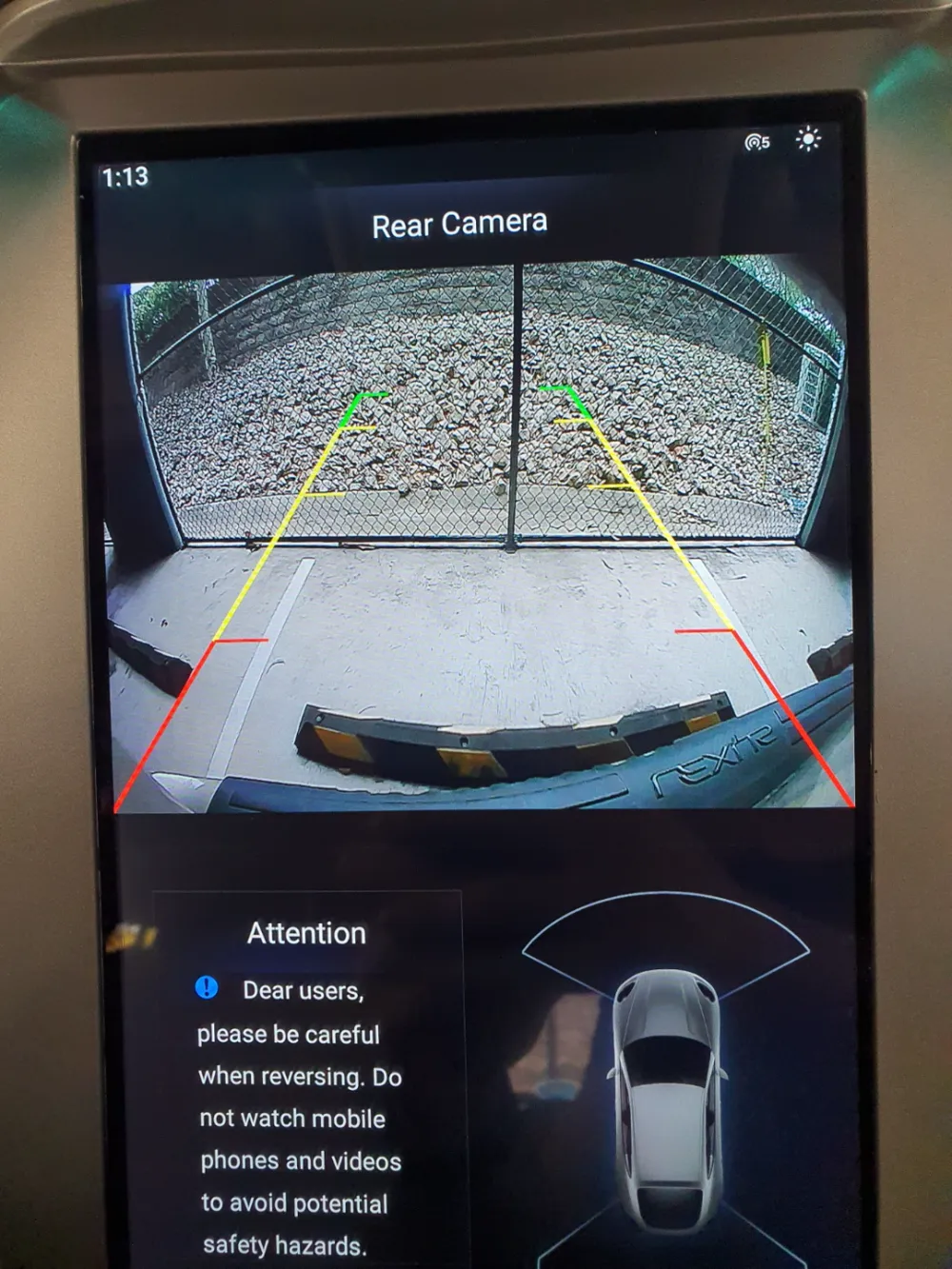

The clarity of this camera far exceeds that of the OEM camera and I am very happy :)

Installation:

1. Remove the existing articulating bracket from back of camera ie. take off the silver screws
2. There is secondary bracket attached to the rear of the camera secured by two small black screws - take this off and save the screws

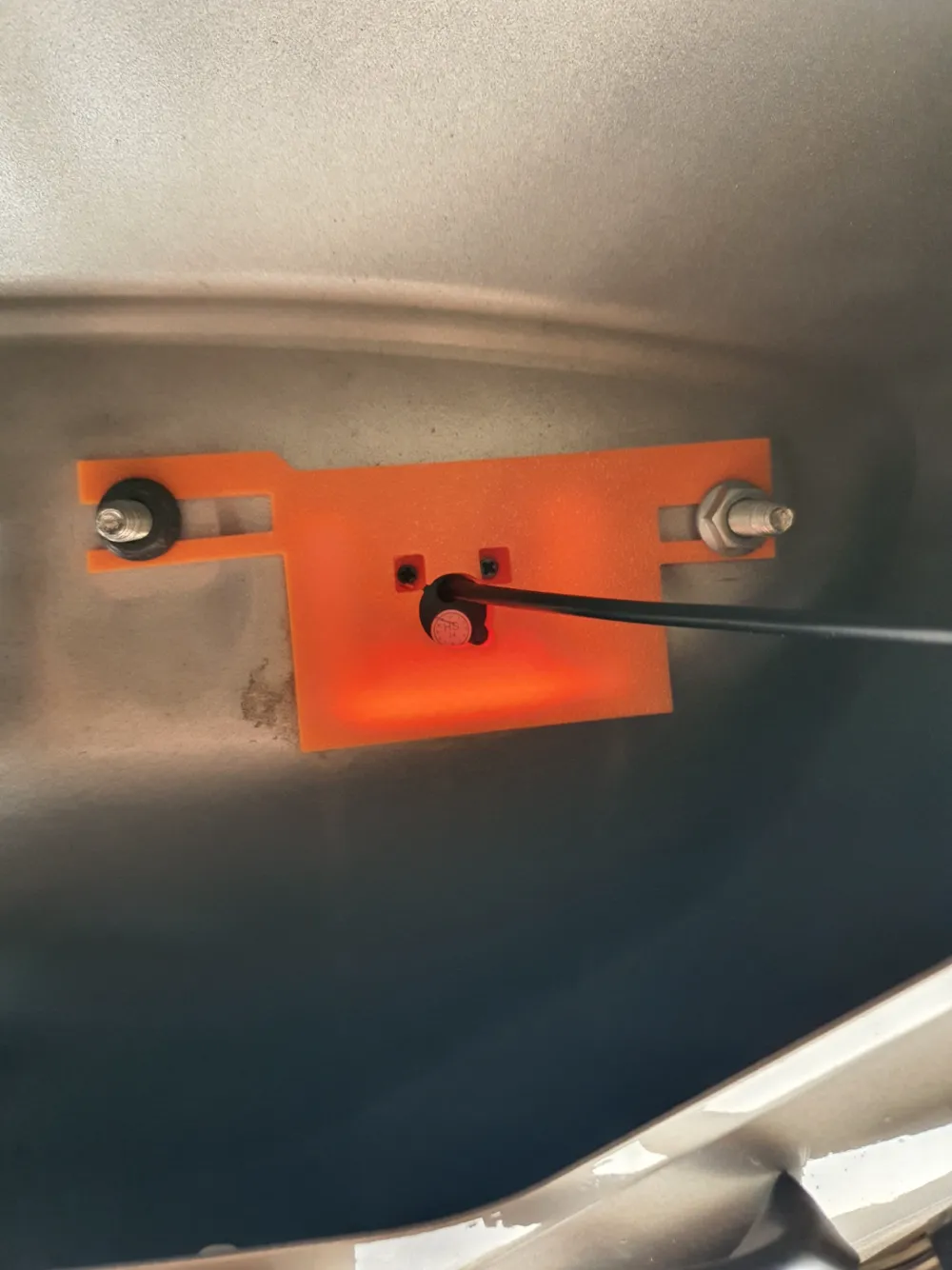

3. There is only one way to install the camera onto the mounting plate as it includes recesses for the two lugs found on the rear of the camera, therefore it will orient itself!
4. Insert small black screws and tighten

This is my first drawing using CAD so comments and feedback are most welcome
