Peter Noorlander

cover

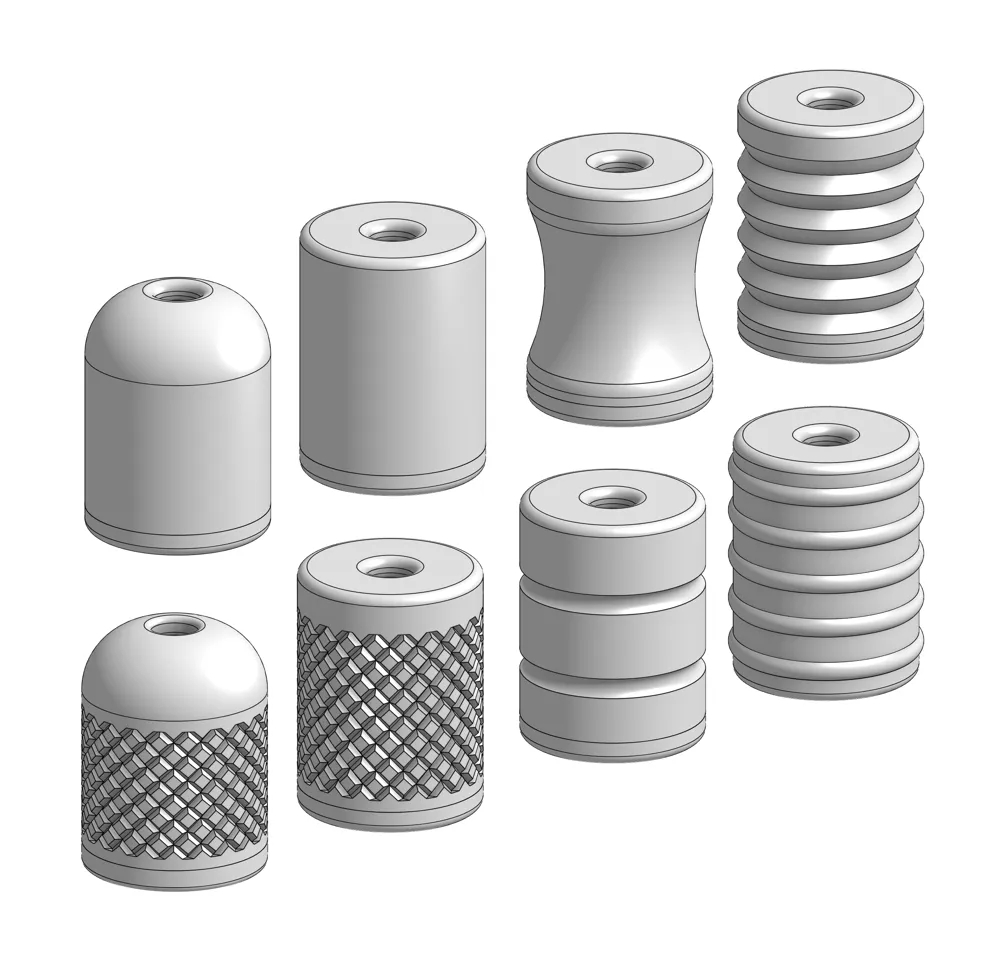

8 styles.png




Curved


Fluted


Lines


Rings


Flat - Knurled


Flat


Round - Knurled


Round

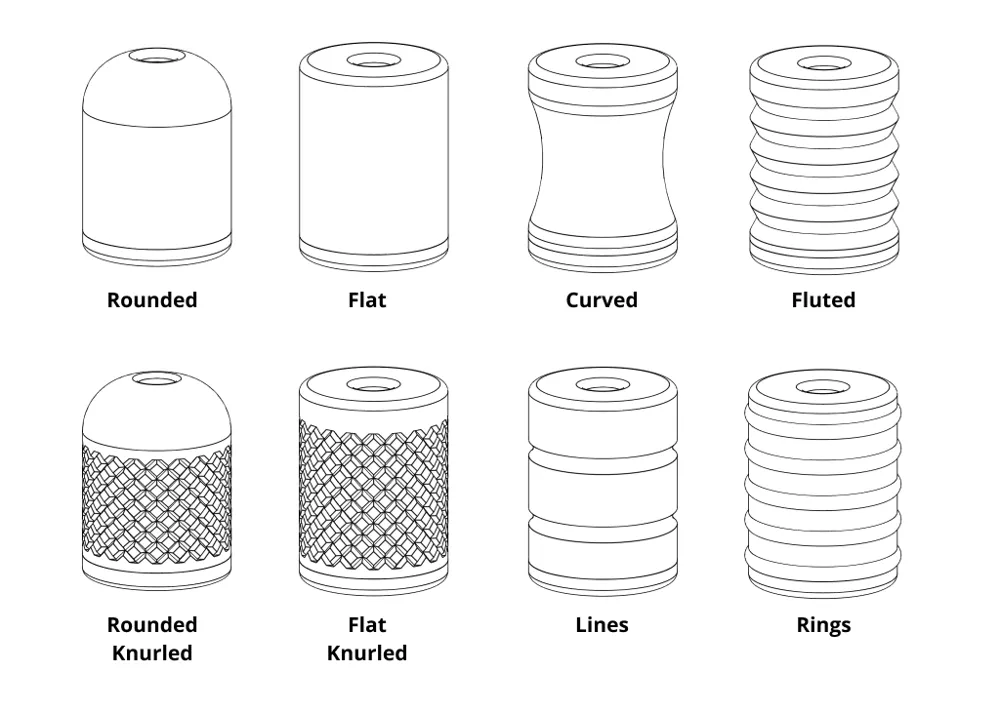

New and improved version built with OnShape CAD. 8 styles in total.

Version 2 - Multiple styles

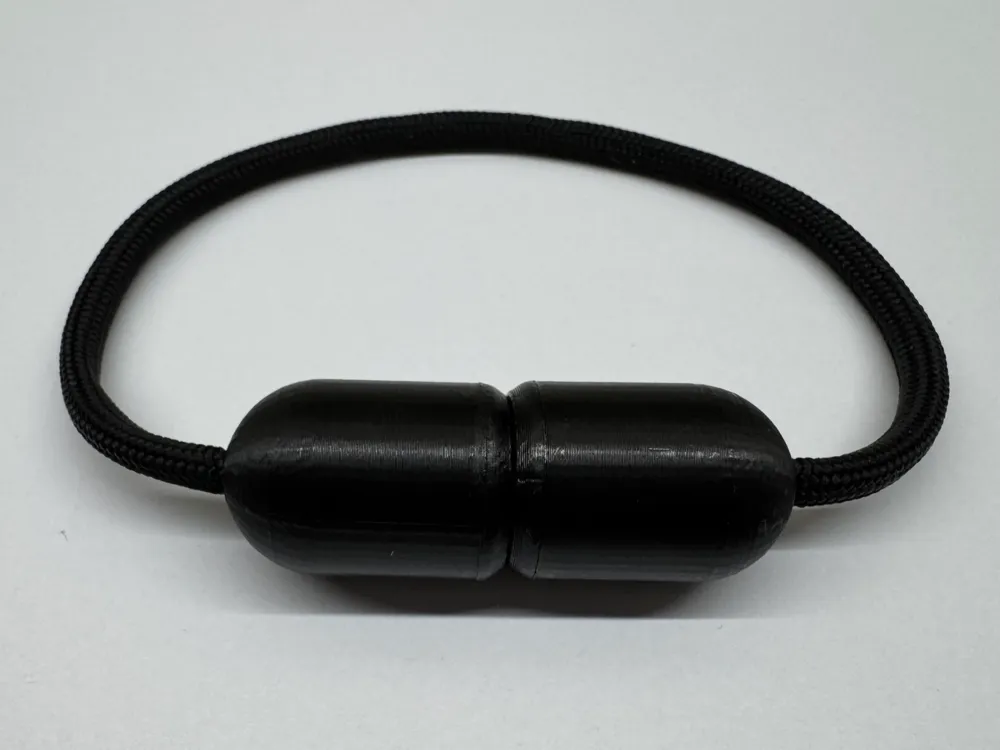

First version created in ThinkerCad. Has a simple, rounded top.

Version 1 - Simple rounded style

8mm Dia Magnet Base (leave on this plate)


Northern Bear


Modified the base with 8mm diameter hollow that leaves just enough layers between the magnet faces to get maximum attraction strength through the plastic without breaking. The shoulder of the base was also raised too accommodate taller magnets (or doubles).  I used a two each  8mm diameter high strength magnets per end, held in place with friction in my example and It has enough pull to hold the two ends together over my finger vertically.   The profile is set to print by object, feel free to change it as its not required unless you want many different colors on the same print bed.  DO NOT COPY PASTE the modified base to another plate it will break the geometry. The shoulder height extension and hollow cylinder was added in Bambu Slicer, and when copied it will move in the models in the assembly to Z axis to center, breaking the model. Move the top pieces to the 8mm plate to print on one plate.

8mm magnet base (based on Version 2)

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

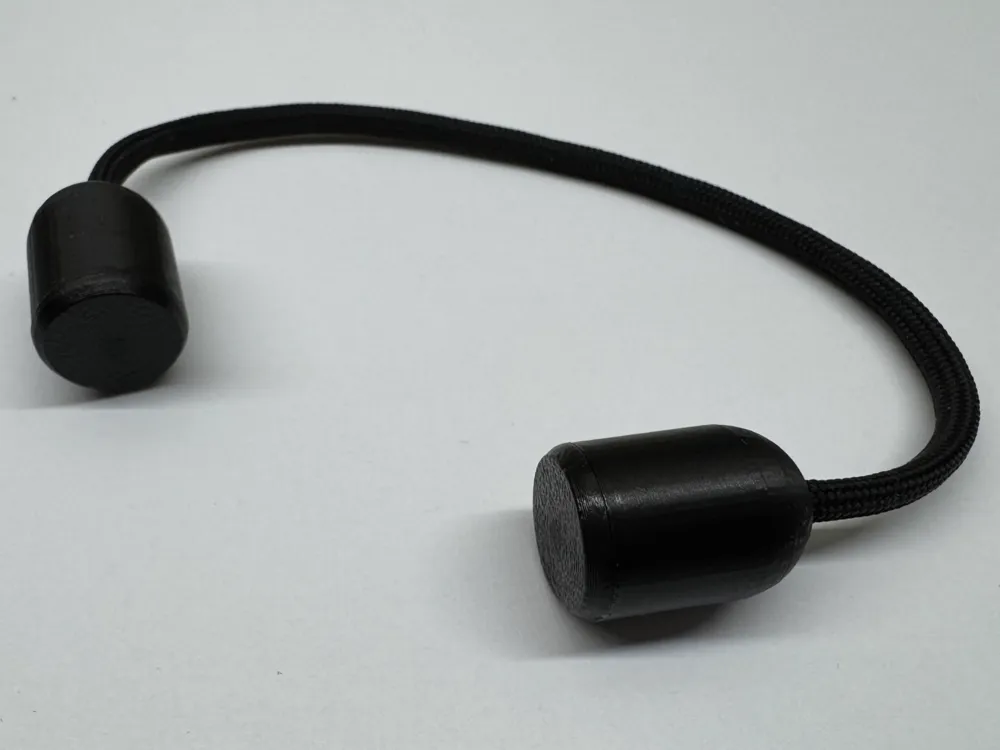

The print fits 10 mm diameter nuts, washers, or magnets. The bottom can be left open for adjustments or glued shut. No supports are needed, and it prints well on most profiles. Use variable layer height for extra smooth rounding at the top.Choose your style and hit print! V2 Update - New styles added<ul><li>Curved</li><li>Fluted</li><li>Lines</li><li>Rings</li><li>Flat - Kurnled</li><li>Flat</li><li>Round - Kurnled</li><li>Round (original V1)  </li></ul>Check out my other fidget designs <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/collections/7776545-fidgets">https://makerworld.com/en/collections/7776545-fidgets</a>

Magnetic begleri V2
