11th Gen Civic Air Vent Clip

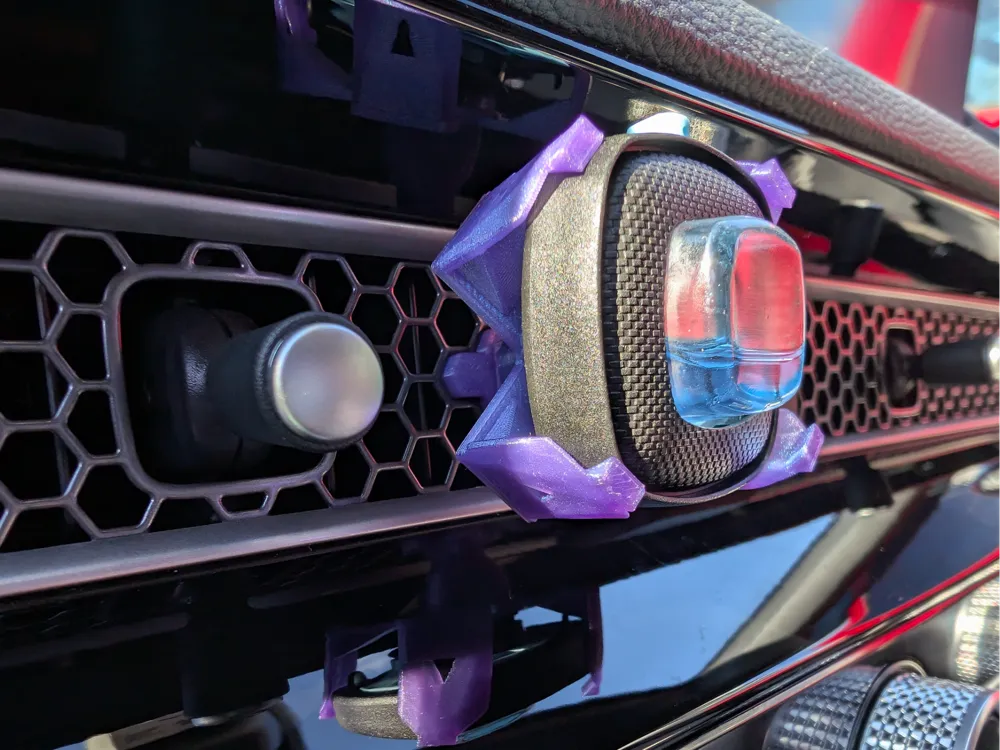

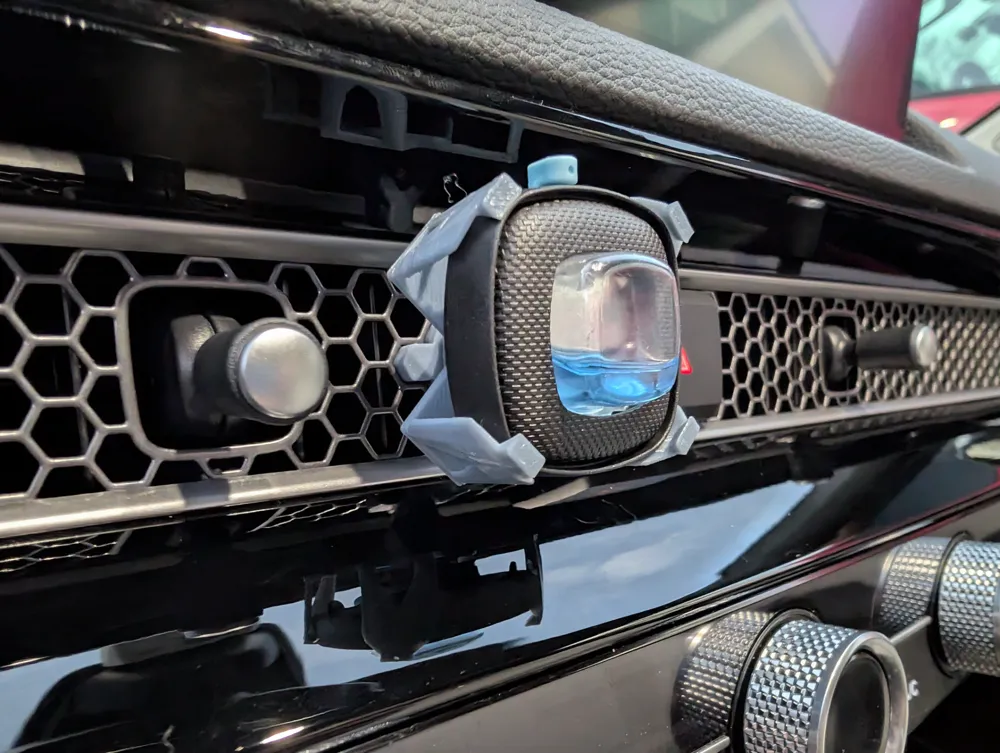

The 11th Generation Civic has a unique air vent grill that prevents standard air fresheners to be attached. This model clips directly into the honeycomb pattern of the design and allows you to use a basic Febreze air freshener (clip the tabs off the back).

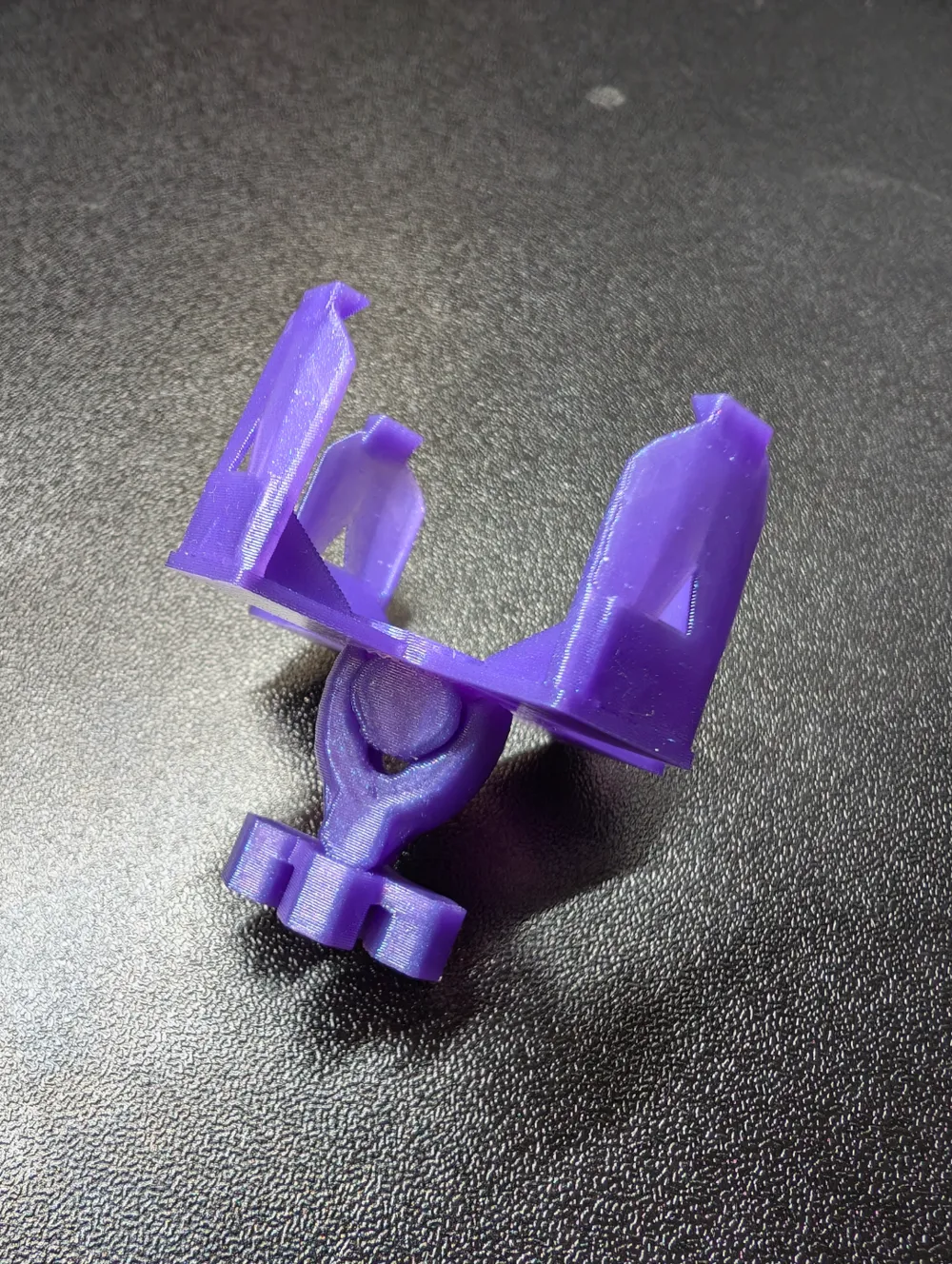

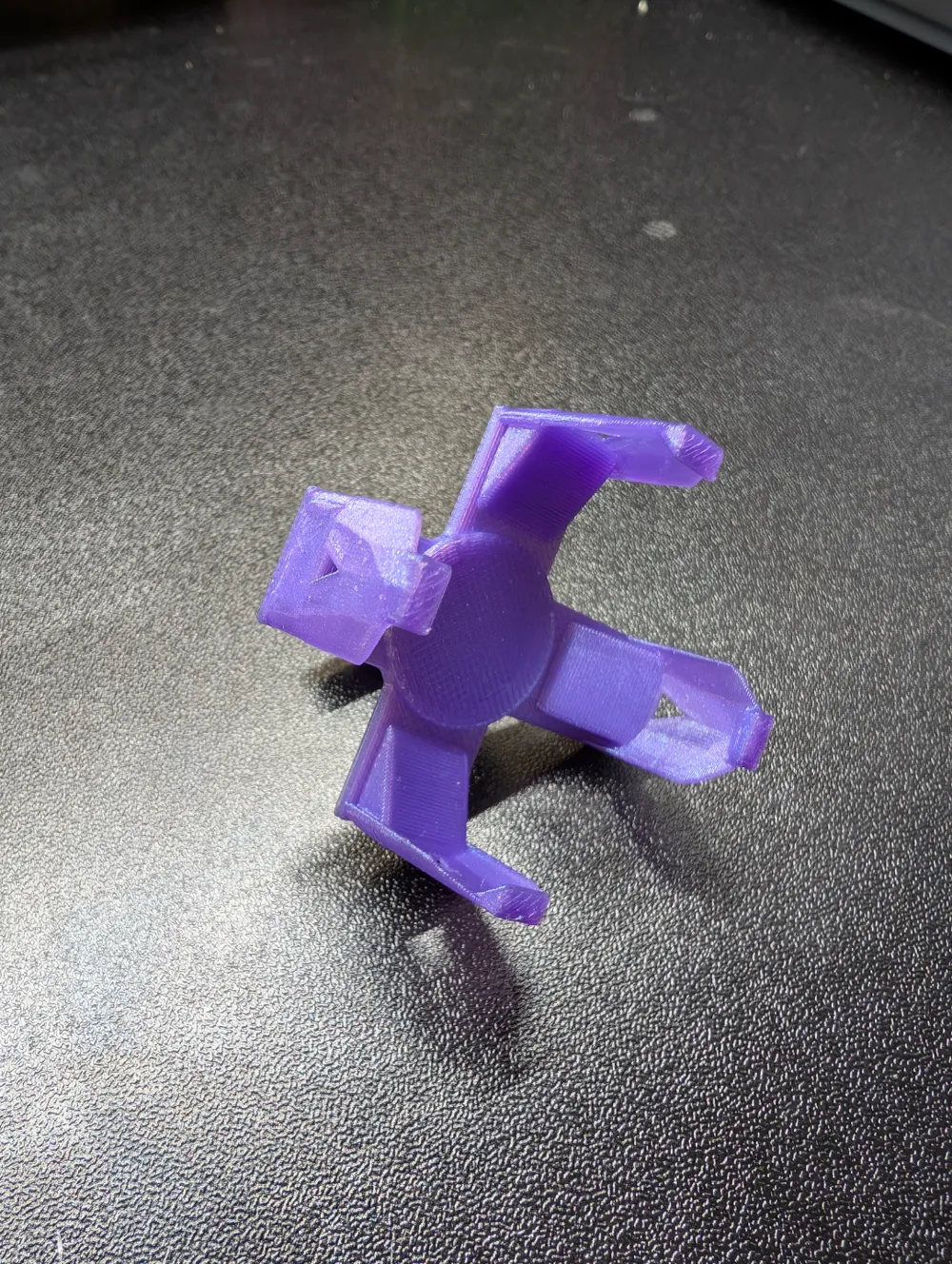

I utilized both PLA and PETG successfully (PETG is preferred due to the flex of the material and clip). This prints in 2 pieces, one for the air freshener and one for the vent clip with a locked ball and socket. This allows the clip to be far enough away from the air vent to fit. I used a PLA/PETG support material as an interface which greatly improved the back surface and reduced damage from supports.

This was designed in TinkerCAD and the STLs are attached to modify as needed. Be cautious scaling as the honeycomb is sensitive to scale in order to fit snug into the vent grill.
