Universal phone holder for Volkswagen phone preparation (UHV)

I remixed the universal phone holder (made by duane) to fit in the Volkswagen universal phone prep (called Telefonschnittstelle, Mobiltelefonvorbereitung, Handyvorbereitung or UHV). I designed a suitable back panel and adapted the holder slightly.
The phone is mechanically clamped into the holder by its own weight, it holds securely and firmly during the ride.
Keep in mind that your car can get very hot in the summer, so print with PETG or another temperature resistant filament! I have used PETG with no issues.

Tested dimensions of the phone: 85mm x 75mm x 10mm

Assembly:

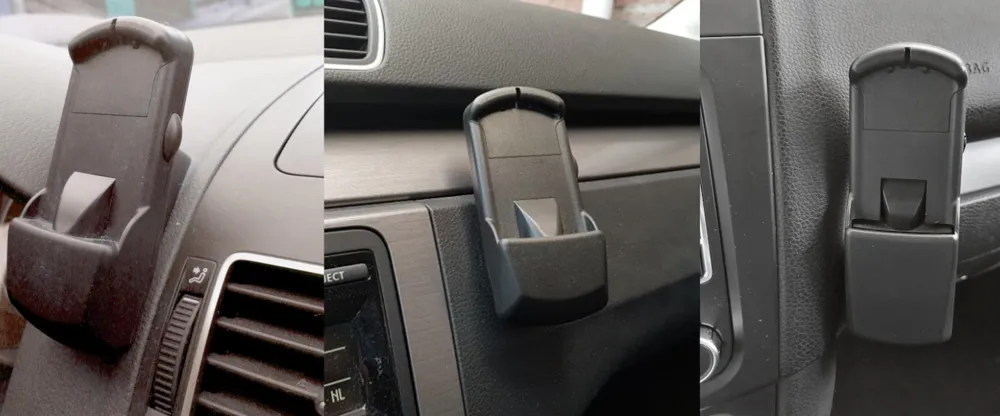

Print everything and assemble as shown in the pictures. Everything should fit together force. Then screw all together with four socket head cap M3*8mm (DIN912) screws. The screws fit easily into the printed holes.


⚠️ Compatibility:

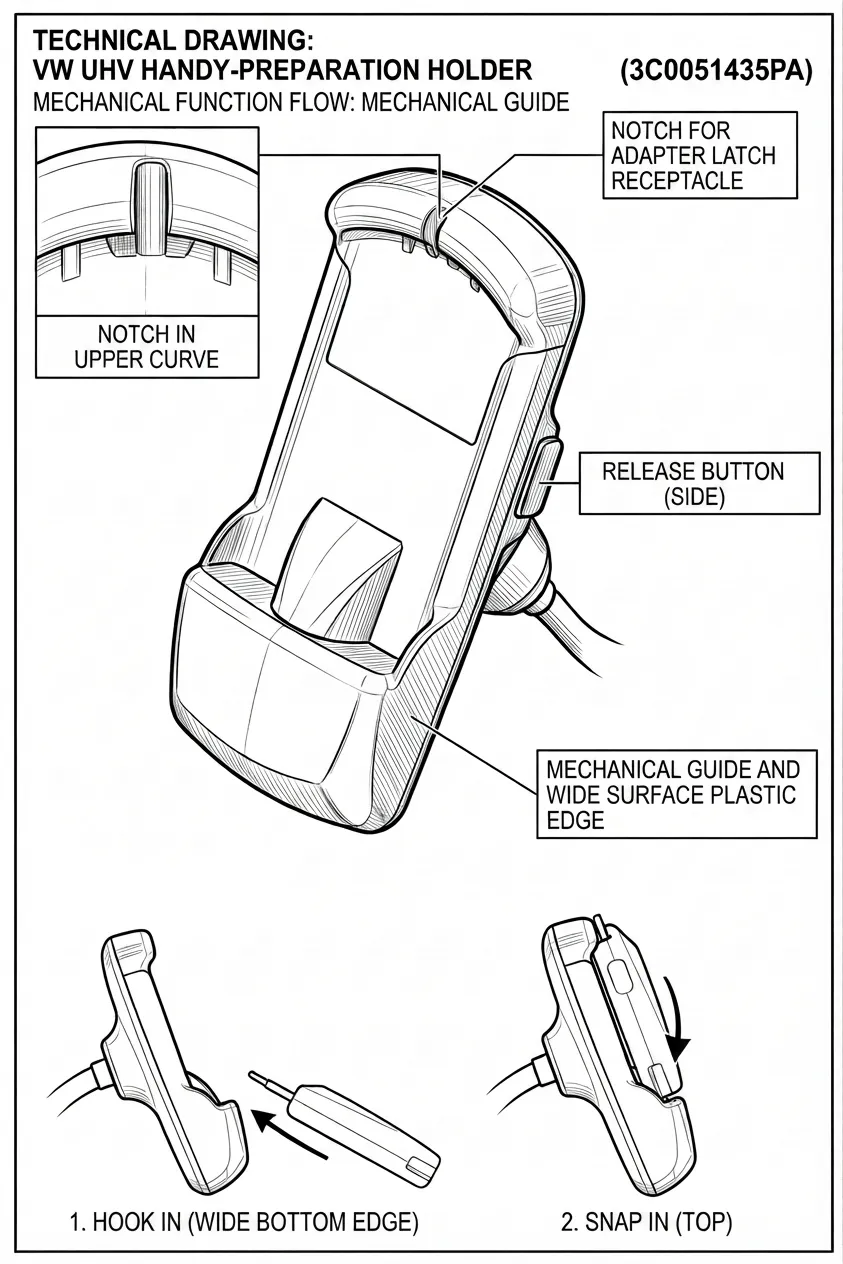

Please make sure your UHV adapter is compatible, as VW has several different versions. Compare your adapter with the uploaded sketch and pay close attention to the details shown. If you are unsure, I recommend printing the backplate first to test the fit before printing the entire phone holder.
The UHV is listed as “3C0051435PA” or “3C0 051435 CE”.

This holder fits into the following cars:

• Caddy III Facelift (A5) (Typ 2C) (2011-2015)
• Caddy III Facelift (A5) (Typ 2C) Kastenwagen (2011-2015)
• Caddy III Facelift (A5) (Typ 2C) Kombi (2011-2015)
• Caddy III Facelift (A5) (Typ 2C) Maxi Kastenwagen (2011-2015)
• Eos Facelift (Typ 1F) (2012-2016)
• Golf VI Cabriolet (Typ 51) (2012-2016)
• Golf VI Facelift (Typ 5K) (2011-2013)
• Golf VI GTI (Typ 5K) (2011-2013)
• Golf VI R (Typ 5K) (2011-2013)
• Golf VI Variant (Typ AJ) (2012-2014)
• Passat B7 Limousine (Typ 36) (2011-2015)
• Passat B7 Variant (Typ 36) (2011-2015)
• Passat B7 Variant Alltrack (Typ 36) (2012-2015)
• Sharan II (Typ 7N) (2012-2016)
• Tiguan I Facelift (Typ 5N) (2012-2019)
• Touran (Typ 1T) (2012-2015)
• Caddy III Facelift (A5) (Typ 2C) Kastenwagen Cross (2014-2015)
• Caddy III Facelift (A5) (Typ 2C) Maxi (2011-2015)
• Caddy III Facelift (A5) (Typ 2C) Maxi Kombi (2011-2015)
• VW Caddy (2K), KW22/2006 - 2010
• VW EOS, KW22/2006 - 2011


• VW Golf 5 (1K) Limousine / GT / GTI / R32, KW22/2006 - 2009
• VW Golf 6 (5K) Limousine, 2009 - KW22/2010
• VW Golf 6 (5K) Variant, Modell 2010 - KW22/2010
• VW Golf 6 (5K) Cabrio, 2012 - 2016
• VW Golf 6 (5K) R, 2010 - 2014


• VW Golf 5 PLUS, KW22/2006 - 2009
• VW Golf 6 PLUS, 2009 - KW22/2010


• VW Jetta A5 (1K), KW22/2006 - 2010
• VW Jetta A6 (5C), ab 2011


• VW Passat B6 (3C) Limousine/Variant, KW09/2005 - 2011
• VW Passat B7 (3C) Alltrack/Variant, 2011 - 2015
• VW Passat CC, 2009 - 2012
• Volkswagen CC, 2012 - 2018


• VW Polo 5 (6R), 2010 - 2014
• VW Scirocco, 2008 - KW22/2010


• VW T5, 2008 - KW22/2010
• VW Tiguan (5N), 2008 - KW22/2010
• VW Touareg (7L Facelift), 2007 - 2010


• VW Touran (1T2), KW39/2006 - 2010
• VW Touran (1T3), 2011 - 2015
