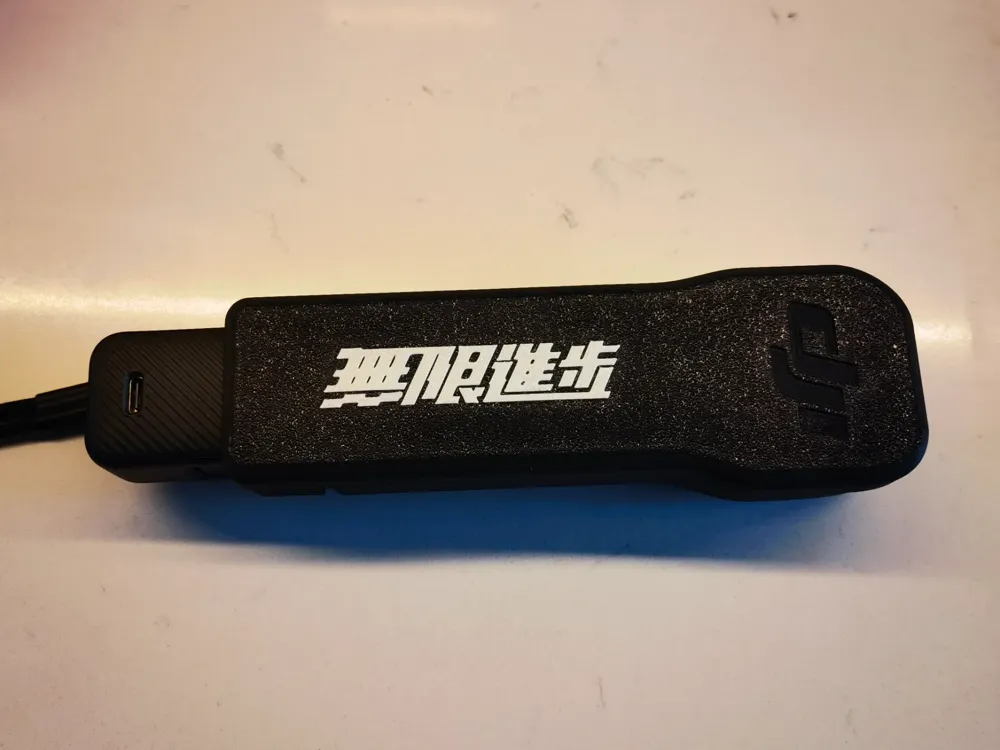

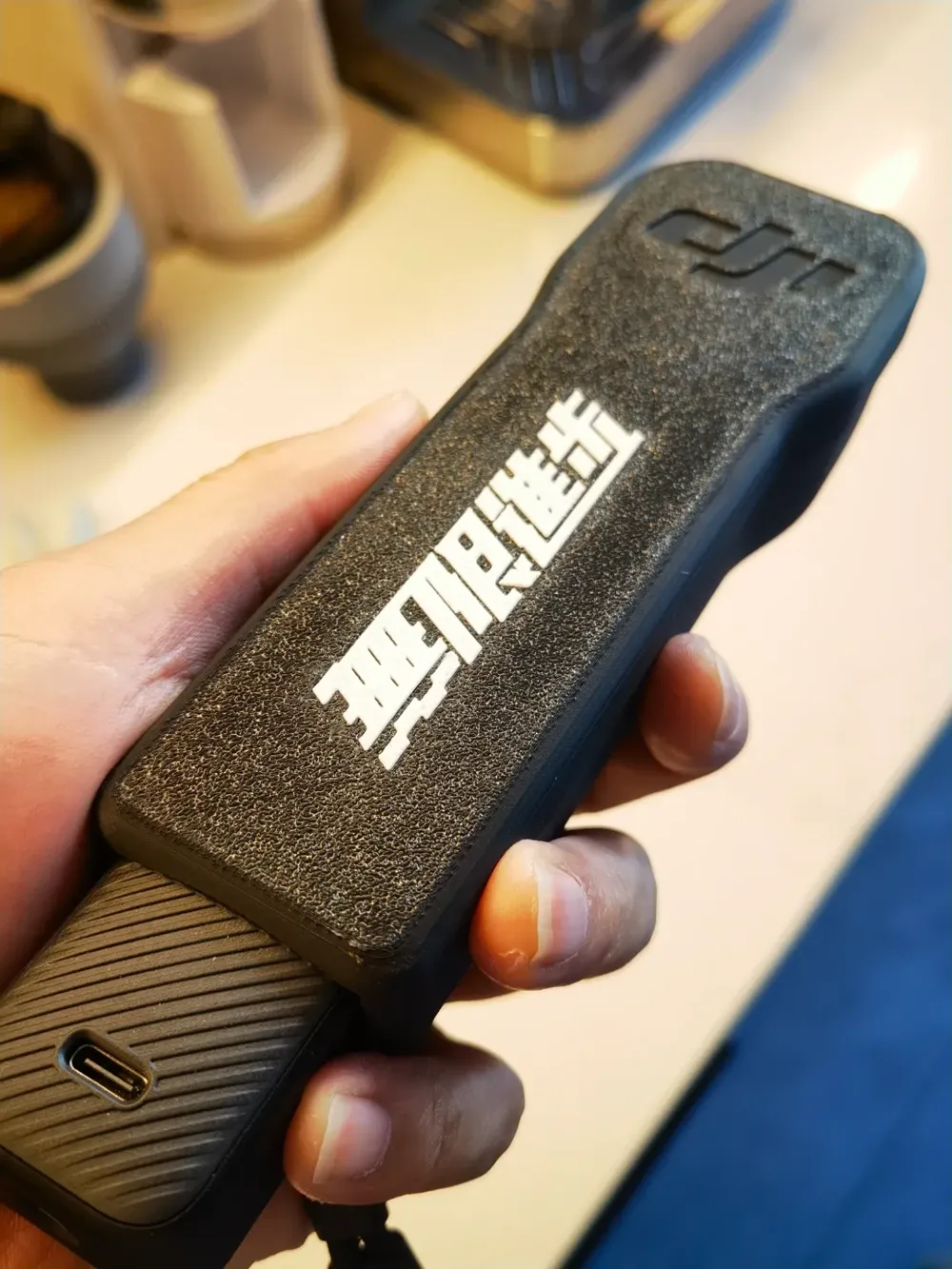

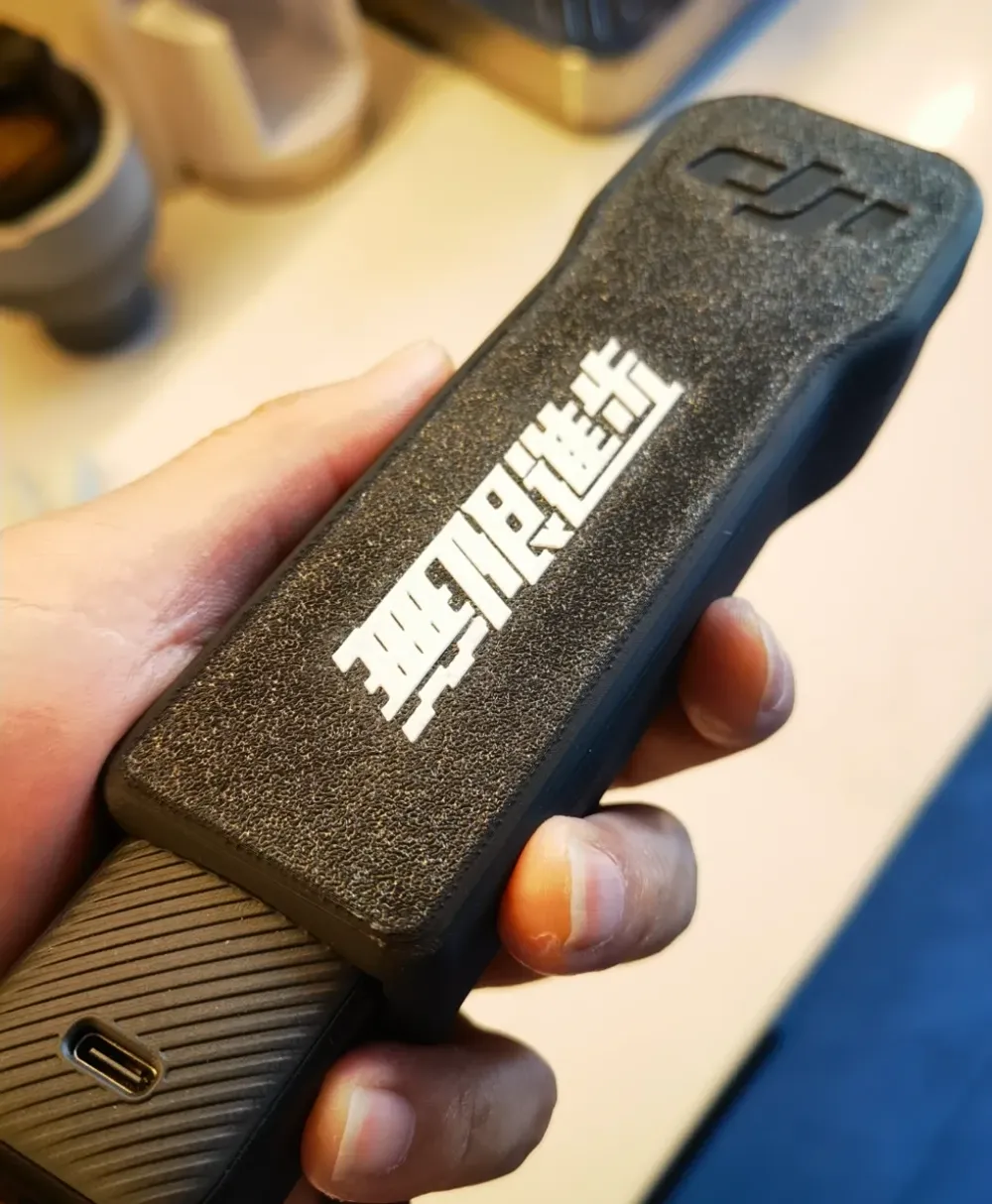

照片模型采用的是0.2mm 喷嘴, 0.06mm 层高, 3 层墙, 15% 填充，逐件打印。材质为拓竹pla matte。p1s打印时长约7小时。<ul><li>优点是成品的细节很棒，0.2mm精度下支撑比较好拆除，文字可以和模型贴合的很平整。“无“和”进“两个字有面积较大的部件，贴合时可能会有起边的情况，可以502胶粘牢。&nbsp;</li><li>缺点是0.2喷嘴打印的层间粘接强度相比0.4喷嘴不够牢靠，我的模型部分位置已出现断裂，可尝试给模型退火看看，我的模型目前还在退火中，完成后会在评论区补充结论。</li></ul>

The photo model uses a 0.2mm nozzle, 0.06mm layer height, 3 walls, and 15% infill, printed individually. The material is Bambu PLA Matte. P1S print time is approximately 7 hours.<ul><li>Advantages are that the details of the finished product are excellent, supports are relatively easy to remove with 0.2mm precision, and the text can be very flush with the model. The characters “无” and “进” have relatively large components; there may be some lifting during adhesion. Super glue can be used to secure them.&nbsp;</li><li>Disadvantages are that the interlayer adhesion strength of a 0.2mm nozzle print is not as strong as that of a 0.4mm nozzle. Some parts of my model have already fractured. You could try annealing the model. Mine is currently being annealed, and I will add a conclusion to the comments section once it is complete.</li></ul>

0.2mm nozzle, 0.06mm layer height, 3 walls, 15% infill

照片模型采用的是0.2mm 喷嘴, 0.06mm 层高, 3 层墙, 15% 填充，逐件打印。字体材质为拓竹pla matte，主体材质为拓竹petg hf。p1s打印时长约7小时。<ul><li>优点是成品的细节很棒，0.2mm精度下支撑比较好拆除，文字可以和模型贴合的很平整。“无“和”进“两个字有面积较大的部件，贴合时可能会有起边的情况，可以502胶粘牢。&nbsp;</li><li>缺点是0.2喷嘴打印的层间粘接强度相比0.4喷嘴不够牢靠，我的模型部分位置已出现断裂，可尝试给模型退火看看，我的模型目前还在退火中，完成后会在评论区补充结论。</li></ul>

The photo model utilizes a 0.2mm nozzle, 0.06mm layer height, 3 walls, and 15% infill, printed individually.The font material is Bambu PLA Matte, and the main body material is Bambu PETG HF. P1S print time is approximately 7 hours.<ul><li>Advantages include excellent detail in the finished product, relatively easy support removal at 0.2mm precision, and the text adhering smoothly to the model. The characters “无” and “进” have larger components, which might cause lifting during adhesion; super glue can remedy this.&nbsp;</li><li>Disadvantages include less robust interlayer adhesion with a 0.2mm nozzle compared to a 0.4mm nozzle; some parts of my model have fractured. Annealing the model may help; mine is currently undergoing this process, and I will update the comments section with the results upon completion.</li></ul>

0.2mm nozzle, 0.12mm layer, 3 walls, 15% infill

DJI Osmo Pocket3 case 大疆口袋3保护壳升级版（可挂绳）

非原创，结合雨绫设计的“DJI Osmo Pocket3 case 大疆口袋3保护壳升级版（可挂绳）”模型数据创作设计。希望有朝一日能够用自己的设备学习拍摄出和影视飓风一样水平的作品。祝愿我们一同無限進步！

Not original, combining the design of Yuling's "DJI Osmo Pocket 3 case upgraded version (with lanyard)" model data to create this design.I hope that one day I can use my own equipment to learn and create works of the same level as those of a cinematic hurricane. Wishing us all endless progress!
