Xiaomi Fish Tank Rain Shower Filter Silencer

GIF
GIF
GIF
GIF

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill, 0.4mm nozzle
0.2mm layer, 2 walls, 15% infill, 0.4mm nozzle
Designer
1.6 h
1 plate
4.4(5)

Open in Bambu Studio
Boost
79
205
6
2
251
81
Released

Description

Content has been automatically translated.
Show original

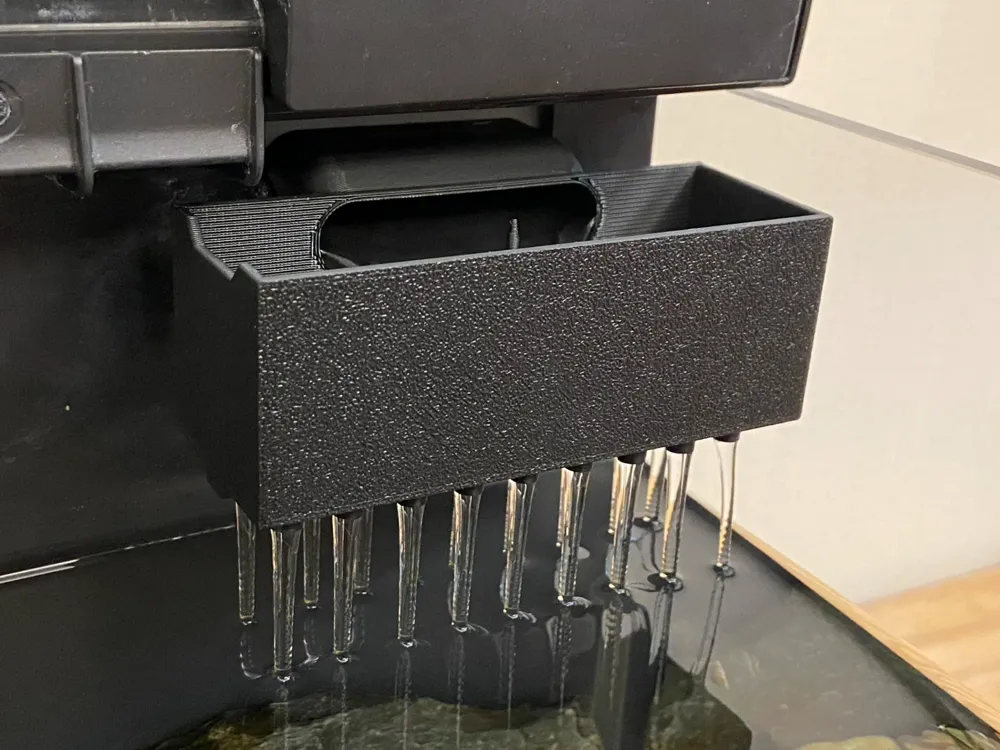

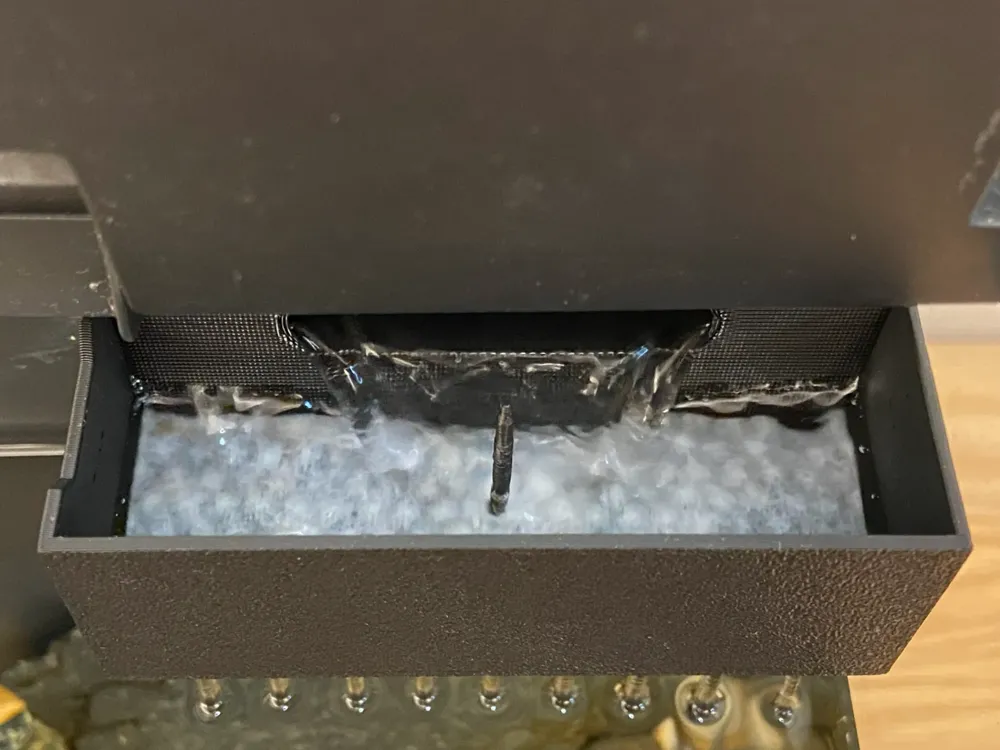

  1. Enhanced Filtration: Utilizing a facial cleansing tissue as a filter screen removes impurities, preventing yellowing and odors, and reducing costs

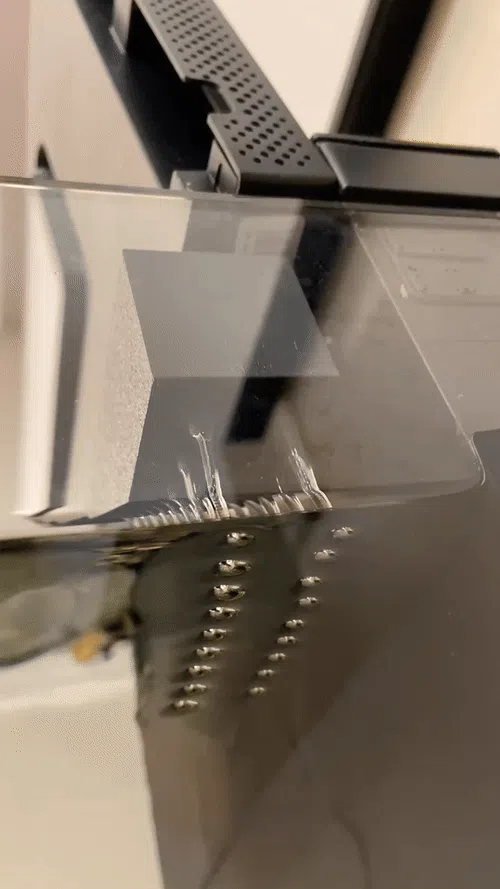

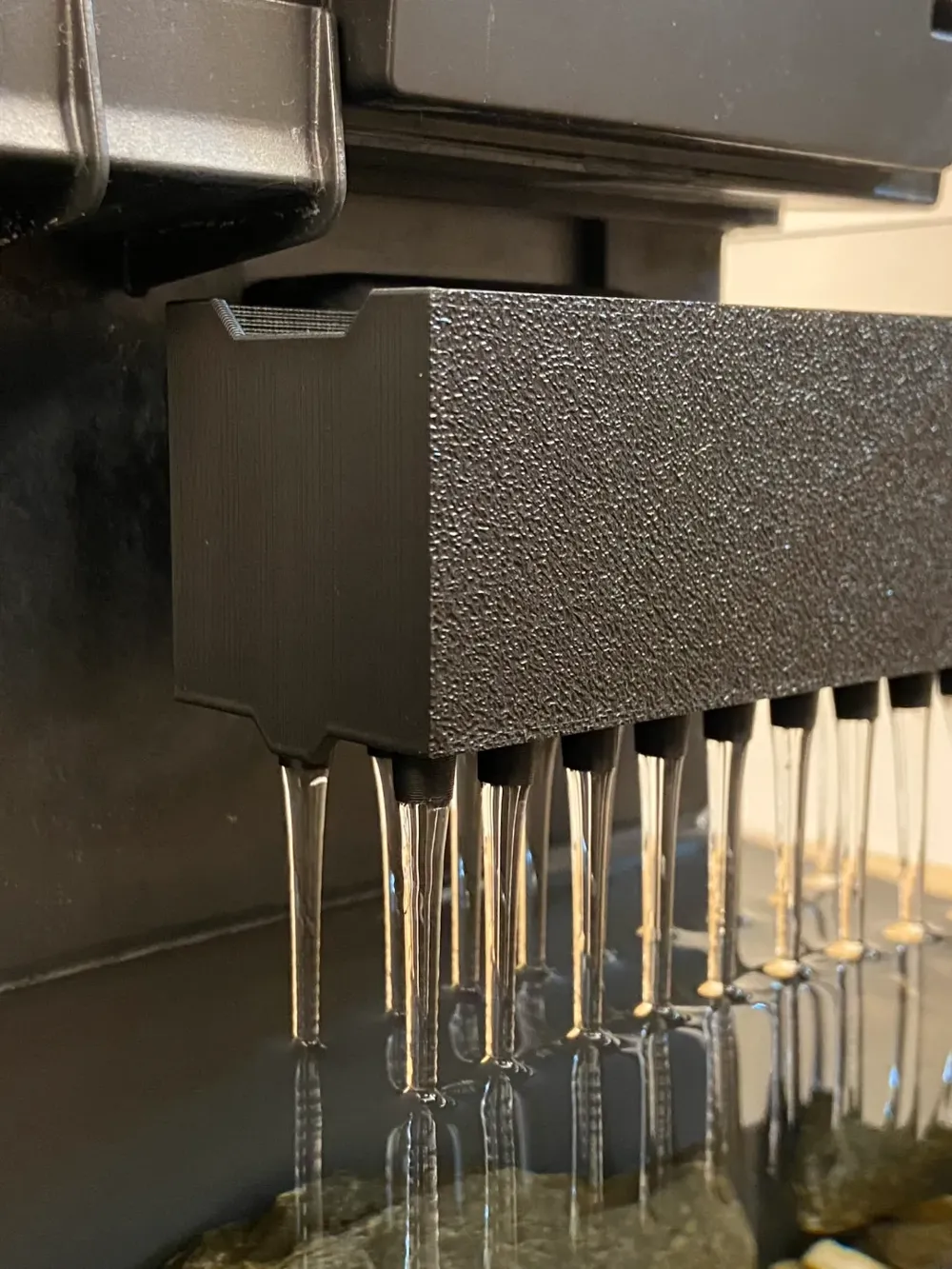

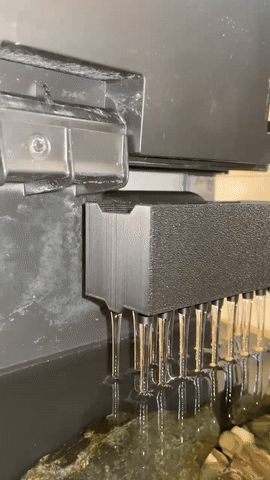

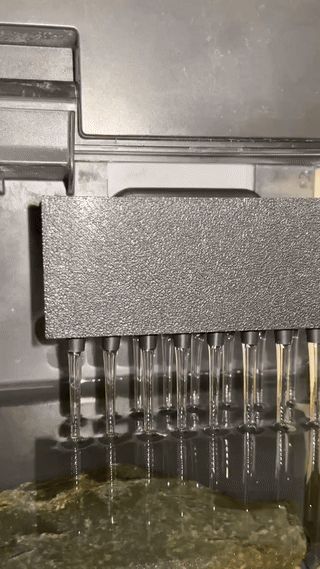

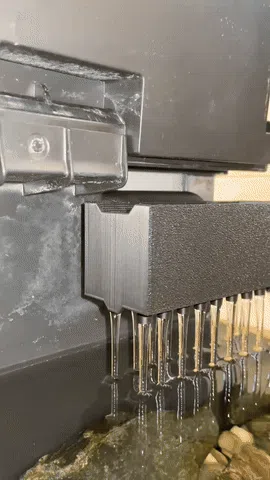

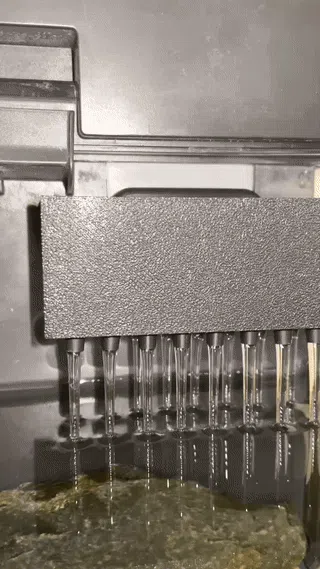

  2. Laminar Flow: The redesigned outlet leverages laminar flow, eliminating water noise and splashing
  3. Secure Installation: Repeatedly verified dimensions ensure precise fitment with minimal tolerance

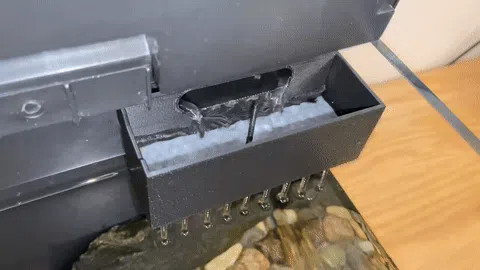

  4. Easy Maintenance: An added handle allows for easy removal and replacement of the filter screen
  5. Maintenance Indicator: An overflow port added to the showerhead's left side indicates filter blockage by overflowing; replacement is then required
  6. Overflow Guidance: A flow-directing protrusion on the lower left of the showerhead guides overflow for laminar flow
  7. Interference Prevention: A downward bend at the showerhead-outlet connection prevents interference when opening the fish tank lid
  8. Design Aesthetics: The showerhead features a right-angled design, complementing the fish tank's square style; black filament printing is recommended for optimal aesthetic harmony

Outlet slicing utilizes a rotating vase method and requires separate printing; the file is located at https://makerworld.com.cn/en/models/786725#profileId-758350
