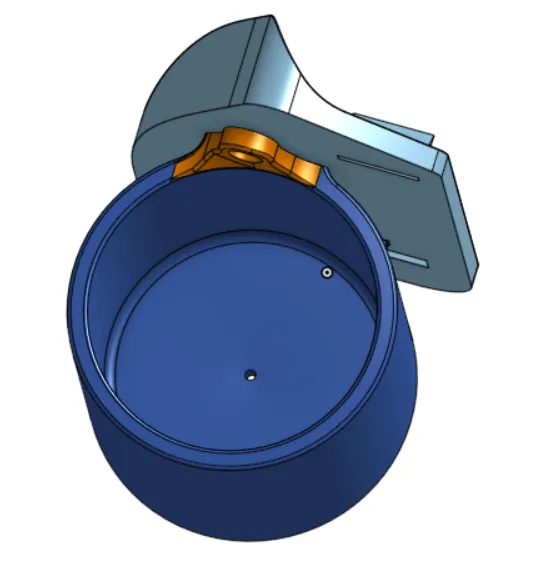

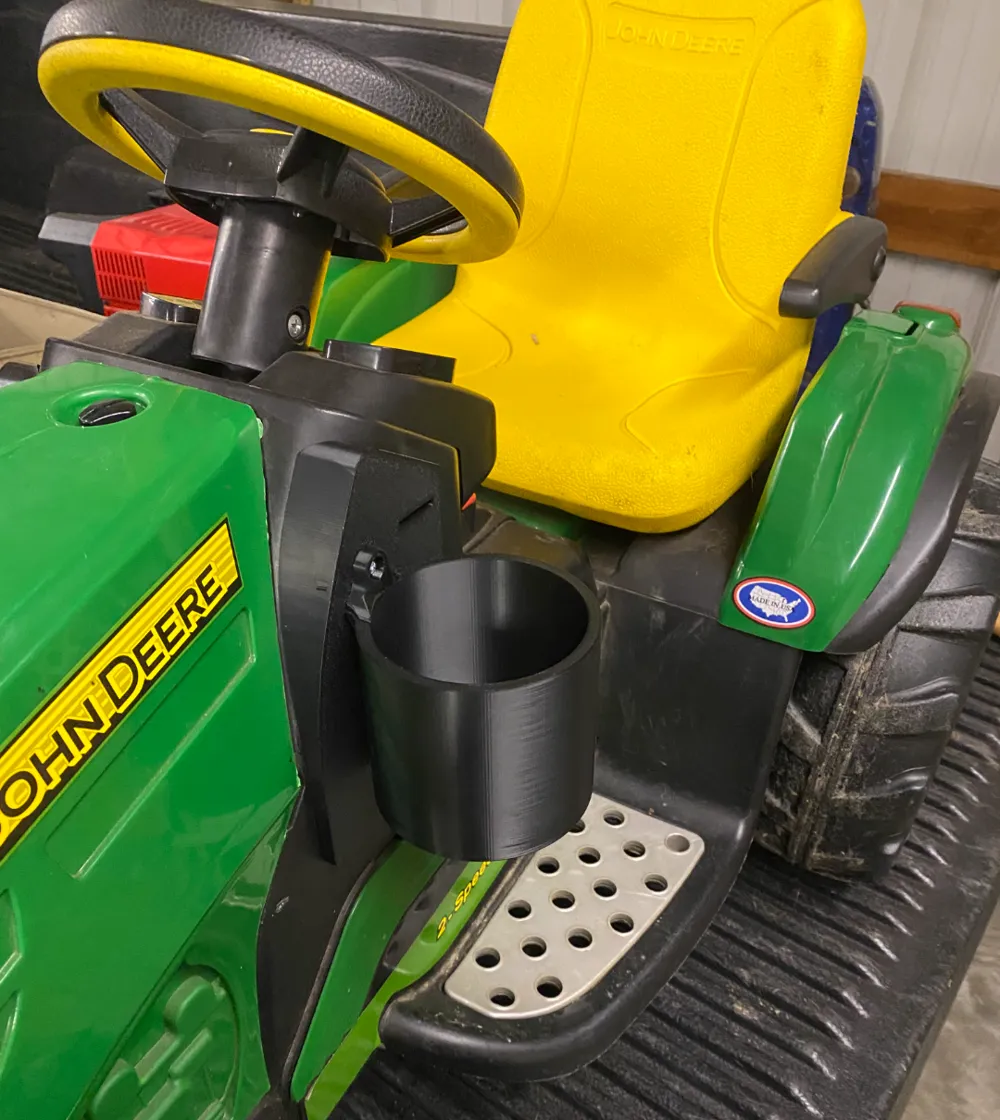

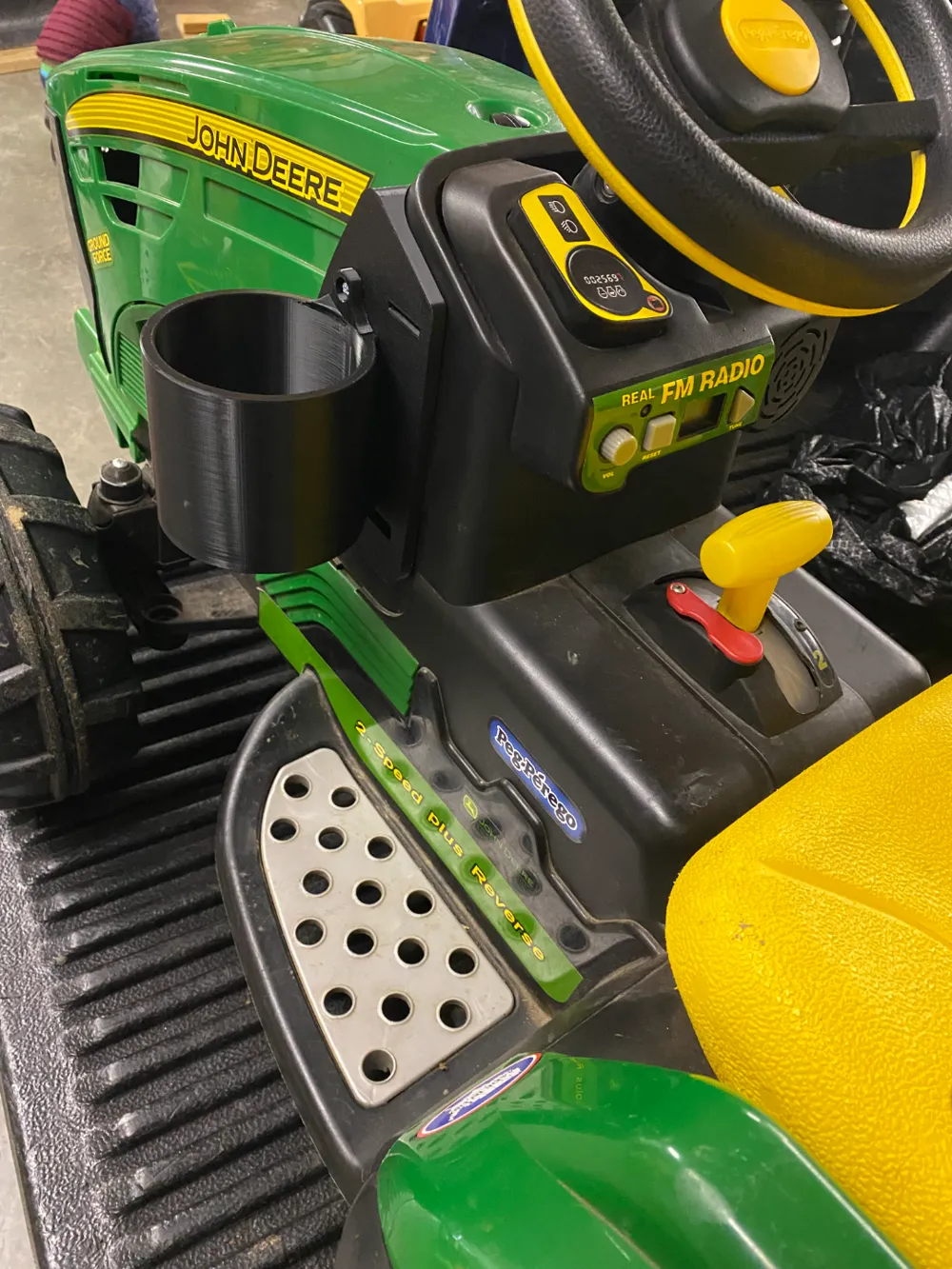

Cup holder for a Peg Perego John Deere Ground Force ride on tractor. This fits cups that are 3.25" (82.6mm) in dia or smaller. The bottom of the cup holder is slanted in towards the center with a drain hole in the bottom. This replaces the entire stock piece on the left side tractor (when sitting on it). This is the blank, non-smoke stack (exhaust) side.

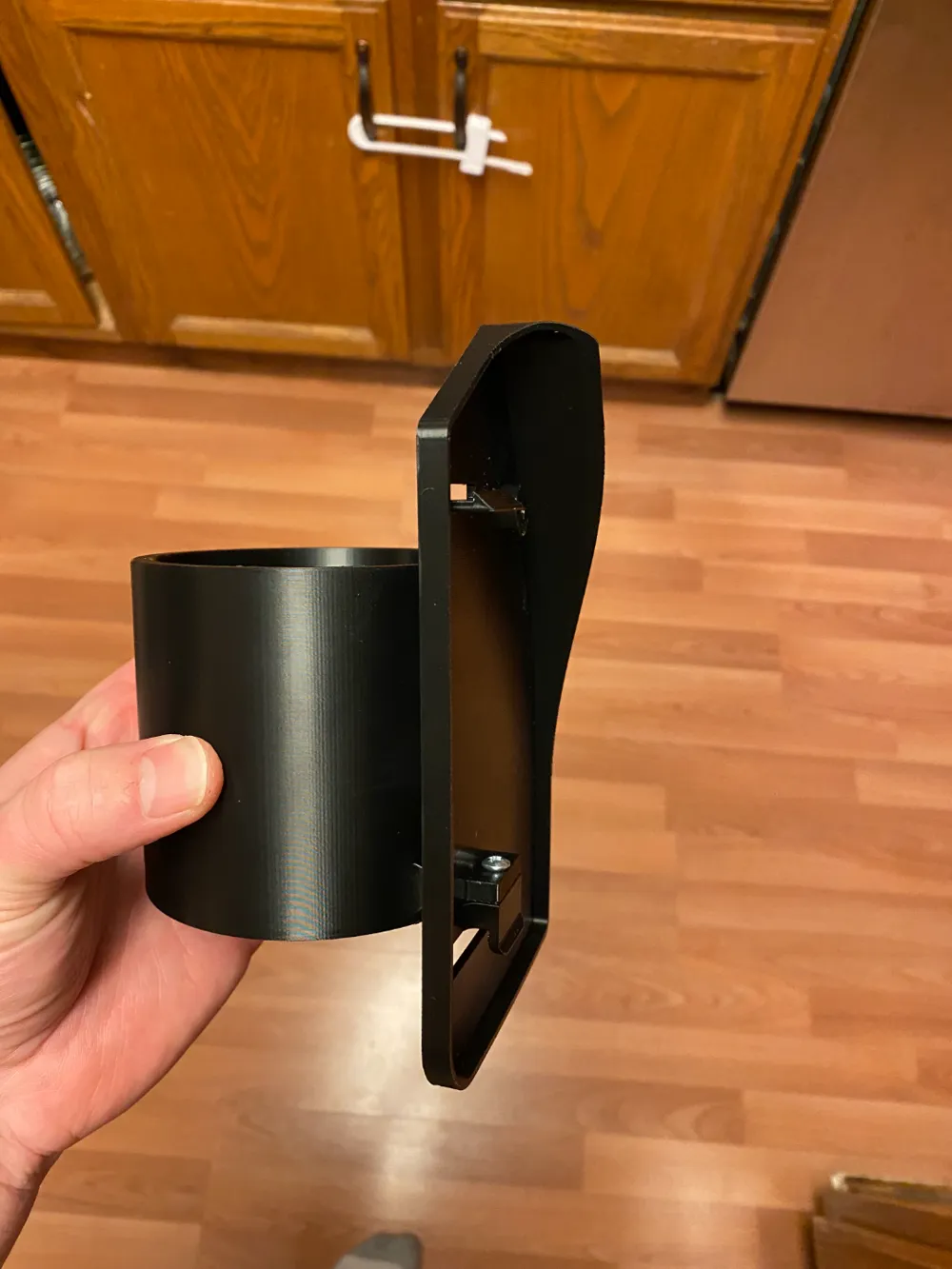

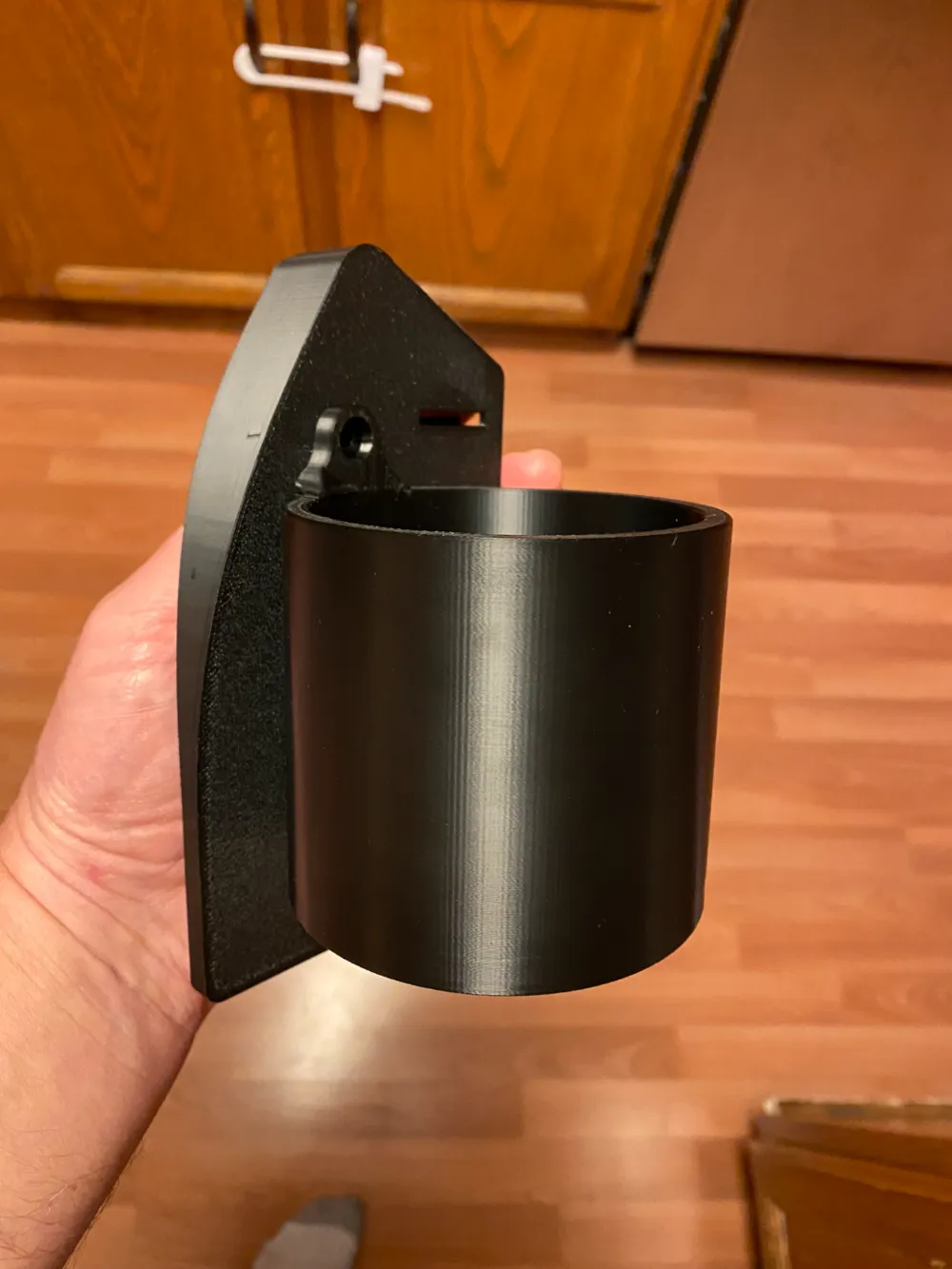

Separated into 3 pieces for printability. I have included an ABS and PETG version. I printed mine out of ABS for my son.

When putting this together you will need a #6 x 3/8" screw (M3x10) and super glue. I applied super glue to all the interfaces for strength. I have not tried it without the super glue, but at a minimum super glue the top hole flange to the cup holder.

If you have other ideas for this, drop a comment and I can whip something up.
