Squid Game Coffin Vault (BOX)

Introduction

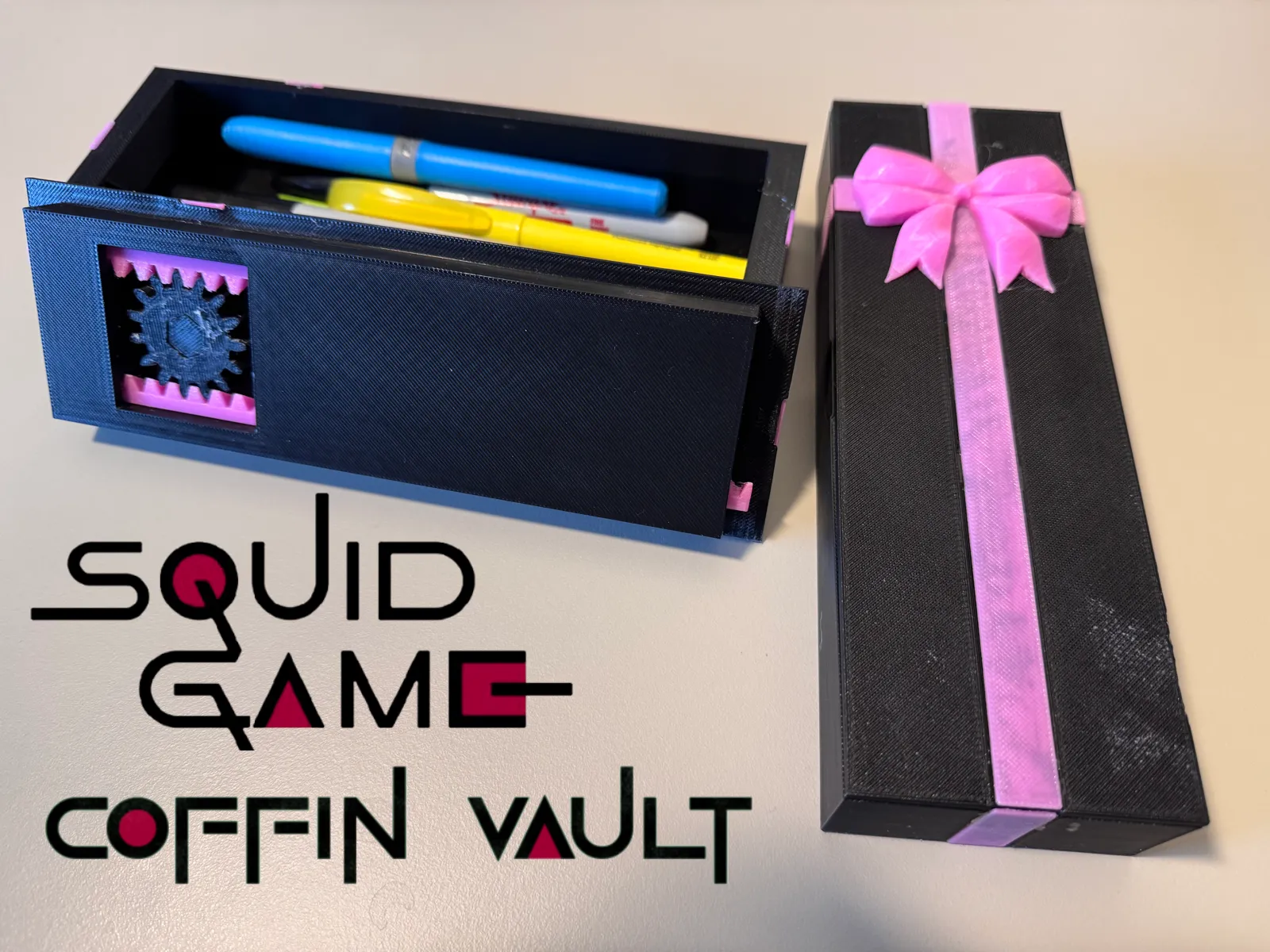

Step into the world of Squid Game with this ingeniously engineered Coffin Vault! Inspired by the show, this functional box combines intricate mechanics and sleek design, making it perfect for fans, collectors, or anyone who loves unique creations.

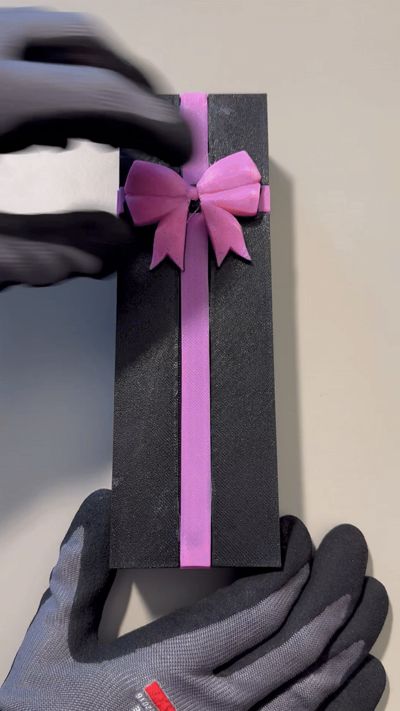

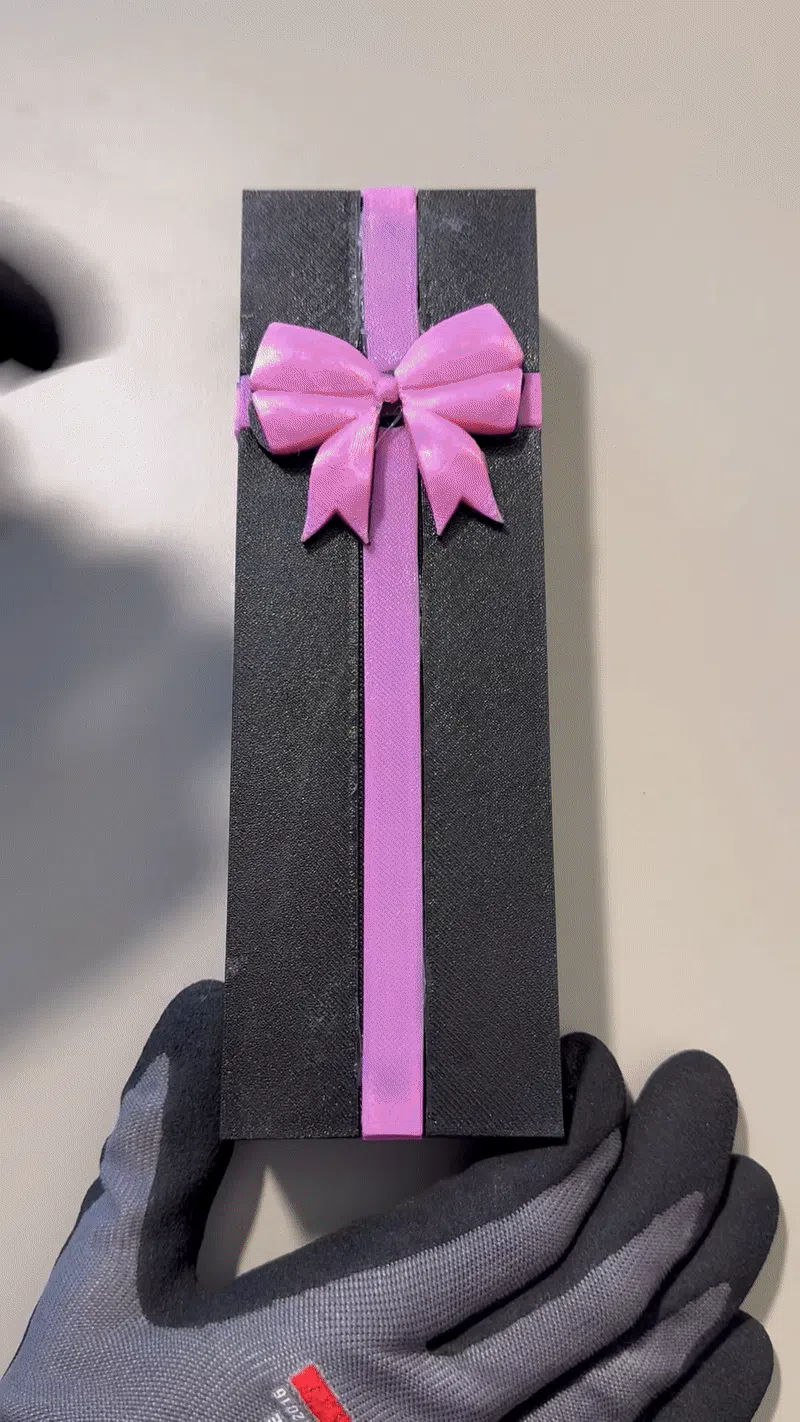

With its rack-and-pinion mechanism powered by a bow and gear system, this box opens smoothly when you turn the bow. It’s a striking and functional piece that works as a pencil box or storage for other small items.

Model Description

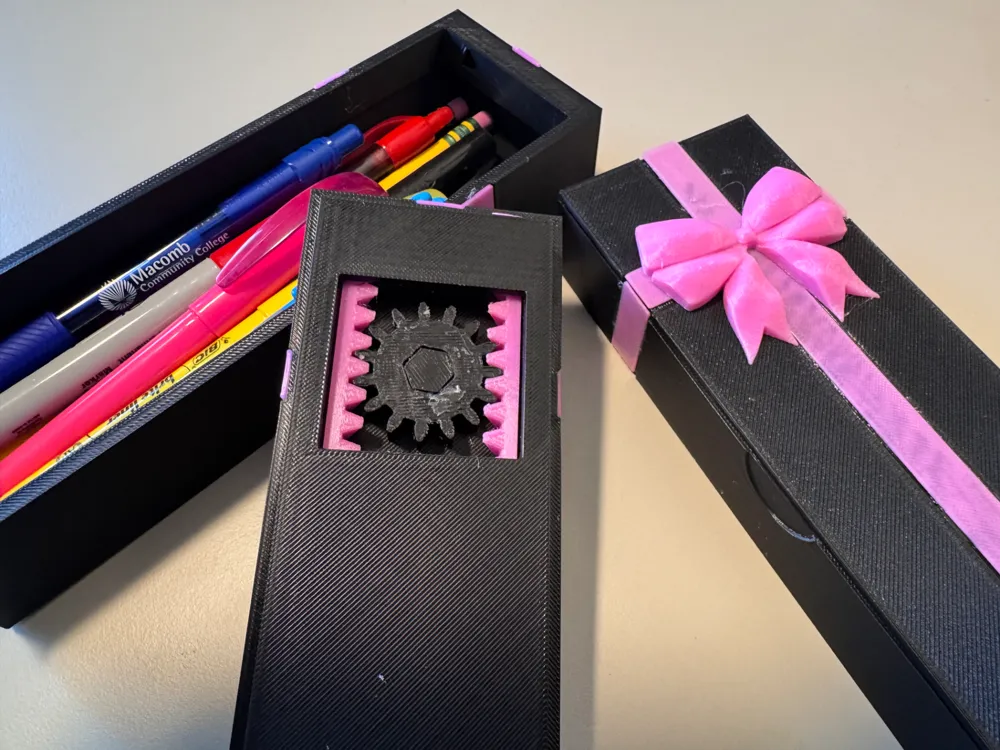

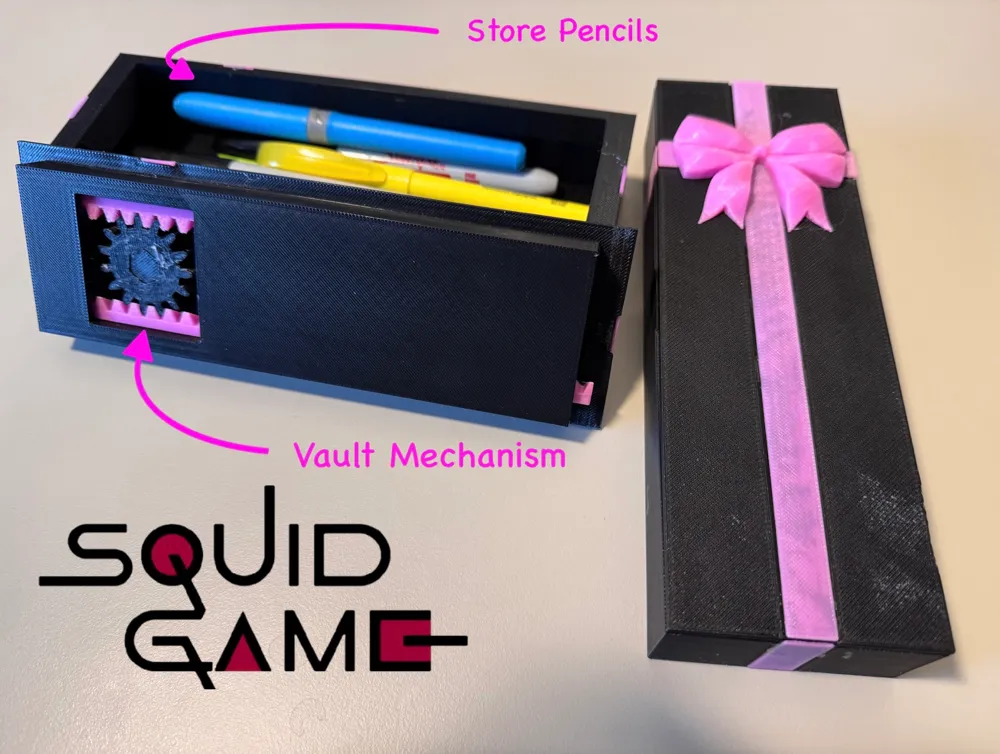

This 3D-printed Coffin Vault is as stylish as it is functional. Measuring 200x65x35mm, it’s compact yet spacious enough for modern pencils or other small items. Whether you’re using it as a desk accessory or a collectible, it’s bound to impress.

Why You’ll Love It

1. Inspired by Squid Game

Perfect for fans, this design mimics the look of the iconic coffins from the show while adding a unique twist with its functional mechanics.

2. Ingenious Rack-and-Pinion Engineering

The opening mechanism uses two racks and a central gear for a smooth and satisfying operation. The bow doubles as the gear handle, creating an intuitive and enjoyable user experience.

3. Multi-Functional

Use it as a pencil box, a small-item organizer, or a stylish conversation piece.

5. Low Post-Processing Needs

The only assembly requirements are a few simple steps and some glue—no painting, or extra tools needed!

Post-Processing Notes

• The only post-processing required is gluing a few parts during assembly.
• Ensure all glue connections are secure for long-term durability.

check out some of my other models! (you can click the image to go to the model)

What to Print

With AMS (Recommended):

• Top and Bottom: Print both pieces, and you’re done! The AMS handles the integrated colors for the pink bow and accents.

Without AMS:

• Print the top, bottom, and the five pink accent pieces separately for assembly.

Common Parts:
         Regardless of whether you’re using an AMS or not, you’ll also need:

• Gear
• Bow
• Bow Support
• Two Rods/Gear Racks

Assembly Instructions

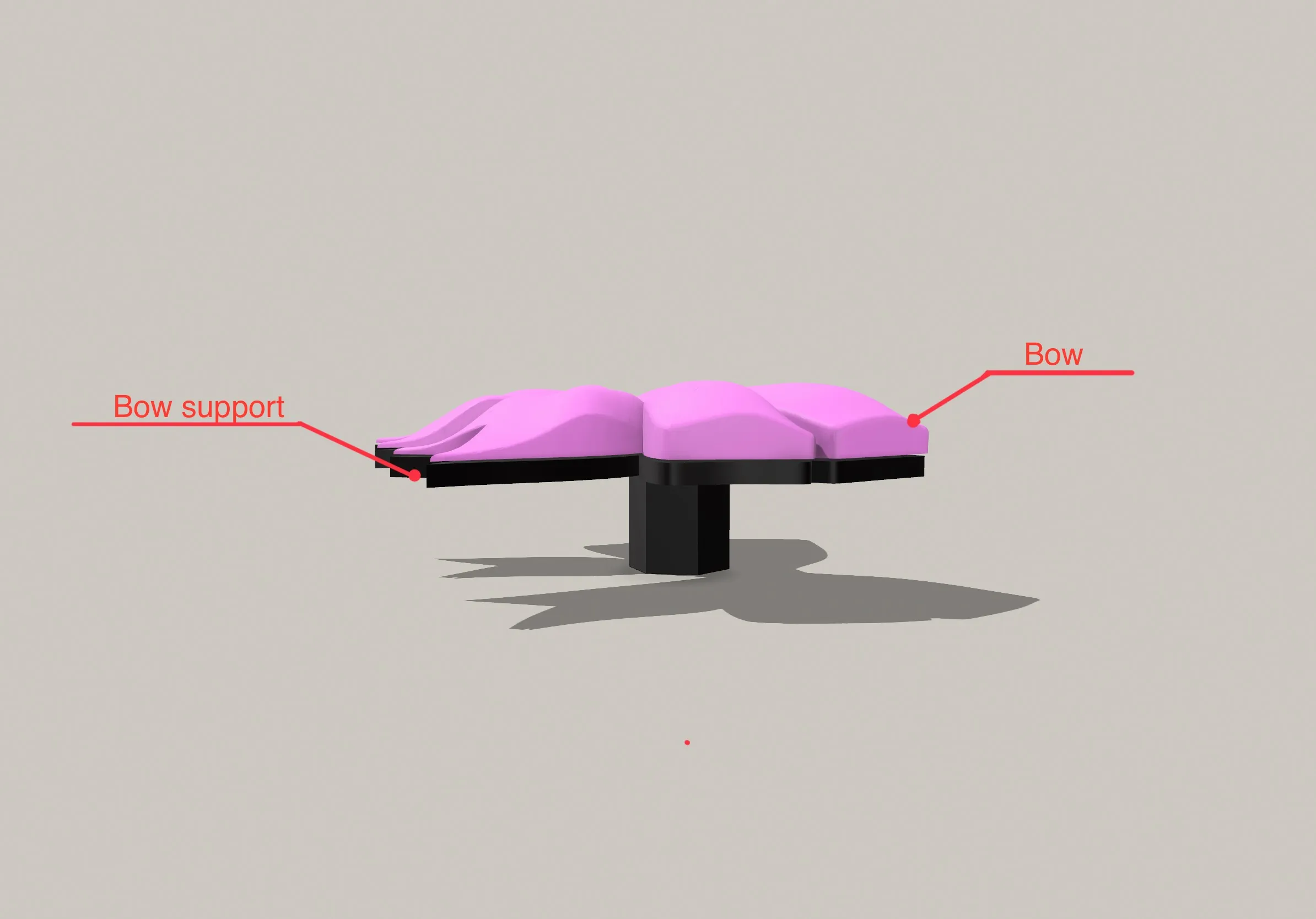

1. Attach the Bow to the Bow Support
   • Apply glue to attach the bow to the bow support securely.

1. Insert the Gear Racks
   • Slide the gear racks into the slots on the top piece, ensuring proper orientation.

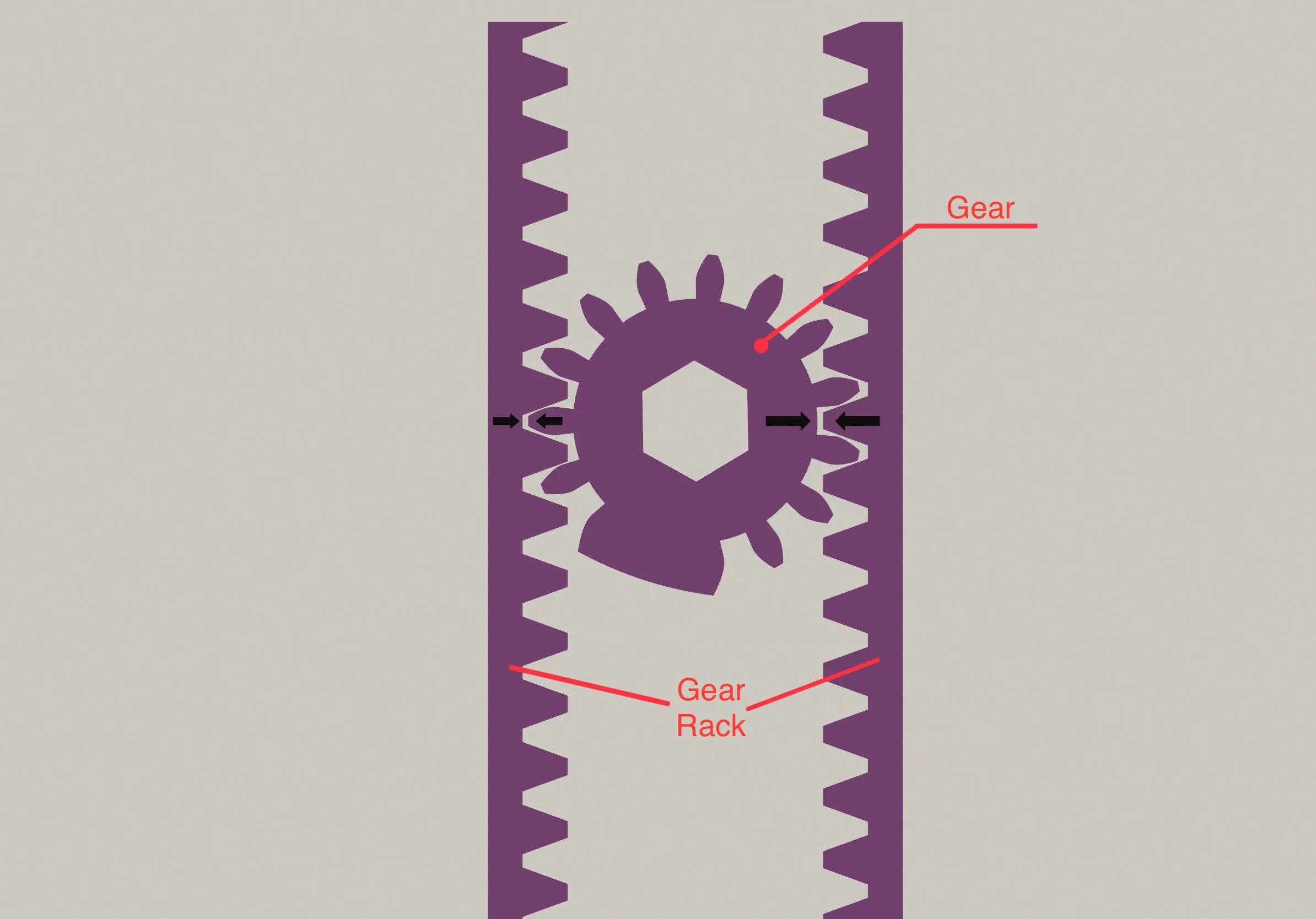

2. Align the Gear to the Racks
   • Match the arrows on the gear and racks (small to small, large to large) for proper alignment and optimal functionality.

1. Insert the Bow Support into the Gear
   • Push the bow support (shaft) into the gear’s center. Add glue for a firm connection.

Done! Your Coffin Vault is now ready to use.

How It Works

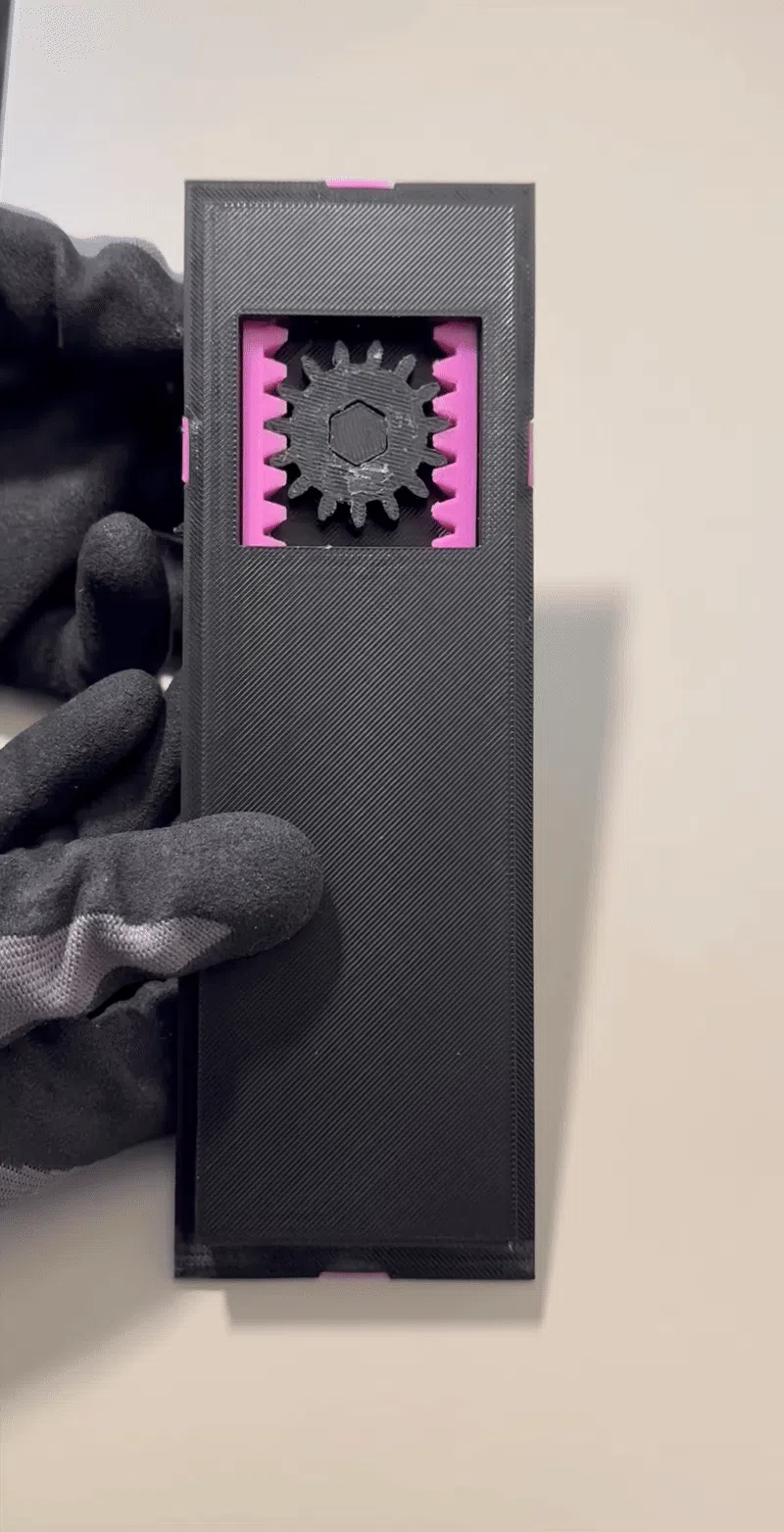

The Squid Game Coffin Vault uses a rack-and-pinion mechanism to achieve its smooth and unique opening motion.

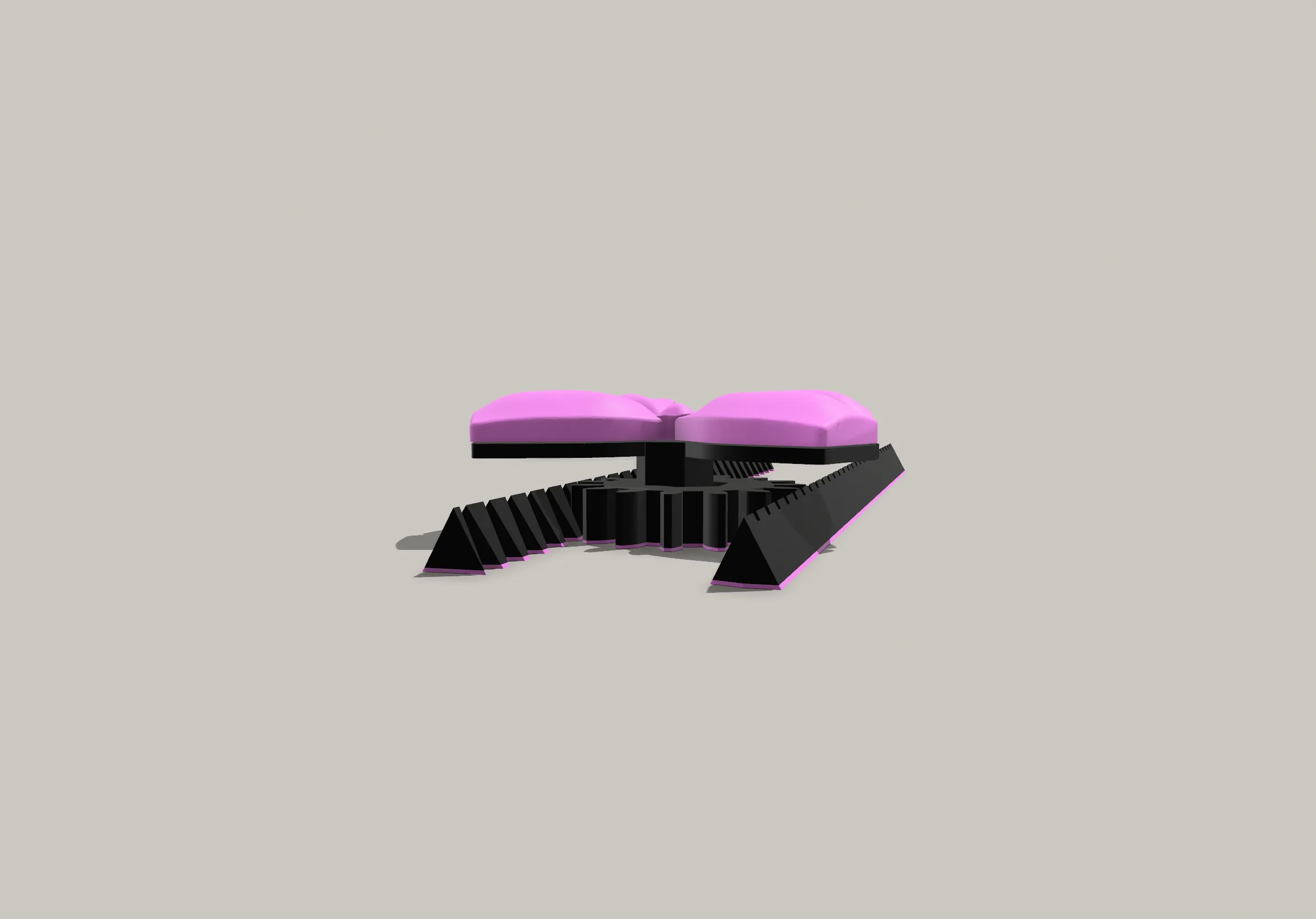

• Rack and Pinion Mechanics:
  • The two rods on either side act as the "racks" in this system.
  • The gear attached to the bow serves as the "pinion."
  • When you turn the bow, the pinion gear rotates, driving the racks linearly in opposite directions.
  • This coordinated motion causes the top and bottom parts of the coffin vault to slide apart, revealing the storage space inside.

This clever mechanism offers both functionality and a fascinating mechanical display, making it a fun and interactive experience every time you open it!

Feedback and Ideas

Your feedback is invaluable! If you have suggestions or encounter any issues, don’t hesitate to reach out—I’d love to hear from you!
