Bosch AL 1130 1230 Charger Clip-on Holder
Print Profile(2)
Description

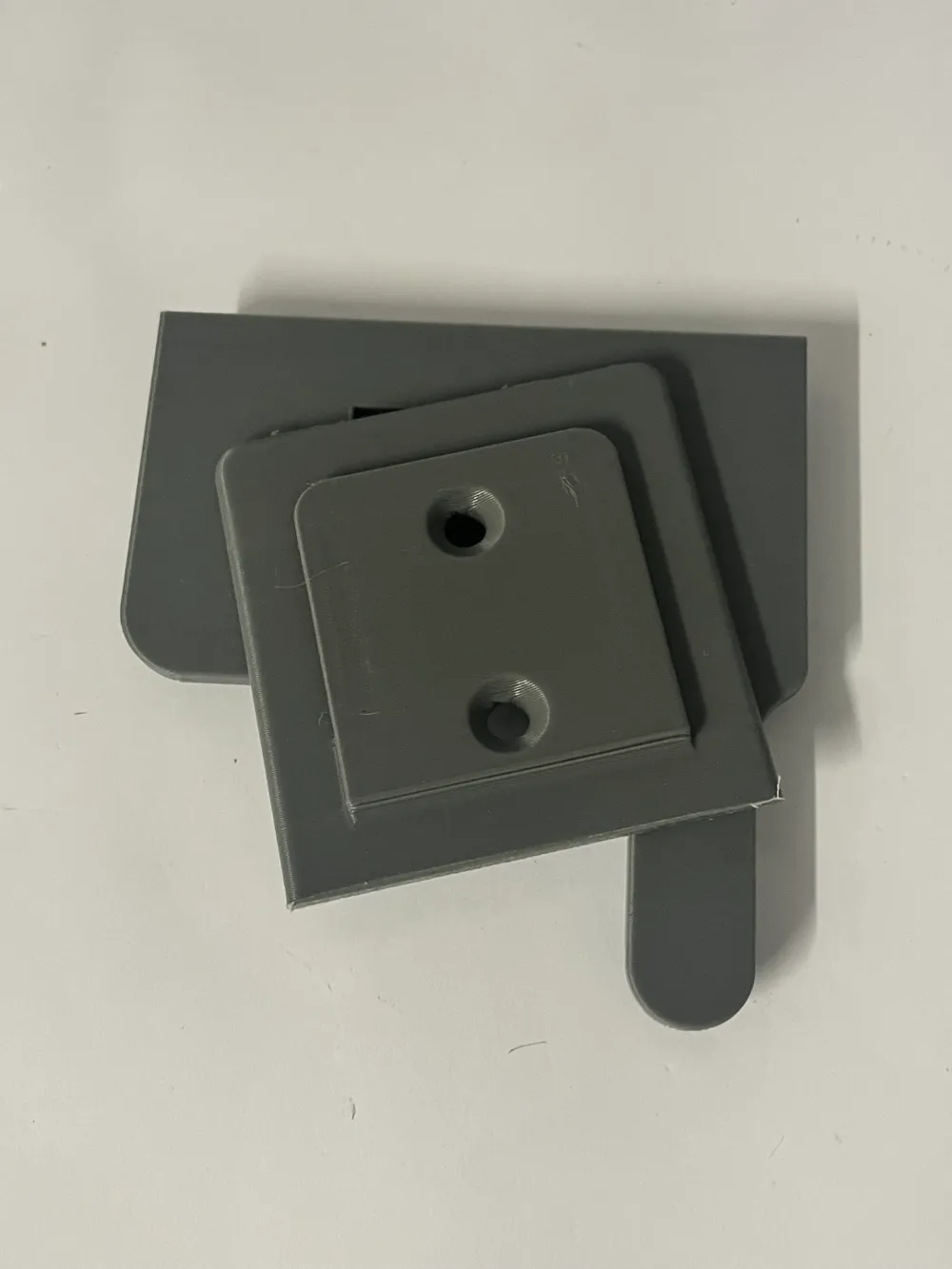

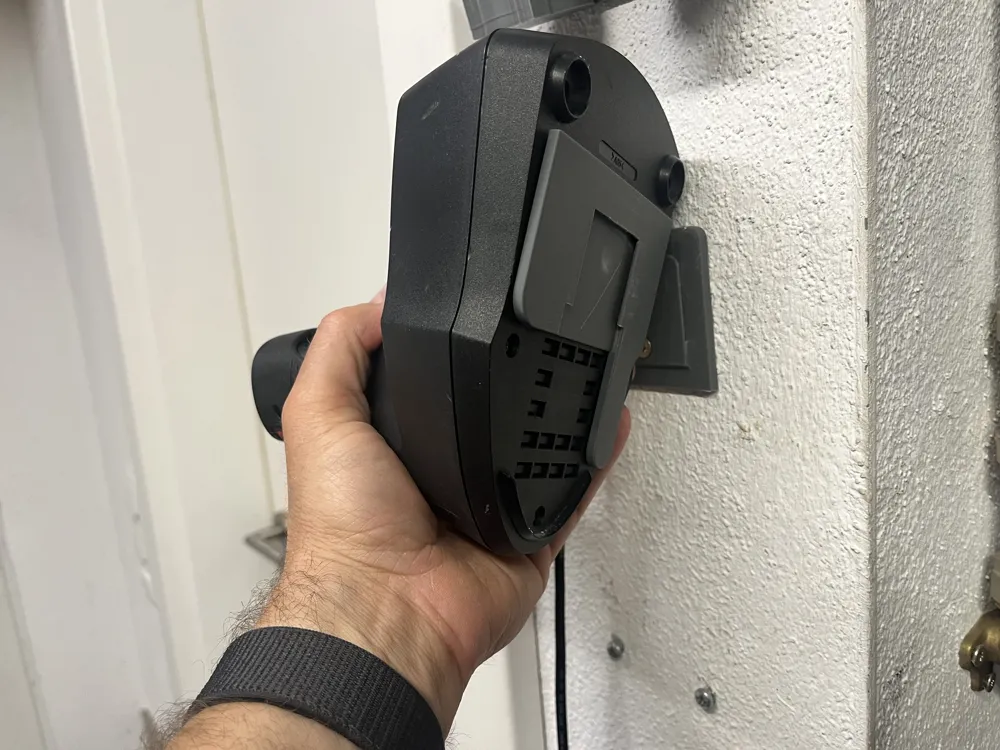

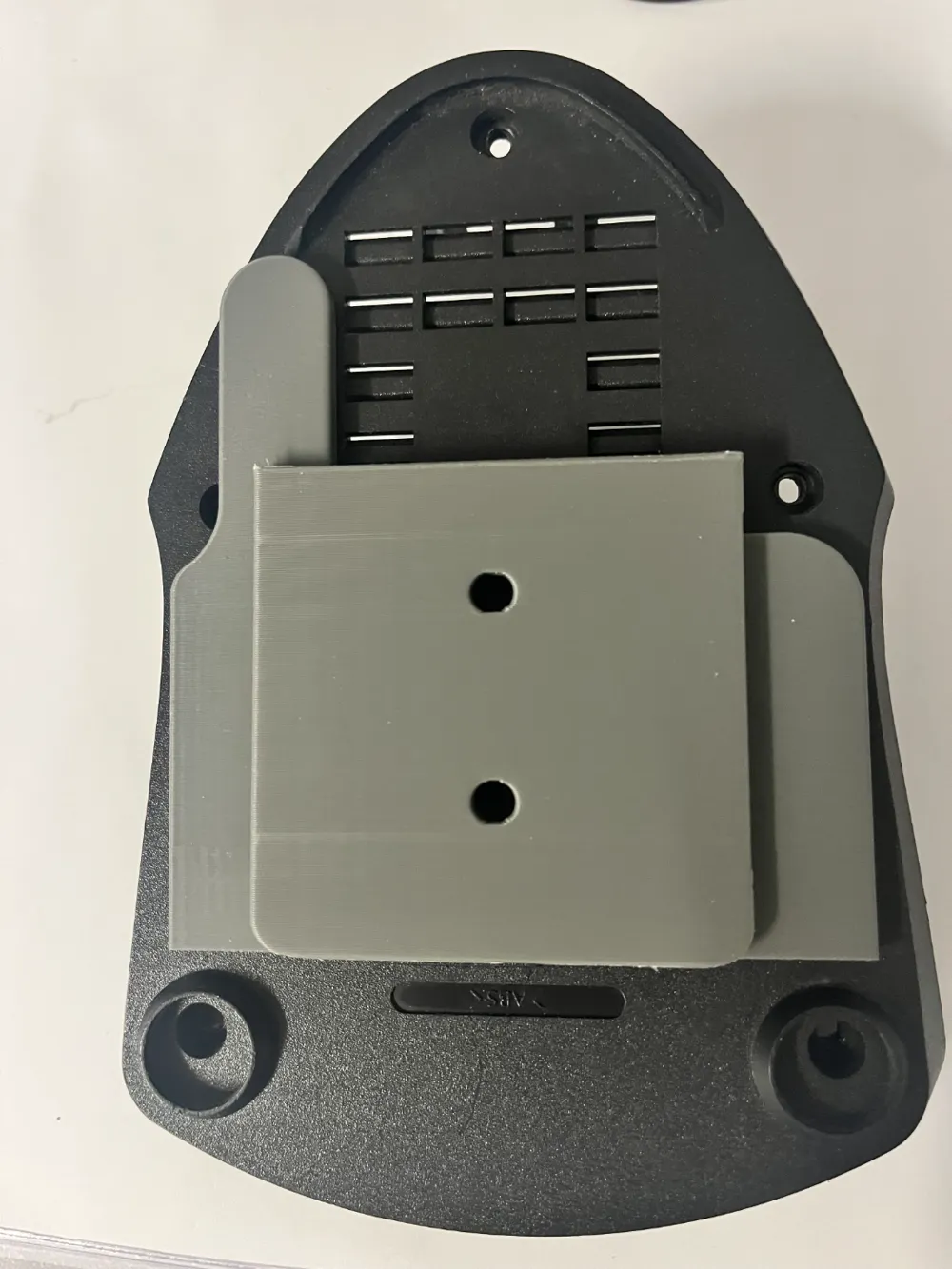

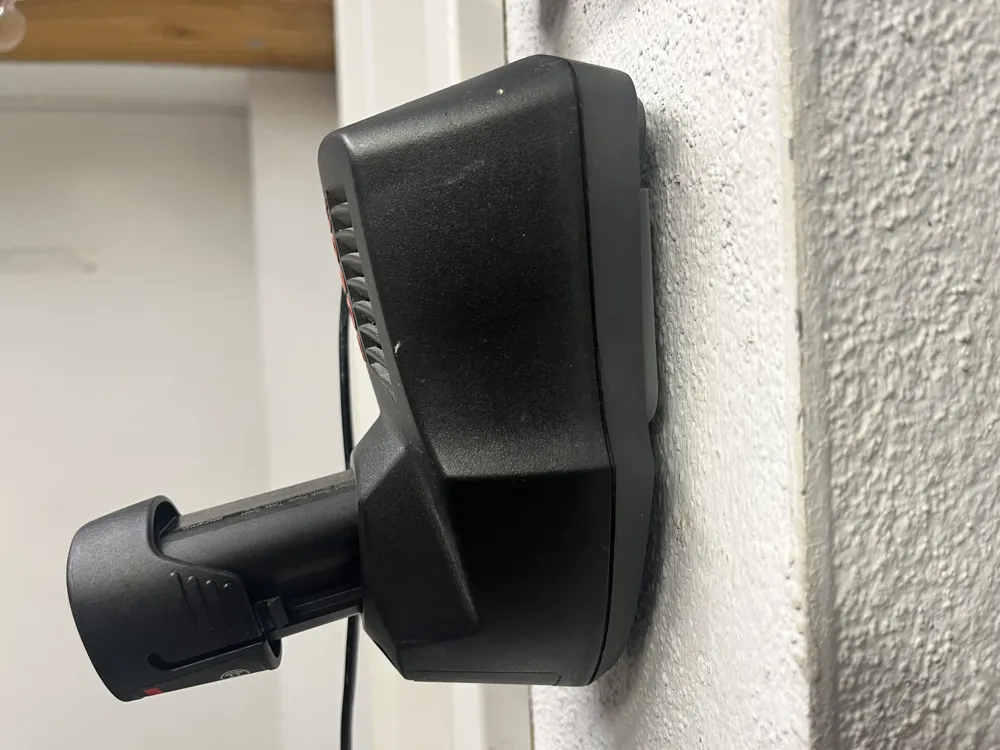

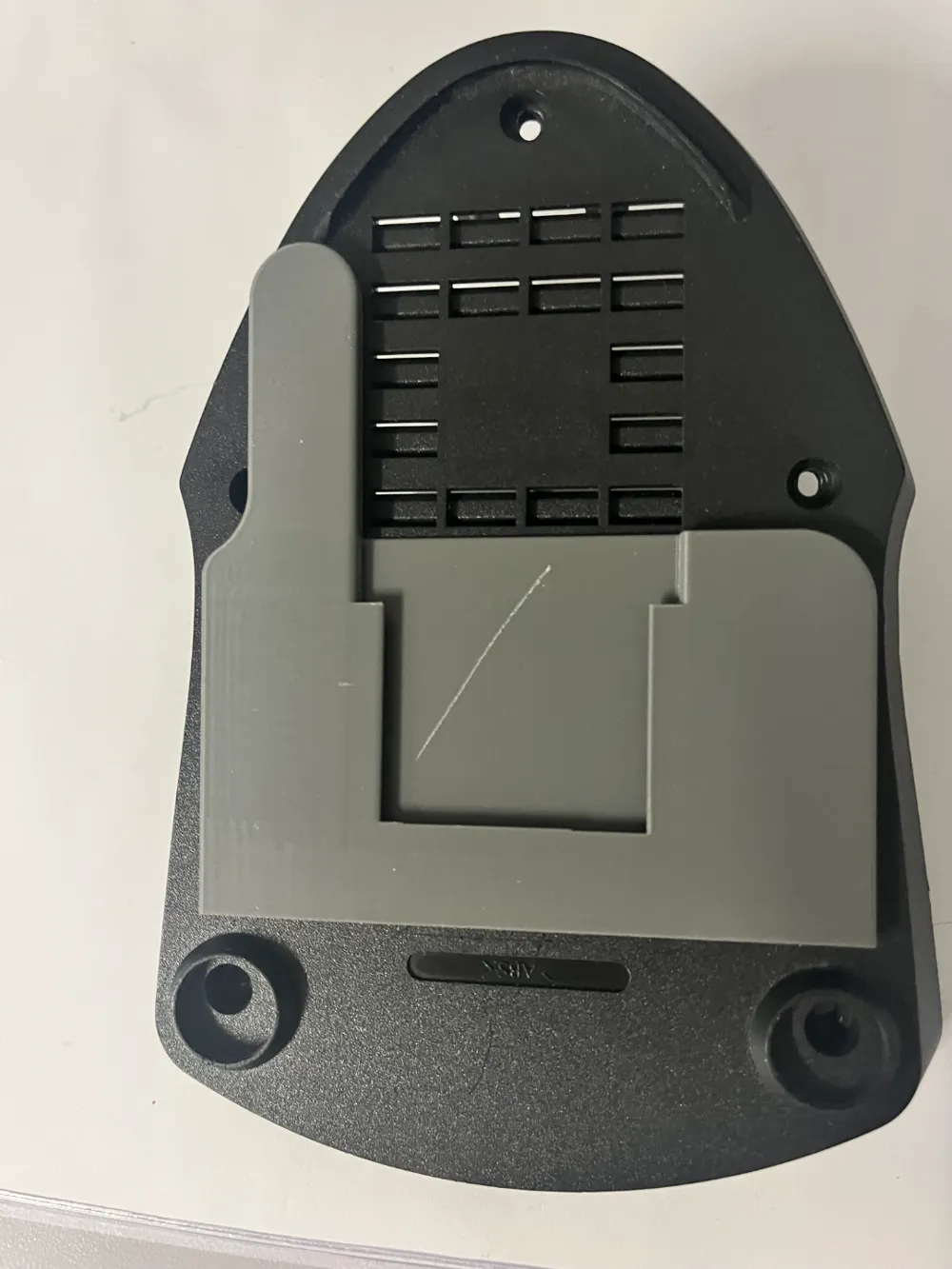

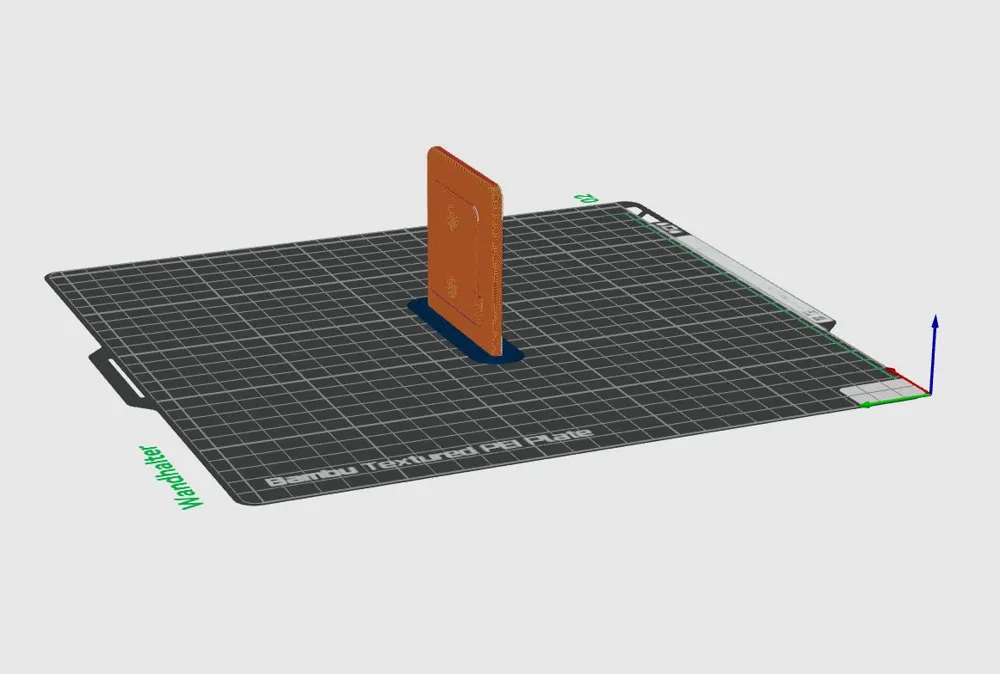

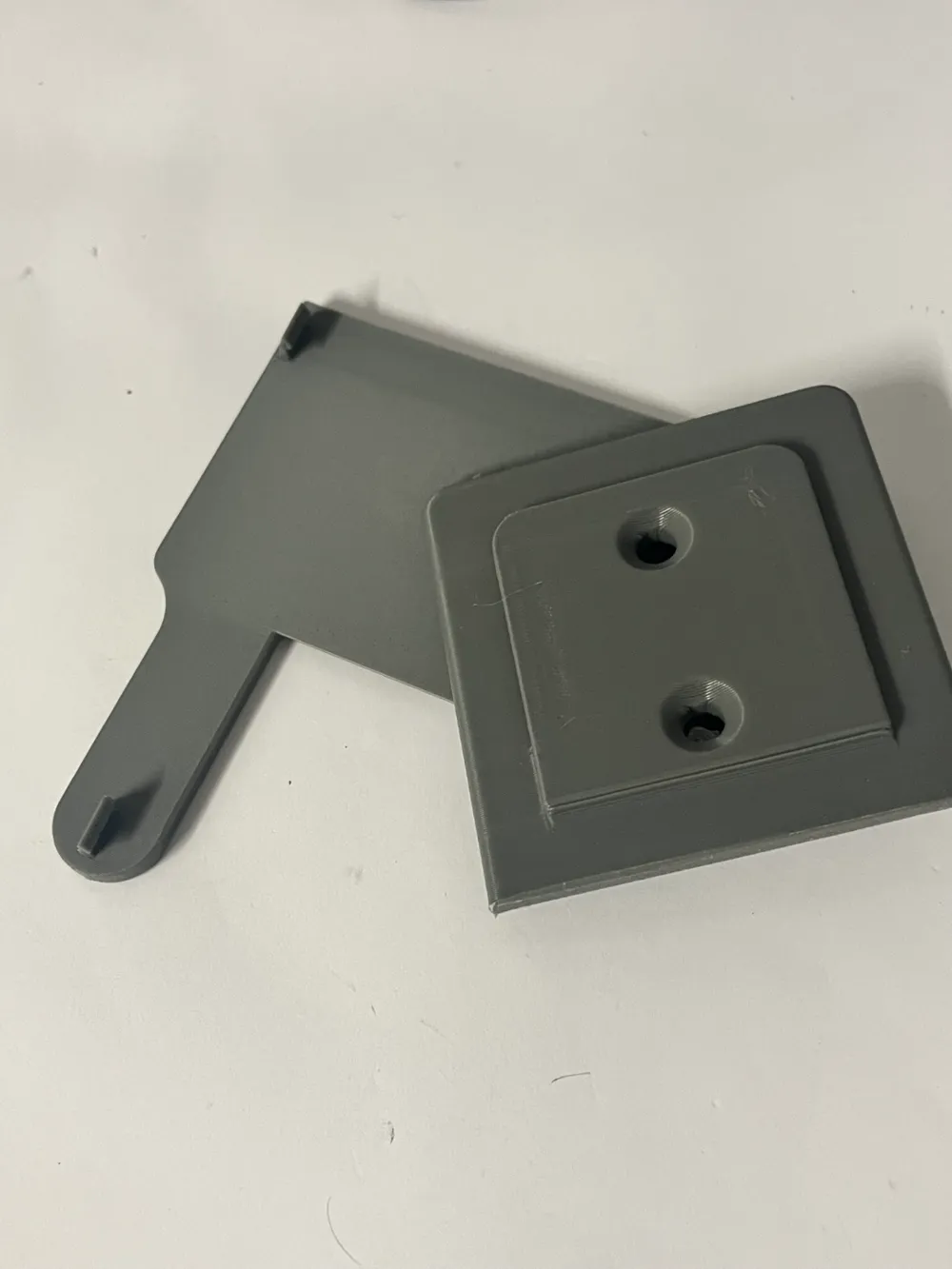

I have designed a wall mount for the Bosch charger 1130, which can be clipped into the existing recesses of the base plate.

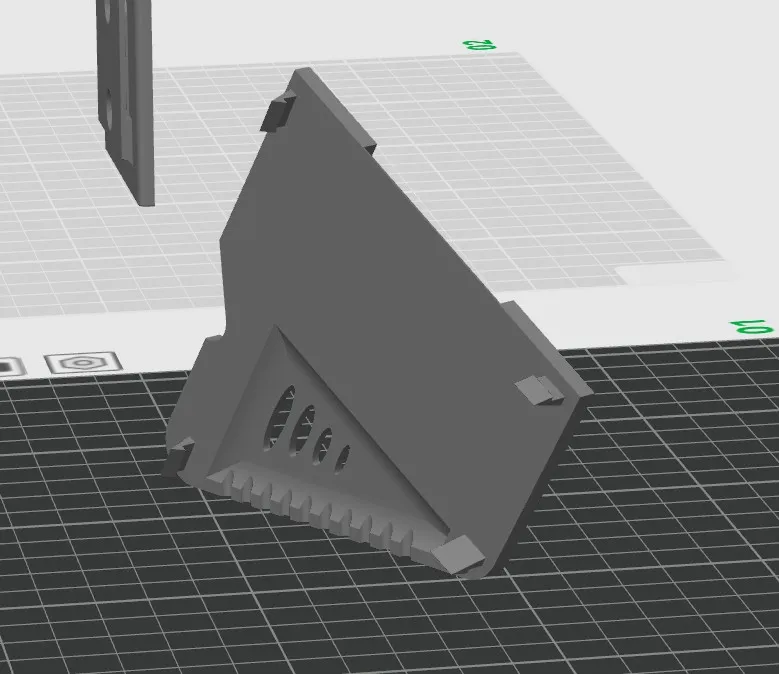

Additional securing is unnecessary if the wall mount is printed with a resolution of 0.25-0.3mm. The friction within the rails is absolutely sufficient in my experience.
When removed, the charger can be placed upright normally, as the adapter plate is thinner than the height of the feet.
The mount should also fit other chargers such as the 1230 with the same base plate. Naturally, I cannot guarantee that the manufacturer has not altered the injection molding during model revisions.

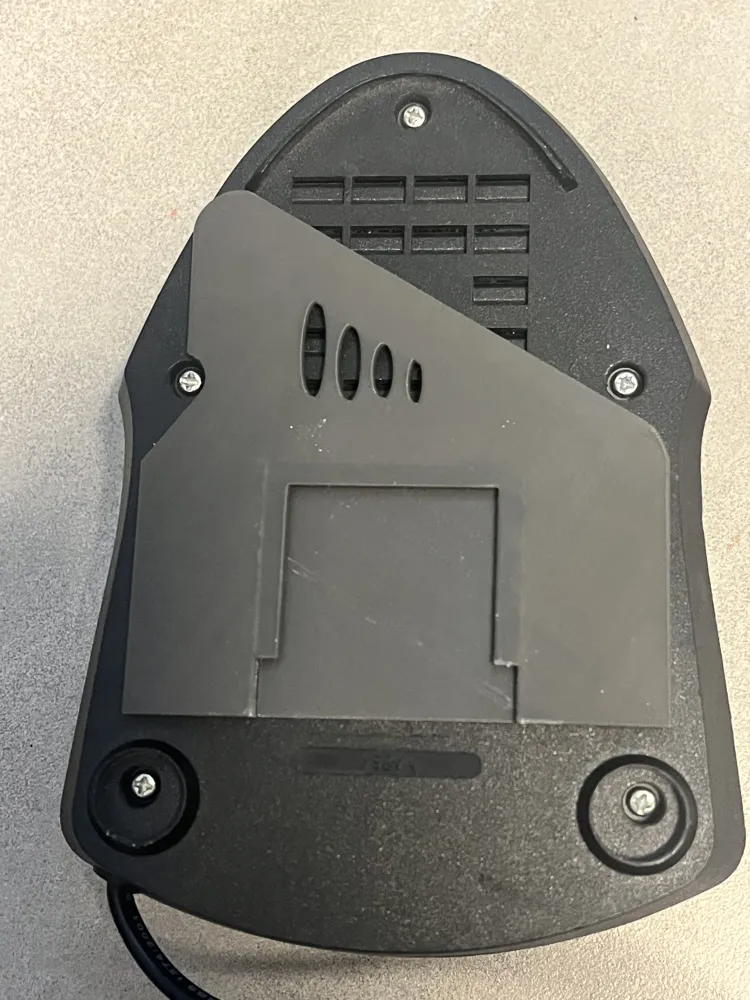

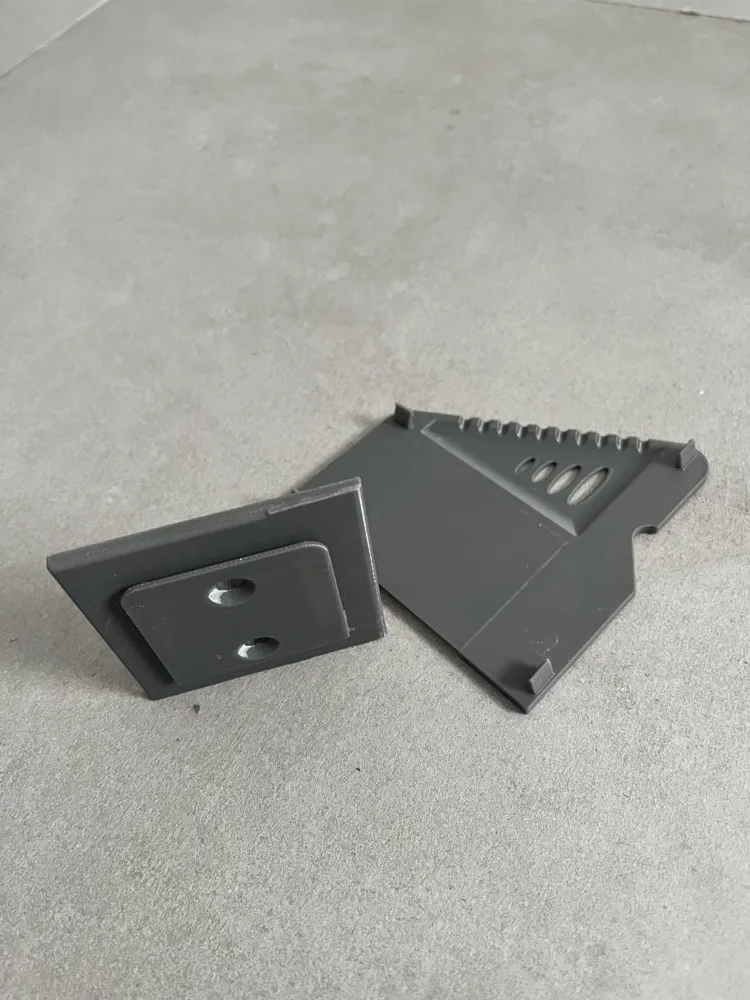

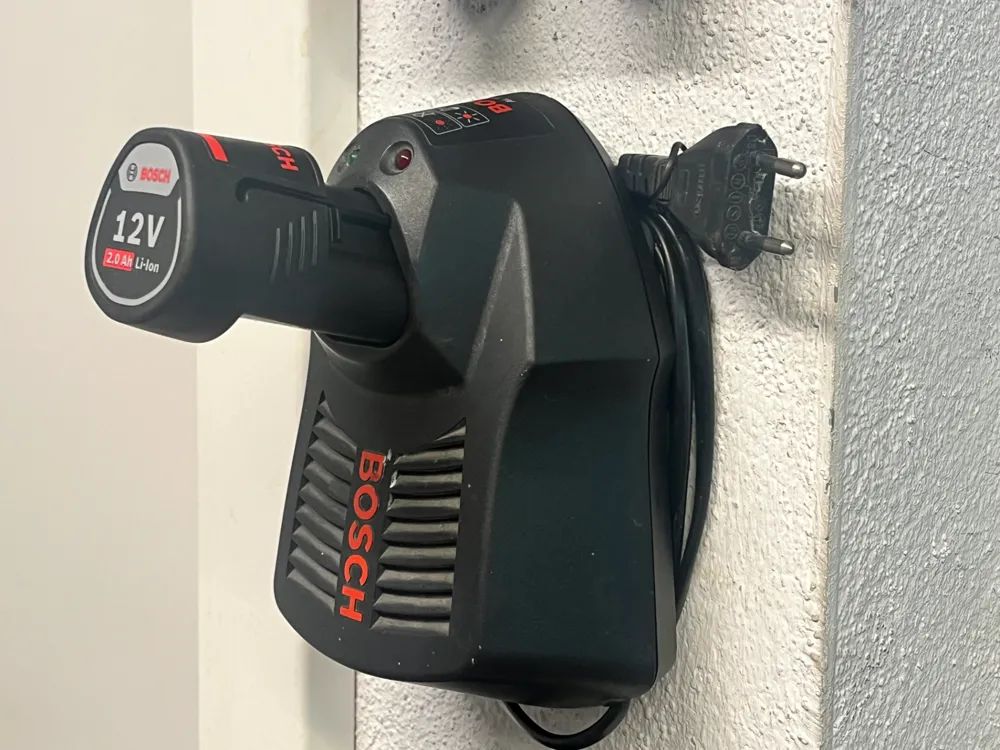

Update: I have added another plate. This allows the charger to be mounted with the cable exit facing downwards. Depending on the mounting height, this provides a better view of the LEDs.
Furthermore, I would like to point out that the altered position during charging may change the thermal conditions; please take note!
