Sortimo/LBoxx Spacer (no AMS)

UPDATE:

Print the model completely from TPU to function properly. I tried to reduce the use of TPU back then, but it just does not work over time. I will update the print profile accordingly in the near future.

--------------------------------

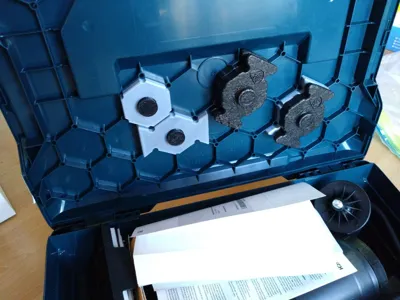

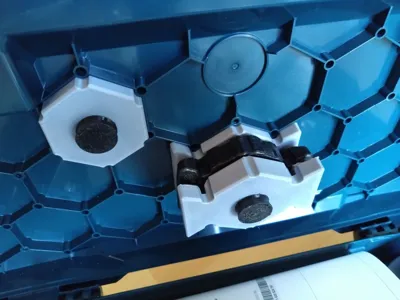

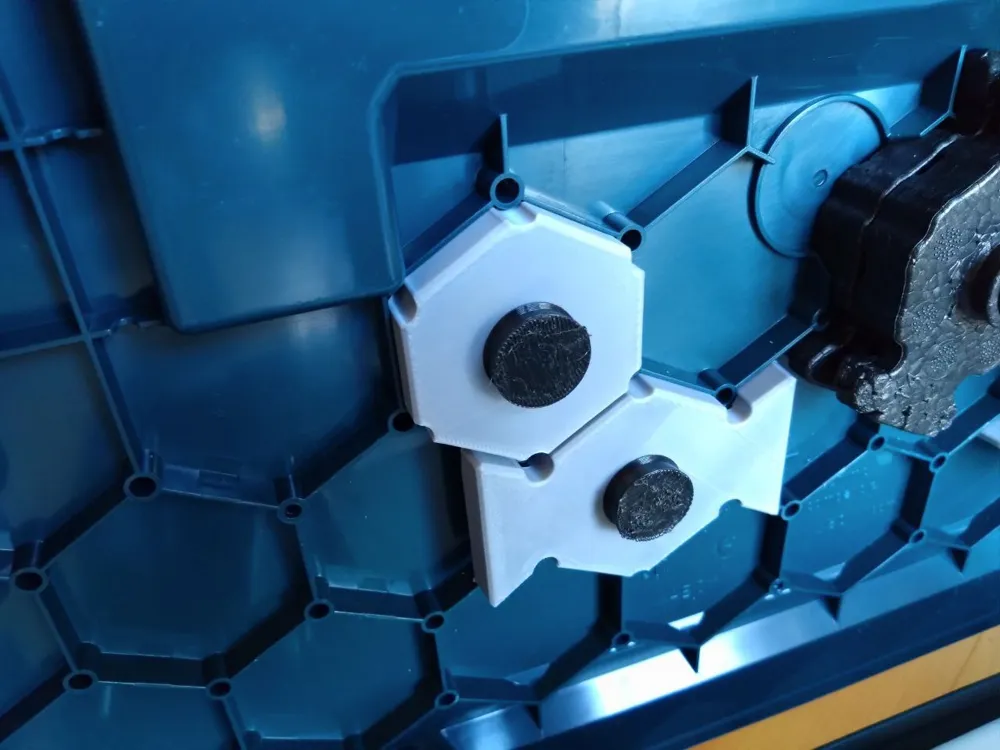

A spacer for LBoxx cases with hexagon patterns in the lid. Bosch does include spacers made from styrofoam sometimes but this model enables you to customize your Sortimo cases to your needs!

The print profile combines PLA and TPU to print the body from PLA and the interlocking part from TPU as it does need flex. You can print the model completely from TPU if you want. The print profile contains a pause to change the filament, so no AMS is needed

These spacers are fully compatible with the styrofoam spacers in all directions and are available in two variations: with and without ears.

For all of my models that include supports, I highly recommend a detailing / support removal tool like the one from anish or C59. Those make use of a replacement filament cutter and have proven themselves a very valuable tool for clean and easy support removal, especially for threads.

Also, please keep in mind, that the quality of threads is highly dependent on the quality and dryness of your filament, the calibration of your printer and the print resolution. A thread printed with .2mm layer height will be way harder to thread nicely and will require more force, than a thread printed at .08mm or .12mm layer height. Also, the Arachne wall generator does contribute a lot to precise threads. If you need more part strength, increase the number of walls, make use of the alternate extra wall feature and DO NOT use PLA.
