Minecraft Geared Lever Switch (Flat switch)

Summary

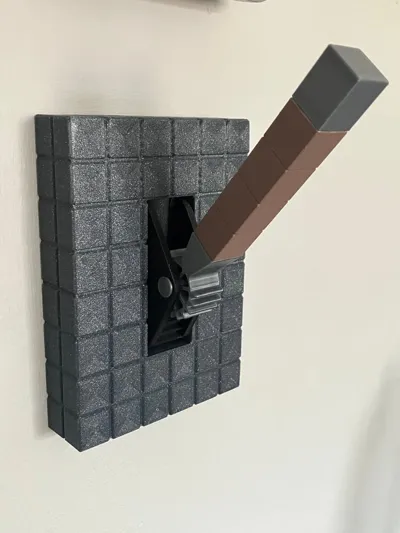

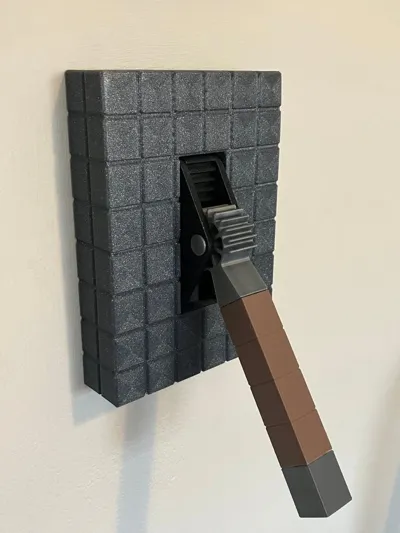

Modified Minecraft Geared Switch lever to work with flat light switches (see picture below)

The installation of this is fairly straight forward but you'll need to use slightly longer screws than the ones that are currently attaching your light switch cover. 6-32 x 1 inch machine screws with a round head should work fine.

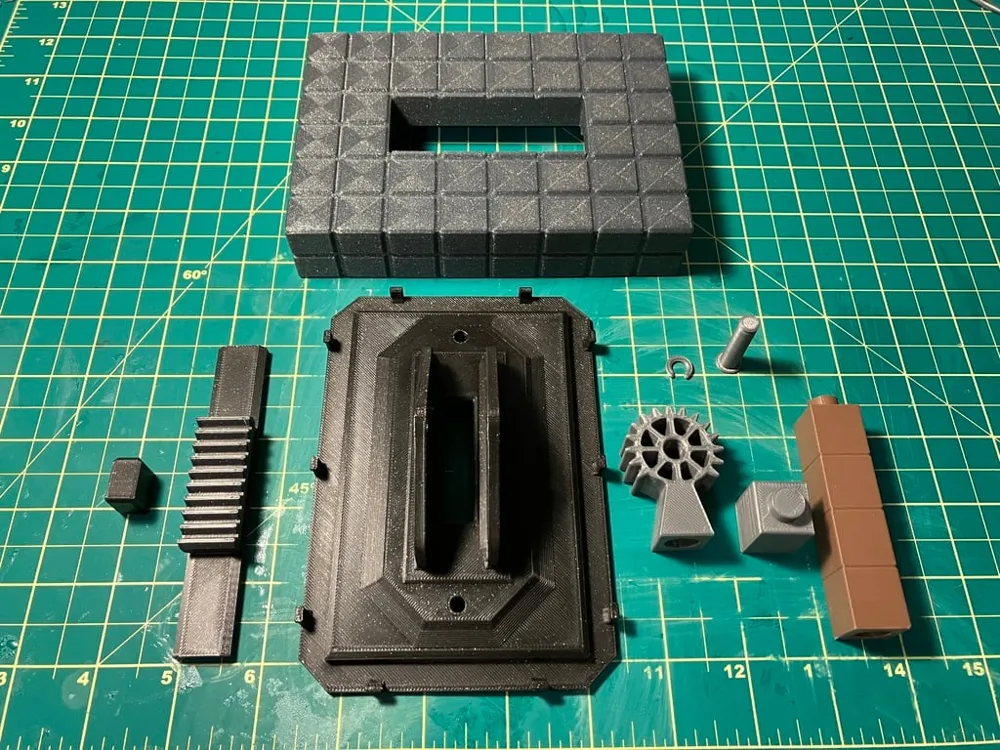

1- Slide the “RAIL-GEAR” into the “BASE-PLATE”.
2 - Insert the “KEY” in the “RAIL-GEAR”, it should fit snuggly into it.
3 - Remove the screws from the existing light switch cover. (You can either keep the cover in place or remove it.)
4 - Screw the “BASE-PLATE” over the light switch. You'll need to slide the “RAIL-GEAR” up or down to gain access to the screws. Validate that the “RAIL-GEAR” still slides easily, if not try loosening up the screws a little bit.

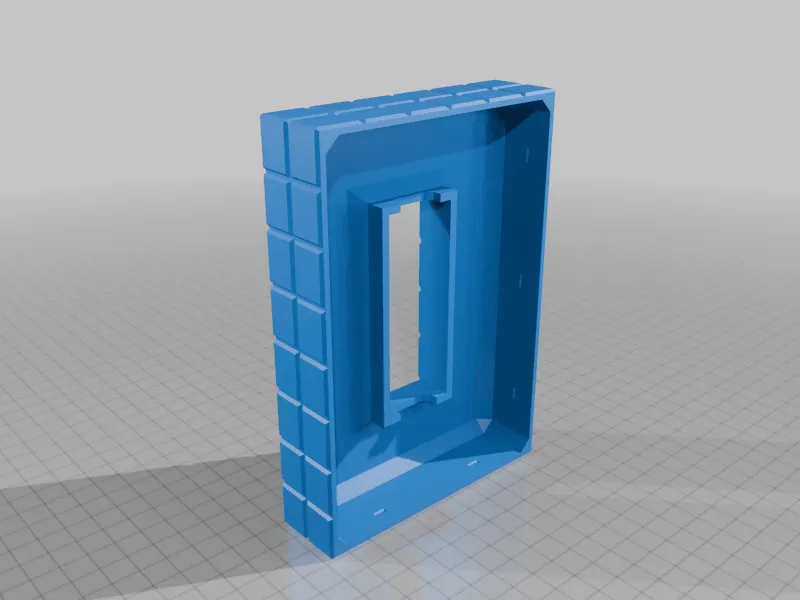

5 - Install the “COVER-PLATE” over the “BASE-PLATE”.

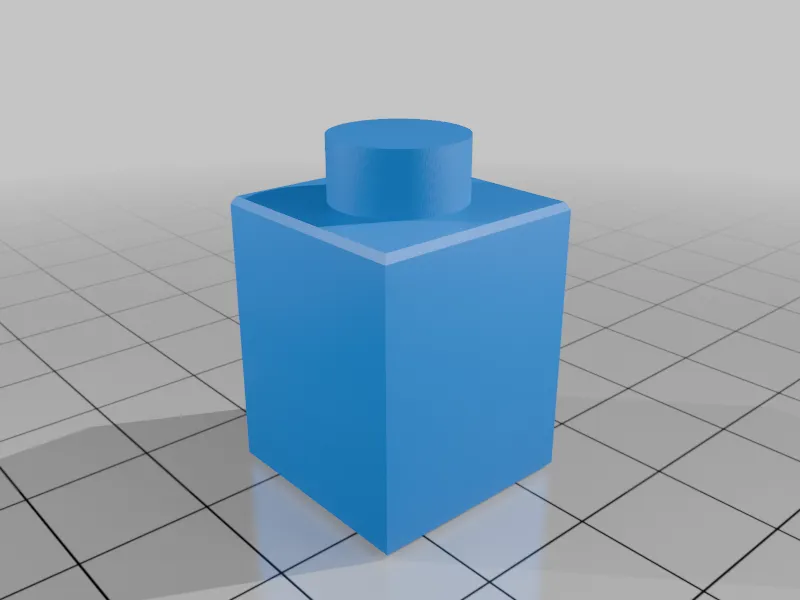

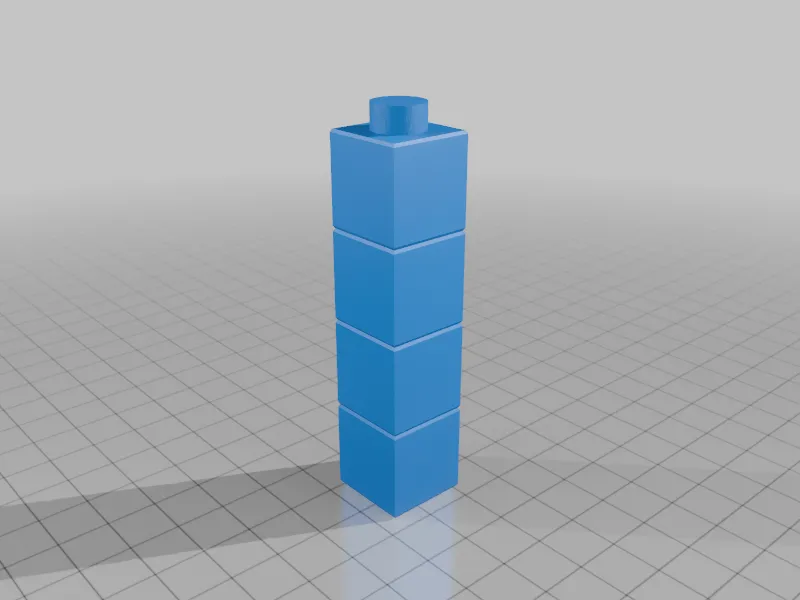

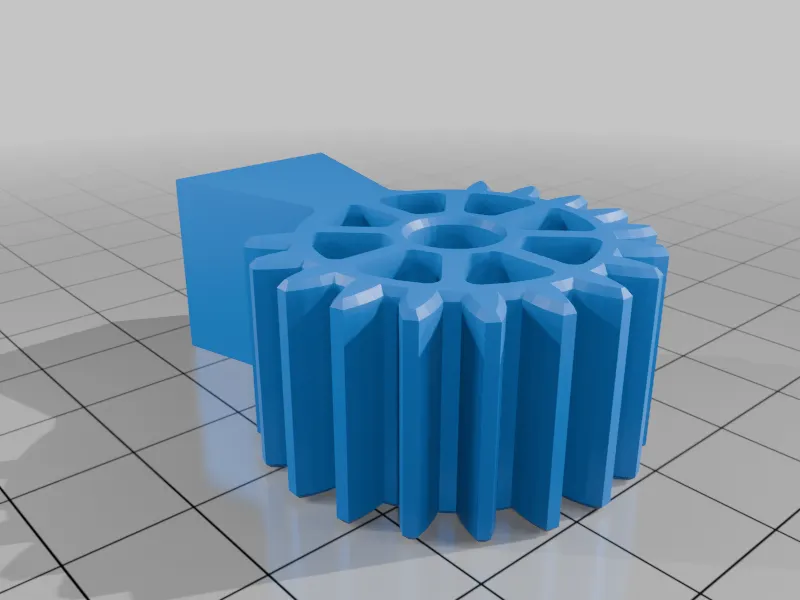

6 - Glue the 3 parts for the lever together (Gear/Handle/Wood)

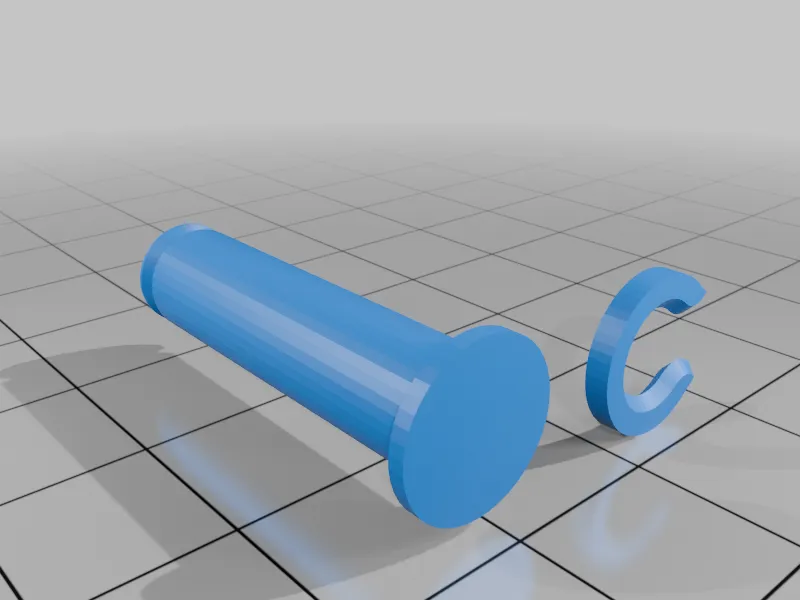

7 - To install the lever, place “RAIL-GEAR” and Lever in the neutral/middle position then use the Pin and Clip to secure it in place.

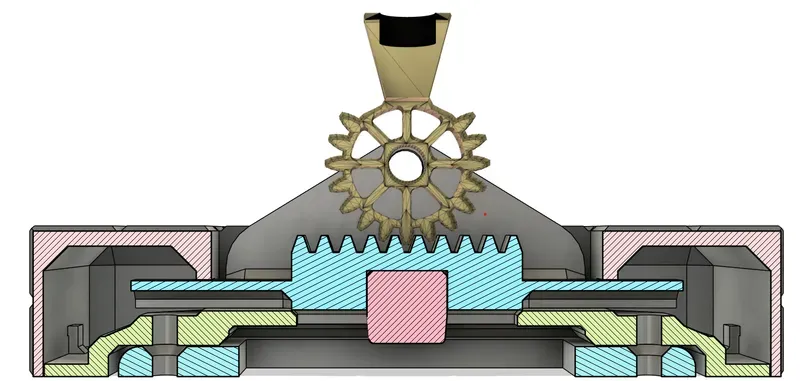

It works with this type of switch:

Here’s the list of filaments I used to make this:

Bambu PLA Sparkle Slate Grey
Bambu PLA Sparkle Onyx Black
Polylite PLA Steel Grey
Bambu PLA Matte Dark Brown
