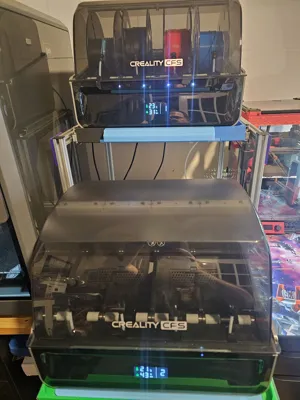

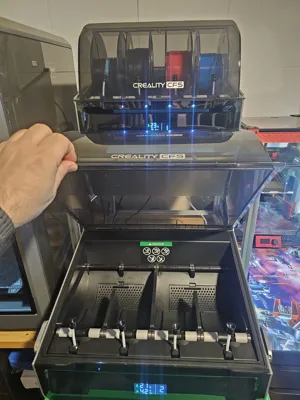

Creality CFS Drawer Rack

Remixed by

Print Profile(2)

All
Voron Trident 350
H2D
H2D Pro

0.2mm layer, 3 walls, 45% infill
0.2mm layer, 3 walls, 45% infill
Designer
93.6 h
5 plates

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
23 h
5 plates

Open in Bambu Studio
Boost
52
94
26
4
154
5
Released

Description

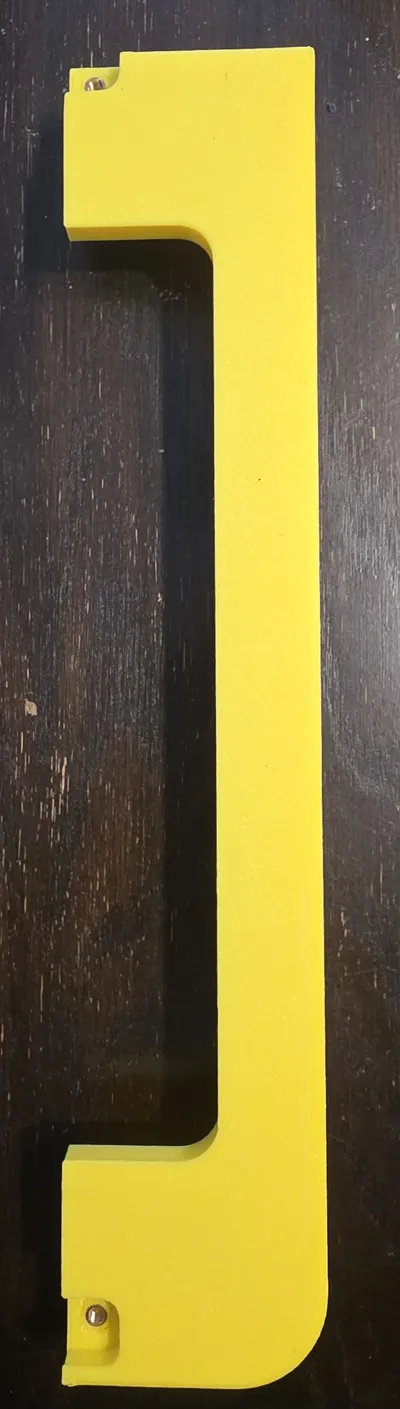

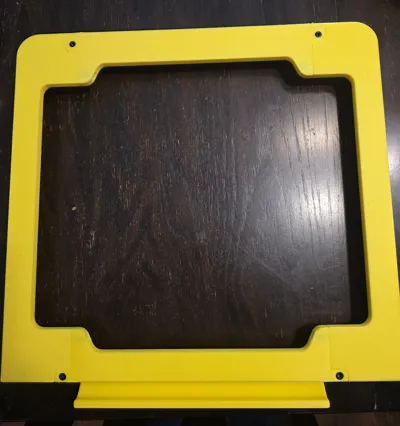

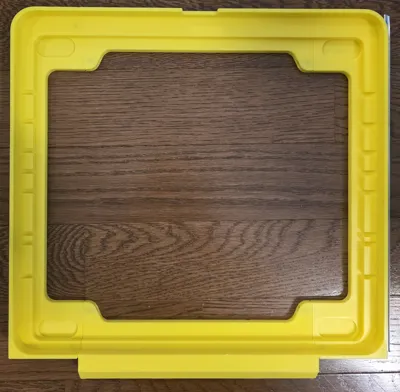

You must print on a larger printer since the side pieces are just over 300mm. (K2 Plus or similar)

I did print this in PLA but I might go back and reprint it in ABS/ASA.

Print settings were - 3 Walls 15% Crosshatch

You can beef up the infill if you want them stronger.

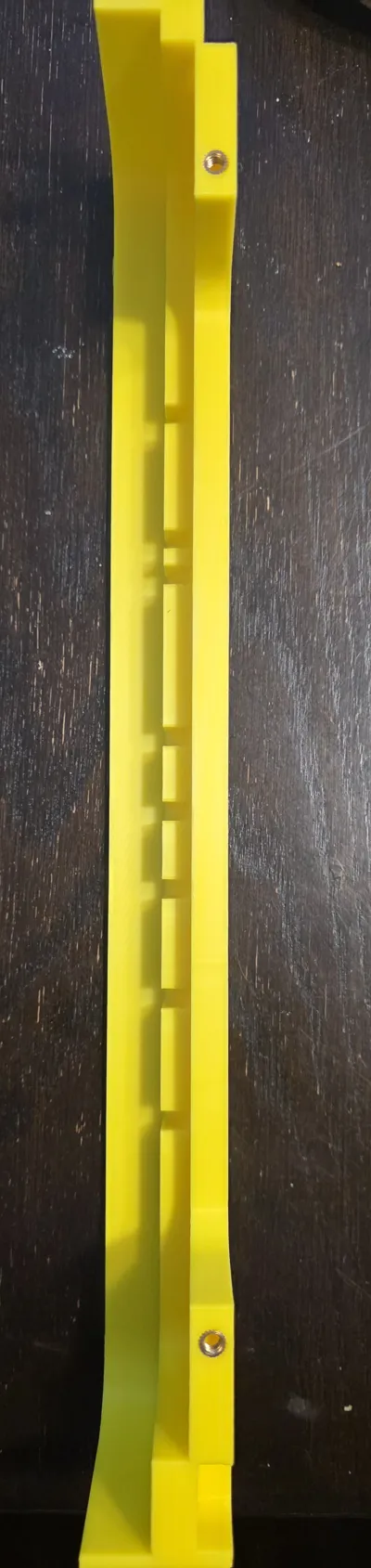

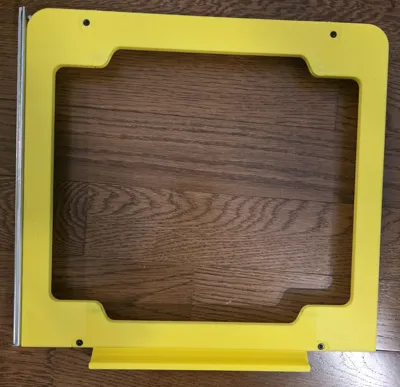

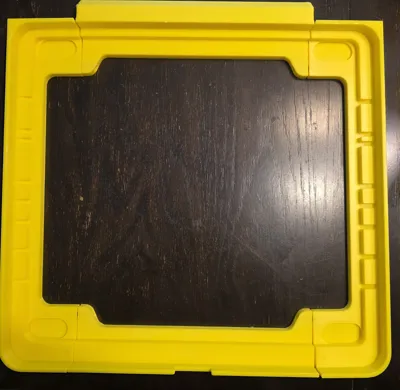

Where the parts screw together or where the drawer slides mount to the printed parts I used heat inserts.

Extrusions -

10 -  400 mm extrusions https://www.amazon.com/gp/product/B0CLGXGXTQ

Printed Parts -

8 End caps - https://www.printables.com/model/352616-ender-3-2020-end-cap

12 Jointing plates - https://www.printables.com/model/125303-90-degree-joining-plate

Fasteners:

64 - m4-10mm screws for the jointing plates/drawer slides - https://www.amazon.com/dp/B09R3QHPHX

8 - m4 x6mm - https://www.amazon.com/MroMax-M4x6mm-Button-Screws-Plating/dp/B07ZLPJNH3

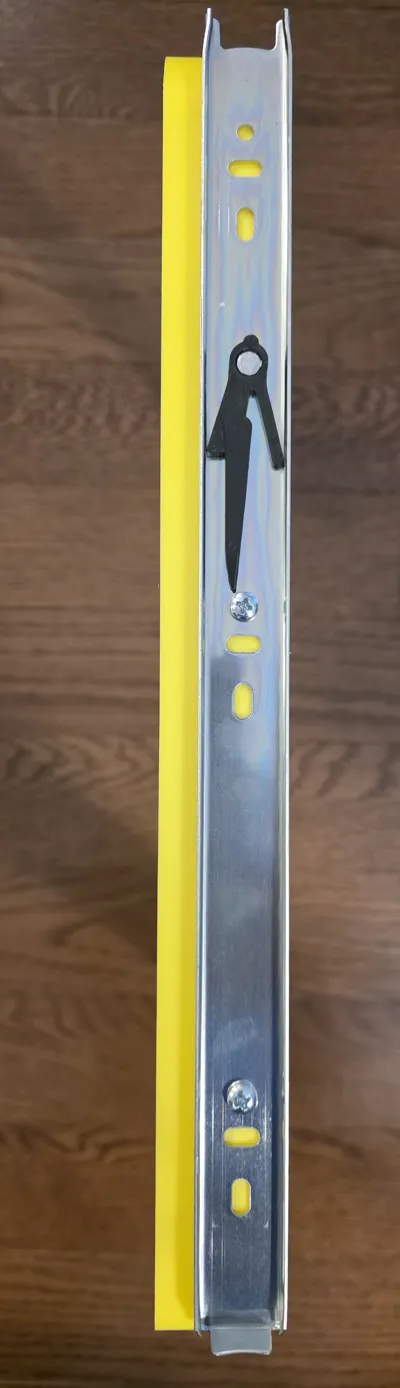

2 pairs of 14" drawer Slides - (I have a few left over.) https://www.amazon.com/dp/B07HNJW8NZ

16 - M4x6 Heat Inserts - https://www.amazon.com/Printing-M4x6x6mm-Threaded-Embedment-Automotive/dp/B0CX8VQYWM

72 - M4 t-nuts for 2020 extrusion - https://www.amazon.com/HELIFOUNER-Pieces-2020-Aluminum-Profile/dp/B0B2137461
