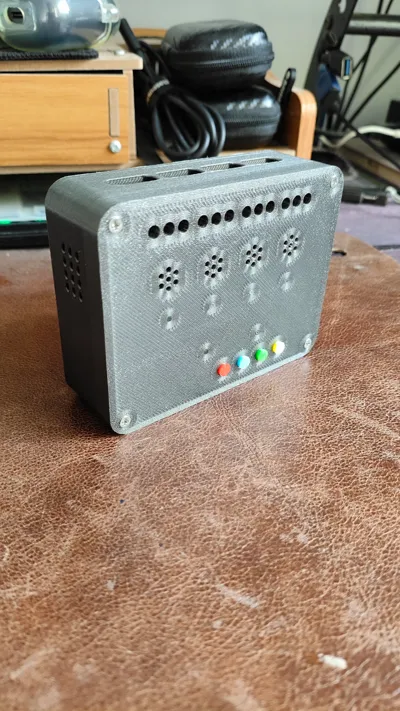

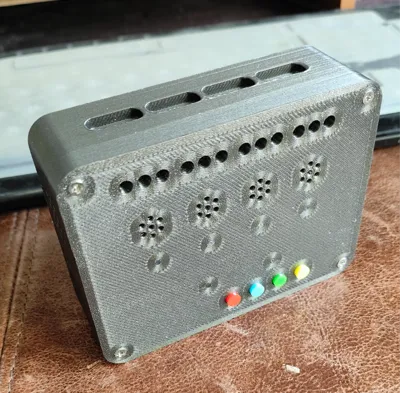

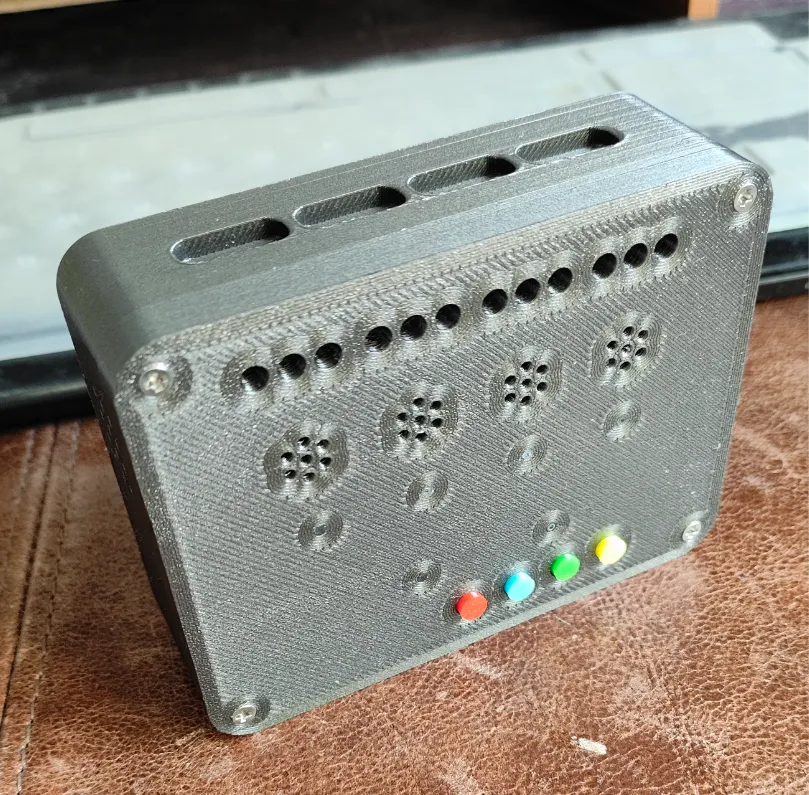

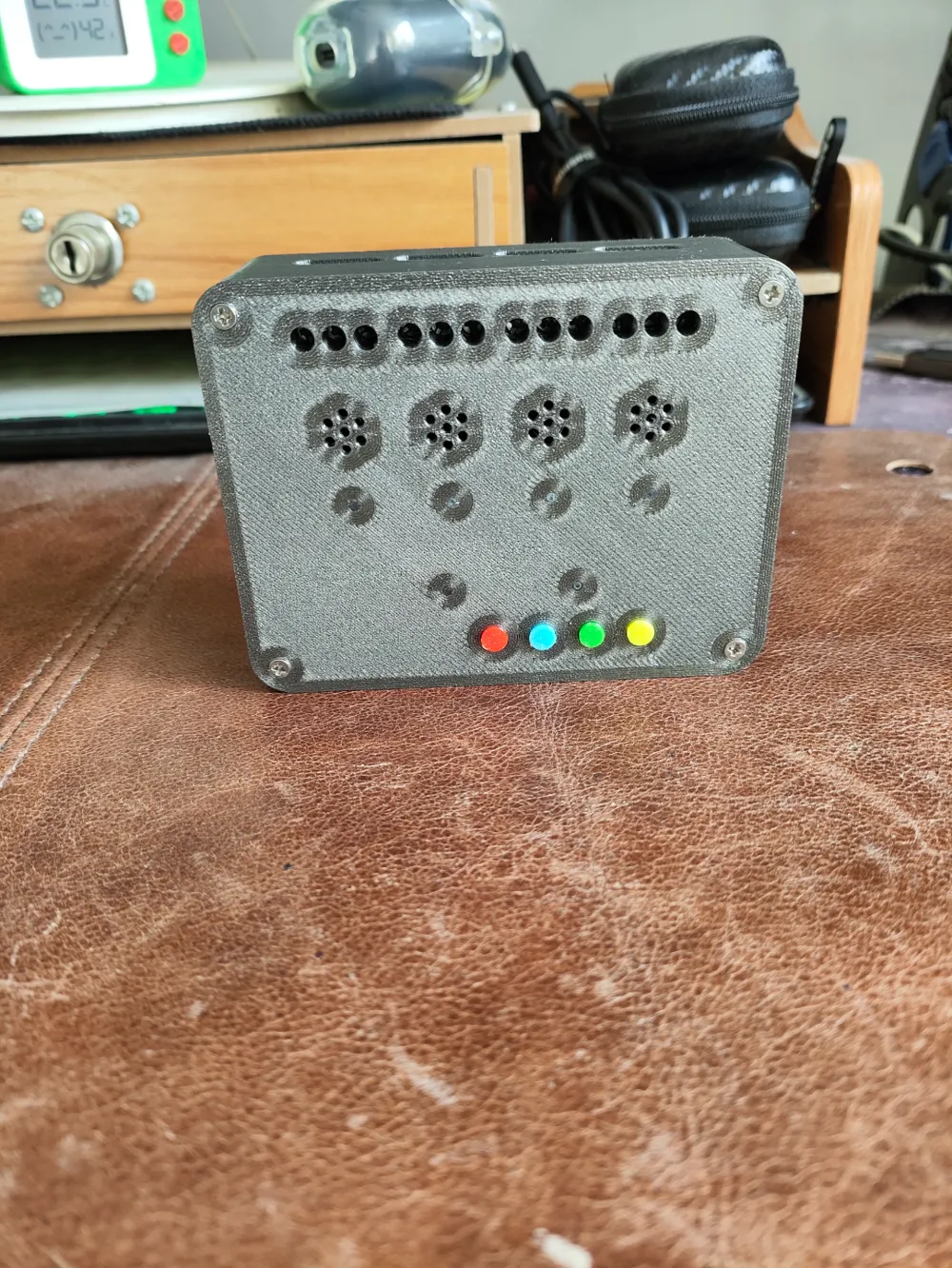

Yi Weilian 4-Channel Remote Control Module Enclosure

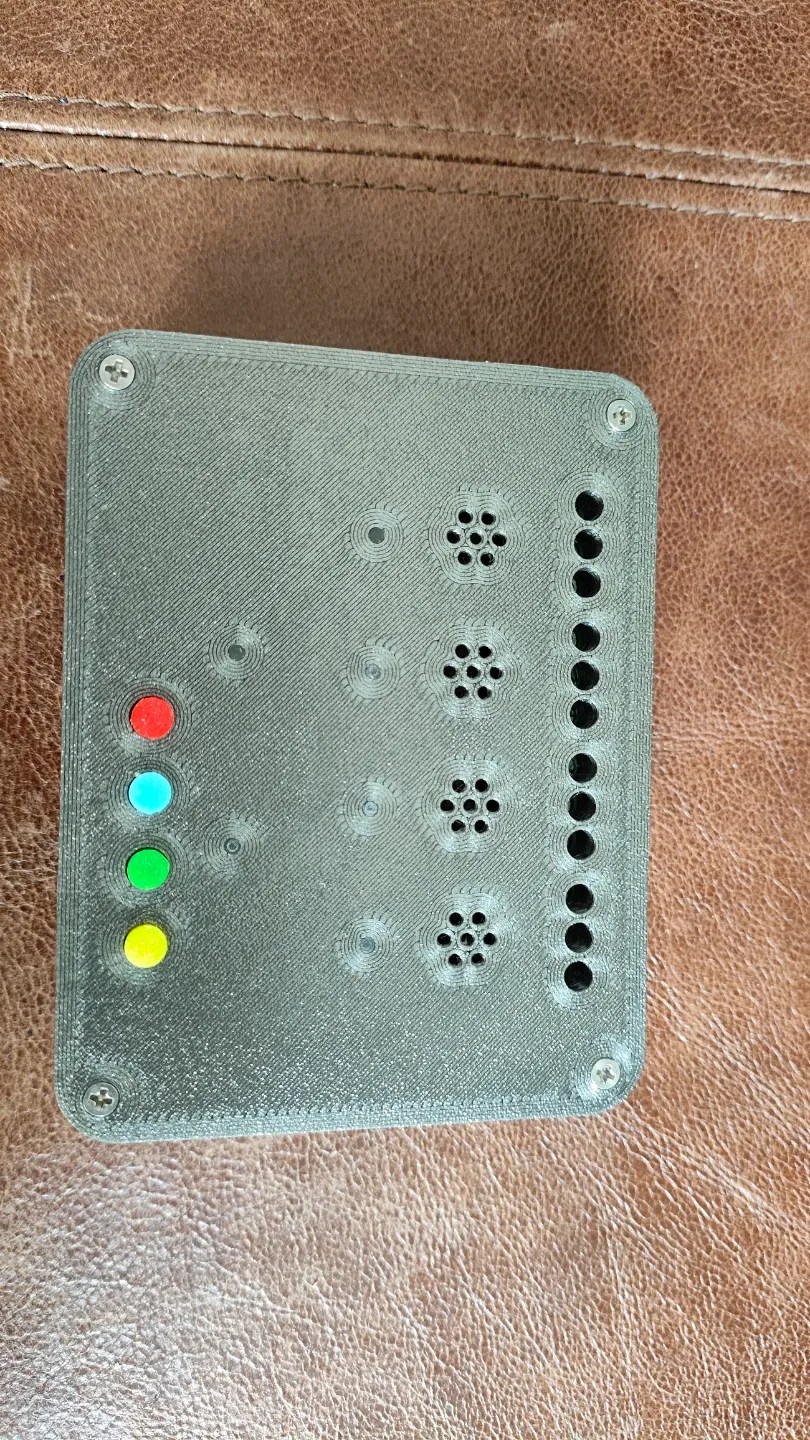

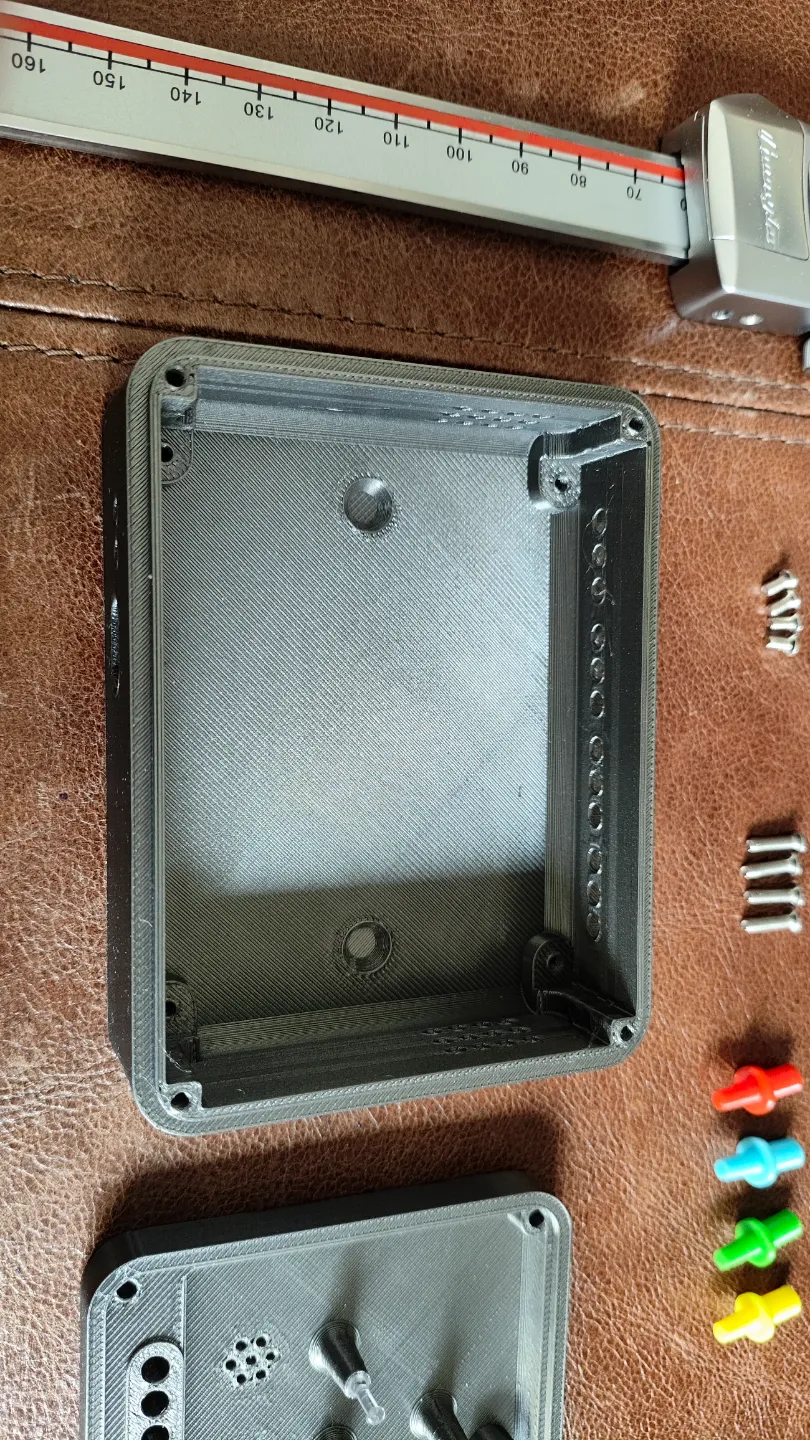

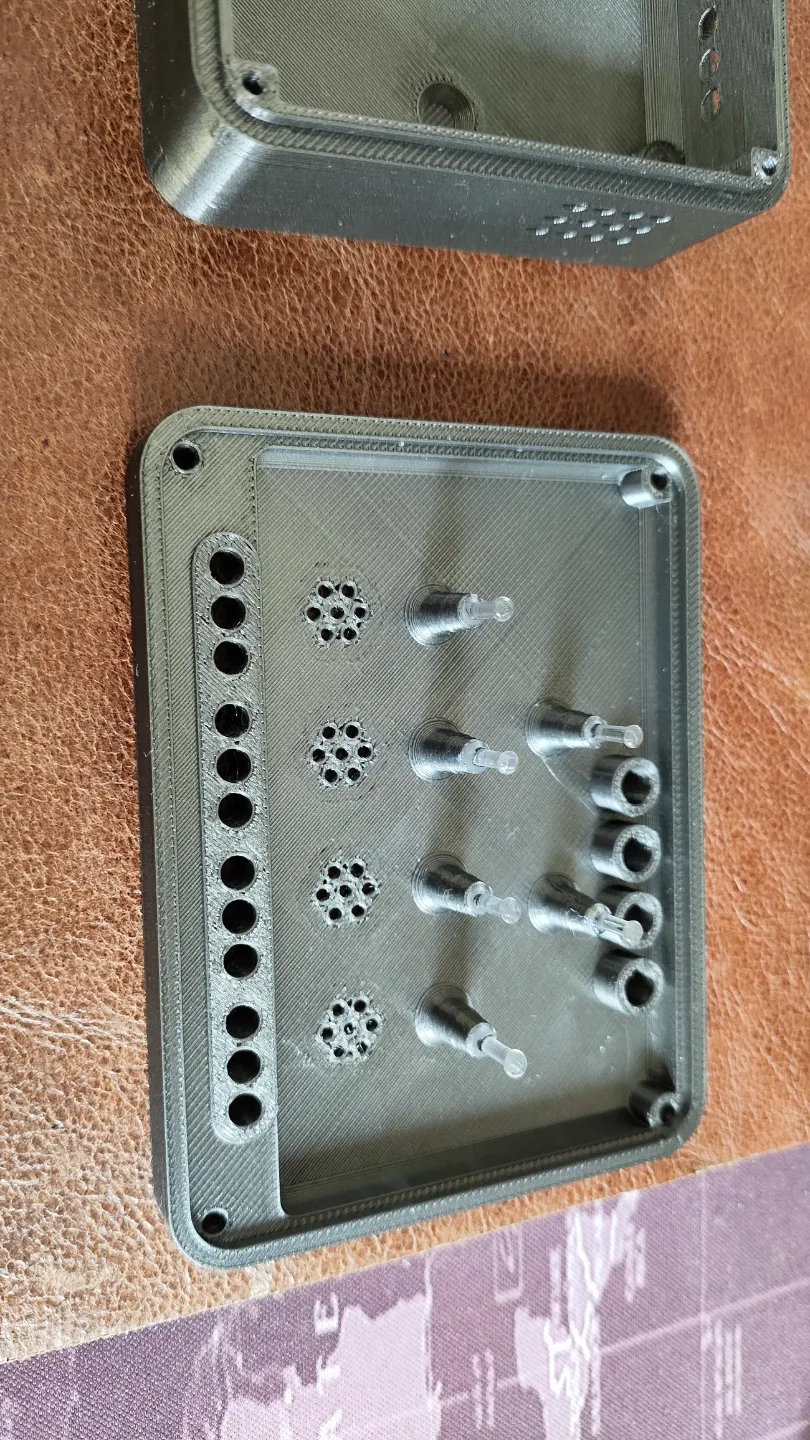

The Yi Weilian 4-channel remote control module enclosure consists primarily of three parts: the base, the top cover, and the buttons. These three parts need to be printed. The color can be modified according to personal preference; I used generic tungsten black PETG filament! Inexpensive and easy to use! For the indicator lights, I used 2mm diameter high-transparency acrylic rods, 20mm long each, with both ends smoothed using sandpaper or a nail file. Then insert them into the mounting holes! The base has pre-drilled self-tapping screw holes; when mounting to a wall, just pierce through them with a screwdriver! This project requires a certain level of hands-on ability and basic electrical knowledge! Always pay attention to safety when working with mains electricity!

Assembly Video https://www.bilibili.com/video/BV1n46dYPEc2?buvid=XX730277CF2058FE238F1D3A4410822128F6B&from_spmid=dt.space-dt.video.0&is_story_h5=false&mid=ioVxPN%2FK51uAUSxhb0iGlH8FTQ%2FSZMtL1rElX6M3iMo%3D&plat_id=114&share_from=ugc&share_medium=android&share_plat=android&share_session_id=6ec74894-e855-42d5-9497-c5fd606505aa&share_source=COPY&share_tag=s_i&spmid=united.player-video-detail.0.0&timestamp=1735710156&unique_k=VEyrXfU&up_id=3493133914474613

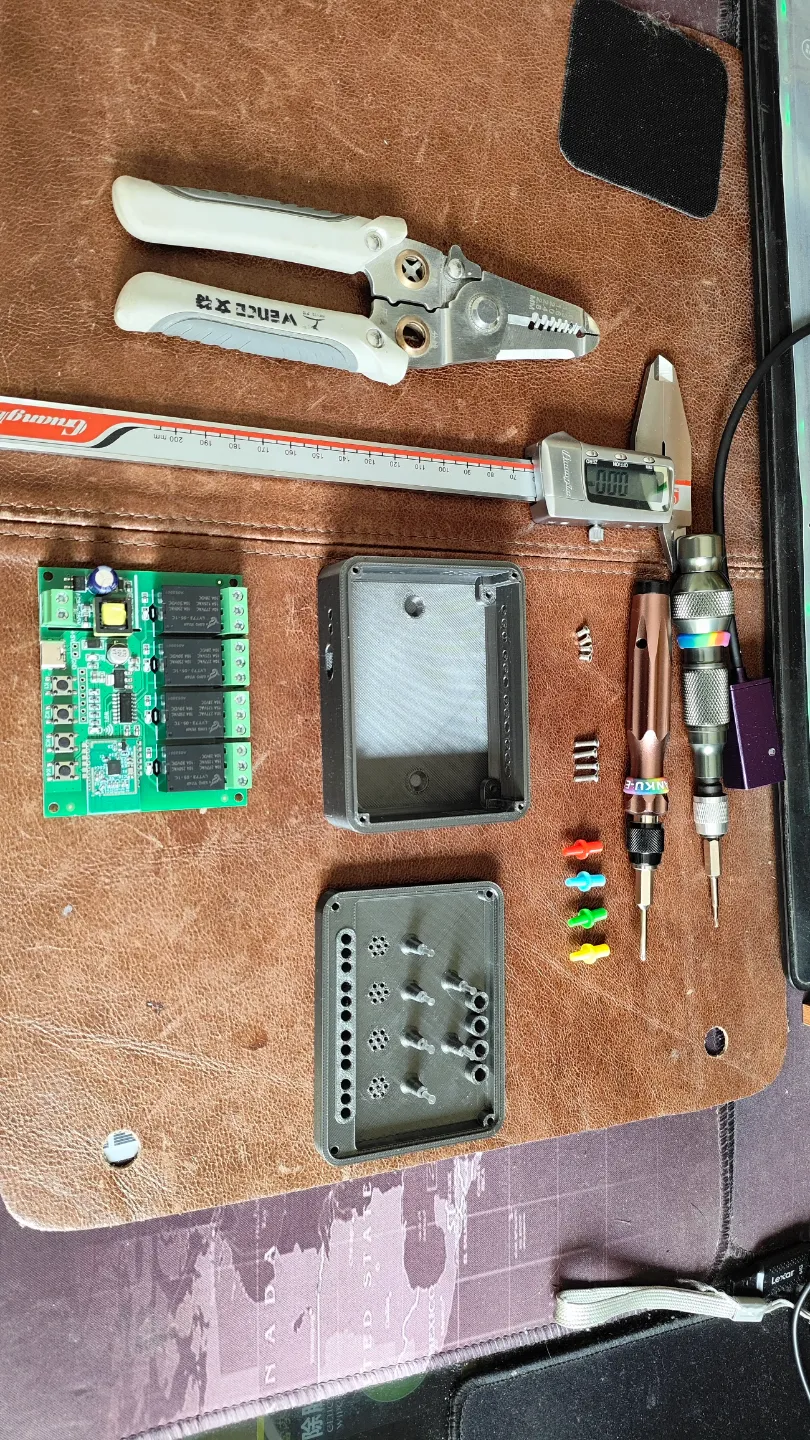

Bill of Materials:

1. Tungsten black PETG https://mobile.yangkeduo.com/goods.html?ps=w6B06Wmr8X

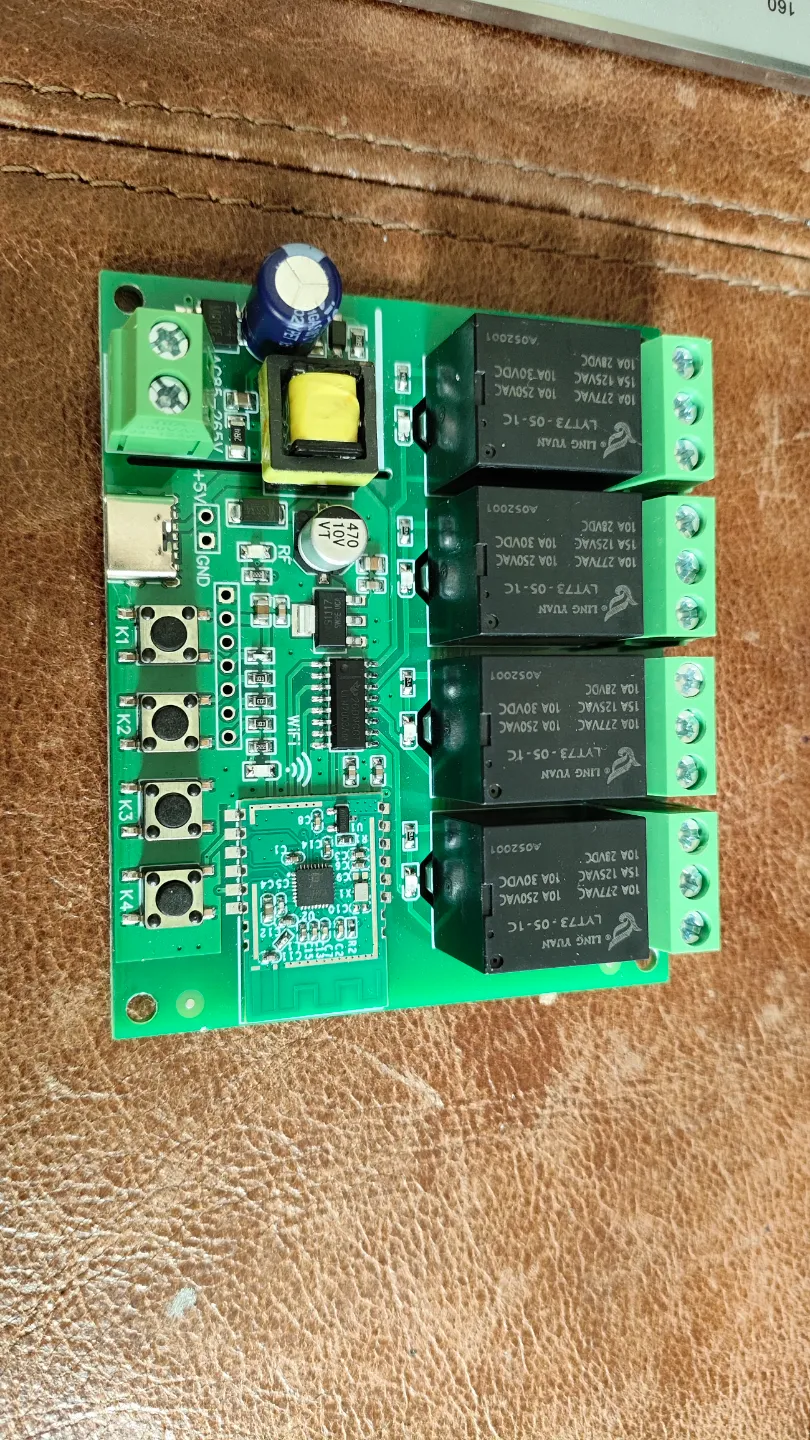

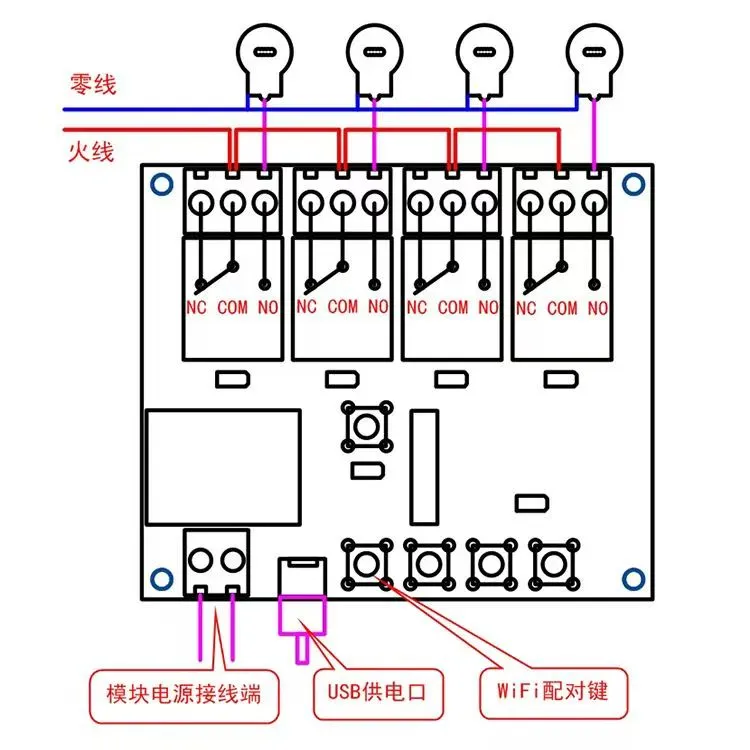

2. Control board Dual-mode WIFI + Bluetooth 85-265V https://mobile.yangkeduo.com/goods.html?ps=gkG6079edB

3. High-transparency acrylic rod 2mm diameter https://e.tb.cn/h.TSYmklurp0CJJcl?tk=EzJXeZJX1L6 CZ3458

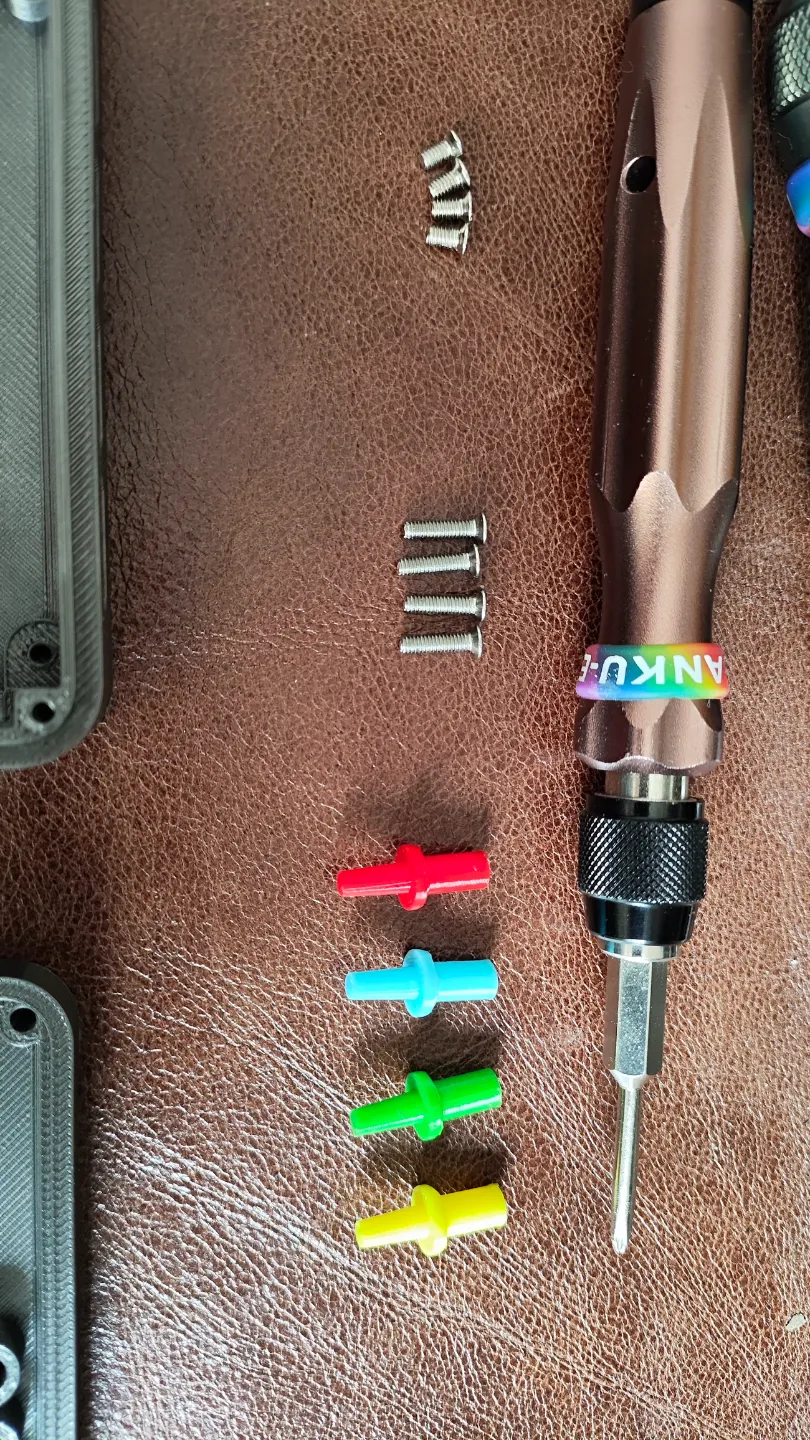

4. Countersunk screws M2.5x5 4 pieces M2.5x10 4 pieces https://e.tb.cn/h.TSGAnSobRADvySd?tk=FZgJeZJVX8B CZ3456
