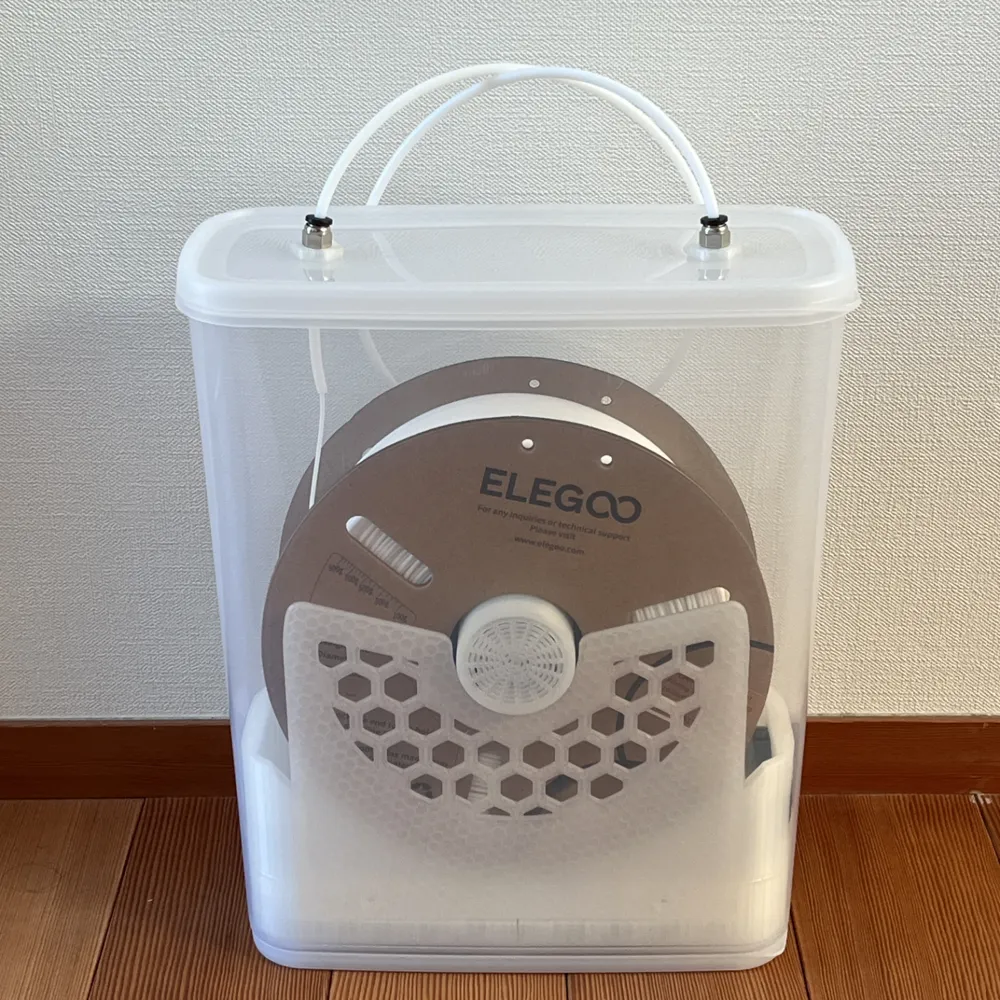

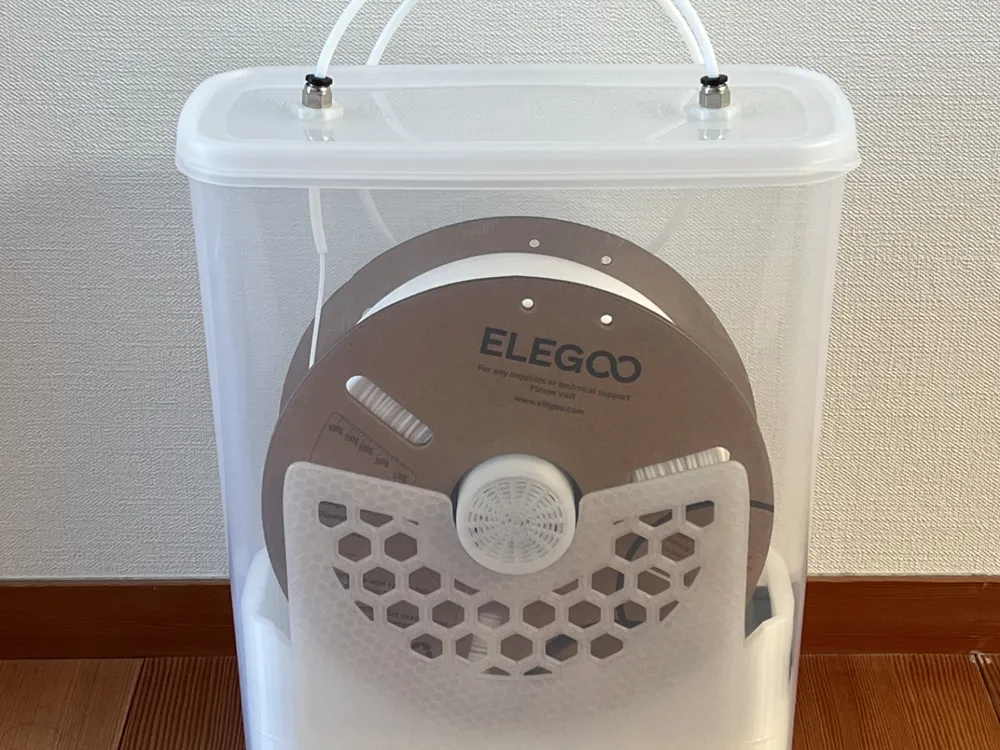

DIY filament drybox V2(Inomata-K Dry Food Stocker)

These DIY filament desiccant storage parts utilize Inomata Kagaku's dry goods stocker.
Minimizing the need for special, separately sold components, they are designed to be printable even on an A1 mini's build plate.
Relatively easy to remove, they are convenient for cleaning.

This is version 2 data with some improvements.

□Improvements

・Improved interference with standard spools.

・Partially hollowed out the stage area for filament savings.

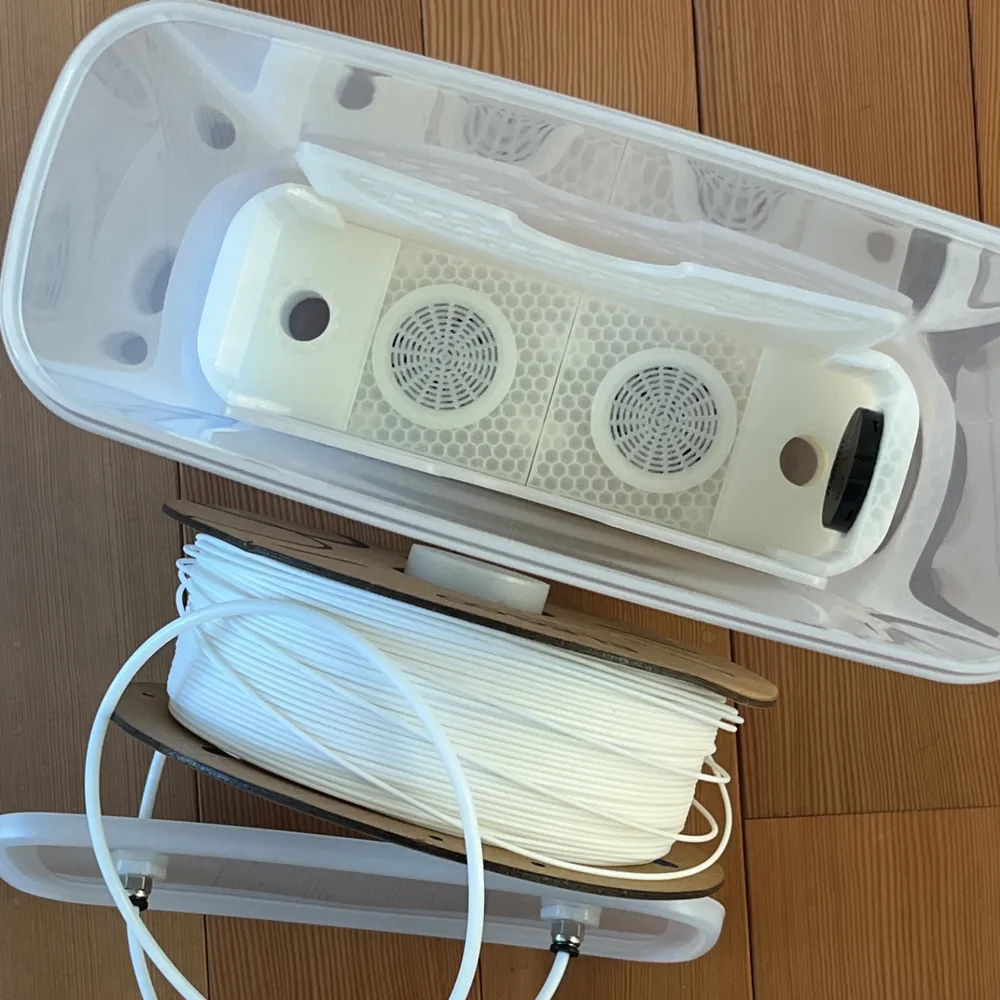

・Added a desiccant container to the aforementioned open space.

□Printed Parts (Improved Parts)

・Side Face V2 Set x1
・Divided Stage V2 Set x1

・Silica Case for Divided Stage V2 x2


□Printed Parts (Unchanged Parts)
・Spool Bar (also for Silica Case)
・Side Panel x2
・Joint for Divided Stage x2
・Hex Screws x6 (3mm size, for side panels, 2 spares)
・Holes Screws x4 (for stage fixing)
・Silica Case for Bottom Lid x2
・Bolts and Nuts for PTFE Tube Connector x2

・Plug for PTFE Tube Connector x1

□Separately Sold Parts List
・Inomata Kagaku (Inomata-K) Natural Dry Goods Stocker 6.0 Made in Japan
https://www.amazon.co.jp/gp/product/B086LKHSVY/ref=ox_sc_saved_title_4?smid=AN1VRQENFRJN5&psc=1

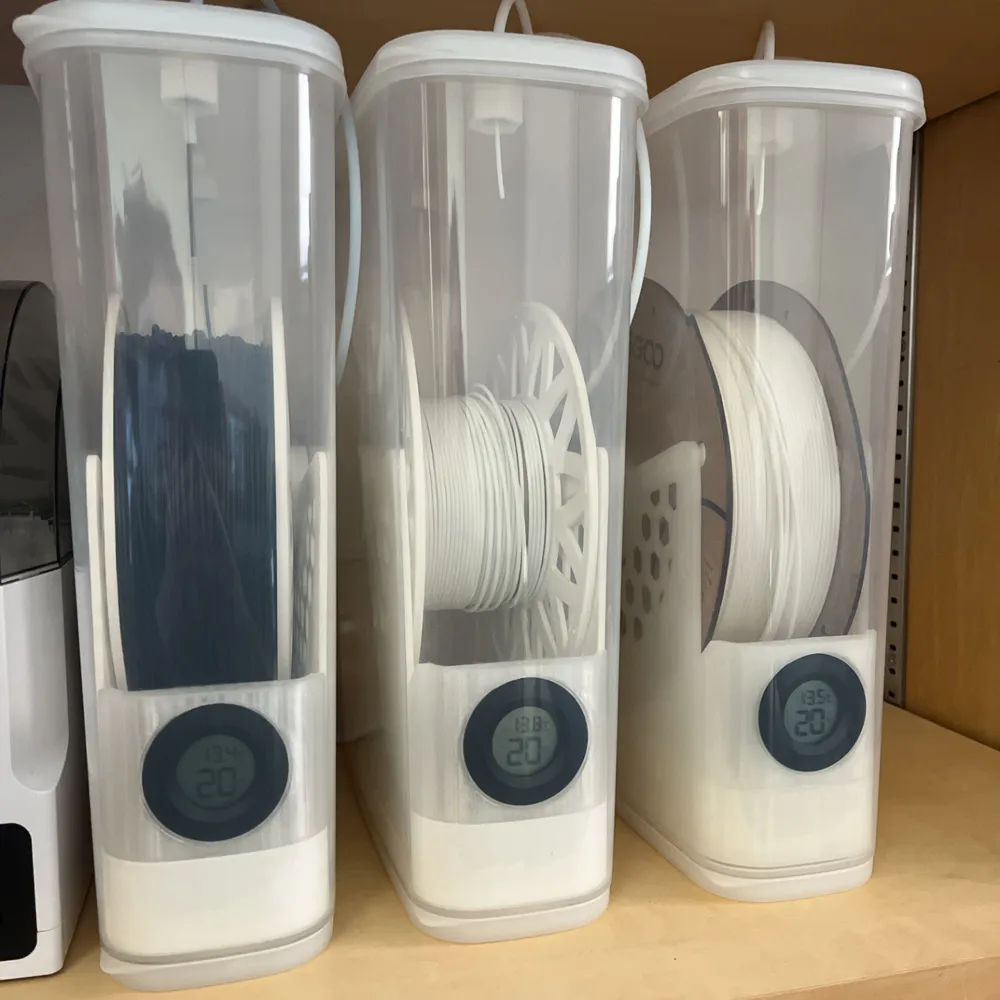

・4pcs Mini LCD Reptile Digital Celsius Fahrenheit Thermometer Hygrometer Refrigerator Freezer Tester Lizard Spider Turtle Terrarium Tank Temperature Humidity Meter Detector -50~+110℃
https://www.amazon.co.jp/dp/B07FR8JJGG?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
・Litorange PTFE Tube, Teflon Tube 2mm x 4mm x 2M + PC4-M6 One-Touch Connector + PC4-M10 Straight Pneumatic Connector 1.75mm Filament for 3D Printer Parts Set (White)
https://www.amazon.co.jp/dp/B08DTTWS9D?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
・Sakamoto Lime Industry Co., Ltd. Silica Gel Desiccant 1kg
https://www.amazon.co.jp/dp/B0065C8IUQ?ref=ppx_yo2ov_dt_b_fed_asin_title
