Trucktastic

Updated to v2

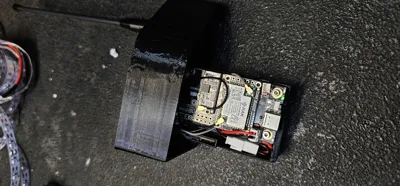

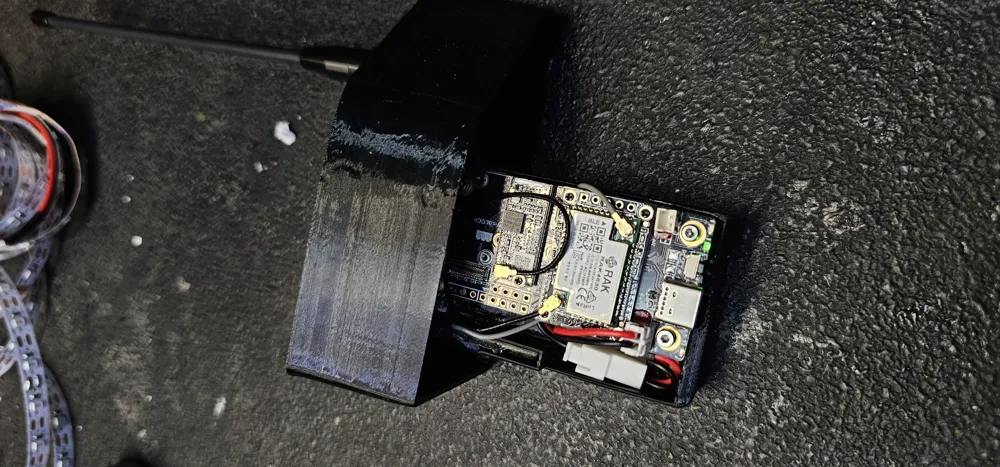

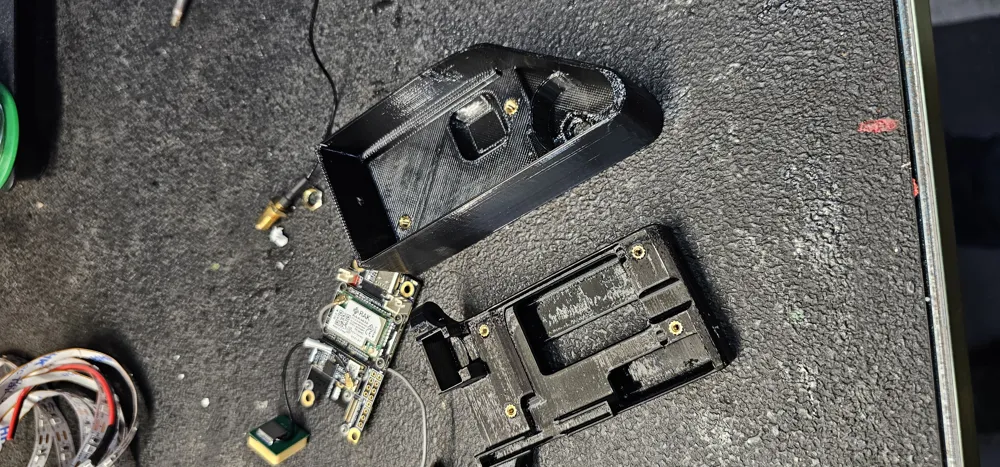

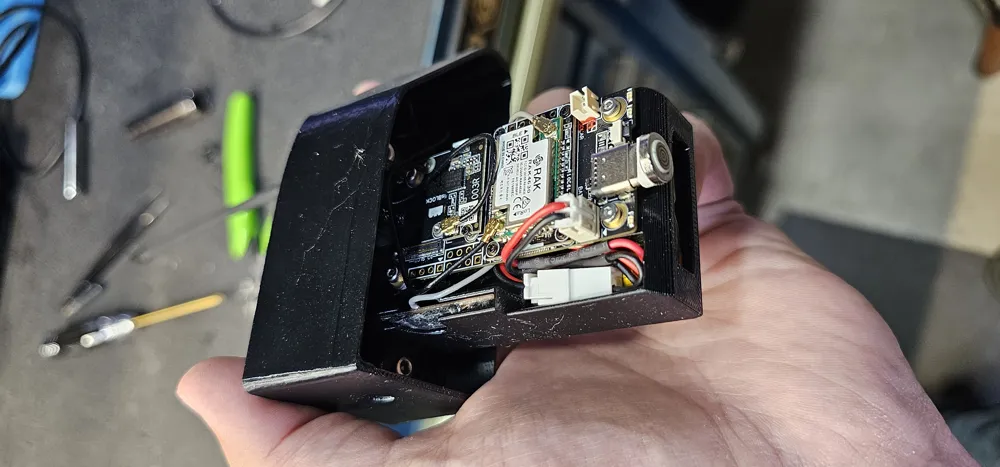

After using testing out v1 all winter and this summer I realized that inside of the stake pocket on my rig stays dry and I could update the case to be a bit cleaner and provide better access if needed.    I printed the top in Bambu TPU for AMS and the bottom out of Sunlu PETG and used m2 and m3 heat set inserts to hold everything together.

The Rak1906 temp sensor is going to obviously read high being on the board and having limited airflow, but I figured it would at least work properly during winter and give you a highest temp seen during summer months.

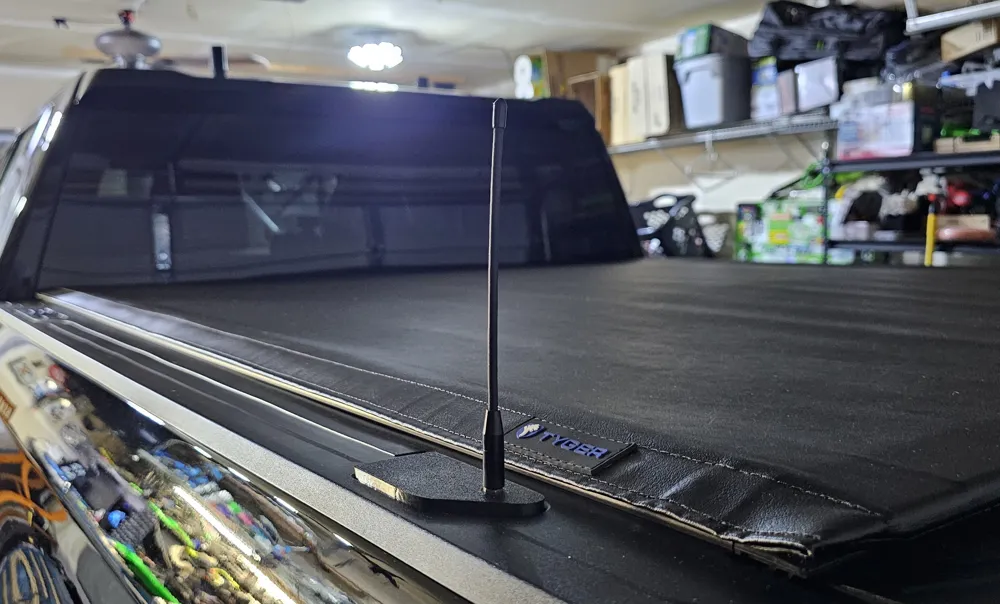

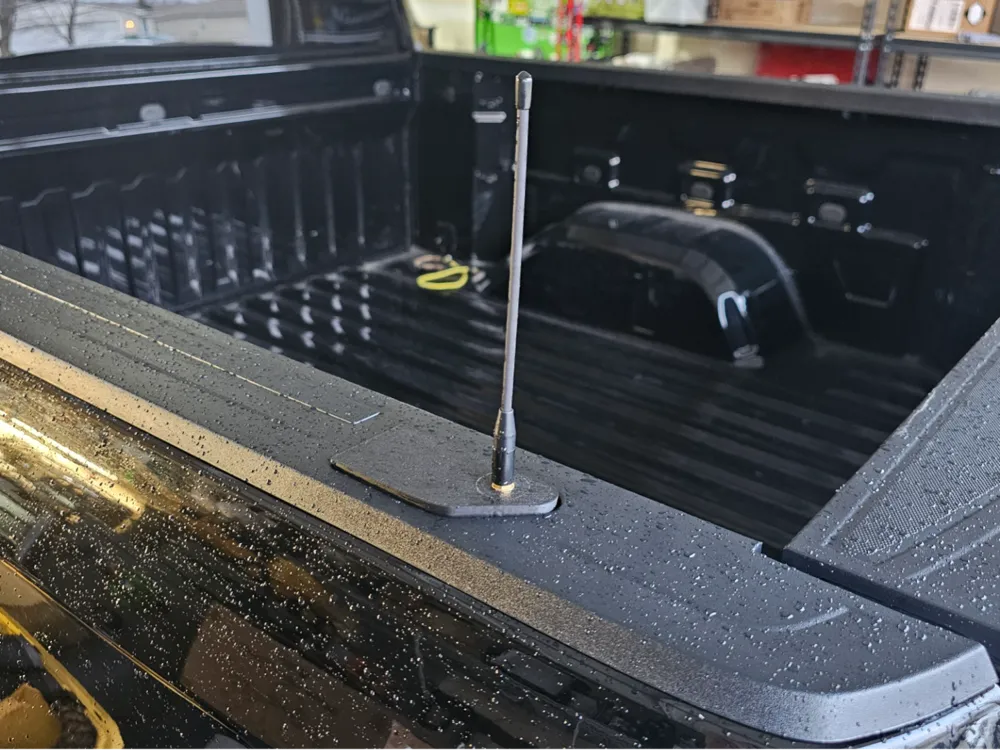

This is an experimental work in progress Meshtastic node that should fit in a 2019+ Chevy/GMC.    Fits snug in my 2023 Sierra.    I am very very new at designing stuff so this is pretty sloppy.  Feel free to clean it up however!

The stake pocket was remixed from here.  https://www.thingiverse.com/thing:4962782

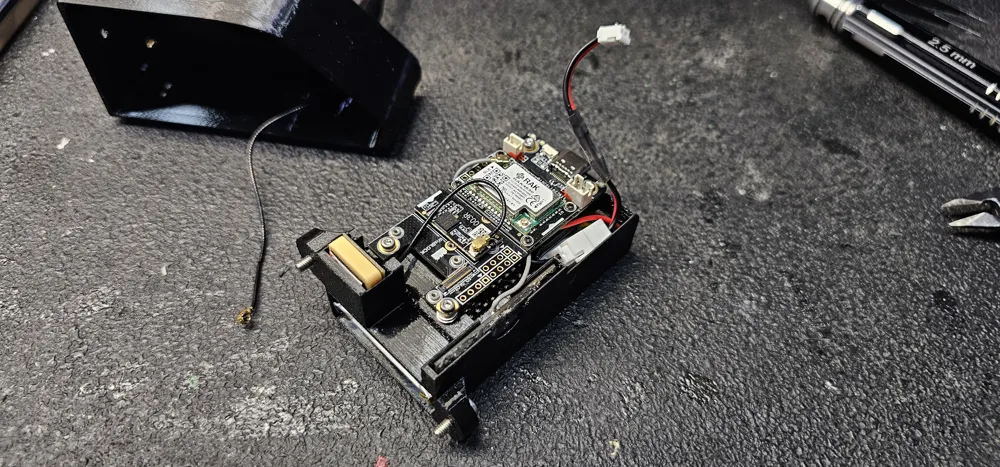

Uses the RAK board, GPS module, and temp sensor. .
Wisblock - https://www.amazon.com/dp/B0CHKZJK9C?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
GPS - https://www.amazon.com/dp/B0D33SFFGF?ref=ppx_yo2ov_dt_b_fed_asin_title

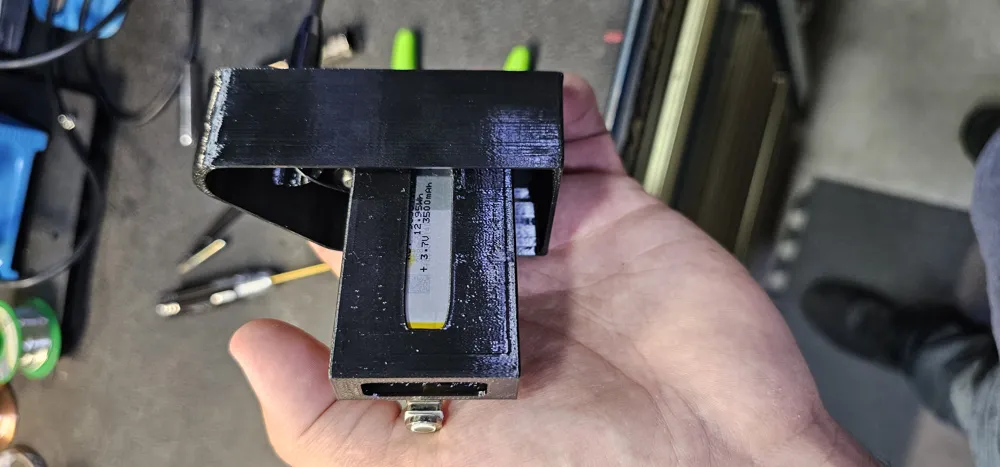

Battery - https://www.amazon.com/dp/B0B7N2T1TD?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Antenna - https://www.amazon.com/dp/B0DB5MH38T?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Extension cable - https://www.amazon.com/dp/B09329TYCS?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Environmental sensor - https://store.rokland.com/products/rak-wireless-rak1906-wisblock-environment-sensor-bosch-bme680?srsltid=AfmBOorlKKA0HuQCIvJfX2suPP-FhqQ1JI-9D0DWZstztCS1Ew1EZlZc
Heat-set inserts - https://www.amazon.com/ruthex-Bundle-Threaded-Assortment-Soldering/dp/B0FCXXW62N
