rockshox zeb front fender
Print Profile(2)
Description
On internet there is few of zeb fenders but there are either ugly or weak.

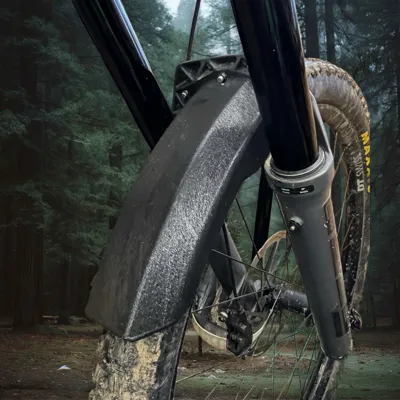

My model is 5cm longer than original and as original it is sturdy and is supported by lower legs
and as normal they are attached to crown by screws, and you would probably need longer one ( I have used 16mm)
on side screws use shims which are attached on model.

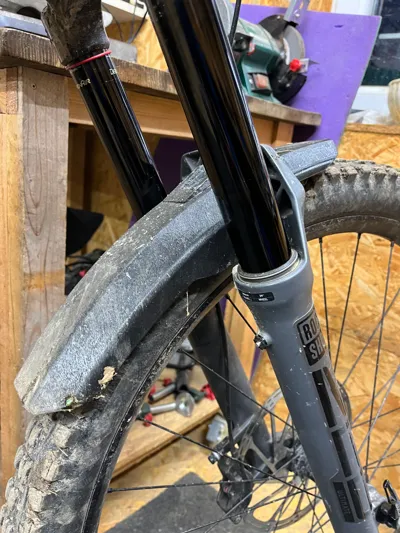

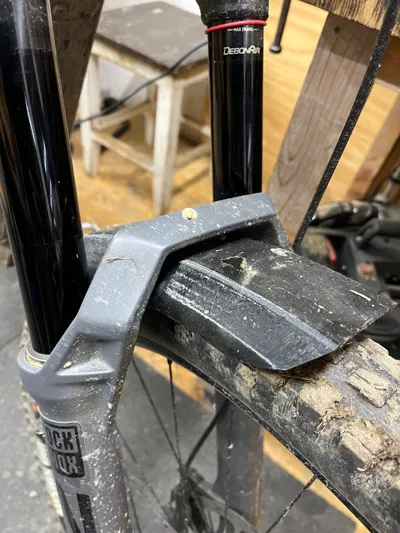

9/2/2025 adding front part. On my picture is 11cm version but after few muddy rides i have made it little longer.
Besides that rear part sometimes tends to bend upward so I have made it little stronger(but uglier)
If you use front and rear part together, you will probably need the screws 18mm.
26/3/2025

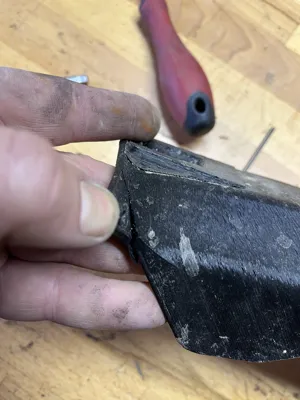

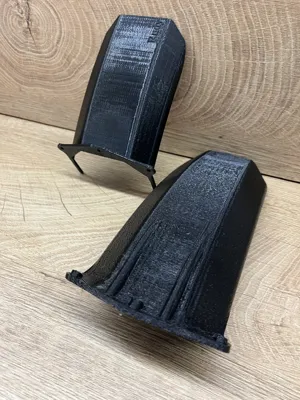

because i cracked(on crash, see pircture) my 1st printed prototype i decided to make it even stronger on v3. there is change on both parts
recommend printing 5 walls.
please have in mind that i have prusa printer so recommend to check printing settings for your printer
