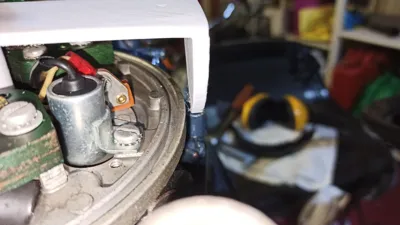

v.16 with better fitting and goes clear from the coils.

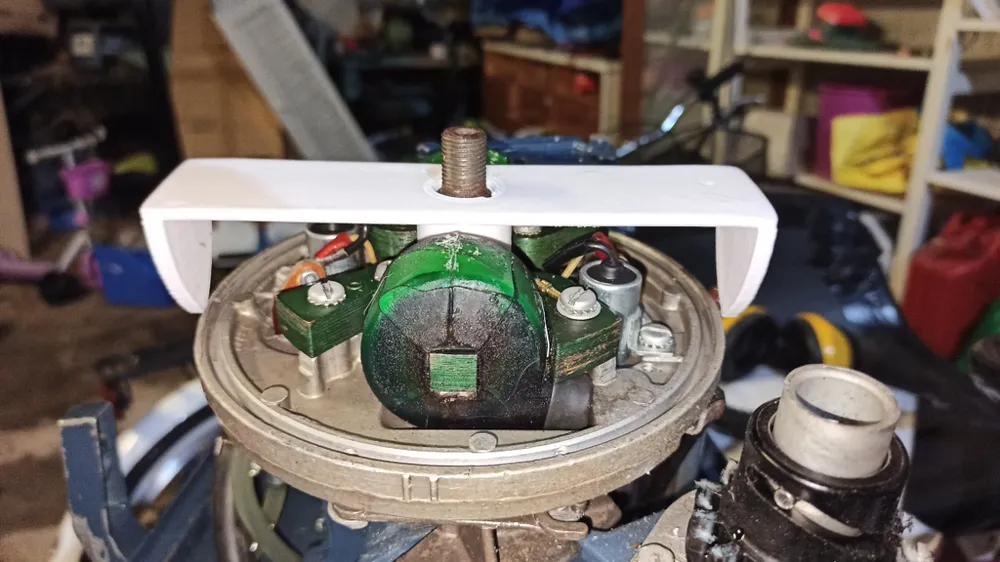

This is a timing tool made to fit a Evinrude 6hp Fisherman old school outboard motor.

Instead of setting the timing by the point gap (0.20") you can now set the timing in the more exact way.
If something is incorrect, please let me know so I can fix it.

Made to fit my motor, but should fit the following just as good:
1951-1976 5, 5.5 and 6 hp motors
1951-1958 7.5 hp motors
1964-1973 9.5 hp motors
1951-1963 10 hp motors
1951 and up 12 hp Gale motors
1951 14 hp motor
1951-1972 15, 18, 20, 25 hp motors
1973-1976 18, 20, 25 hp motors

Video on how to do it(not mine):
https://www.youtube.com/watch?v=eNK2TEeQQv0

I print it on it´s top/back. But you know your stuff the best :)

Wanhao

Doesn't Matter

0.2-0.3
