Description

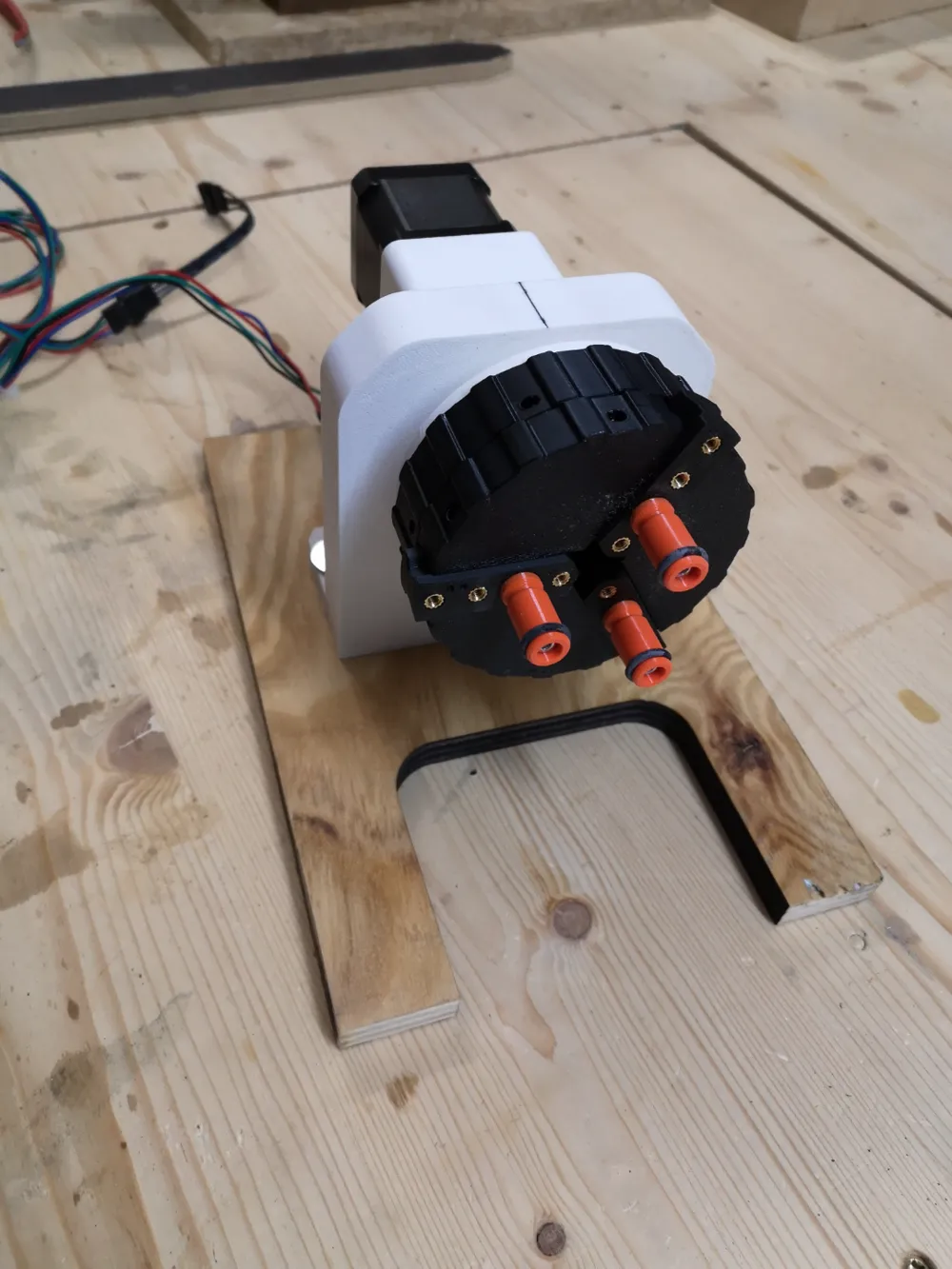

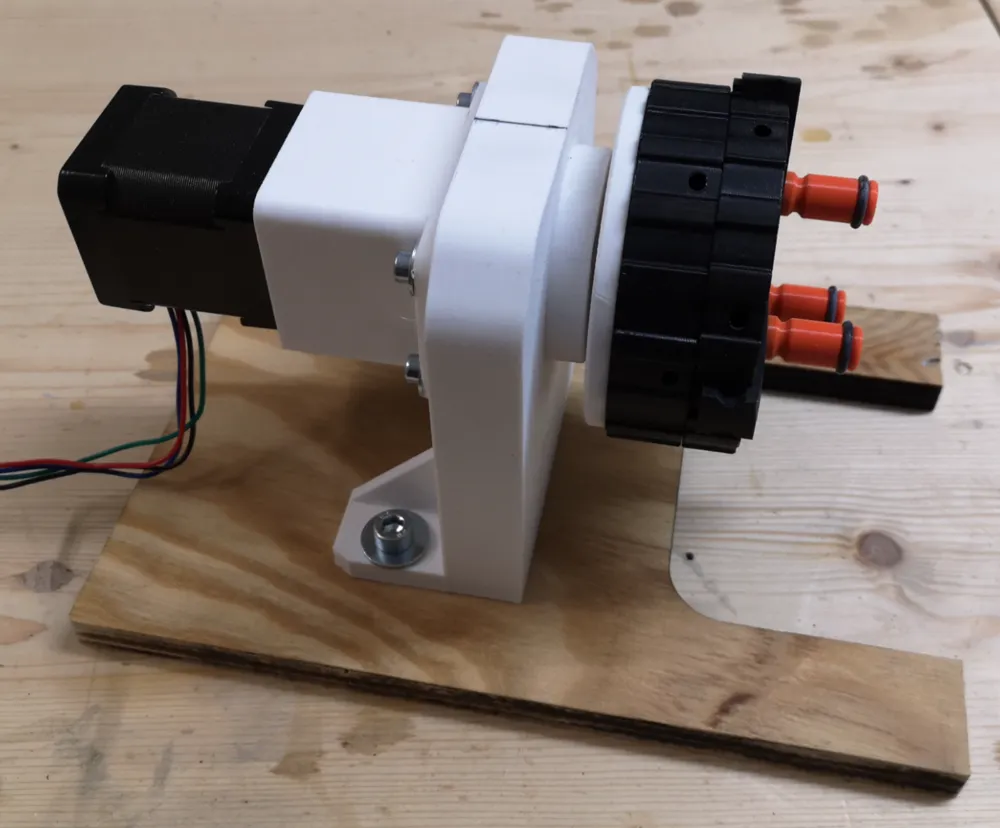

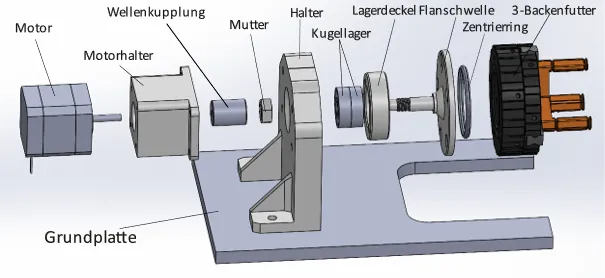

This is a rotary attachment for a laser engraving machine, which, with the exception of a few purchased components, is made from 3D printed parts
Many thanks to Andy1957 for the 3-jaw chuck template (link is in the PDF)
All components used are listed in the attached PDF

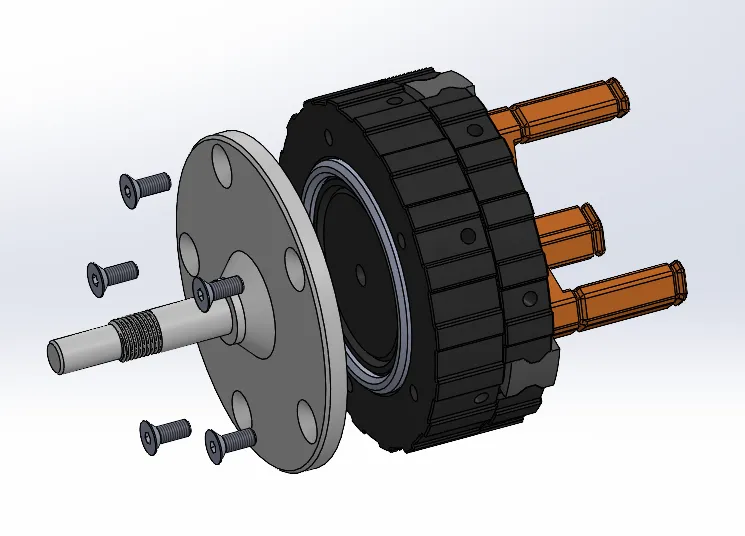

Important: The flange shaft is included twice in the print profile. Once with a standard M10 thread and once with an M10x1 fine thread. You will need to decide which variant you prefer. I used the fine-thread version

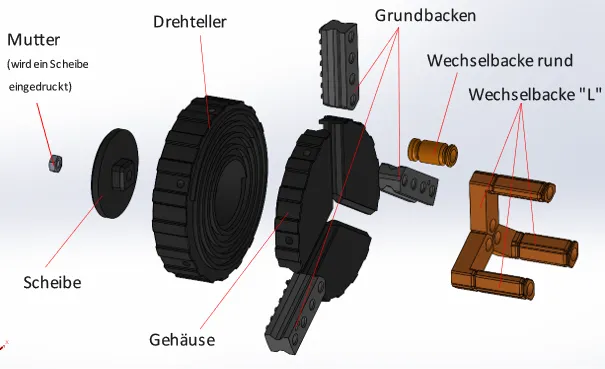

A pause has been added for the disc in the 3-jaw chuck to allow for the insertion of an M4 nut

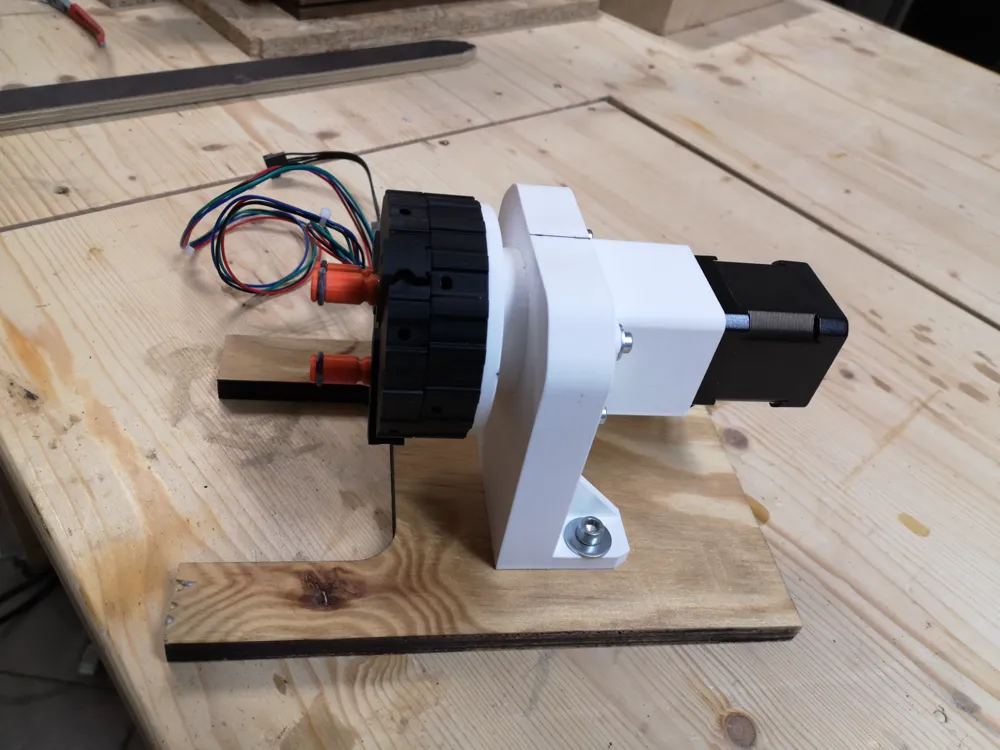

The attached DXF file for the base plate is designed to be laser cut from a wooden board. That's how I made it
I hope these instructions are sufficient. If you have any questions, feel free to message me
