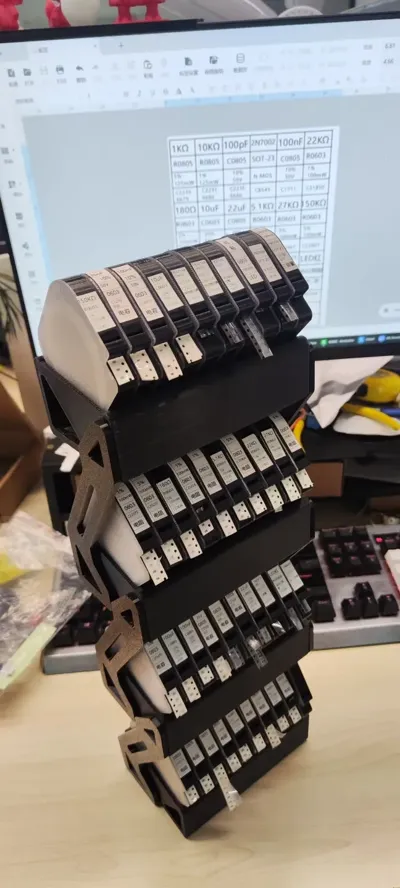

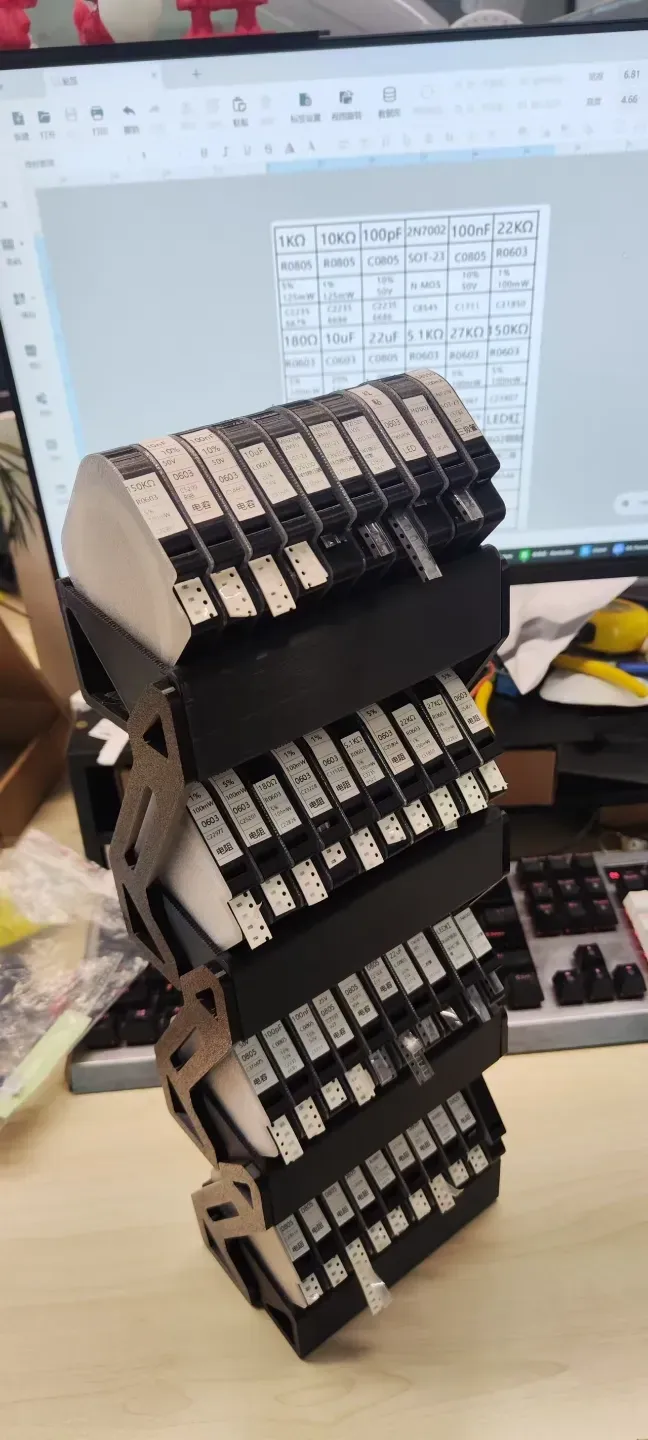

Surface Mount Component Organizer

A compact storage case for small surface-mount components, facilitating effortless organization and retrieval

I previously encountered a similar design at MakerLab, but acquiring magnets proved cumbersome, prompting me to develop a latch-based alternative while simultaneously minimizing dimensions

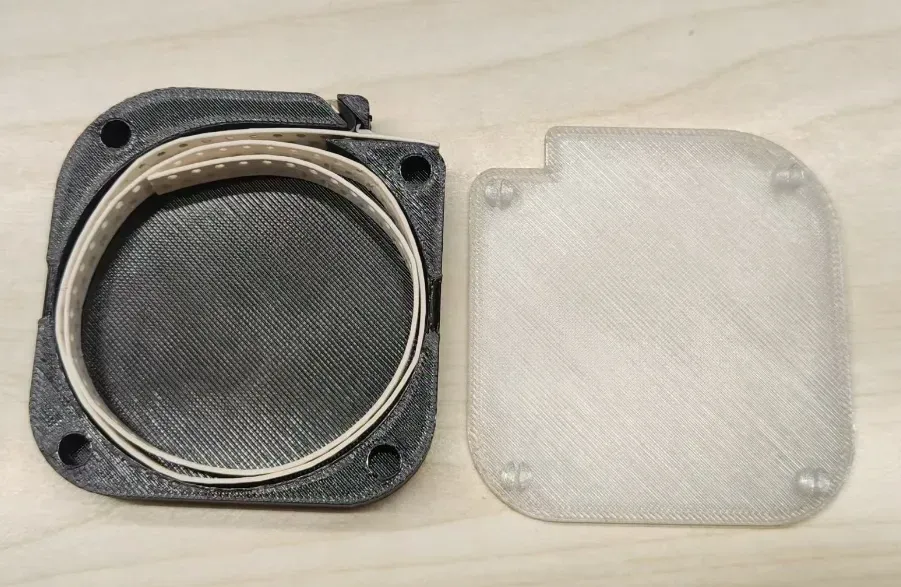

A transparent PETG lid complements a black PETG base, allowing for a convenient visual assessment of remaining inventory—a stroke of genius, if I may say so myself…

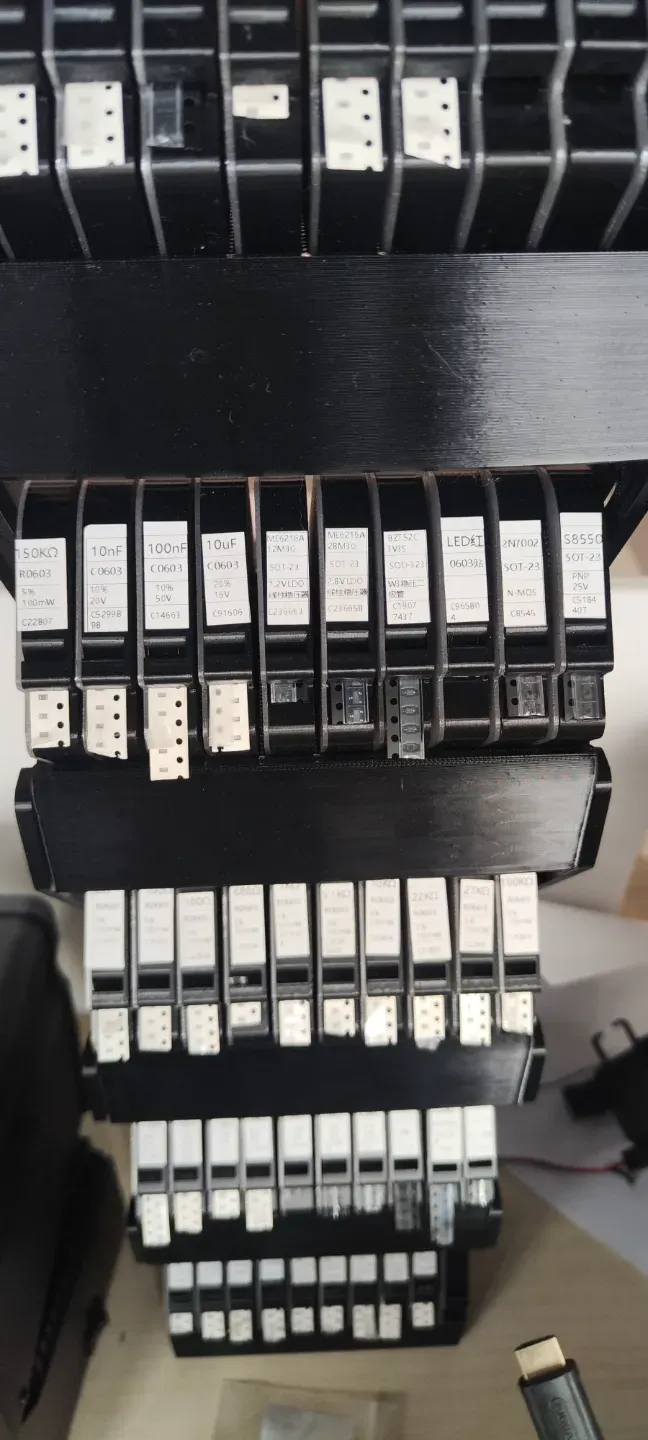

Prepare custom labels to annotate component types

(A thermal label printer proves remarkably efficient for this purpose)

Update log:

1, The storage box base has been refined

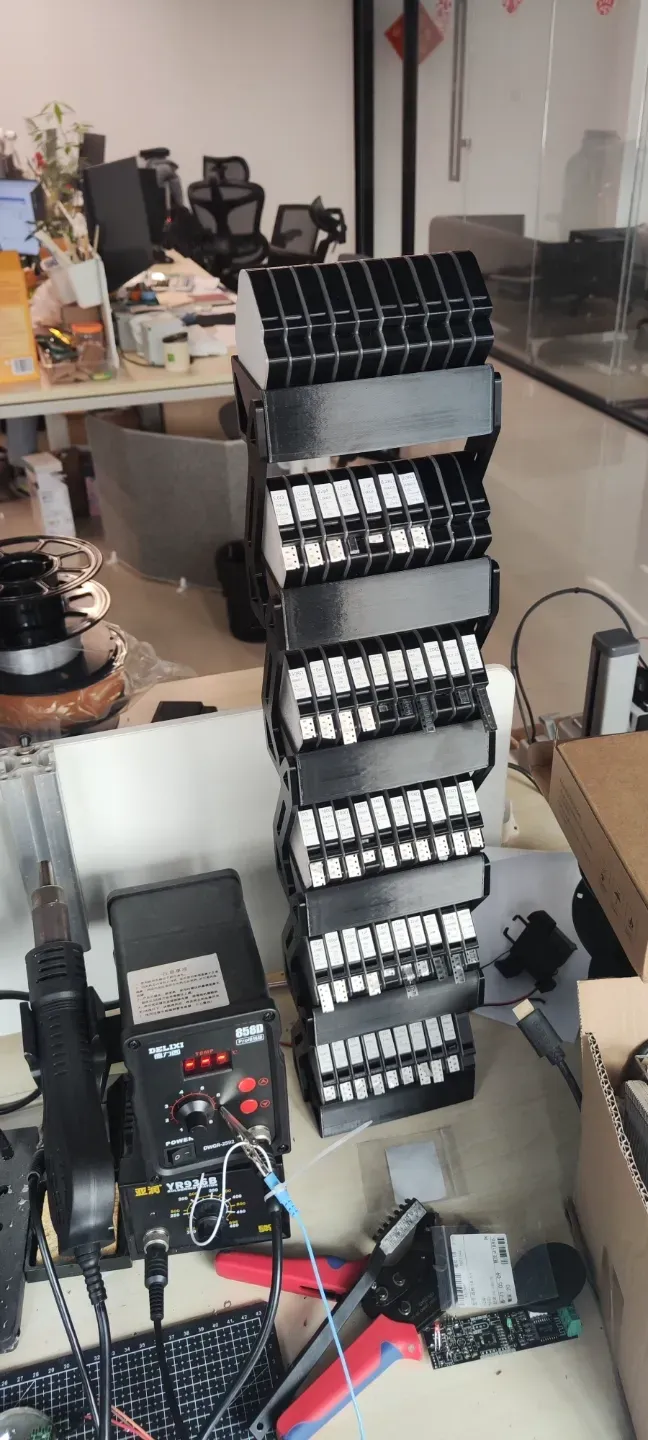

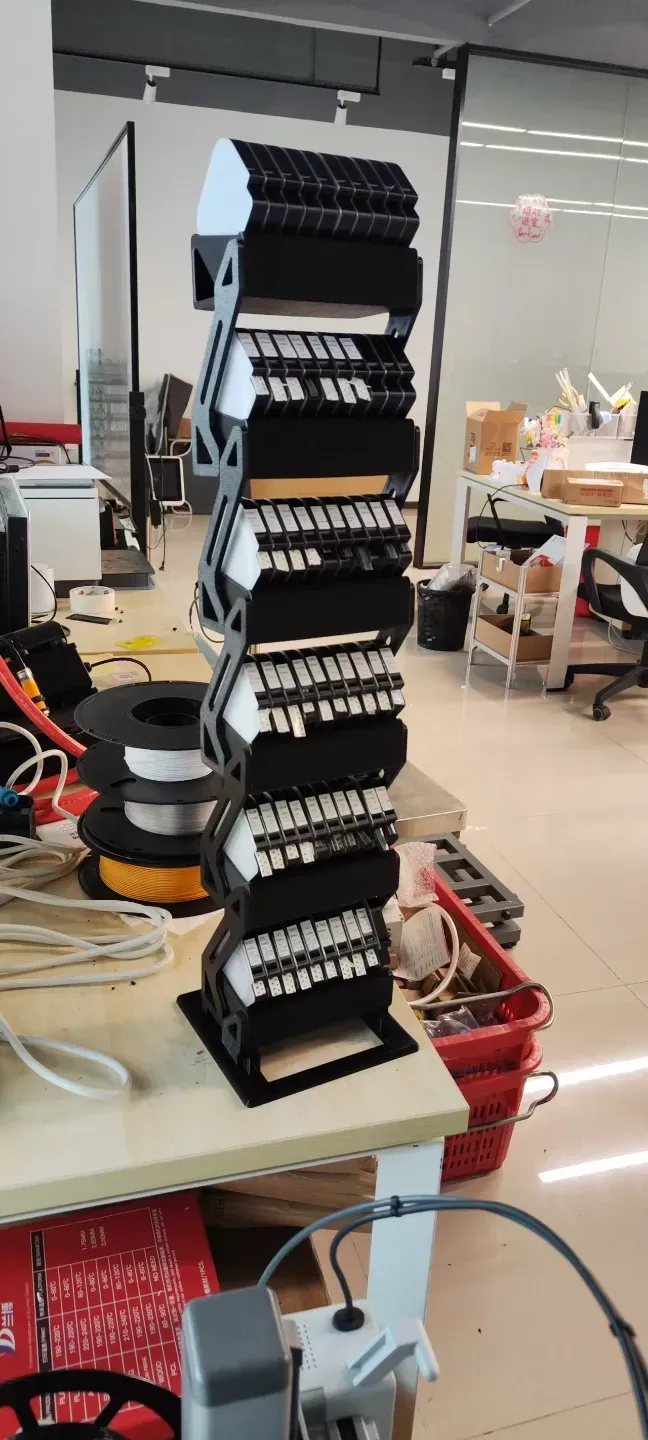

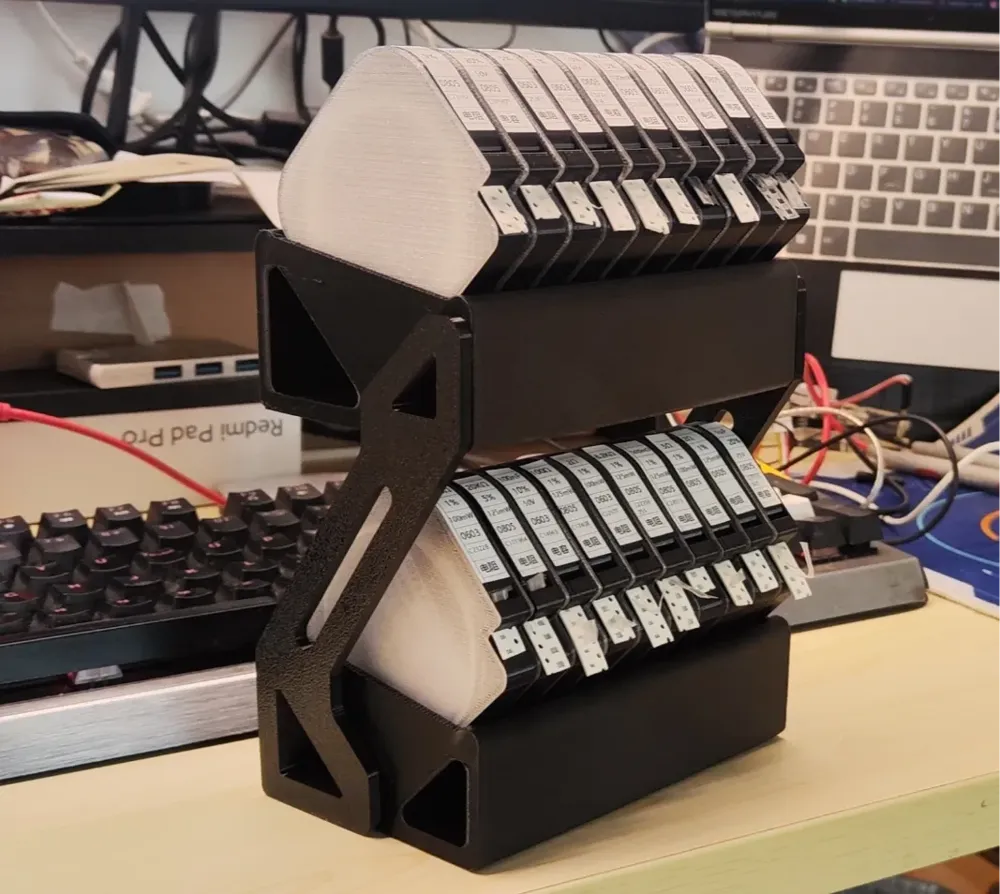

2, The stackable bracket has been enhanced

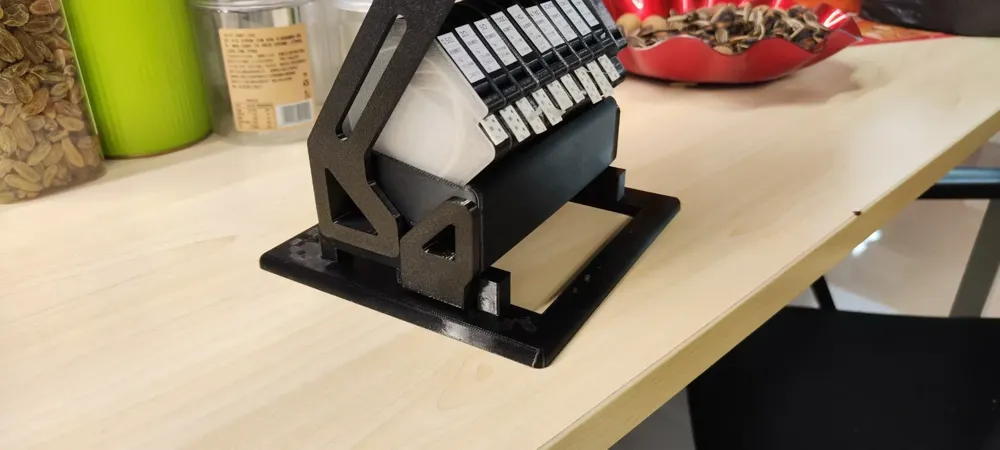

3, A base has been added (updated)

Areas for improvement:

· Components exhibit inconsistent release when adhesive tape is withdrawn from the dispensing aperture
