BORUIT V10 GoPro Mount Bike Helmet
Print Profile(1)
Description
Been carrying the BORUIT V10 Flashlight (https://a.co/d/4HSdJP7) in my bike bag, and thought it would make a great helmet light.
This was designed specifically to be mounted with my existing gopro helmet receiver.

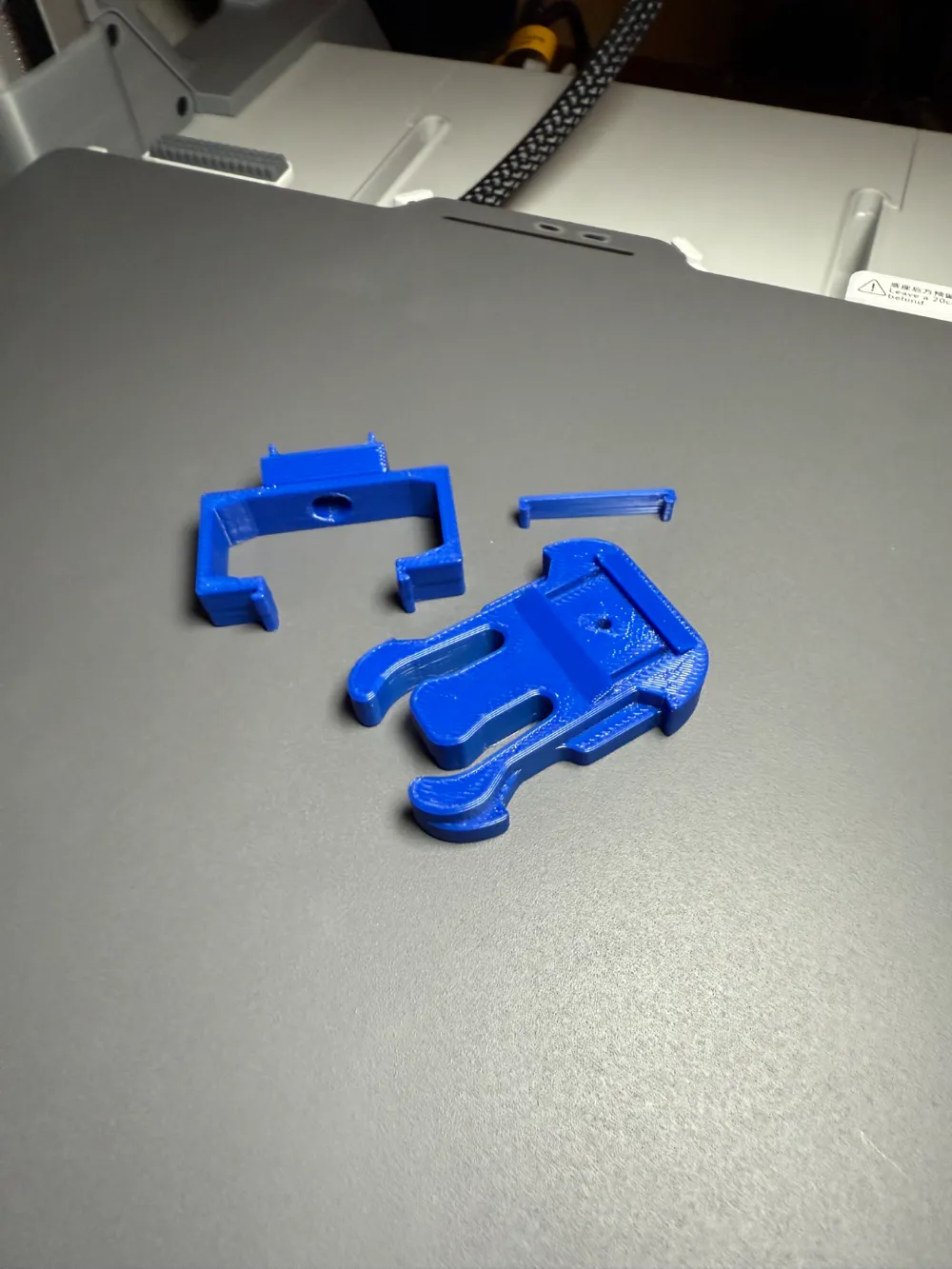

Printing:
Using the stock Bambu A1 .2mm Strength profile, but added normal supports.
Recommend a sturdy filament like PETG or better.

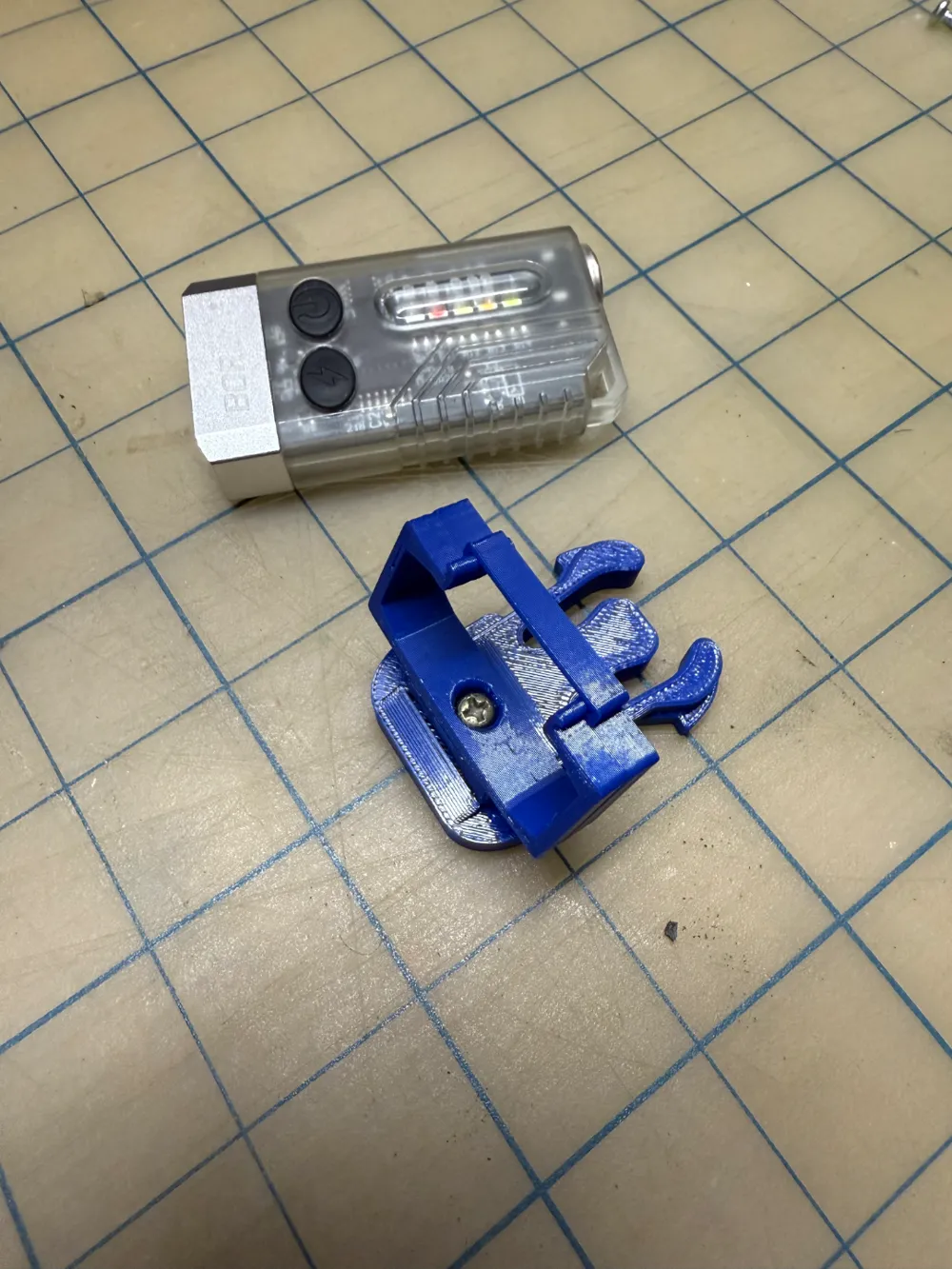

Assembly:
Fit the clip into the GoPro clip, add a small self tapping screw (I used a random one in my parts bin, 10-15mm x 2mm should work). Option add a drop or 2 of superglue, but most likely not necessary.

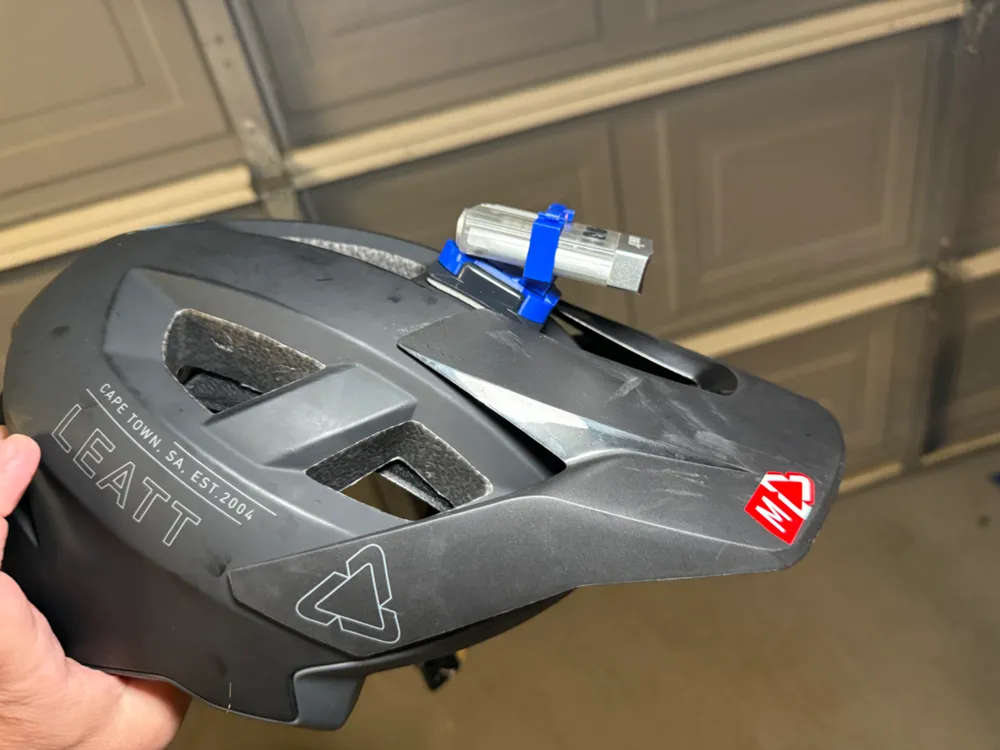

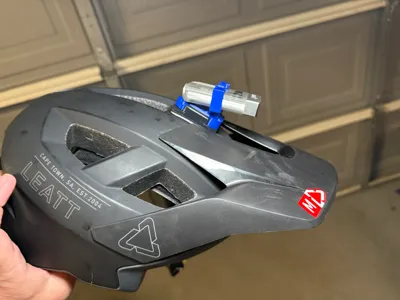

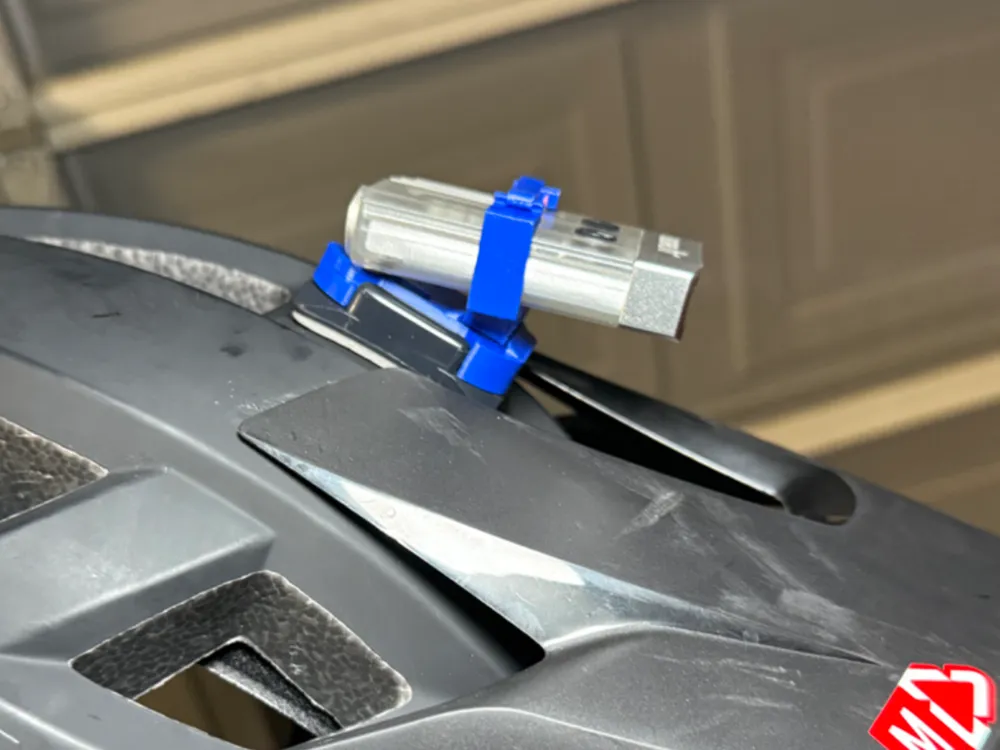

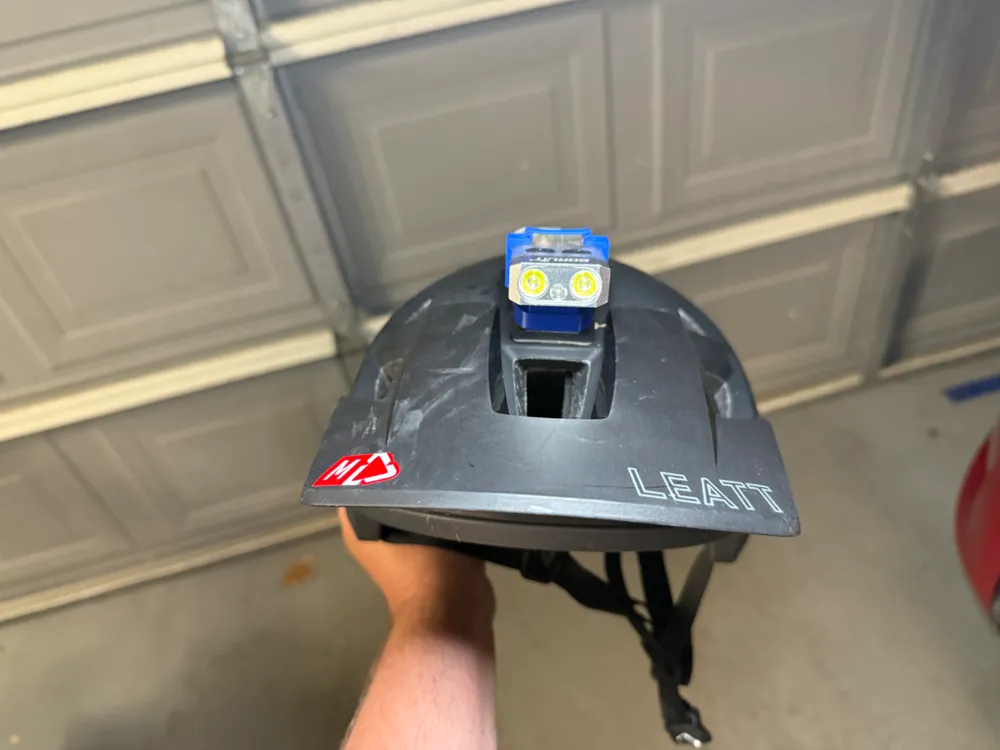

Mounting:

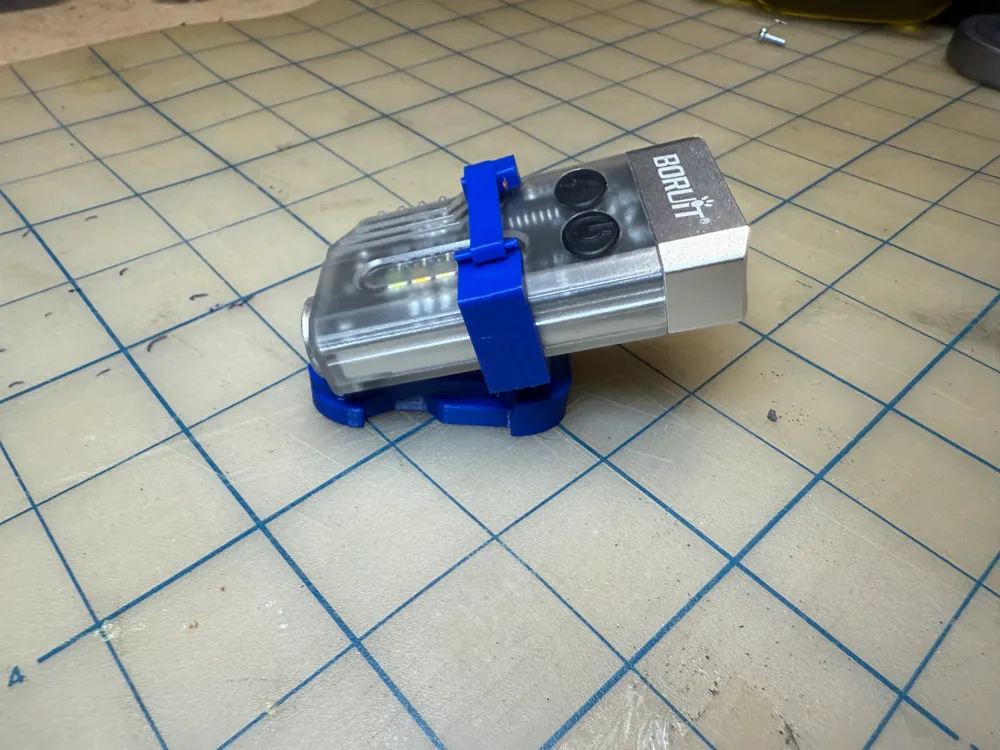

Slide the Boruit V10 into the bracket, with the ridged edge on the left (there is small ridge to catch it), then install the clip.
Finally mount it into your GoPro bracket.
Also check out my cygolite adapter for this same flashlight.
https://makerworld.com/en/models/931952
