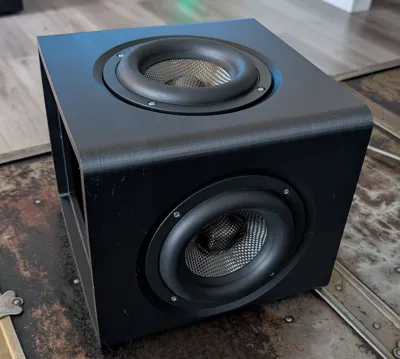

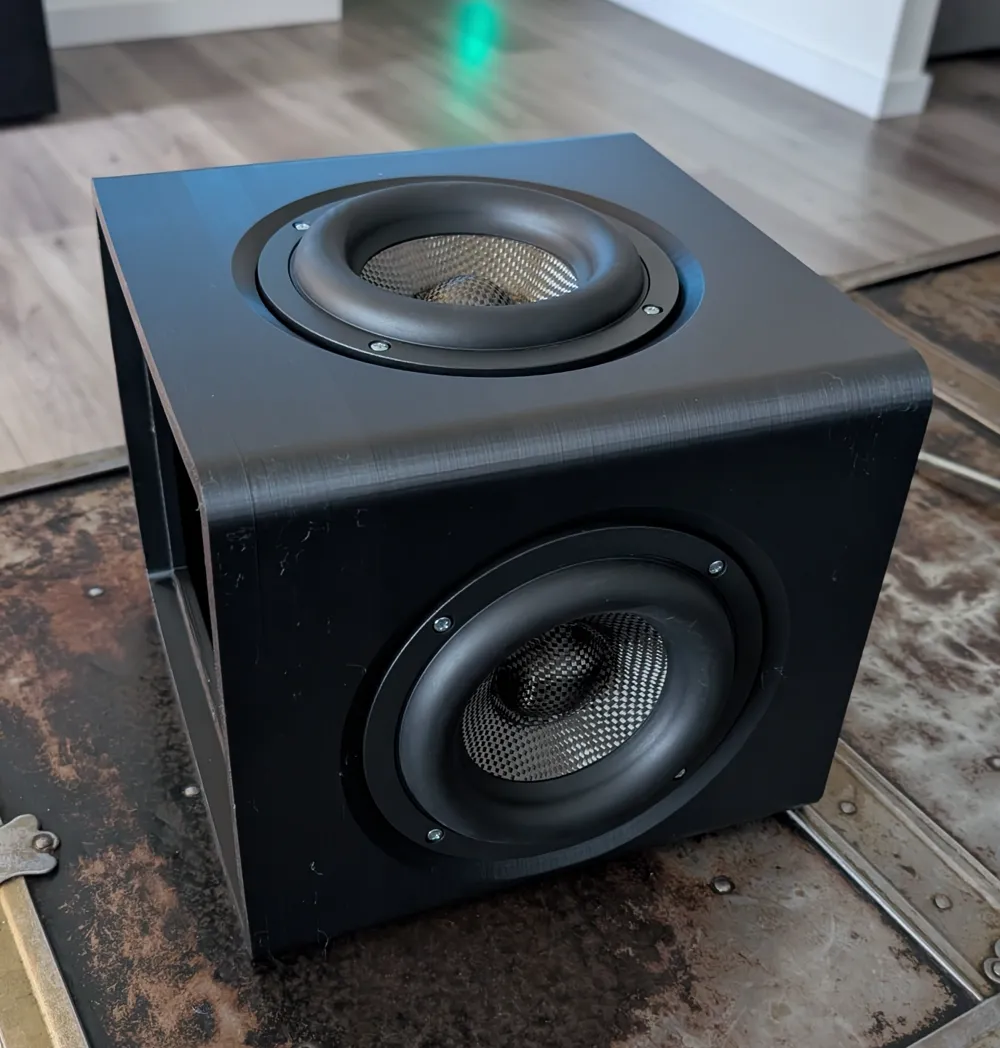

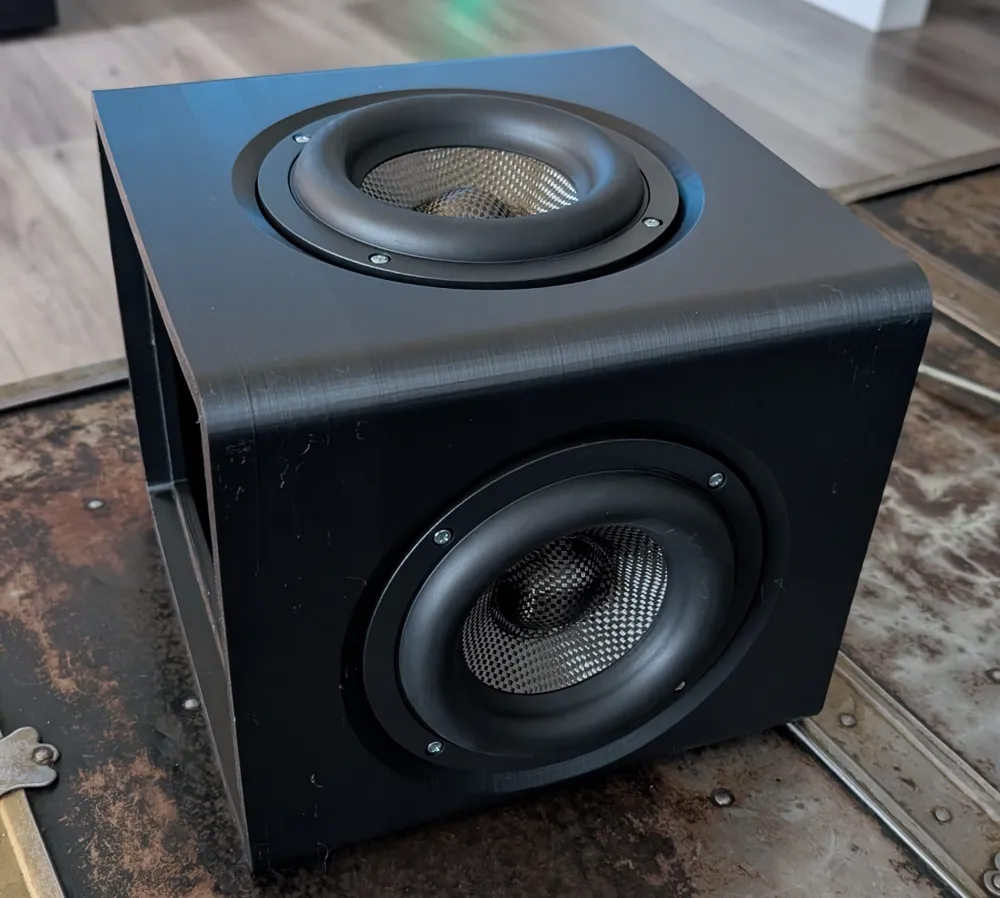

5.5" EPIQUE Subwoofer w/ Dual Passive Radiators
Print Profile(1)
Description
Boost Me (for free)
If you would like to see more models like this, please consider giving me a boost!
**This is a work in progress**

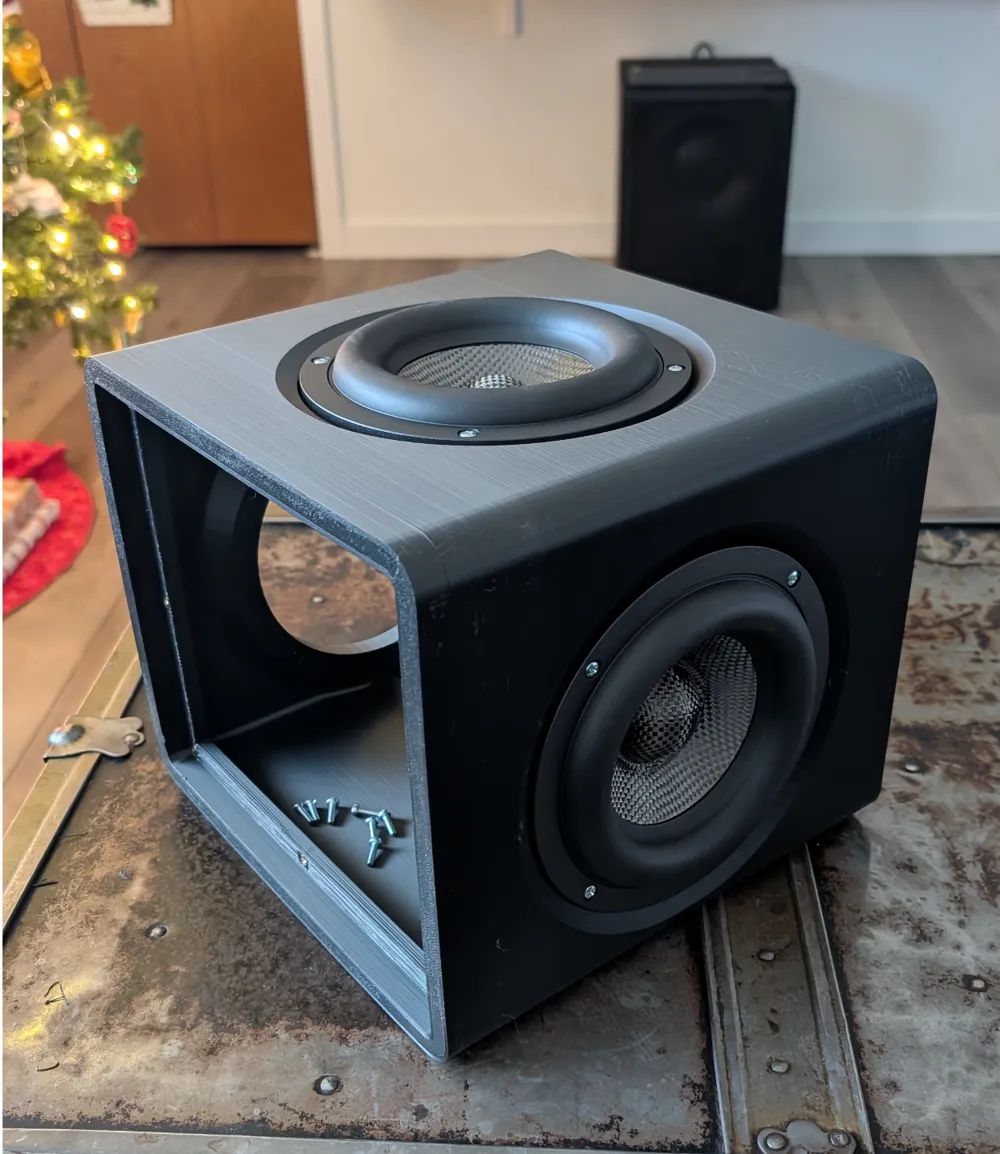

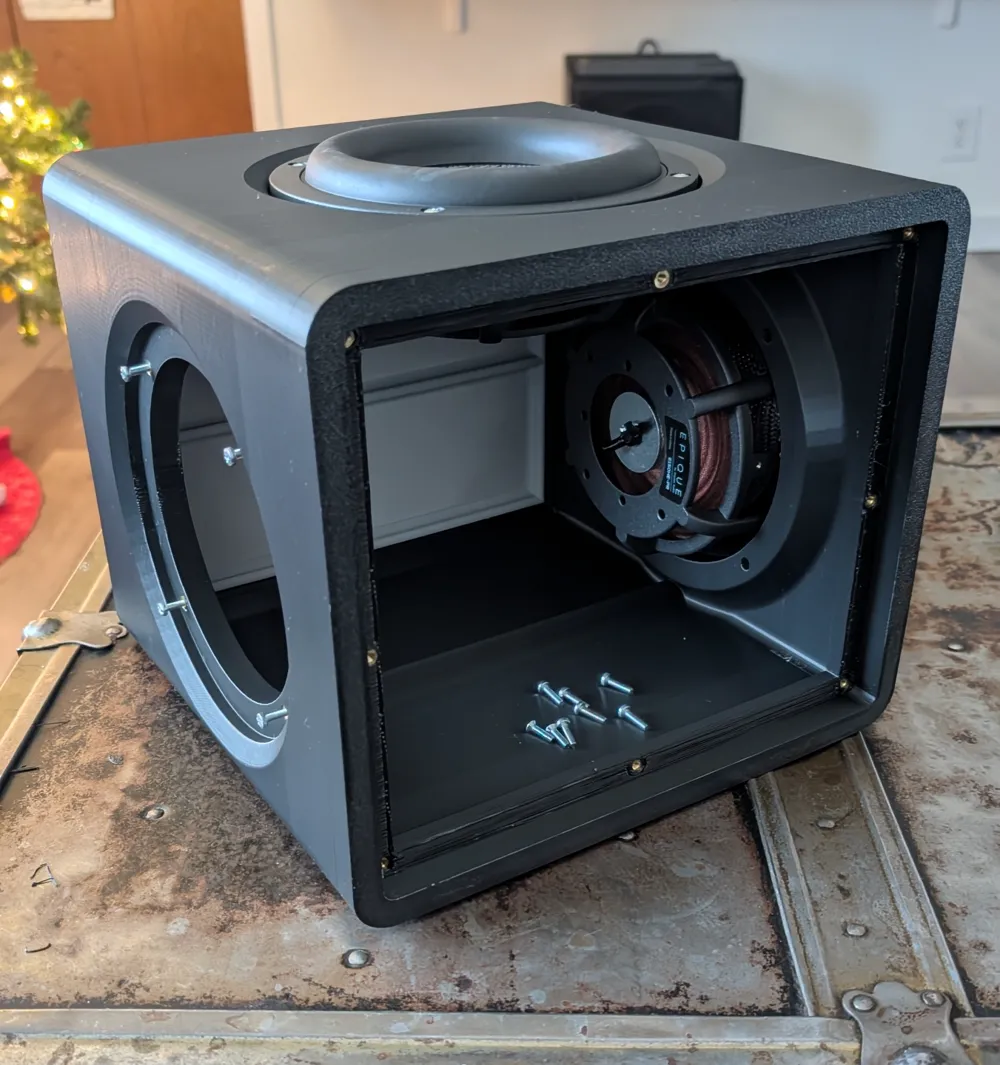

This is a modular subwoofer that can be used as standalone, or with speakers that attach to the sides.
I am working on side panels that use the Mark Audio Pluvia 7.2 HD Drivers and another set that uses GRS 8" Slim Planar Tweeters.
I am very happy with the results from the initial testing. The driver is rated for 200W RMS.
It sounded great with a Dayton APA150 in bridge mode, but I will be testing with several different class D amps to see what works best. (Hoping the Fosi Audio BT30D Pro works out well but it may need a power supply upgrade)

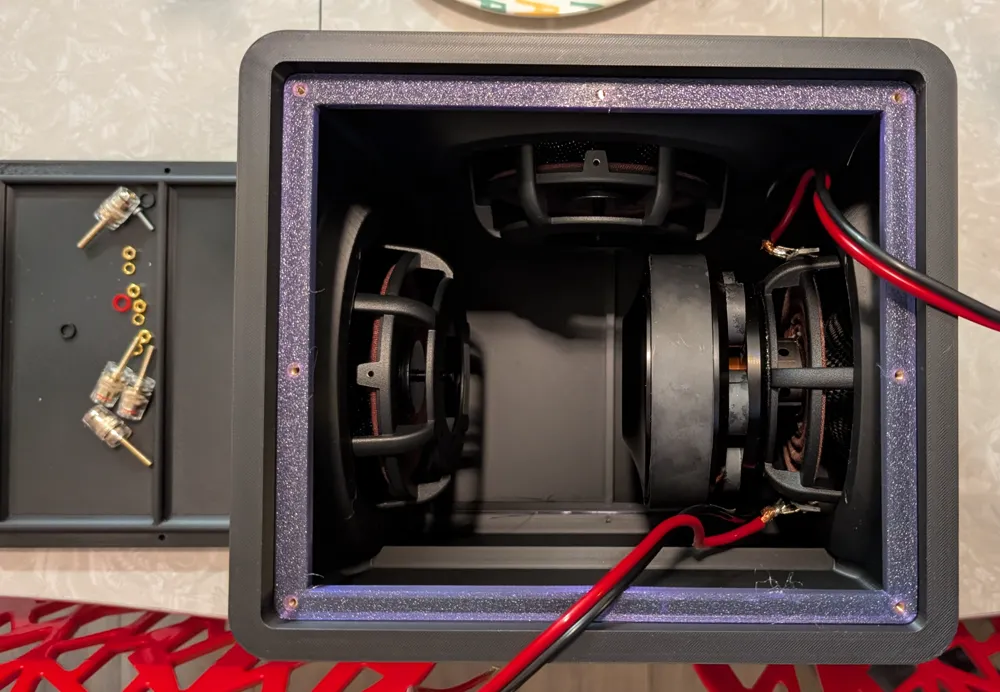

The current side panel has separate binding posts for each voice coil to allow for testing different wiring configurations. I will update/add a panel option with a single set with recessed plugs.
Epique E150HE-44 5-1/2" DVC MMAG Extended Range Subwoofer
Epique E150HE-PR 5-1/2" Carbon Fiber Cone Passive Radiator
Mini 5-way Binding Posts
https://www.amazon.com/gp/product/B077ZLG2J4/ref=ppx_yo_dt_b_asin_title_o09_s01?ie=UTF8&psc=1
M3 heat press inserts:
