Mark Audio CHR-70 Bookshelf Speakers - Full Range
Print Profile(1)
Description
Boost Me (for free)
If you would like to see more models like this, please consider giving me a boost!
**this is a work in progress**
I will continue to update this as I complete the design.

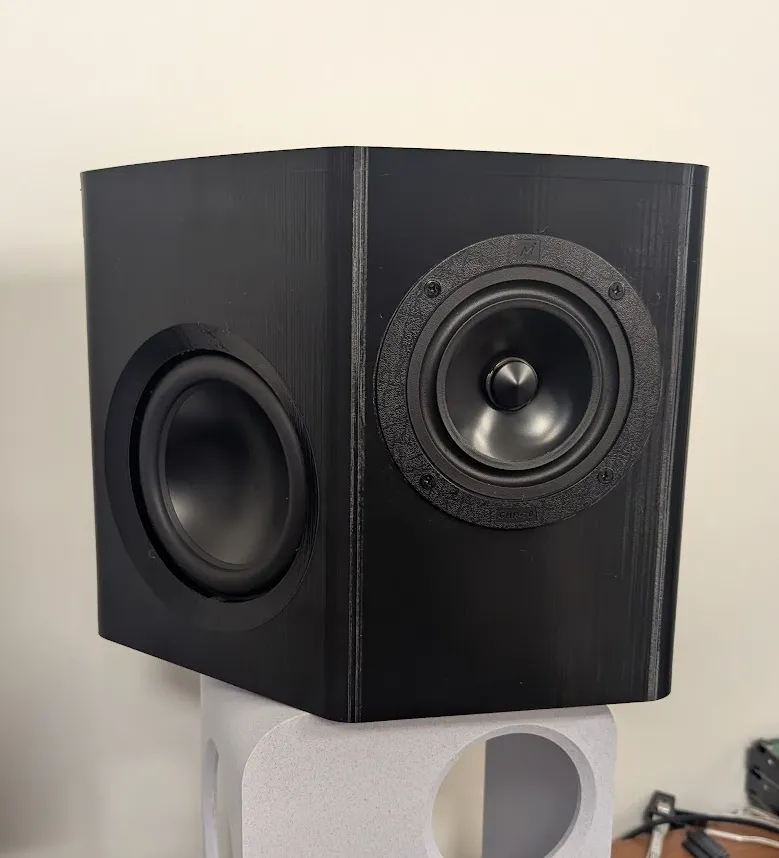

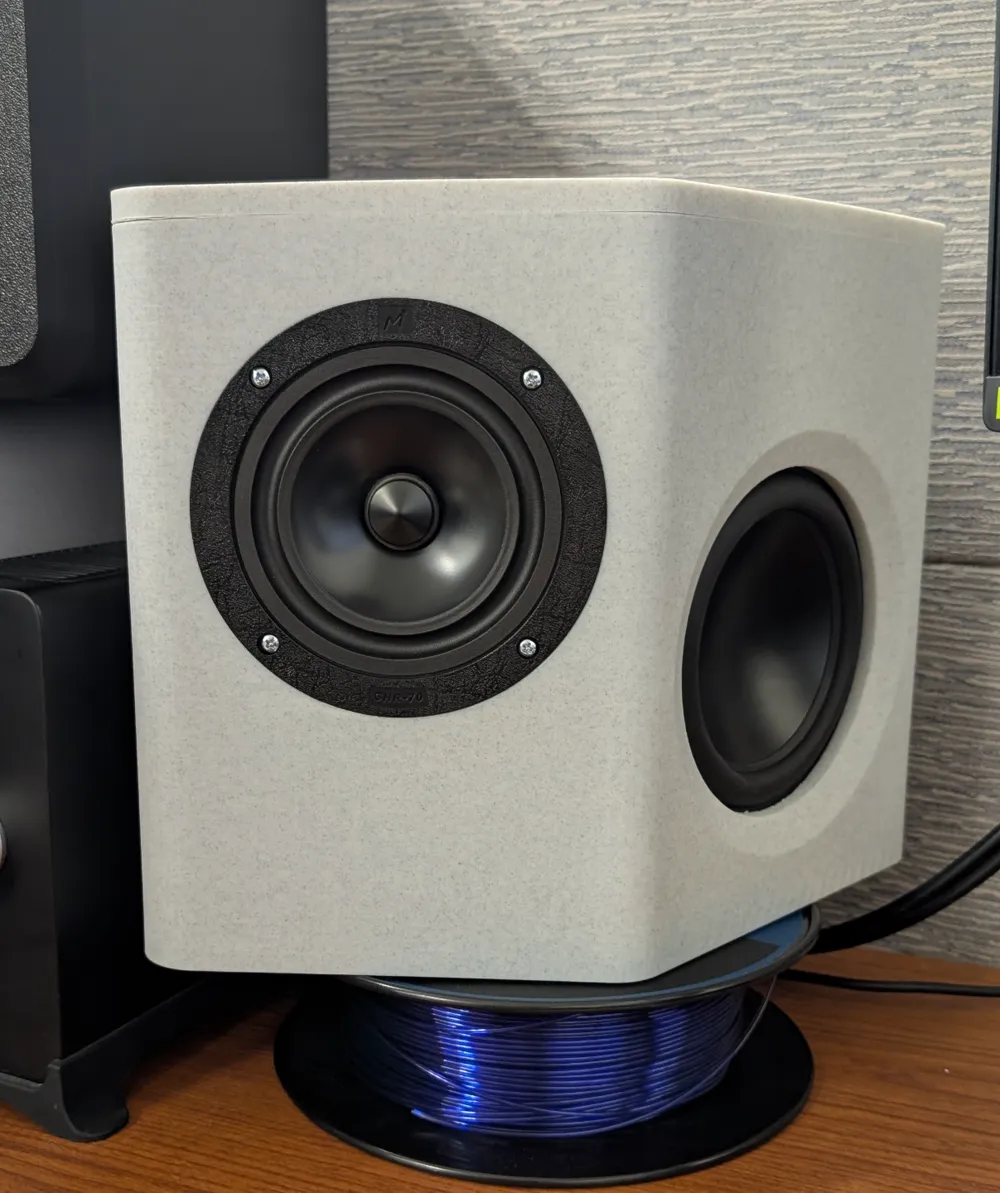

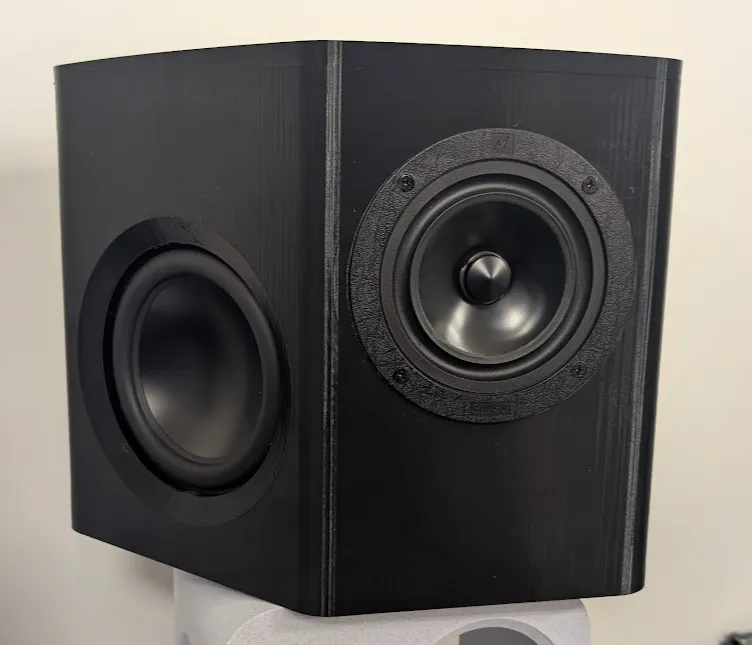

I found that I was putting my desk speakers at an angle so they would point towards me, so when I started designing an enclosure for the CHR-70 drivers I thought I would design the enclosure so each speaker could sit squarely on the corners of the desk and already be oriented in the ideal direction.
I am currently running the radiators with no weights attached but I plan to spend more time in WinISD as well as taking physical measurements with UMIK-1 and REW to determine the ideal weight.
Components:
Markaudio CHR-70 Brushed Metal Cone 4" Full Range Driver
Dayton Audio ND140-PR 5-1/4" Aluminum Cone Passive Radiator
Mini 5-way Binding Posts
https://www.amazon.com/gp/product/B077ZLG2J4/ref=ppx_yo_dt_b_asin_title_o09_s01?ie=UTF8&psc=1
M3 heat press inserts:
https://www.mcmaster.com/products/heat-sets/thread-size~m3/
Some form of damping material. (for example: https://www.parts-express.com/Acousta-Stuf-Polyfill-1-lb.-Bag-260-317?quantity=1)
