Subaru Screw on Oil Funnel with Cap - Free 3D Print Model

Search models, users, collections, and posts

Grapes

Hobby & DIY>Vehicles

IP Report

Print Profile(3)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

With Hanger 0.2mm layer, 3 walls, 10% infill

Designer

3.2 h

1 plate

5.0(39)

No Hanger 0.2mm layer, 3 walls, 10% infill

Designer

3.1 h

1 plate

5.0(12)

Funnel with extended neck to fit 2.4 Liter Turbo

3.6 h

1 plate

5.0(1)

Open in Bambu Studio

Boost

292

856

933

585

Released

Description

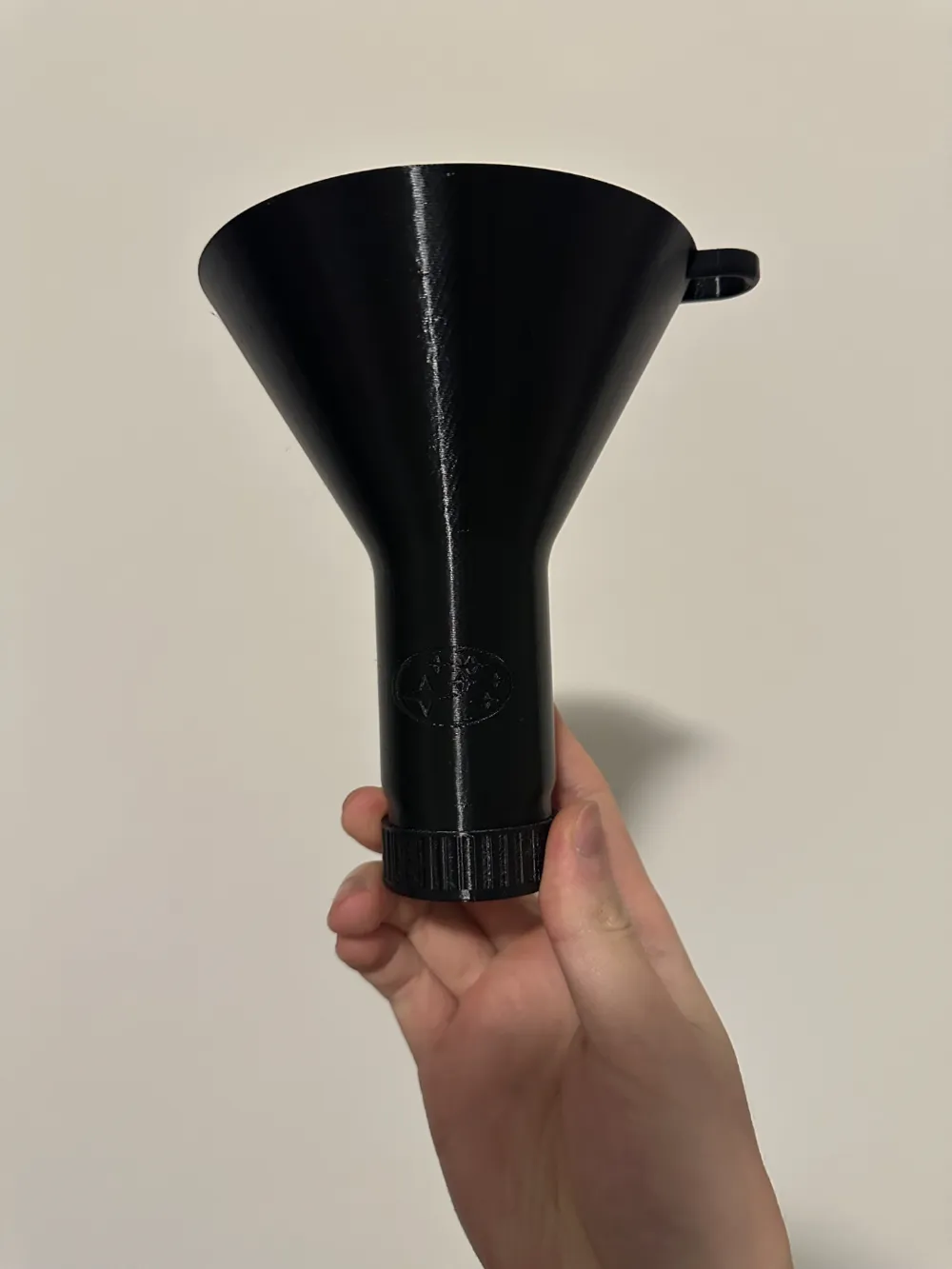

A screw on oil funnel for Subaru cars.

Modified my original design to fit Subaru vehicles. The thread size is M42x4.5 which is commonly found on most Subaru cars including the 86/brz/frs.

Thread size: M42x4.5

Following engines have the same thread size:

FA20, EJ18, EJ20, EJ22, EJ25, EZ30, EZ36, EN07, EL17, FB16, FB20, FB25

Note: I don't own any Subarus so I haven't tested it but it should work in theory. Please provide some feedback if you do end up printing this.

Print material doesn't really matter but PETG is more chemically resistant than other polymers. Be careful when using it with a hot engine, as the funnel could melt.

frs

brz

subaru

Comment & Rating (63)

@Mors

Boosted

Print Profile

With Hanger 0.2mm layer, 3 walls, 10% infill

works like a charm. printed nicely using ABS!!

@user_2497219444

Print Profile

With Hanger 0.2mm layer, 3 walls, 10% infill

Had zero issues with this print!

@user_3947877875

Print Profile

No Hanger 0.2mm layer, 3 walls, 10% infill

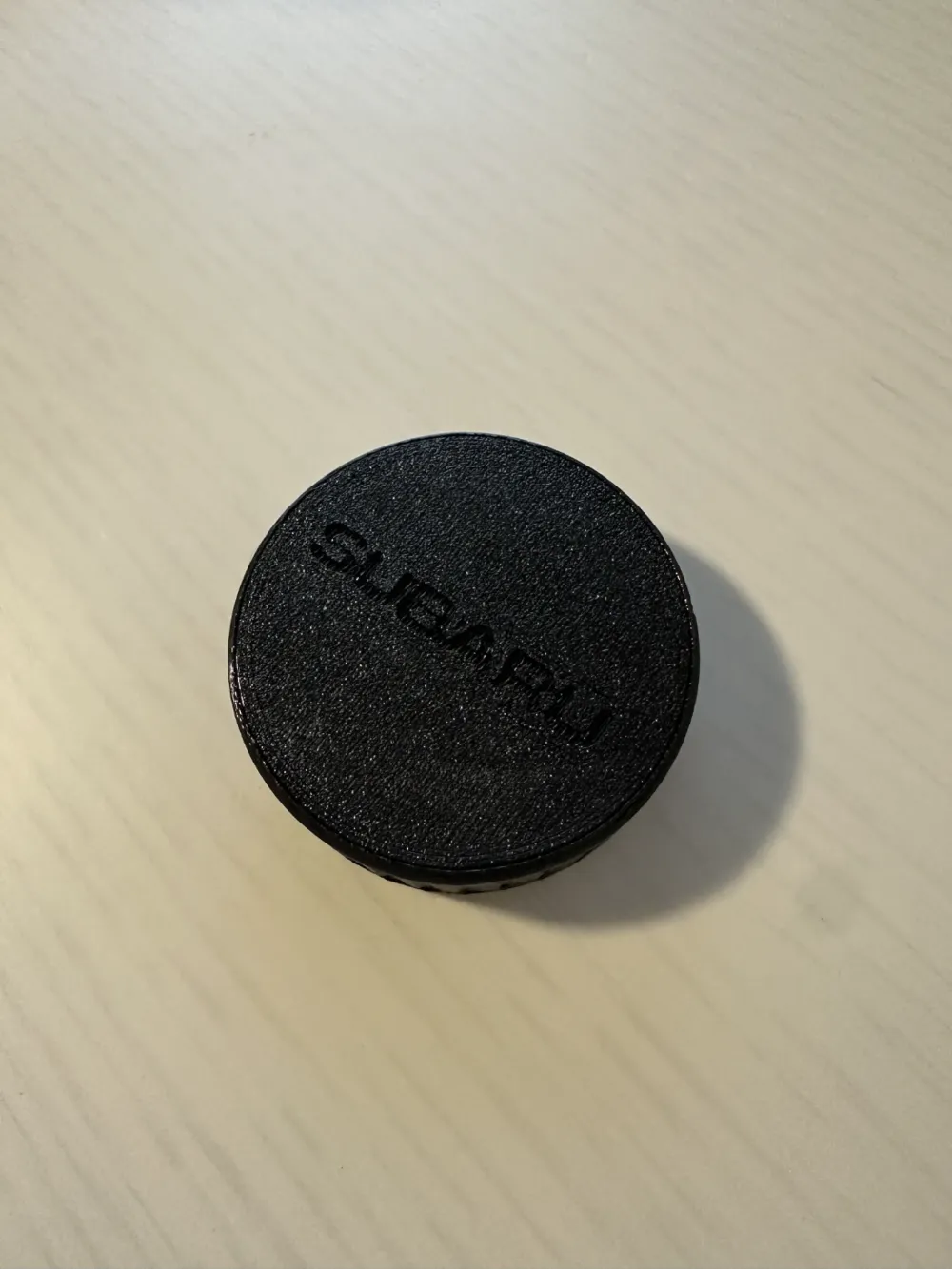

Have the funnel already so just needed a cap printed great no issues

@user_4119672316

Print Profile

With Hanger 0.2mm layer, 3 walls, 10% infill

Perfect fit for subaru r2

(Edited)

@0p3r4t0r

Print Profile

With Hanger 0.2mm layer, 3 walls, 10% infill

Mega! It does what it's supposed to and is well made! Thank you for your work and effort

Show original

@user_824790707

Boosted

2014 crosstrek confirmed fit..Done on Petg

@user_710685451

Boosted

Print Profile

With Hanger 0.2mm layer, 3 walls, 10% infill

Come at absolutely perfect are use the translucent pet G and this fit perfectly on my 2004 SG Forester XT

@user_1389520455

Print Profile

With Hanger 0.2mm layer, 3 walls, 10% infill

very cool

@MissD.Cat

Boosted

Print Profile

With Hanger 0.2mm layer, 3 walls, 10% infill

Printed perfectly. Thread confirmed on a 2022 Subaru BRZ. Thanks for the model.

@camshaft700

Boosted

great design, might be a idea to add a vent tube
