KARDEGIC Dispenser
Print Profile(1)
Bill of Materials
- Vis x 2: Fraisé M4, Longueur 15
- Vis x 2: Fraisé M4, Longueur 20
- Ecrous x 4: M4
- Rondelles x 2: Diamètre 4
- Ressort x 1: Diamètre 20, longueur 50, fil1.2
Description

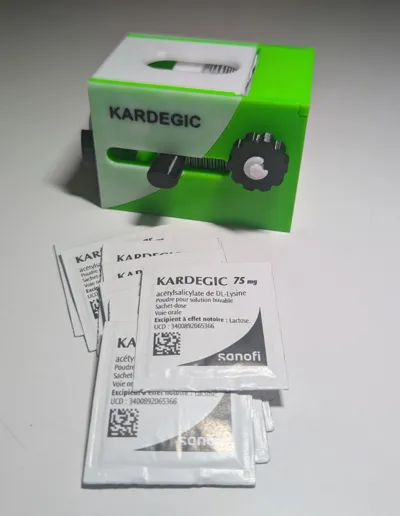

KARDEGIC Dispenser
* KARDEGIC is a powder in single-dose sachets, it is used to prevent recurrence of cerebrovascular or cardiac accidents caused by clots in the arteries of the brain or heart.
This device provides a convenient and quick solution for dispensing KARDEGIC sachets.
You will need:
- PETG filament: Light green, white, black (or other colors)
- TPU filament: Black (or other colors)
- 1 Spring 50X20 mm, wire 1.2 mm
https://www.amazon.fr/dp/B0CL9SZCNW?ref=ppx_yo2ov_dt_b_fed_asin_title - 2 M4 countersunk screws, length 15 mm
- 2 M4 countersunk screws, length 20 mm
- 4 M4 nuts
- 2 small washers, diameter 4
- Plastic glue
- Small flat file or nail file
PETG filament for all parts except for the padded cylinder which is in TPU.
The two white plates with the KARDEGIC inscription are glued onto the box.
Preferably choose a plastic glue that leaves no marks.
Please do not force!
Depending on your printer or your filament you will certainly need to adjust some parts using a small flat file or a nail file.
Deburr all parts carefully, ensuring that there are no burrs in the slides!
Tip!! Rub a candle on the sliding parts before assembling them.
The parts must slide without forcing!
