Volvo MY2024 EC40/EX40 AAWireless (V1) Holder

Remixed by

Print Profile(0)


Add the first print profile to earn points

Boost
12
31
1
1
18
5
Released

Description

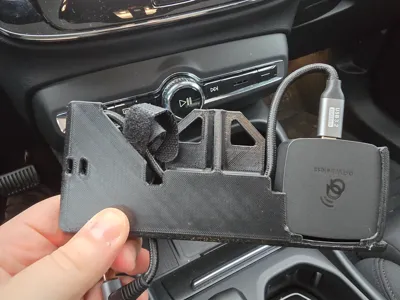

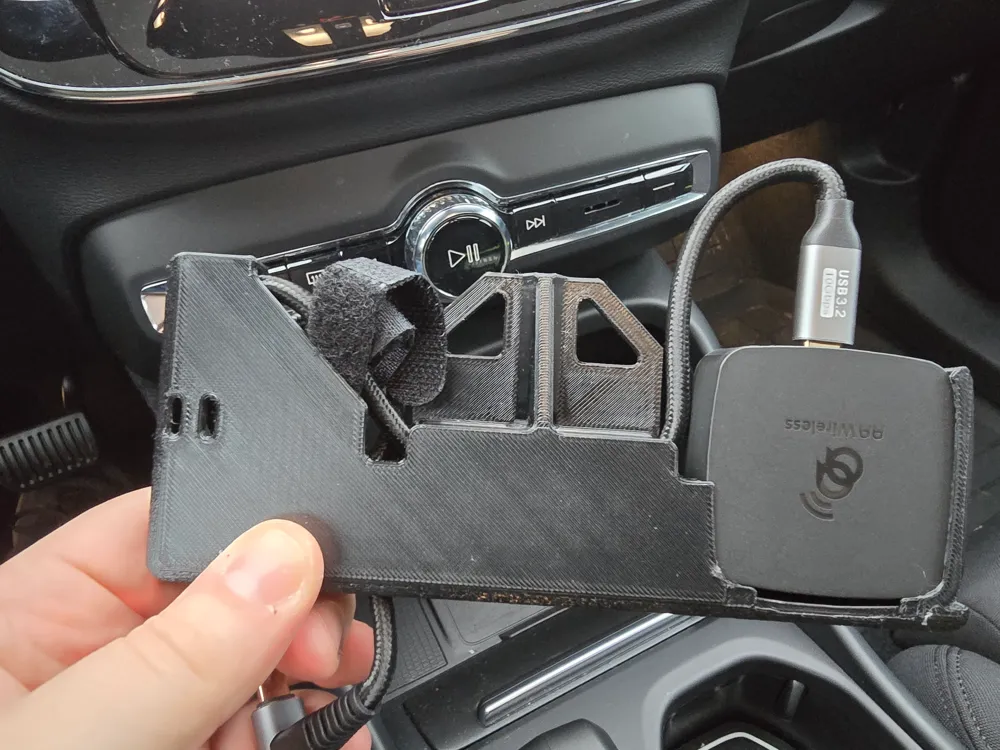

Needed a AAWireless holder for my MY2024 EC40, remixed on models from tjwatson (@thingiverse) & Tom_Designs (@printables).

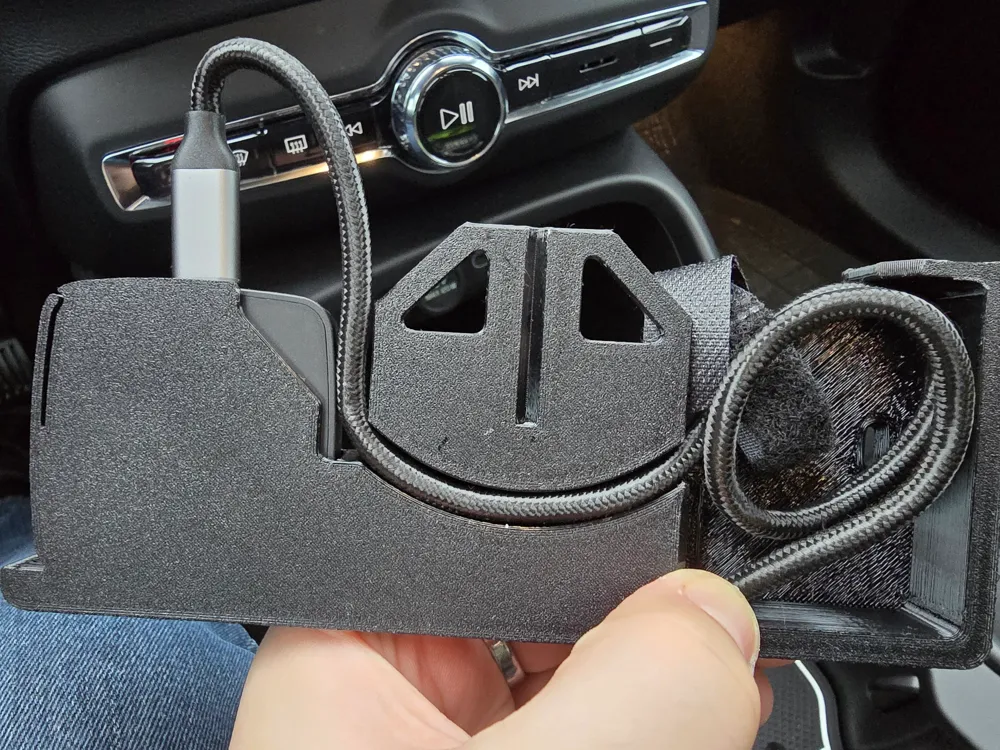

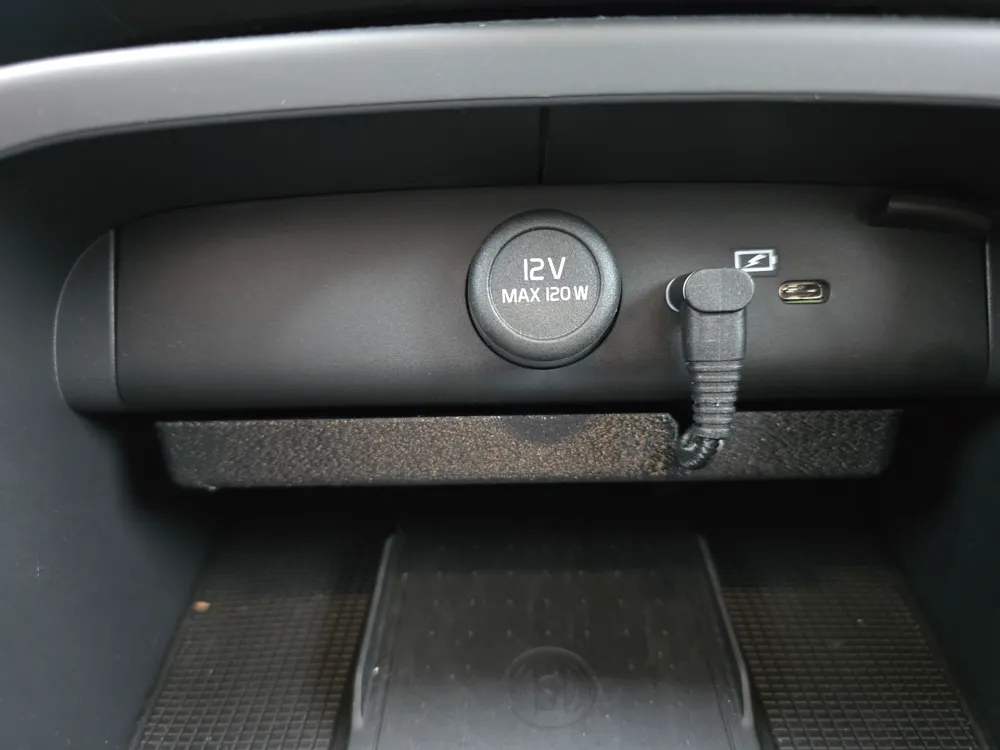

Moved the cable cutout to be aligned with the USB-C connector in the car and the holder for the card-slot has been shortened since the “rib” interfered with my S24 Ultra when it was placed on the wireless charger and I also added fussy skin to give it some extra texture.
Mine is printed in PETG on a K1 MAX but ABS/ASA should work as well, would not recommend PLA since it can fail during the hotter summer days…
Supports are needed!

Cable is a 50cm USB C with a 90° connector on one end: https://www.amazon.se/dp/B0BRV5C52T?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Ideally the other end should have been a 90° left/right connector but couldn't find any… Also a 25-30cm cable should work fine as well!
