Description

The power within the Vault was immense, far beyond human comprehension. It was a force to be revered, not wielded. With a heavy heart, I turned away from the key, leaving the Vault as i had found it – a secret hidden from the eyes of the world. The legends were true, but the power within was not for mankind to possess. Some secrets, I realized, were best left undisturbed.



The Vault of Sacred Realm.

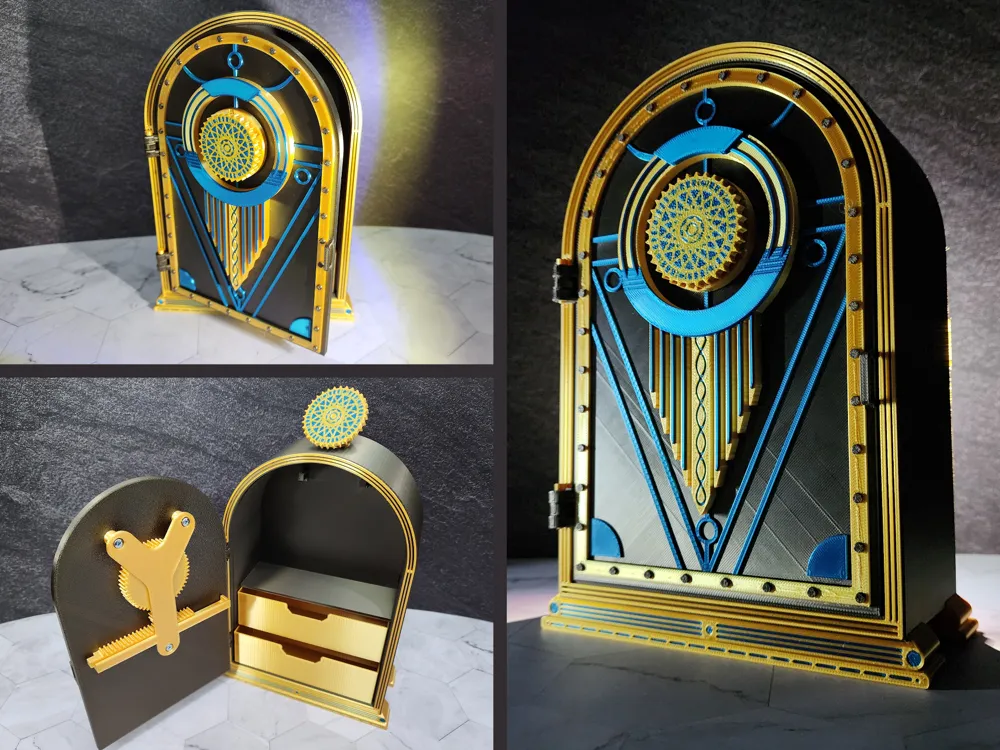

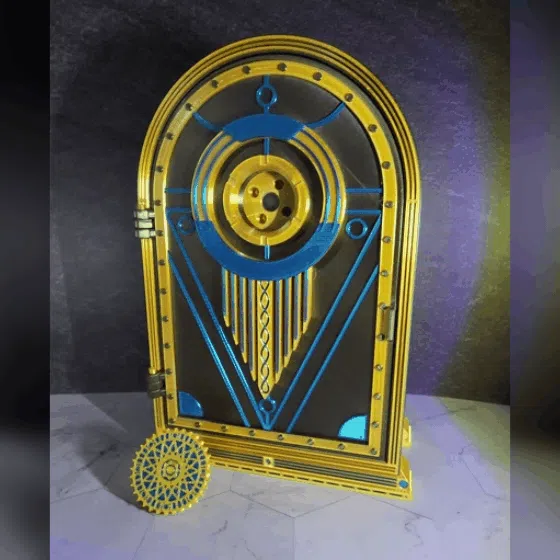

This is a vault with a detachable magnetic key and internal lock mechanism, parts of the print will require AMS.
Inside the vault will be containing two drawers and two hooks for both versions the 70 mm deep and the 110 mm deep.

Parts needed:
- M3 x 10mm = 3 pieces.
- Round Magnet 10 x 2 mm = 2 pieces.

- Quick dry glue (super glue).



Filament colors:
Gold Silk PLA

Blue Silk PLA
Brown Silk PLA

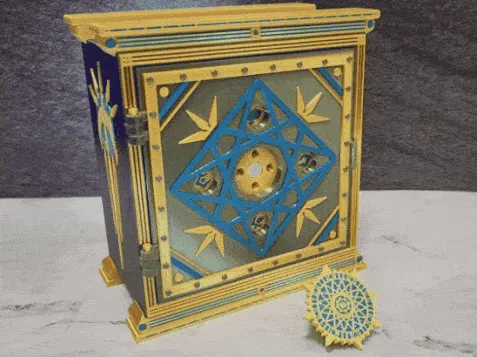

Here is a different Version of the Vault. (click on the photo)


Documentation (1)

Assembly Guide (1)
Vault Assembly guide.pdf
