Mini PC Vertical Stand—Compatible with HP, Lenovo, and Dell
Print Profile(1)
Description

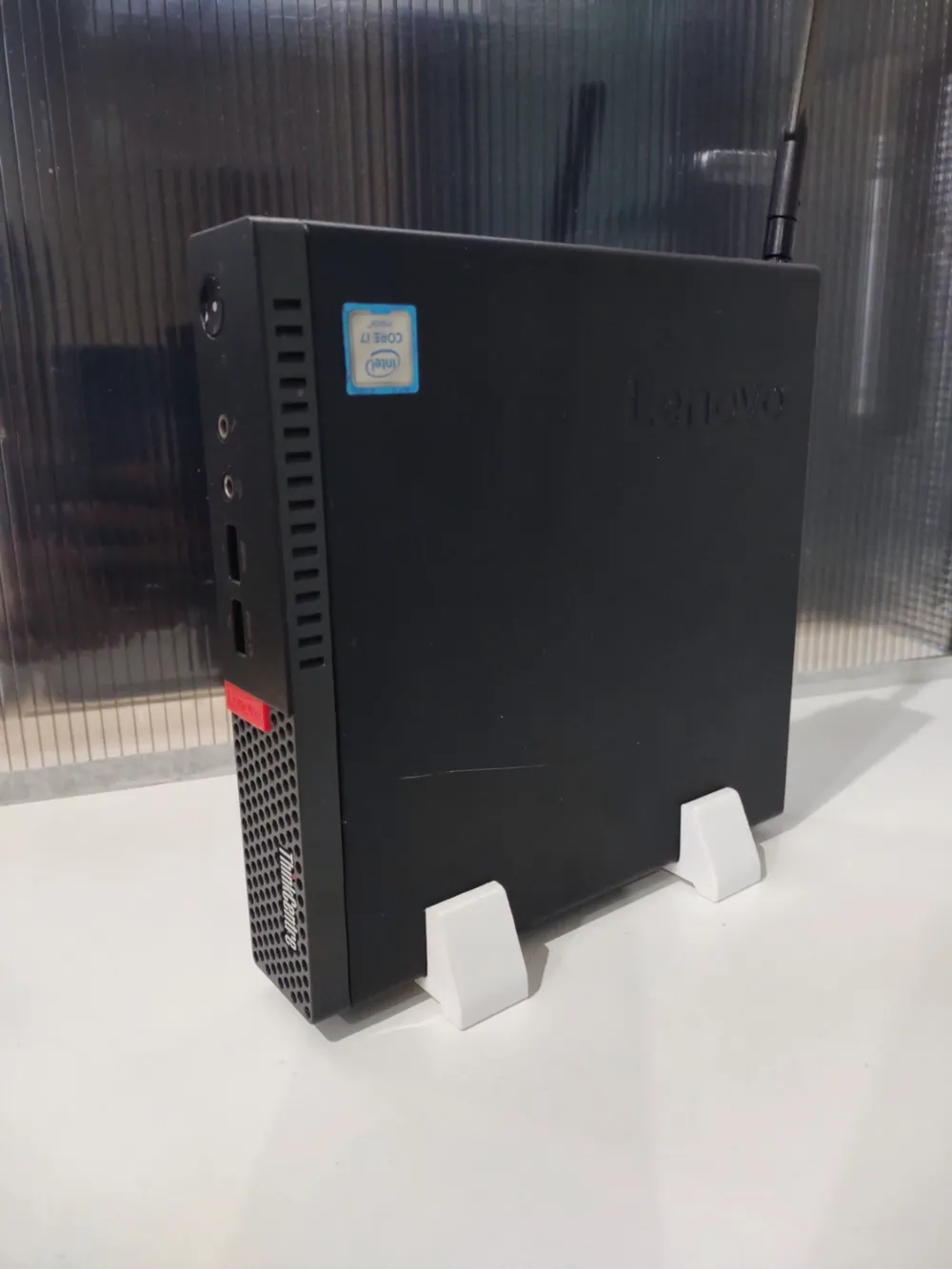

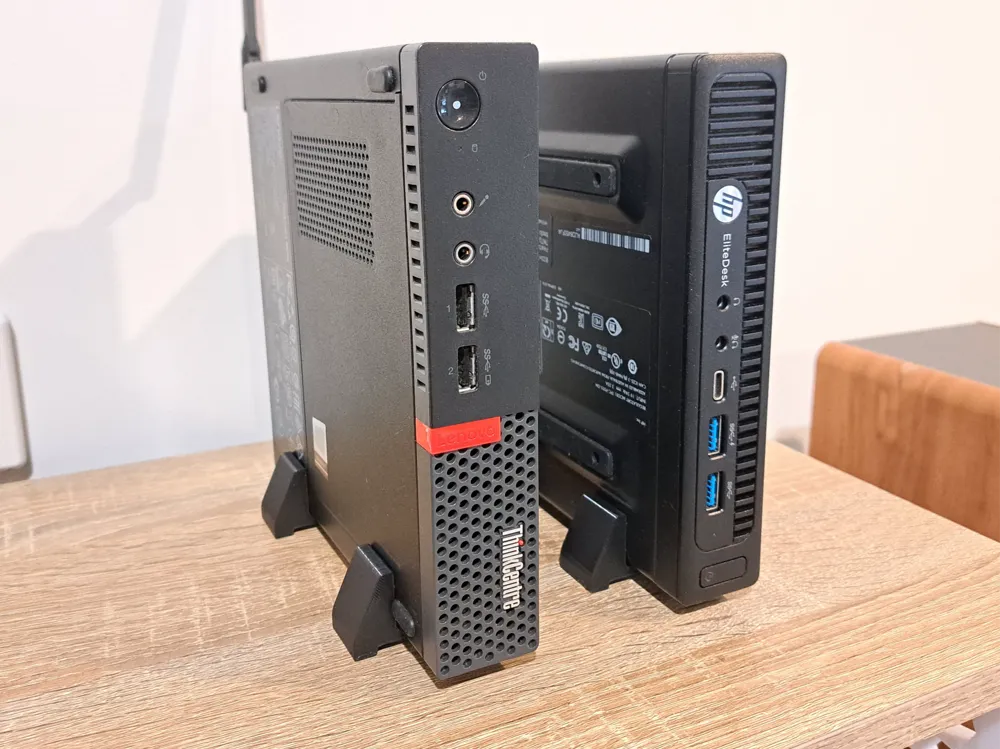

Just a simple mini PC vertical stand. It fits most Lenovo and HP models, E.g: Lenovo Thinkcentre Tiny and Elitedesk Mini or Elite Mini.
Should be printed in PETG for best performance. I also add a TPU version which pinches the case a bit better and also serves as rubber feet as well.
For the PETG version, if it is a bit loose, use lighter heat up the middle and bend it a bit for more tight grip.
Plate 1-2 is for HP and Lenovo. Plate 3-4 is for Dell Optiplex Micro.
The difference between Dell and HP/Lenovo is just 2mm, but that makes them incompatible to each other.

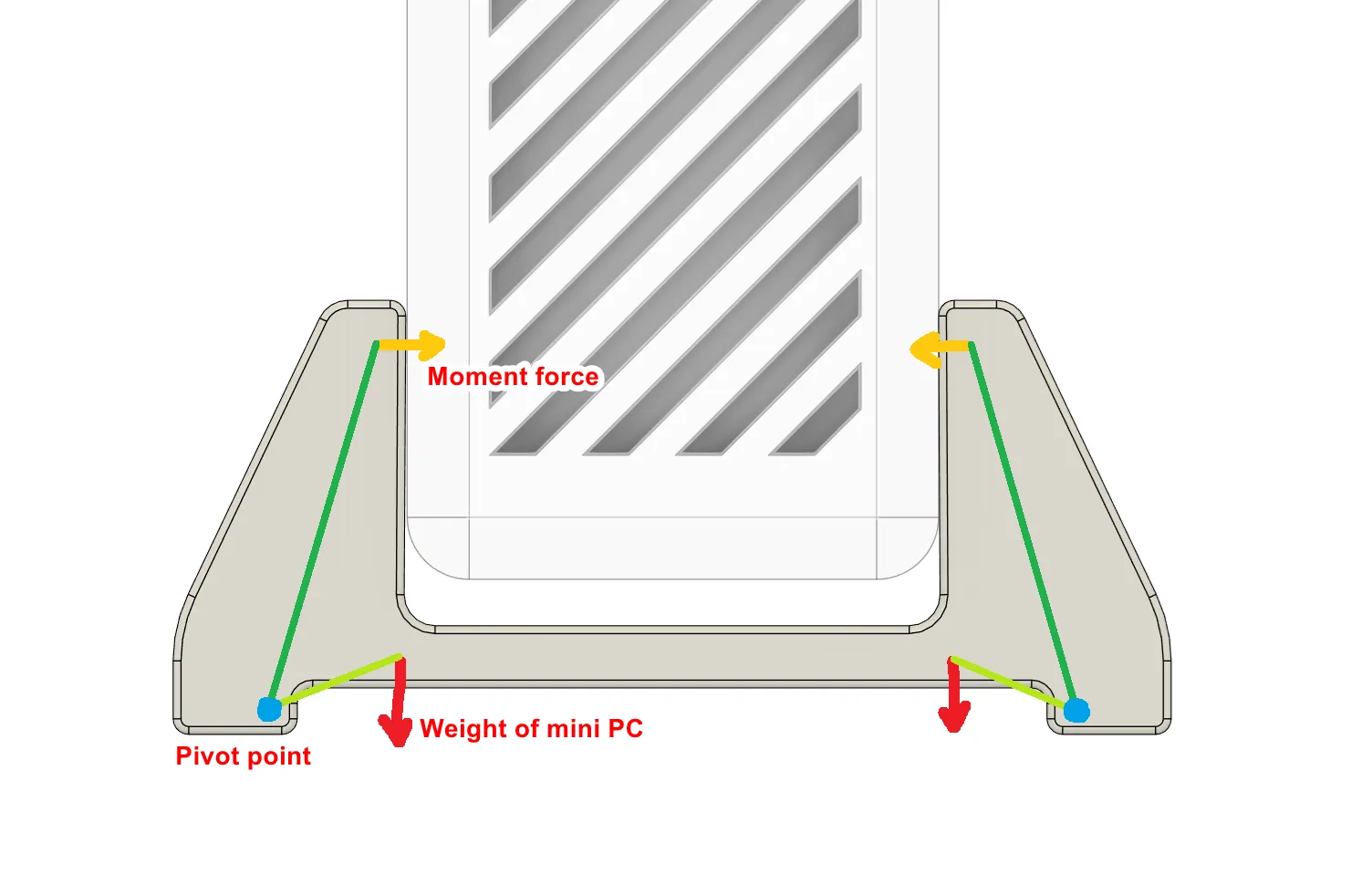

This stand was designed with the principle: the more weight of the mini PC, the harder it grips and thus it is harder to tip over.
Update 1: Chamfer all the rough edges so that it would feel nicer.
Update 2:
- Add TPU version.
- Add support for Dell Optiplex Micro
