Lithophane Cube - Free 3D Print Model

Search models, users, collections, and posts

Mauro 0557

Household>Decor

IP Report

Print Profile(8)

All

X1E

P1S

X1 Carbon

H2D

P1P

H2D Pro

H2S

P2S

H2C

X2D

A2L

A1 mini

Profile Update 09/05/2025

Designer

2.5 h

1 plate

4.7(9)

0.2mm layer, 2walls, 25% infill

Designer

3.3 h

1 plate

5.0(2)

Profile Update

Designer

3.3 h

1 plate

5.0(2)

0.12mm layer, 99 walls, 0% infill

Designer

3.8 h

1 plate

Click to see more

Open in Bambu Studio

Boost

333

643

514

141

Released

Bill of Materials

List other parts

https://it.aliexpress.com/item/1005004808631940.html?spm x 1:

Description

Content has been automatically translated.

Show original

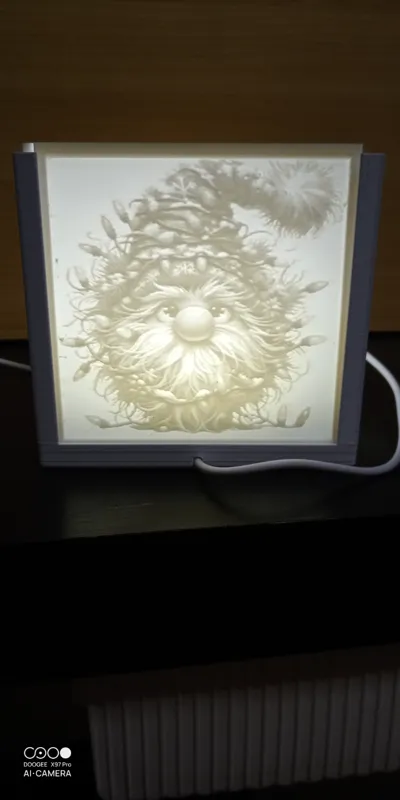

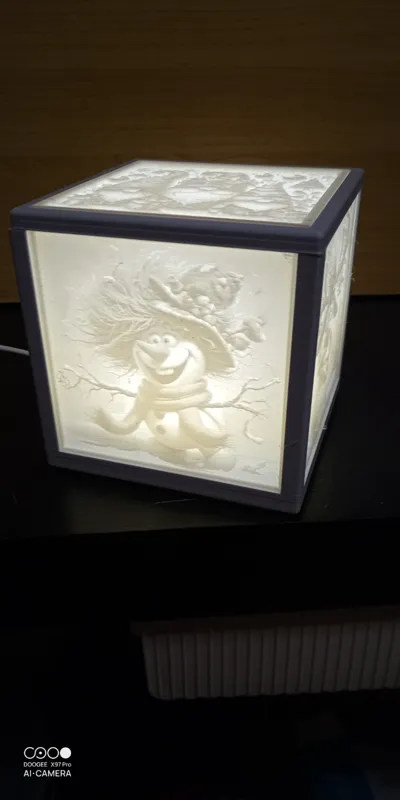

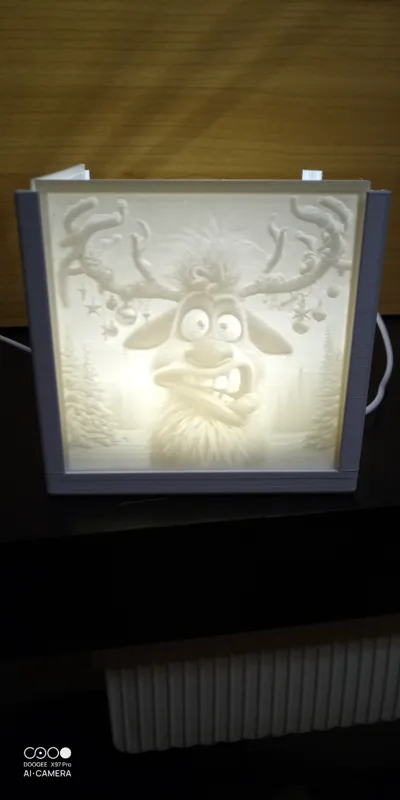

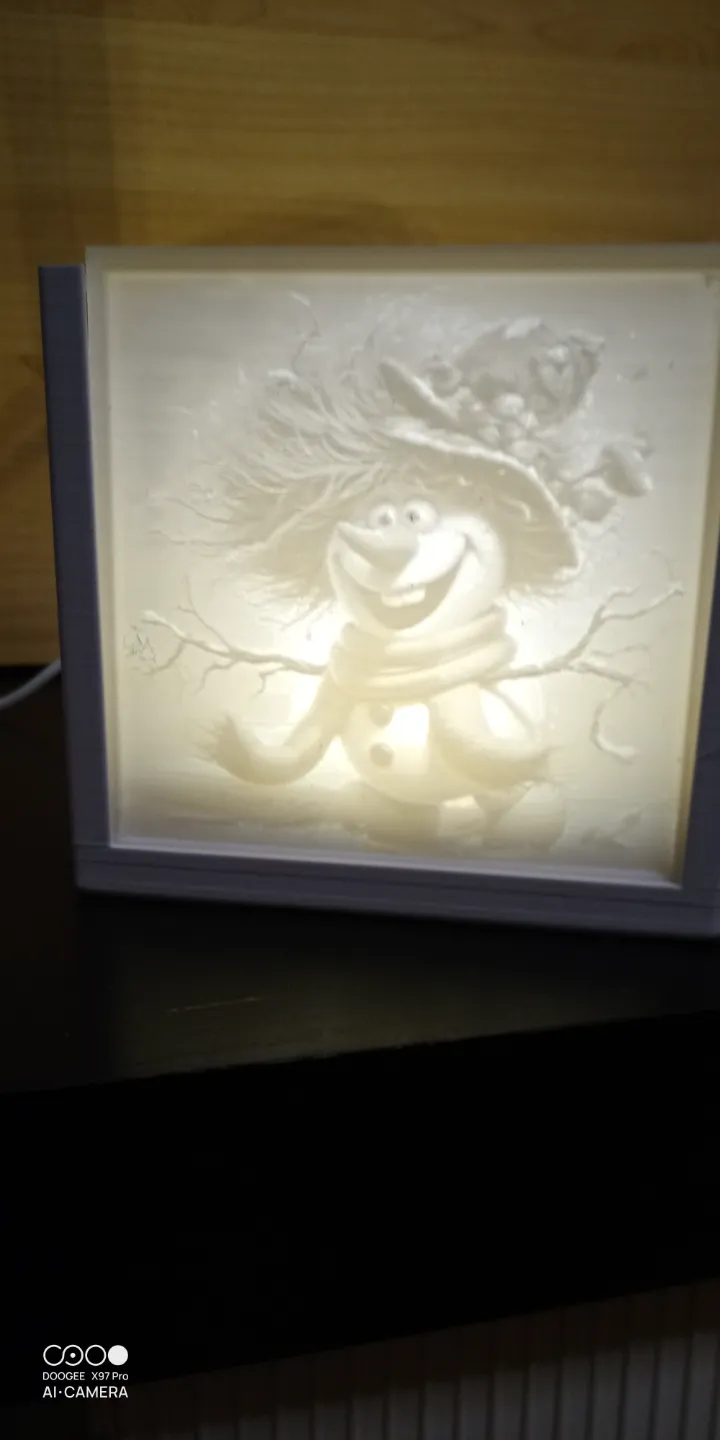

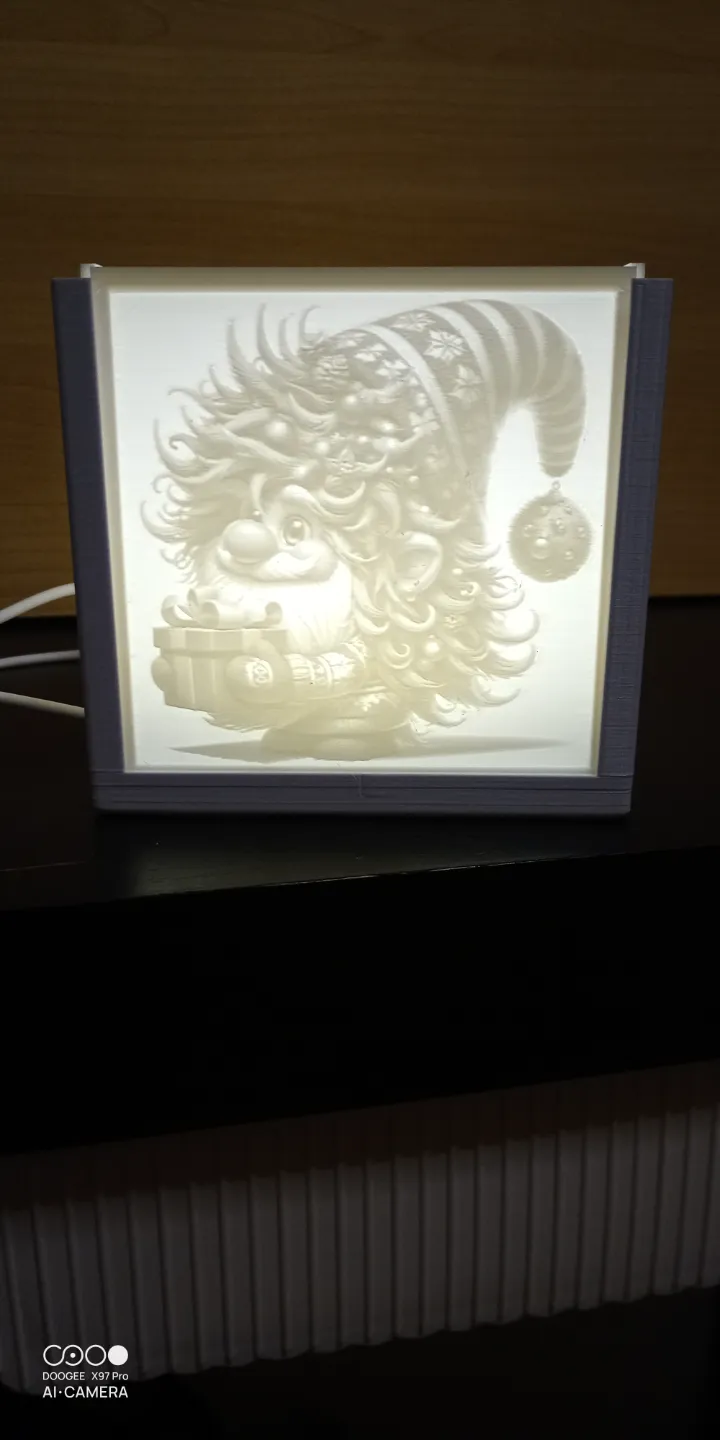

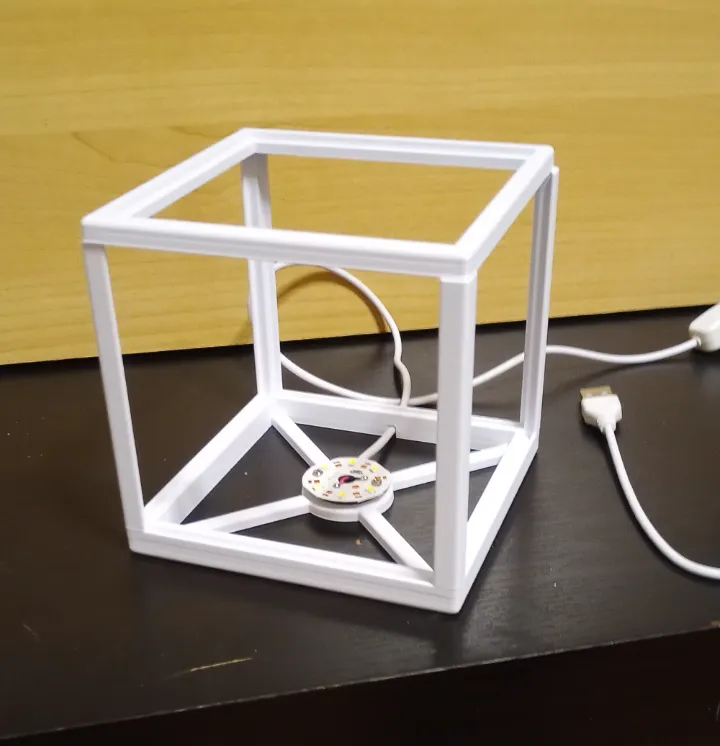

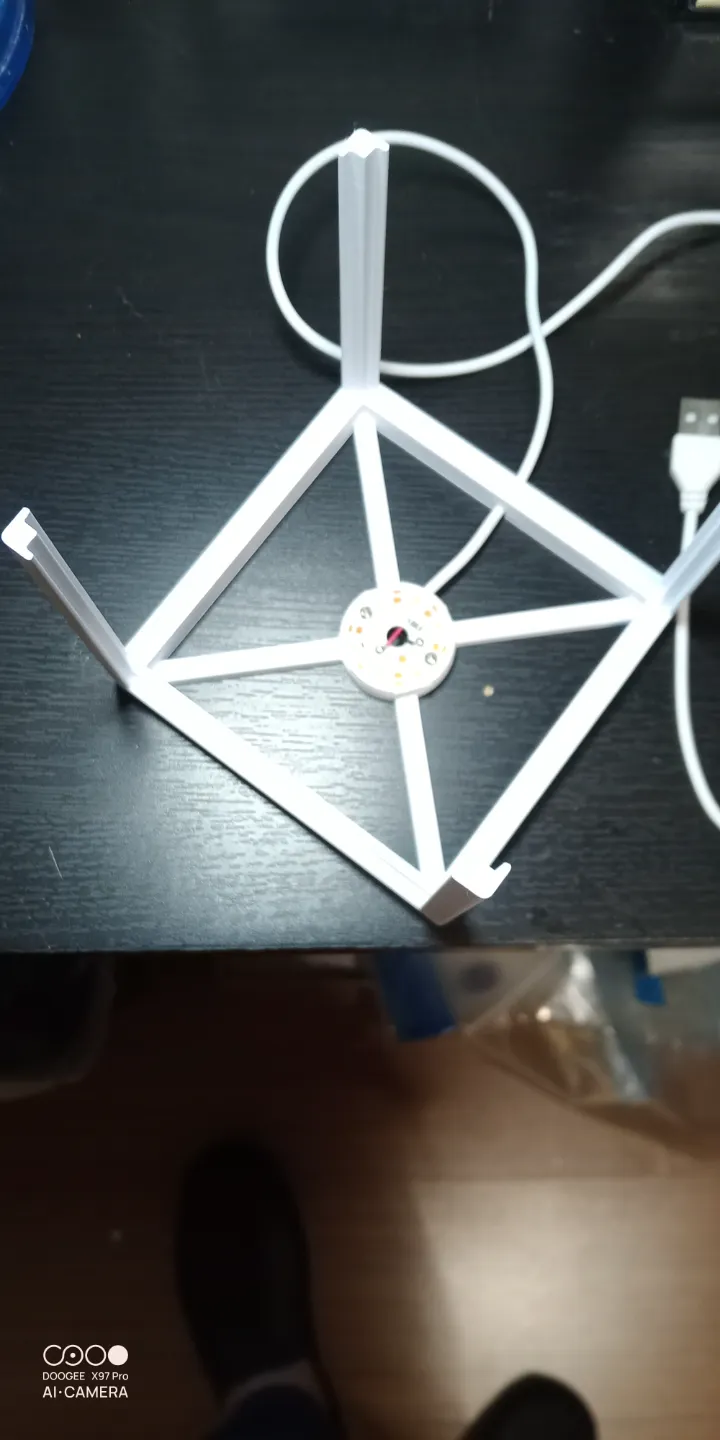

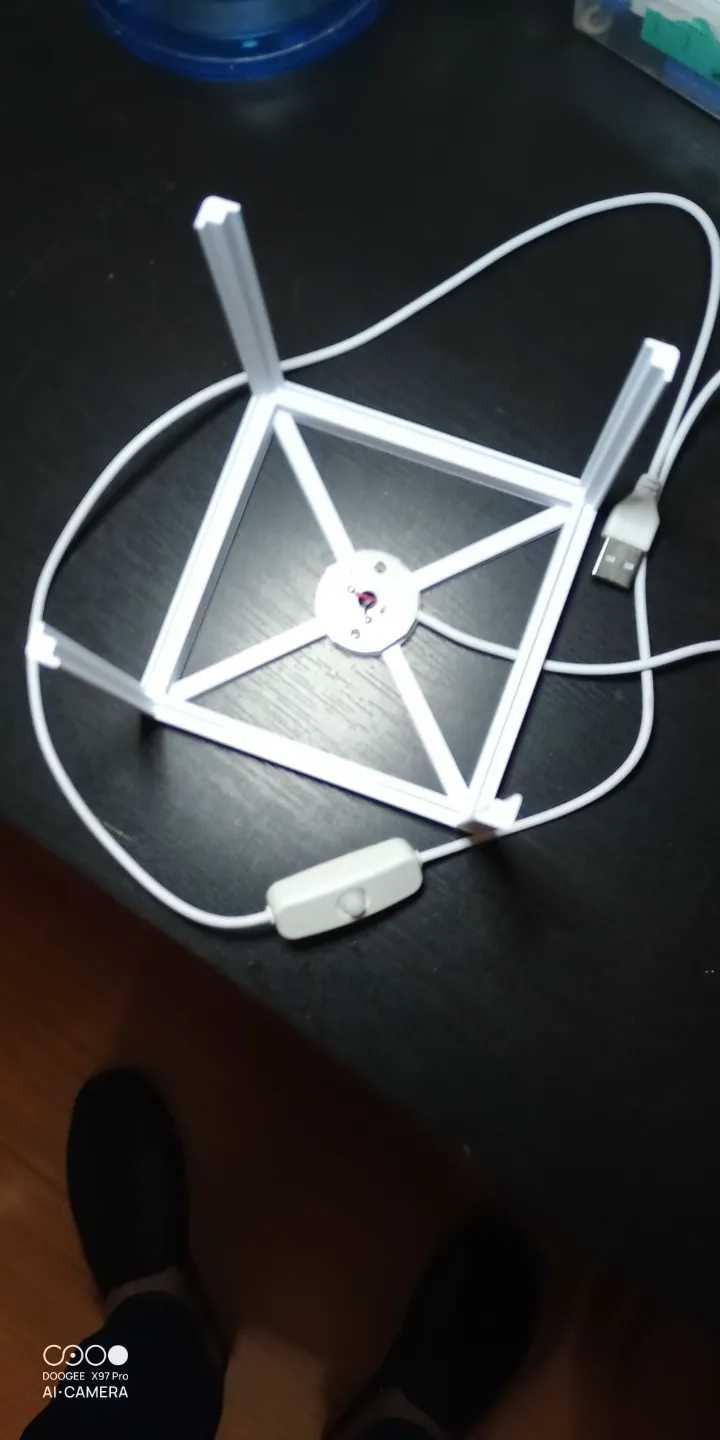

A very simple cube to print, glue the lithophanes and the lid. Do not glue the top lithophane for possible lamp replacement.

lithophane cube

lithophane frame

lithophane

Documentation (1)

Assembly Guide (1)

Cubo Lithofanie-Exp.JPG

Comment & Rating (36)

@user_769596052

Pinned by Designer

Aggiungo il link con le misure per creare le litofanie https://lithophanemaker.com./Lithophane%20Sphere.html#processing Picture: Gnomo Nuovo 1.jpg Frame Options: Frame Only Lithophane Resolution: 0,1 Base Length: 99,7 Base Width: 2,97 Base Height: 2,97 Overhang Angle: 45 Maximum Thickness: 2 Minimum Thickness: 0,4 Height: 99,7 Support Thickness: 2 Support Angle: 75 X Shift: 0,5 Y Shift: 0,5 Rectangle Scale: 1,0 Crop?: Yes

(Edited)

The designer has replied

@Kovu22

Hello! I'm sorry, but I don't understand what dimensions the lithophane should have to fit, and the link you provided doesn't open

Show original

@user_769596052

Replying to @Kovu22 :

Hello, the lithophane measures 997 x 997 millimeters with a thickness of 297 millimeters, the website is called Lithopane Maker, the screen you see shows all the parameters to be entered on the website screen

Show original

@user_703859203

Replying to @user_769596052 :

bro 997 means 3.5 foot can you share real values

@MartiLab3d

Boosted

Print Profile

Profile Update

Excellent model, I would personally add some small hooks between the lid and the pillars On my profile, you will find the base for download

The profile uploader has replied

Show original

@user_769596052

Excellent work, any improvements are welcome

(Edited)

Show original

@user_2236705827

hi, do you have the Layout Form the top Picture? With the Information of the birth

(Edited)

@MartiLab3d

Boosted

Replying to @user_2236705827 :

Hello, I created this using ChatGPT and then converted it to SVG

(Edited)

Show original

@Daniel_afds

Print Profile

Profile Update 09/05/2025

perfect, robust and easy fit Thank you for sharing

The profile uploader has replied

Show original

@user_769596052

Thank you and have fun

Show original

@Topblades

Print Profile

0.2mm layer, 2walls, 25% infill

I've printed two of these items, and the print quality is excellent; they look great with the photos.

The profile uploader has replied

@user_769596052

Good, excellent work

Show original

@Plattenkratzen

Boosted

You've integrated small holes into the lid's print, but the stand itself lacks any corresponding studs Are the holes intended for attaching the lid? If so, they're unfortunately missing Could you adjust this? Otherwise, a top-notch model

The designer has replied

Show original

@user_769596052

Hello, apologies, it's a typo in the first model, the lid adheres to the edge of the lithophane

Show original

@Plattenkratzen

Boosted

Replying to @user_769596052 :

Could you alter that further

Show original

@jessicacreativa

Where can I find the bulb for the lithophane?

The designer has replied

Show original

@user_769596052

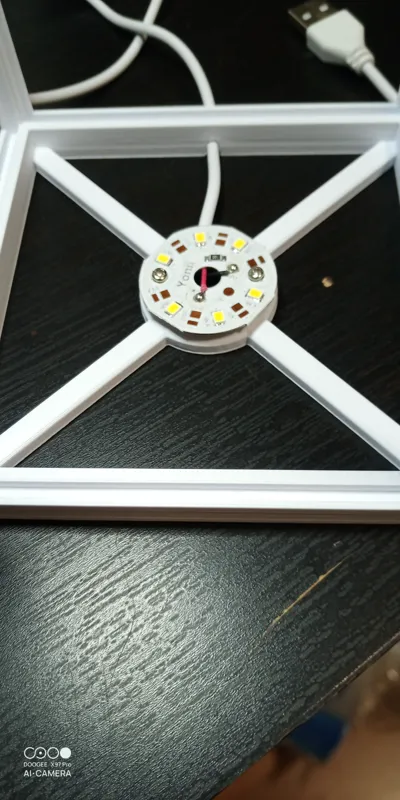

I purchased it on Aliexpress, https://it.aliexpress.com/item/1005004808631940.html?spm ;x 1, you might find it on Amazon as well

Show original

@user_769596052

On AliExpress, try one of these: Dimmable LED chips DC 5V 5730 SMD LED lamp DIY LED bulb adjustable dimmer USB Warm white DC 5V 3W USB LED lights 2835 single chip dimmer reading night desk book tablet reading lamp with switch power cord

Show original

@Daniel_afds

Thanks for sharing, it's perfect

The designer has replied

Show original

@user_769596052

Thanks to you and have fun

Show original

@Lancillotto

Print Profile

Profile Update 09/05/2025

Other Issues:Threaded LED lamp connection

The profile uploader has replied

Show original

@user_769596052

Hello, could you explain the issue in more detail? If you wish to change the lamp holder, you may do so

Show original

@Lancillotto

Replying to @user_769596052 :

Yes only if you use the proposed one if you use a normal lamp holder you must attach it with the thread that can be found everywhere in electrical supply stores

Show original

@user_769596052

Replying to @Lancillotto :

Initially I had planned the assembly with the thread you mentioned but the light source ended up being about 50/60 millimeters from the bottom causing the lithophane to be shaded at the bottom For this reason I opted for the solution you see If you wish I can provide you with the Solidworks files to modify
