Lumix DMW-BLC12 Battery Adapter
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
32 min
1 plate
Open in Bambu Studio
Boost
5
3
0
0
5
3
Released
Description

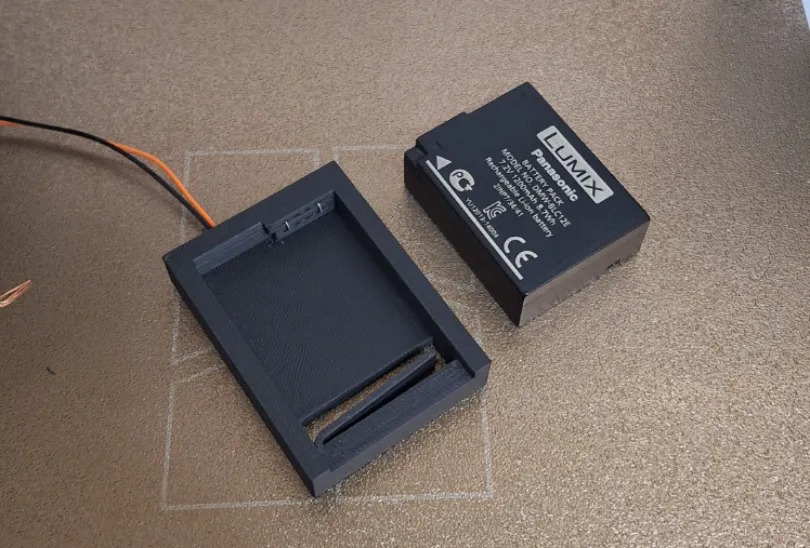

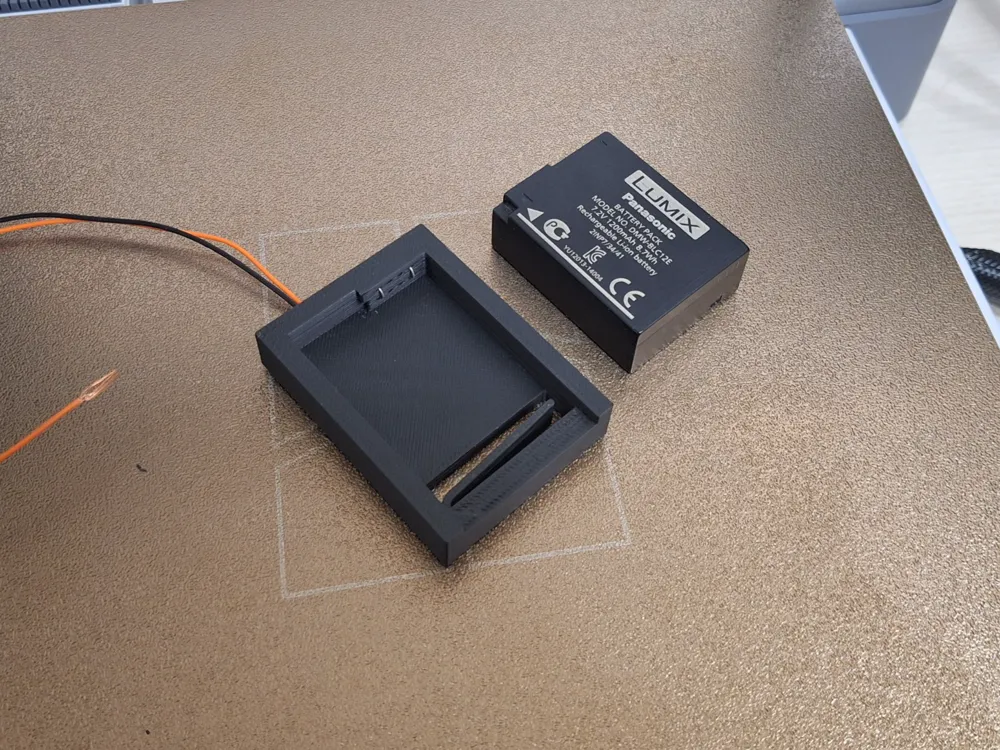

This adapter is designed to connect to Panasonic Lumix DMW-BLC12 batteries, which are used in cameras like the DMC-G81MEG.

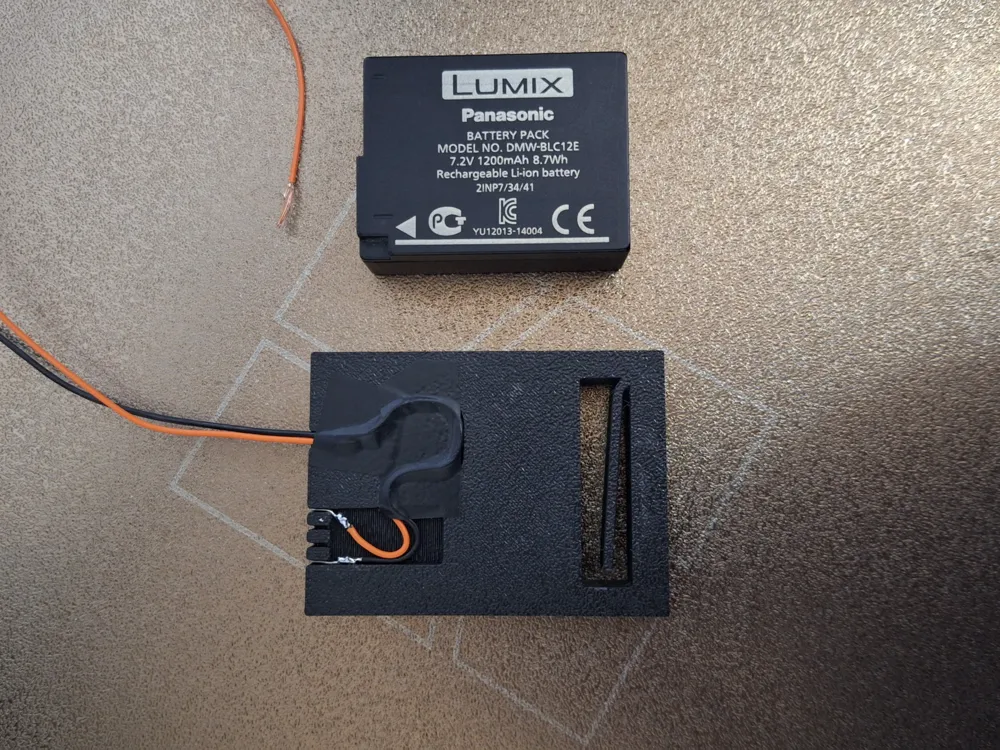

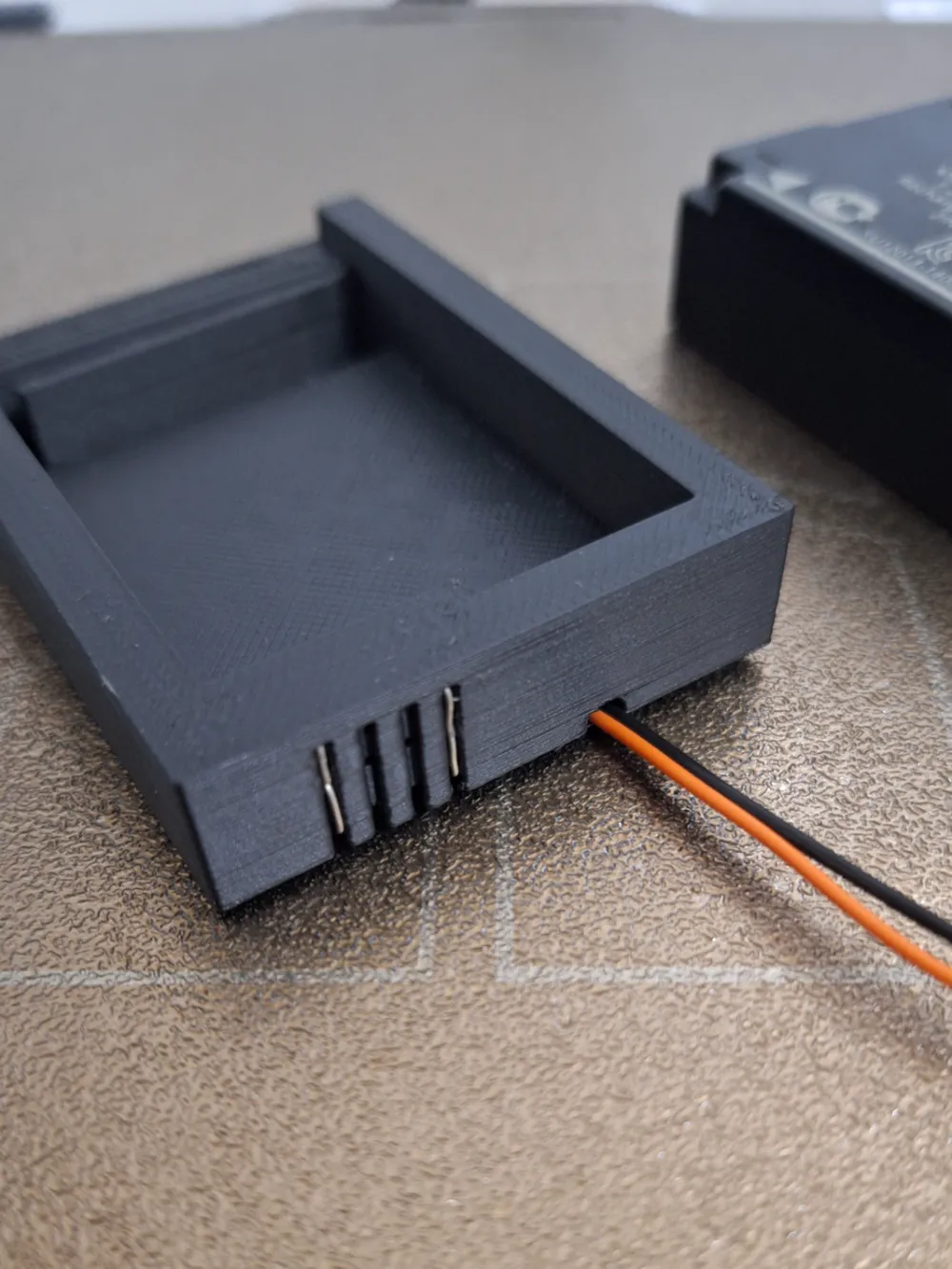

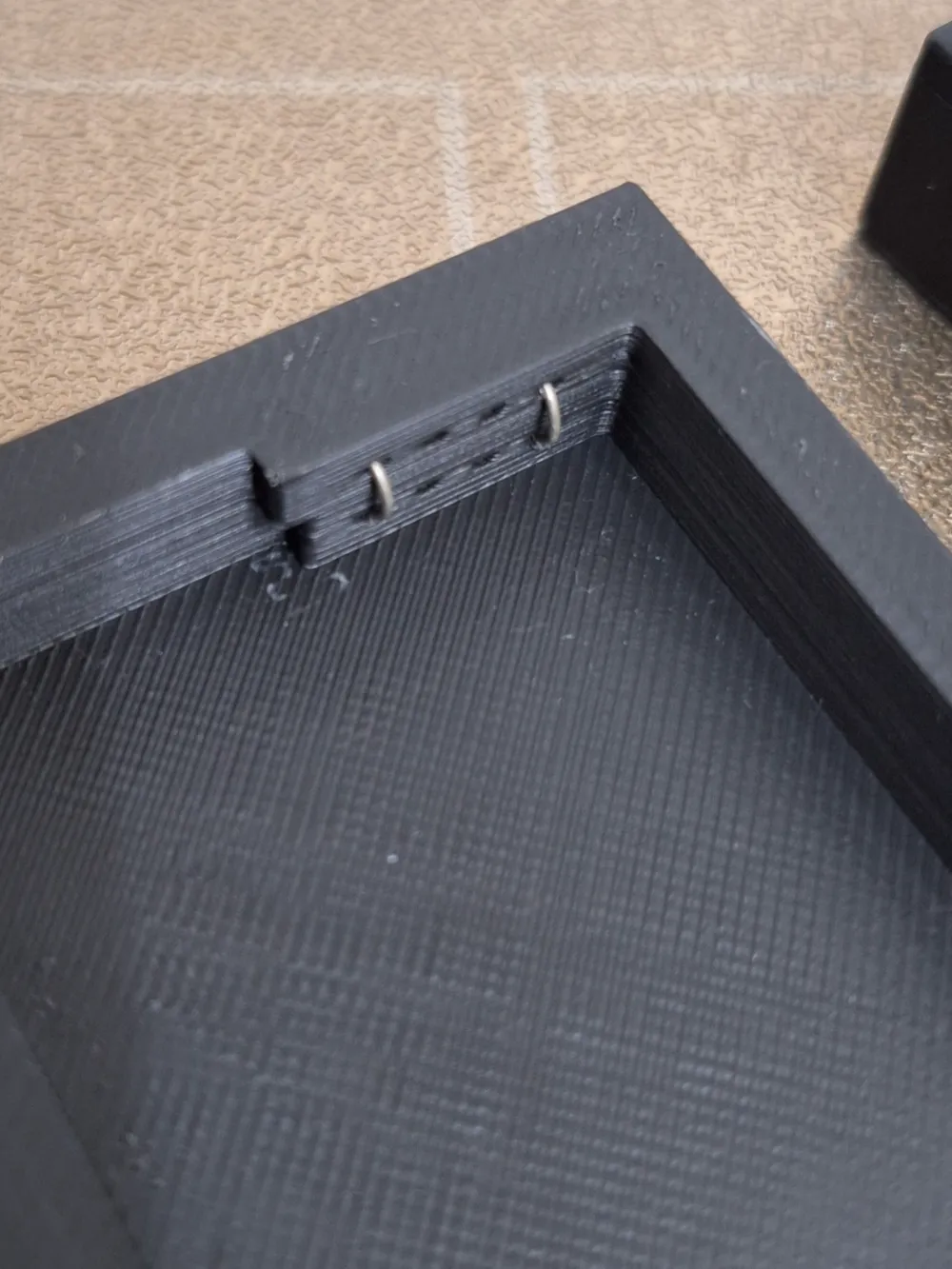

The connection is made by using 0.8 mm tinned copper wires, which are inserted into the model and soldered to connection wires. The model features a cable guide in the bottom to help guide the connection wires. The battery is held in place firmly by a 3D-printed spring.
I used it to measure the leftover capacity of my batteries to determin their SOH. I am sure it can be helpful in other DIY projects, as …
… the voltage of these batteries is at 7.2V, …
… they have a neat form factor, …
… they have a great energy density and …
… you can by cheap knockoffs on Amazon.
