White Castle Base + Matcha Insert (Single Box)

Usage

This accommodates The White Castle boardgame plus the following:

• Matcha Expansion
• Promo #1
• Promo #4

This will not work for sleeved cards.  This only includes for rulebooks (Base + Matcha) of one language and for the Matcha Clan Domains only.

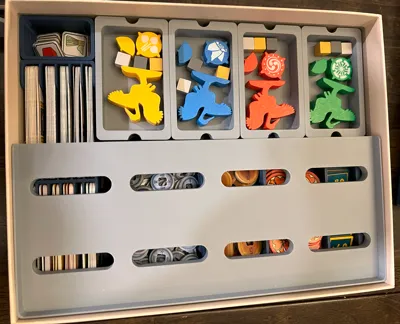

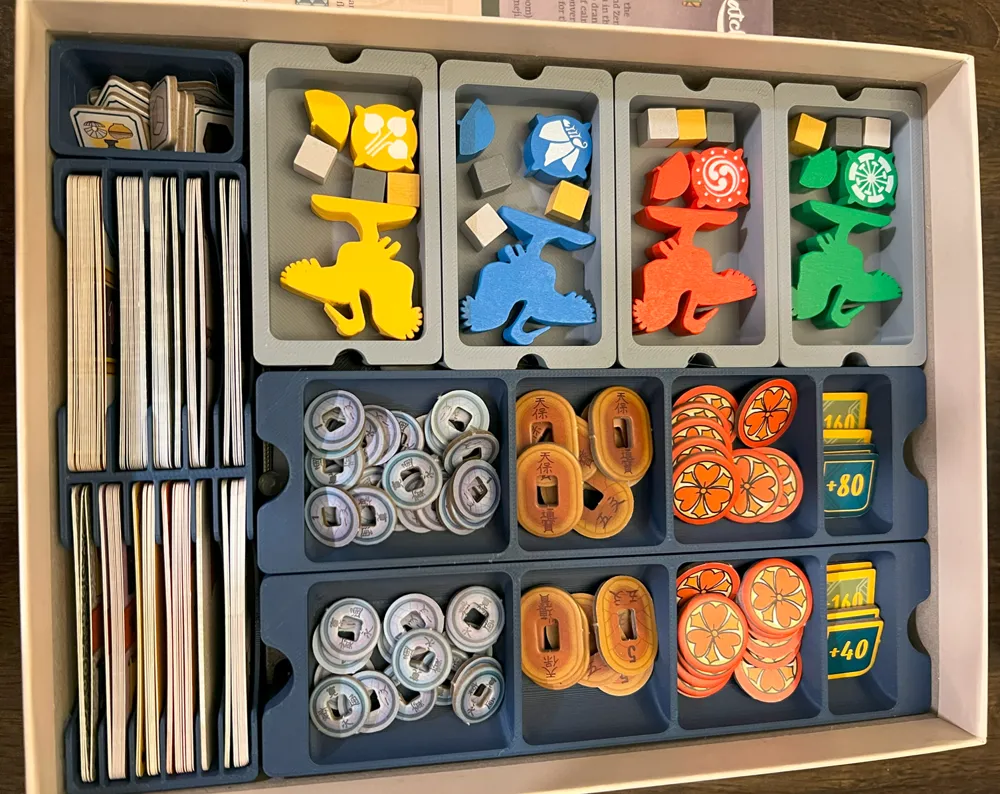

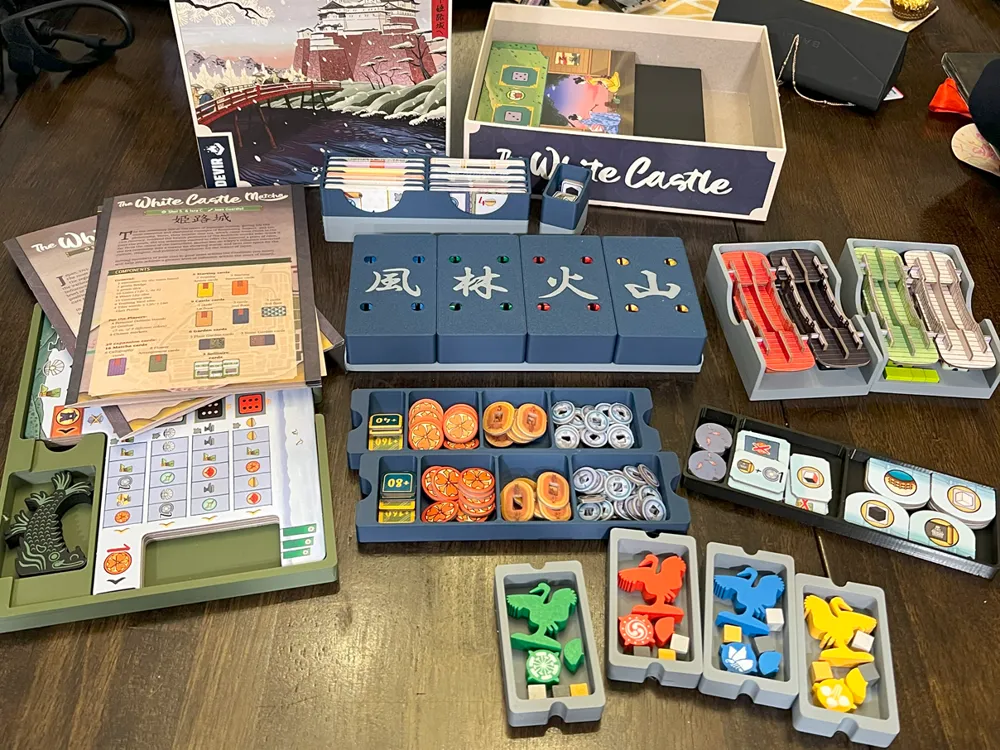

This insert allows storage of the assembled cardboard bridges and splits all tokens and coins into two trays that can be used on opposite ends of the table.

Note that the Main Board goes on the bottom of the box.

Lid Lift

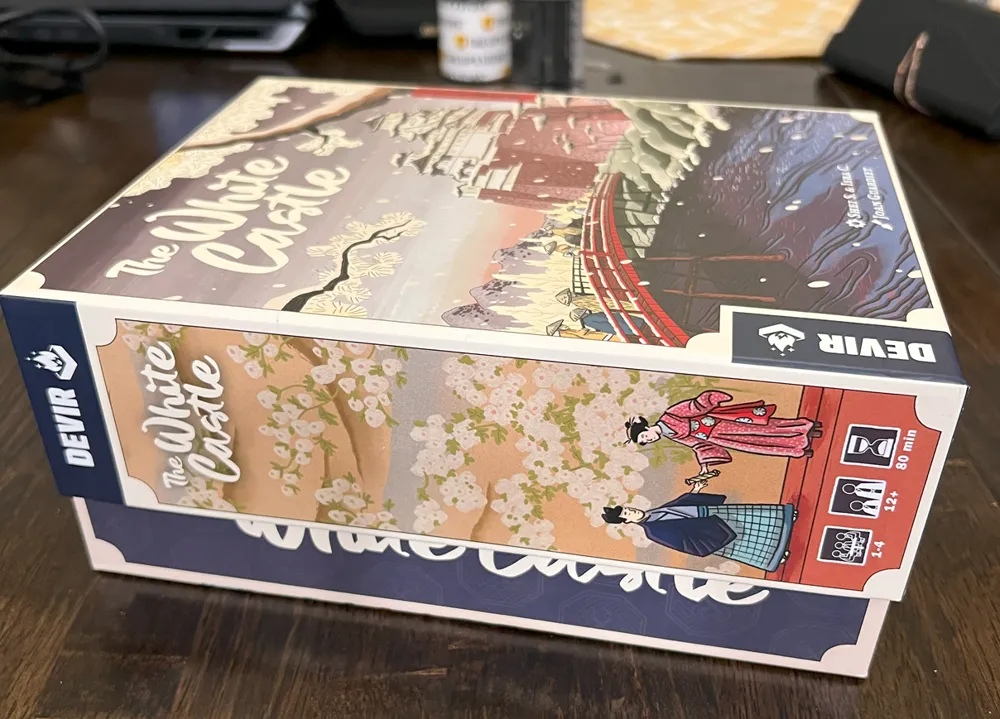

A lot of compromises were made in order to allow this to fit meeple trays that significantly speed the set up time.  To that end, there is 30mm of lid lift.  If you are not comfortable with that amount, it may be better to just store this in two boxes.

Credits

Inspiration for the Bridge and dice design came from Visar78's Insert (Printables), but the design was significantly altered here.

Meeple Trays

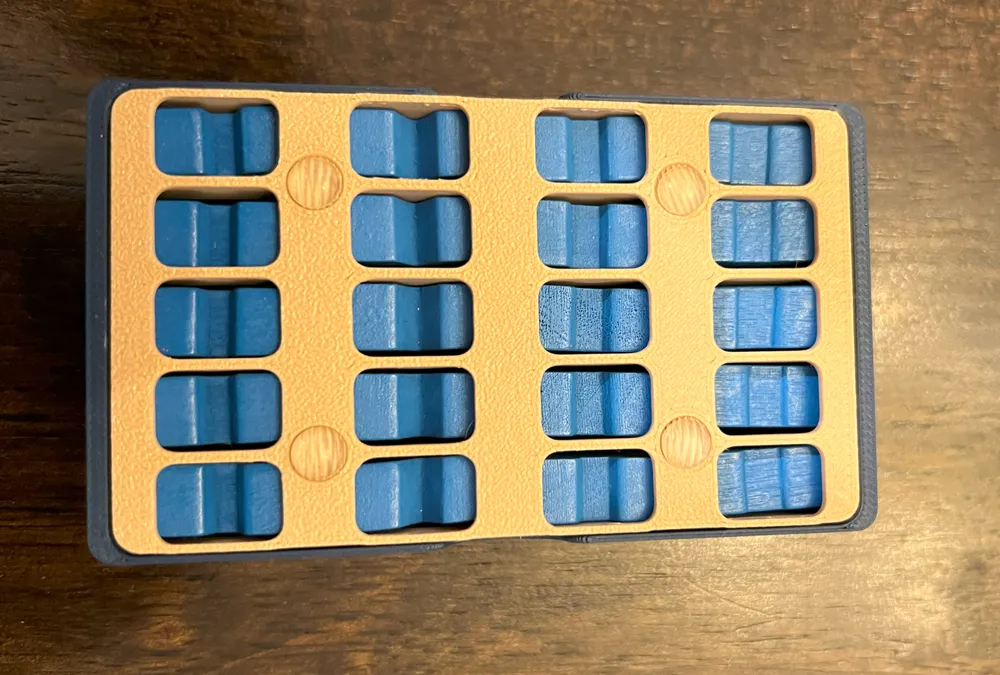

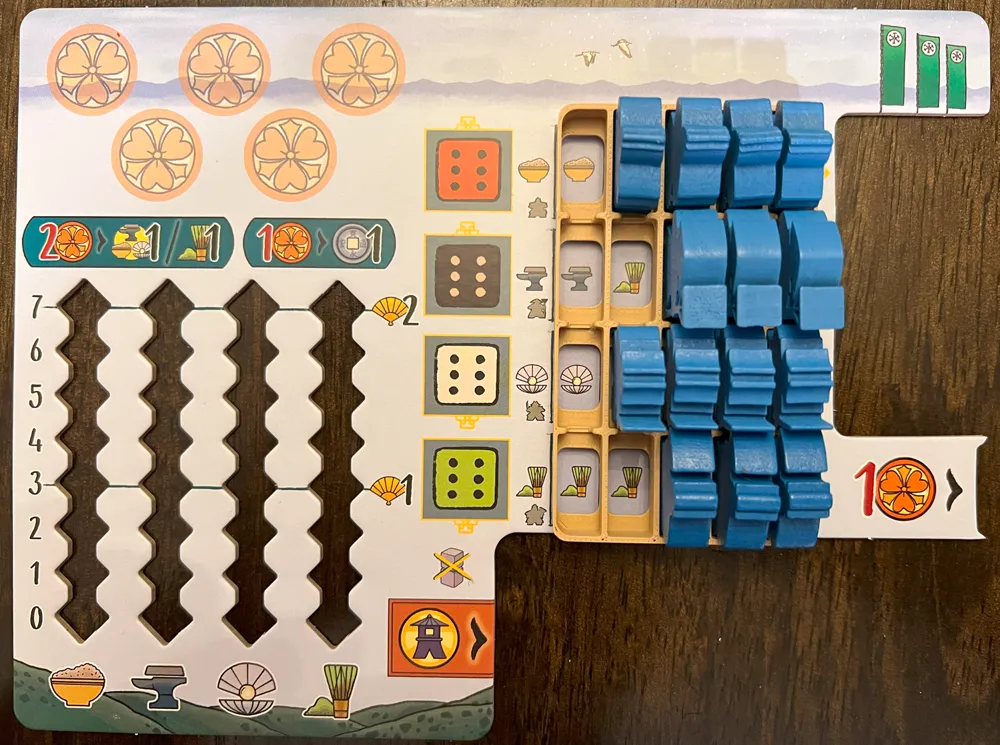

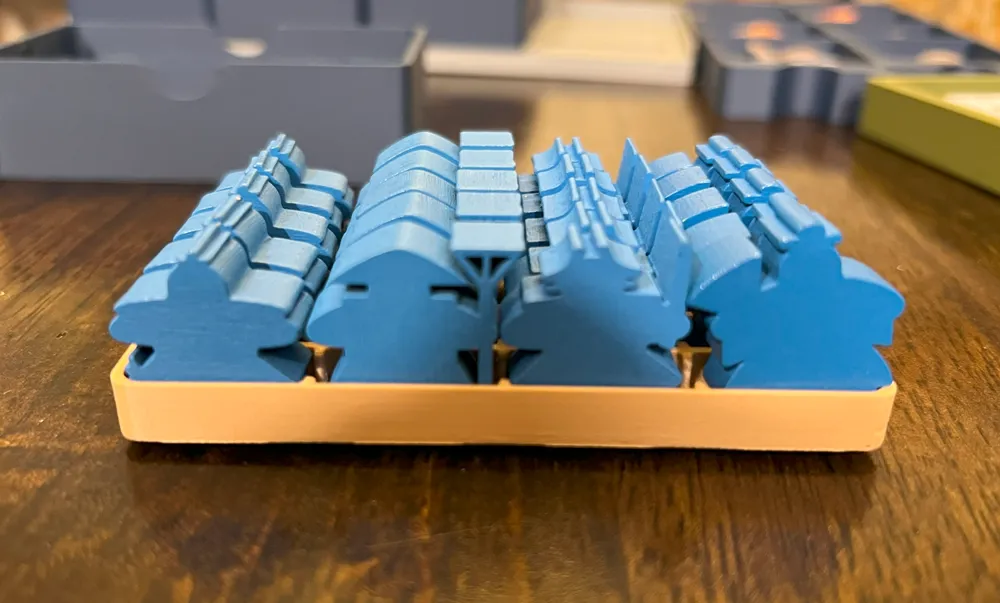

The meeple trays have small pockets to position silicone feet (¼" diameter x 1/16" height).  I found that these really helped during play.  The ones I used can be found here.  I suggest adding a dab of super glue to help keep them in place.  There are 4 holes in the meeple tray lids that allow you to stack them if you prefer to print just those and use separately.  The Spacer print has slots to allow the silicone feet to clear, ensuring that load is transfered through the stronger parts of the meeple trays.

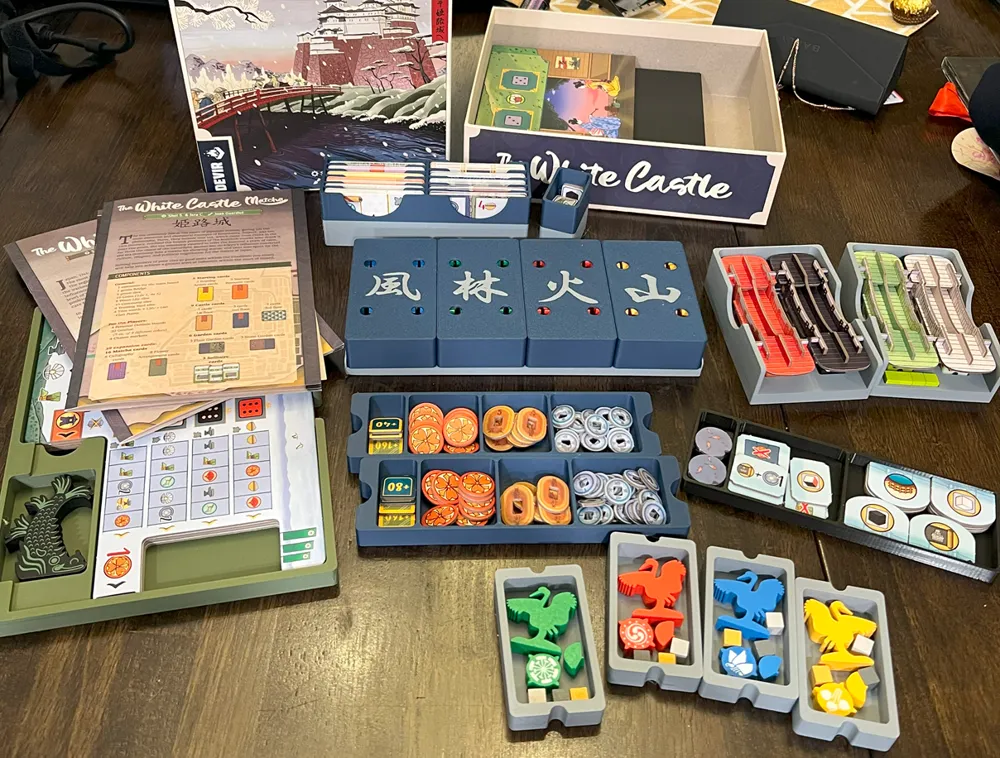

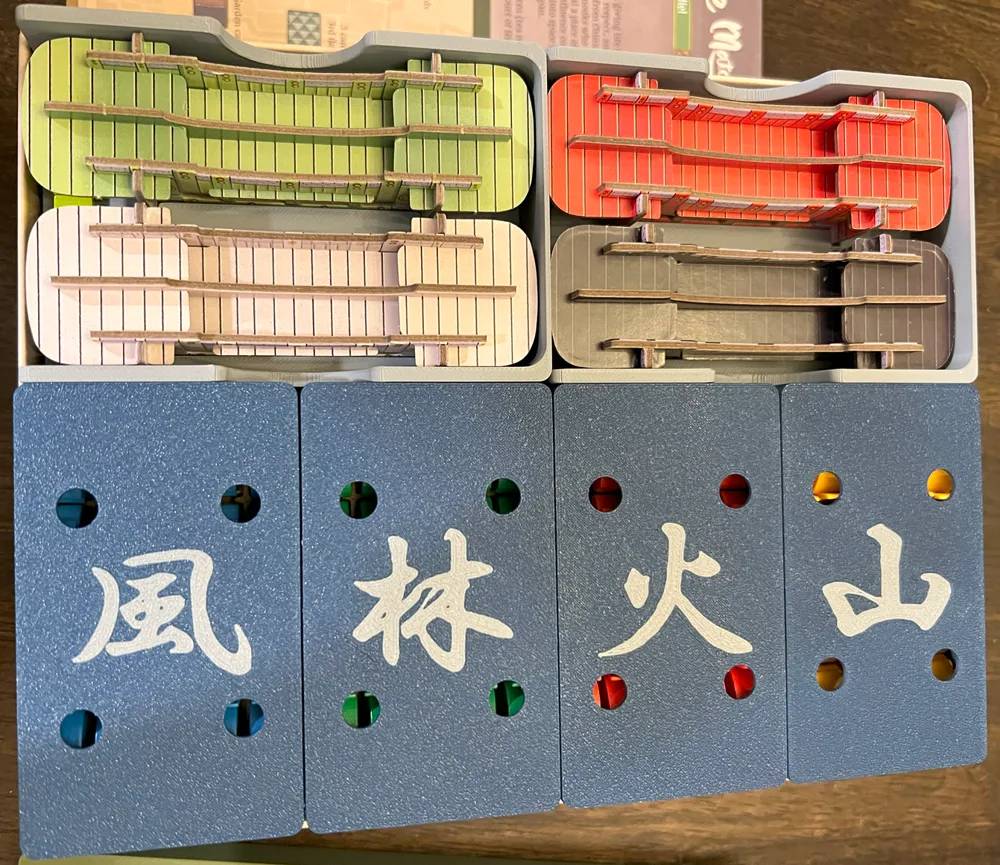

The lids in my images integrate the kanji for FuRinKaZan, which is a reference to The Art of War:

• Swift as wind (Fu)
• Silent as a forest (Rin)
• Fierce as fire (Ka)
• Immovable as a mountain (Zan)

…Mysterious as the dark side offfff the mooooonnnnnn.

The included print profile integrates those kanji into the meeple tray lids as a multifilament print.  The downloaded files do not include those kanji.  I uploaded those separately here.

Printing

Print the following:

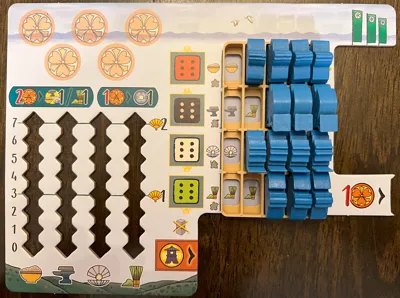

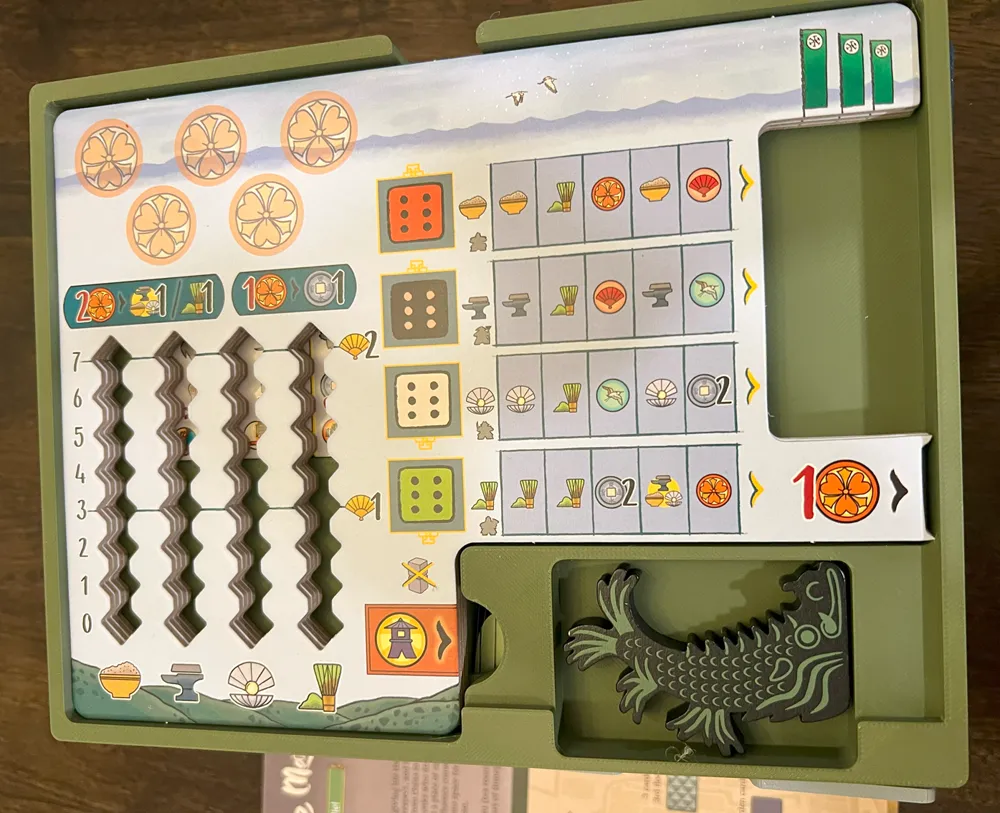

• 1x Board Setup

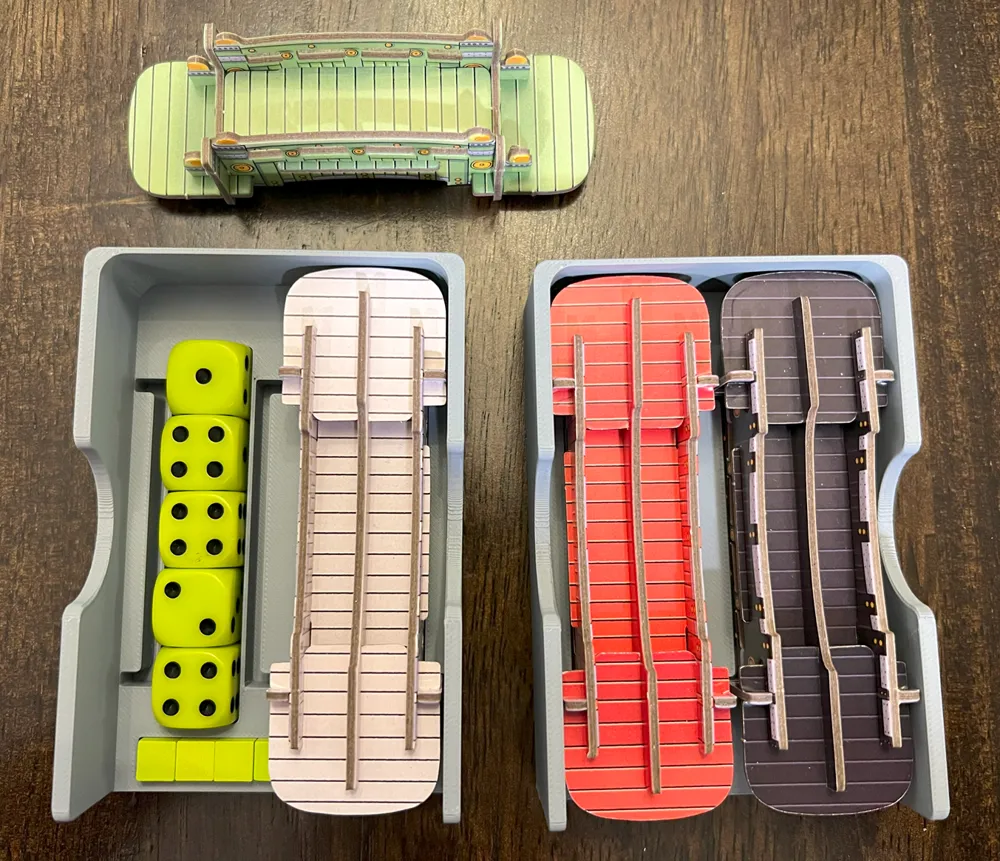

• 1x Bridges (Base)
• 1x Bridges (Matcha)

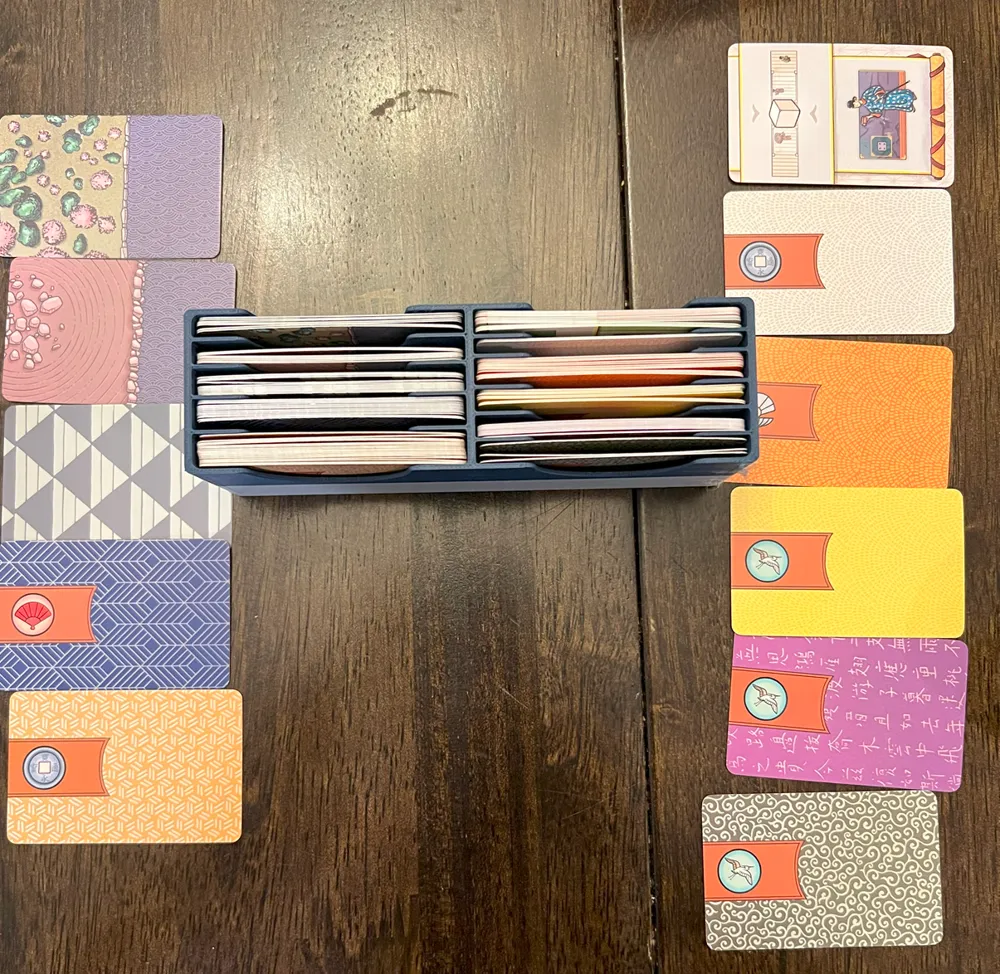

• 1x Cards
• 1x Dice Tiles
• 4x Clan Pieces
• 4x Meeple Tray
• 4x Meeple Tray Lid

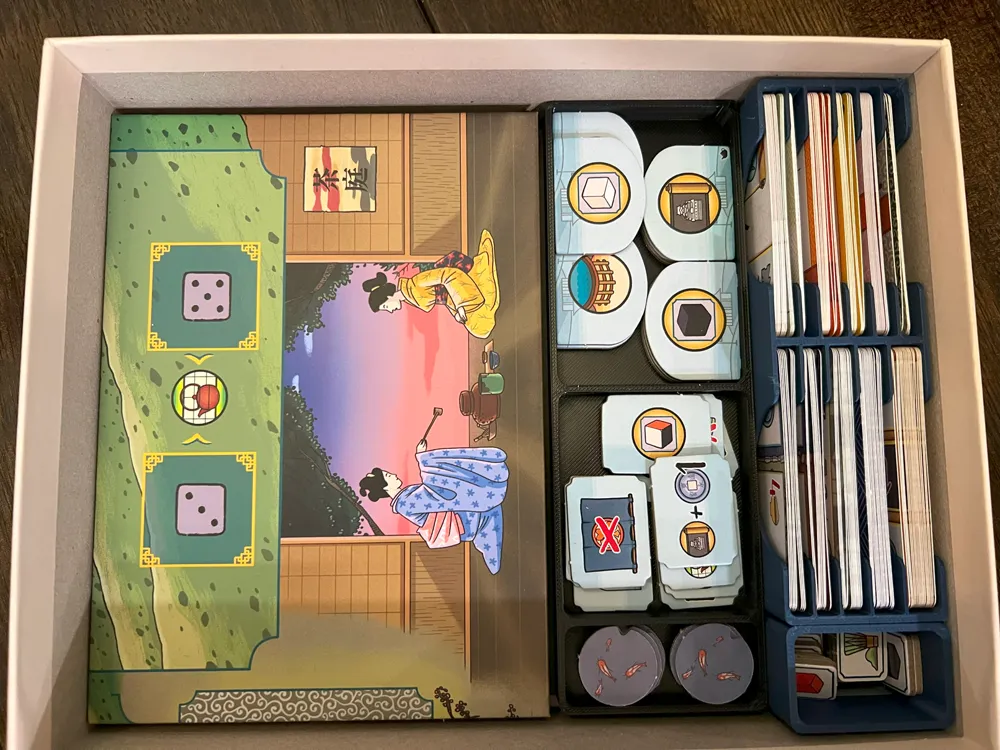

• 1x Clan Domain Tray
• 1x Spacer
• 2x Token Tray

To print everything takes 17 hours 14 minutes and 588.6 g of filament.
