Shearwater 125 Turning Handle Bearing Sleeve
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
7
9
0
0
4
2
Released
Description

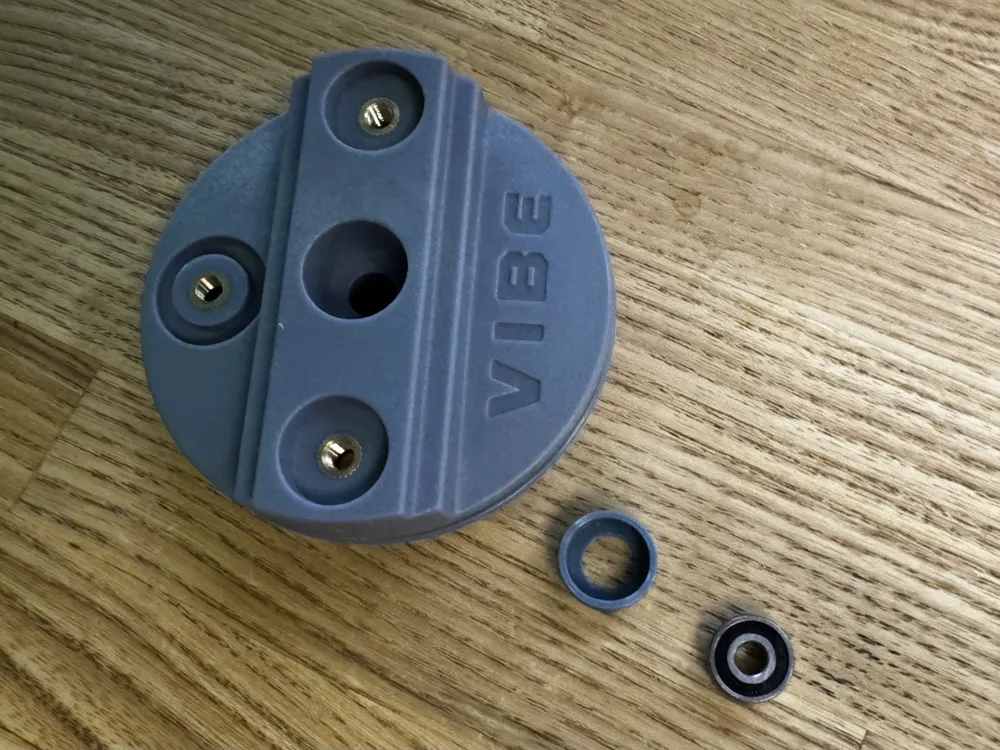

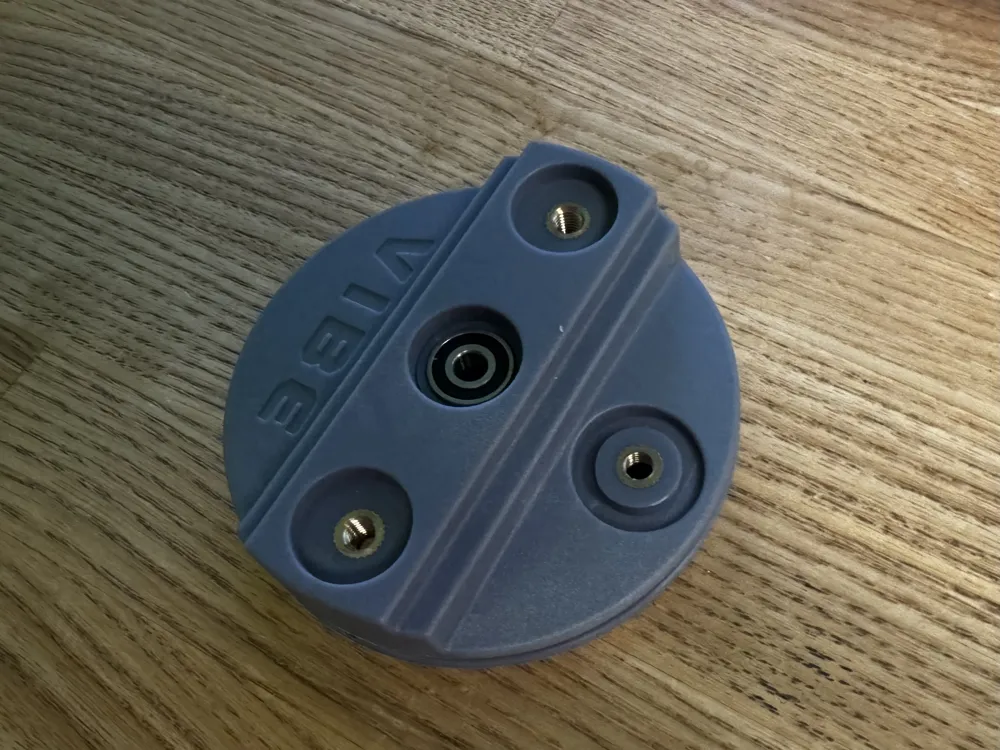

The Shearwater 125 steering handle keeps pulling the screw out at the worst times. I have installed a 605-2RS (5mm ID, 14mm OD) bearing (from Amazon) and made this sleeve for the bearing to let the handle move independently of the screw. Just get a M5 screw that is 5mm longer in order to install (25mm instead of 20mm). Use thread locker on the screw
Printed in PETG, but most anything would probably be fine. This won't see a lot of load.
