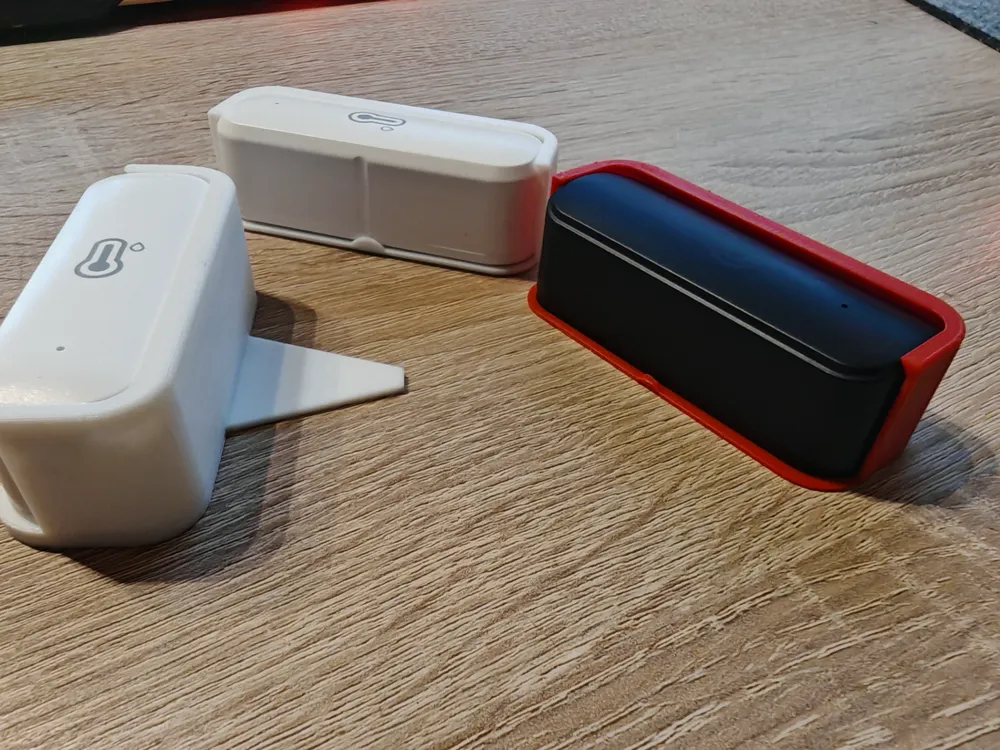

Horizontal Tuya mount with fin, precise fit

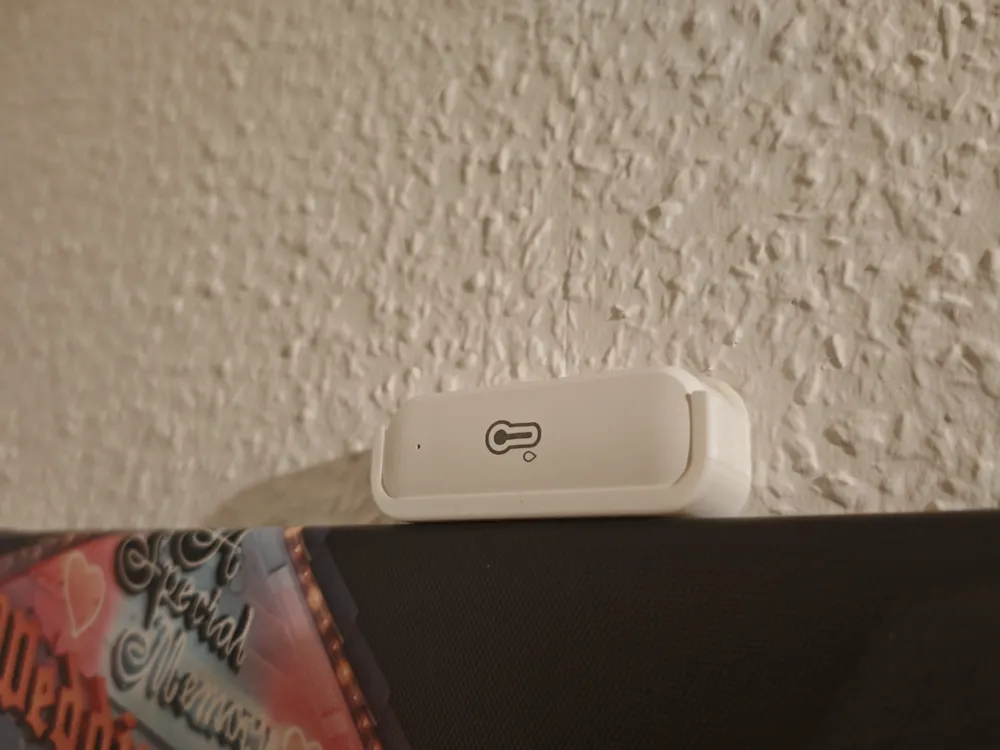

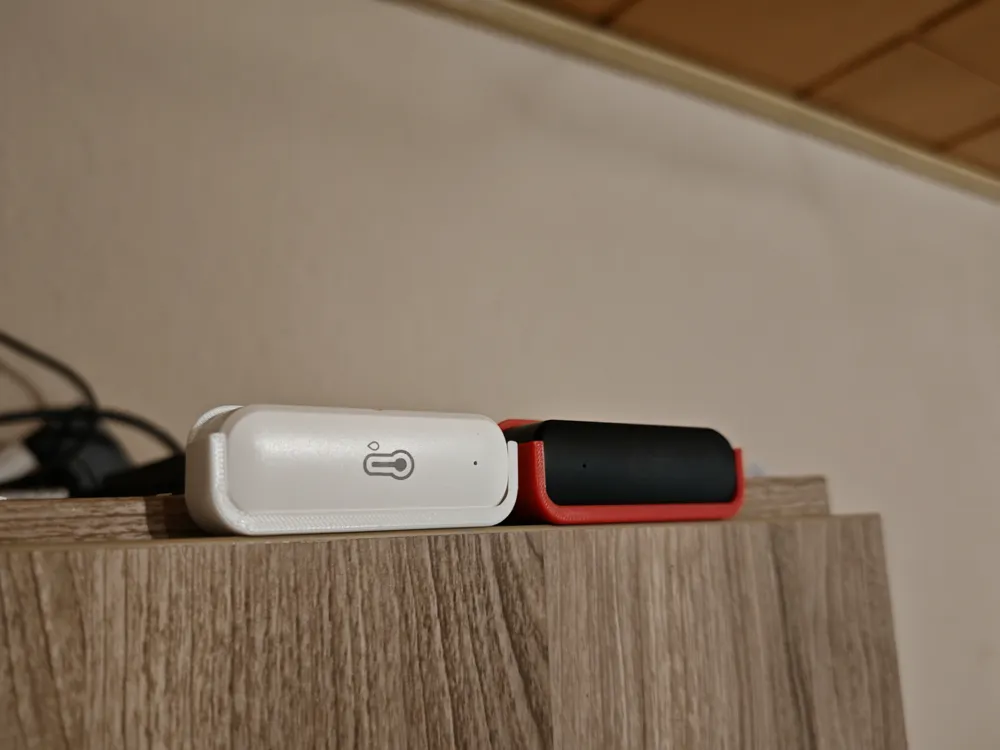

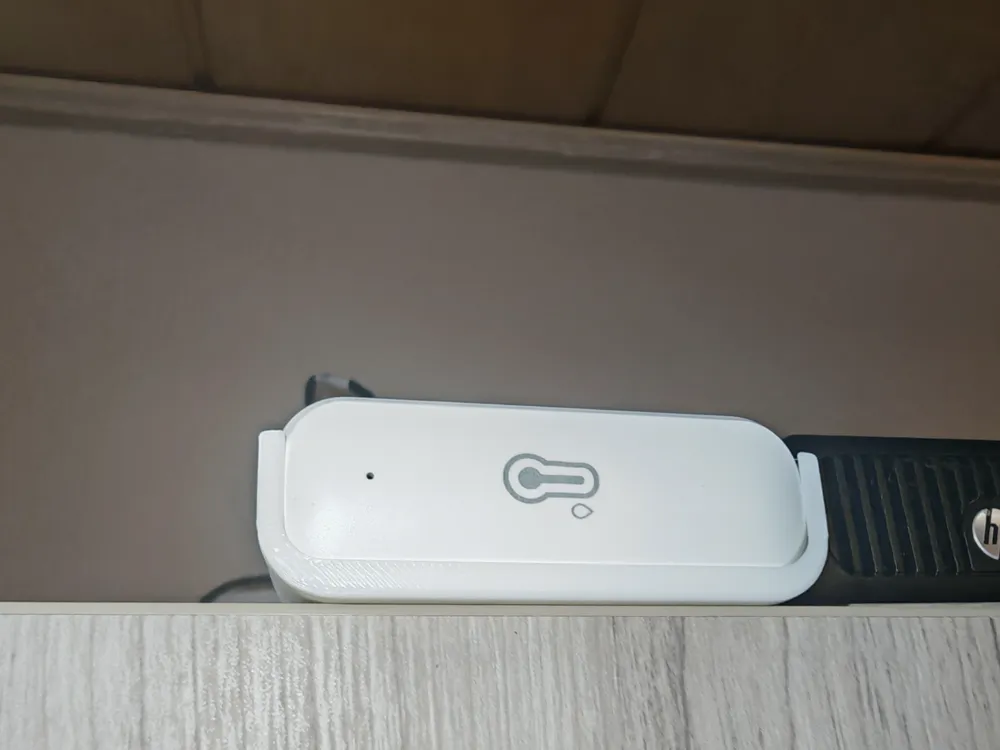

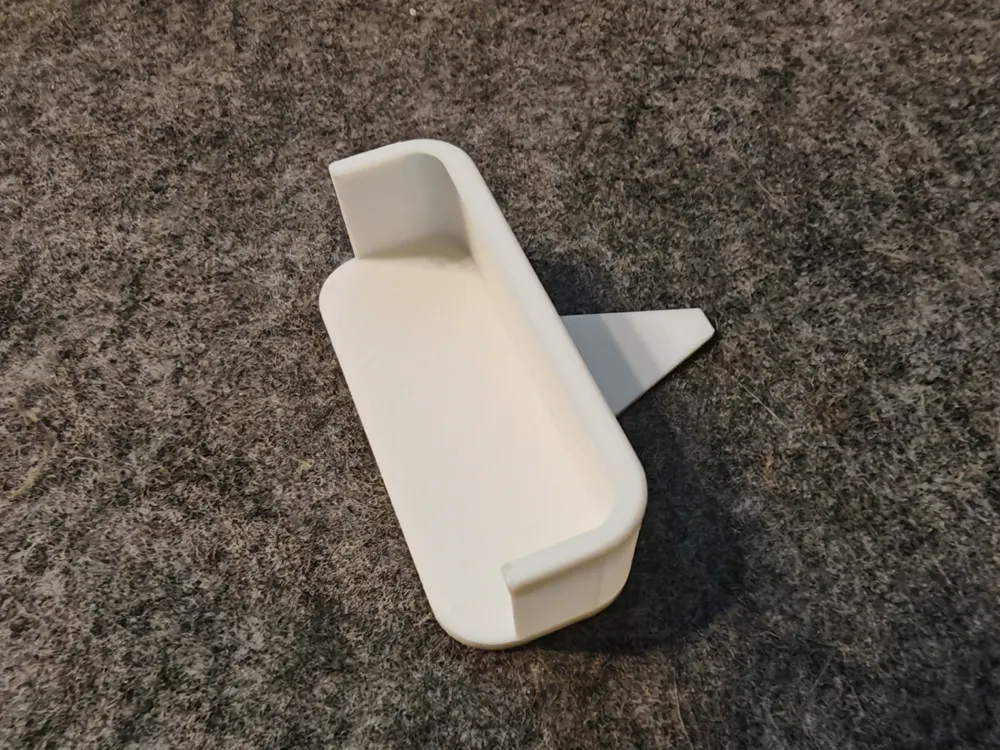

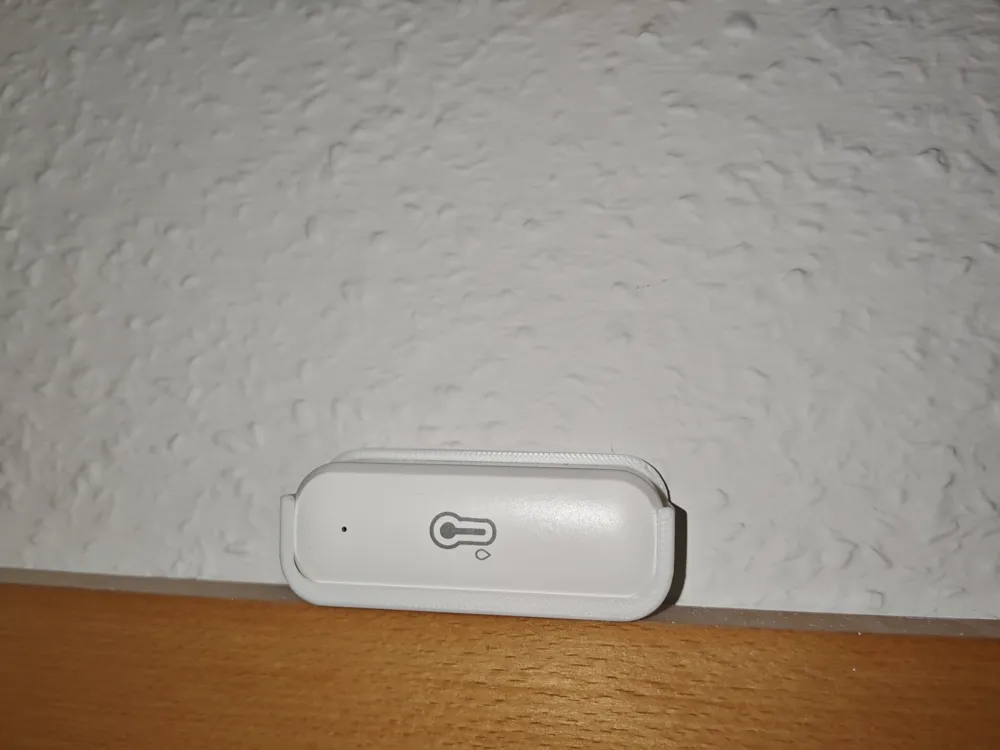

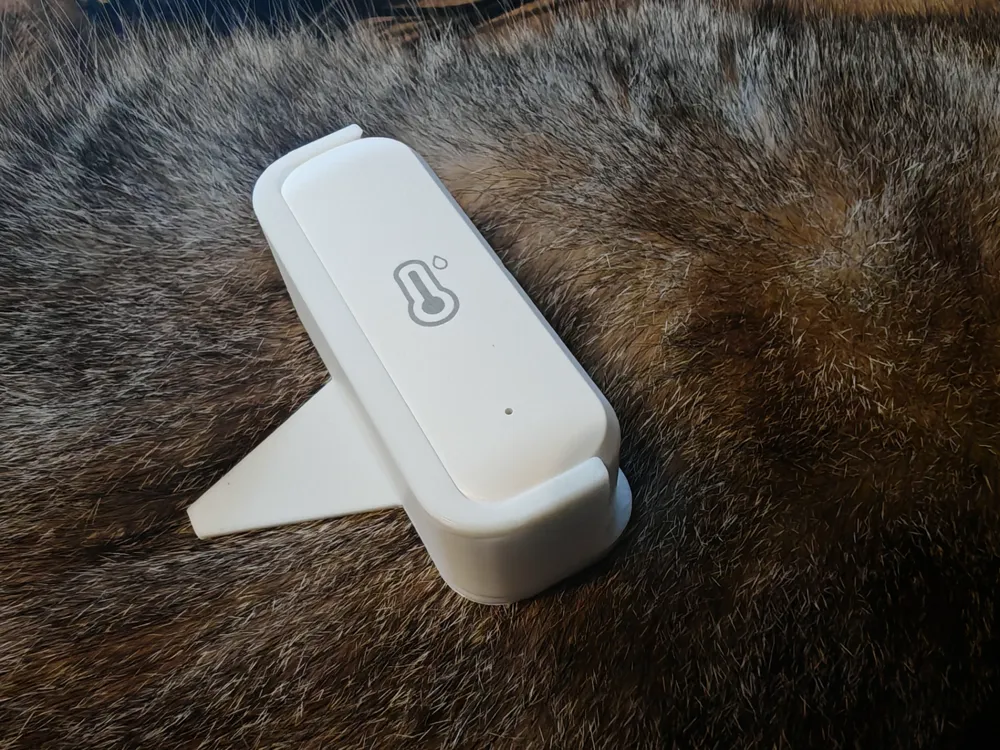

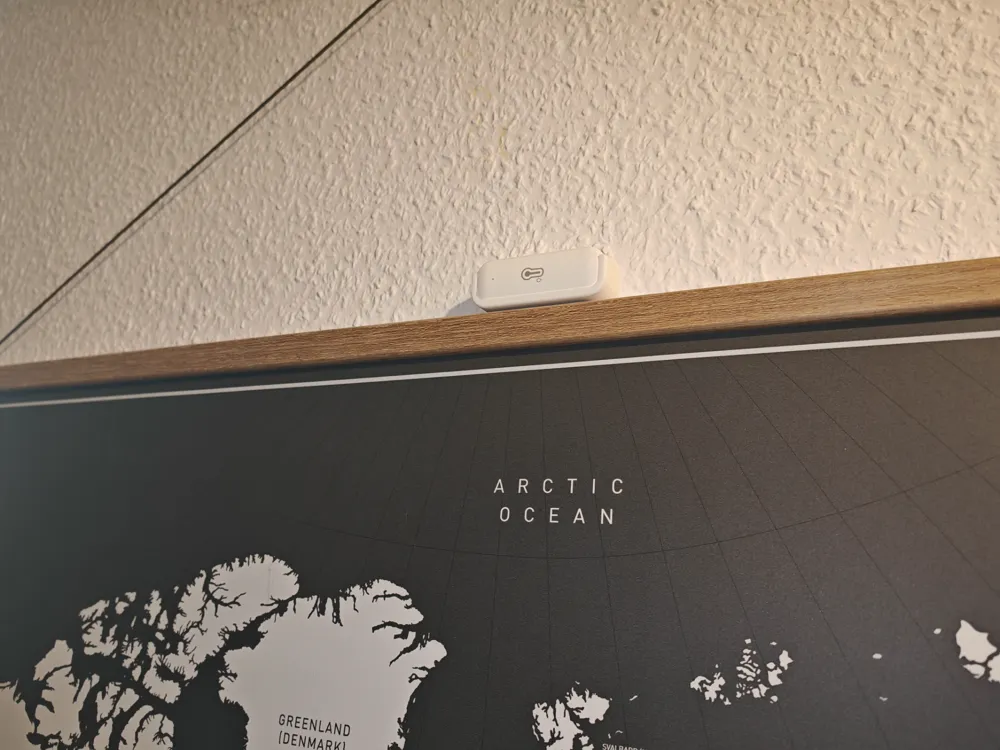

This mount is specifically designed for horizontal placement of Tuya temperature sensors. The narrow bridge ensures a secure hold in narrow crevices, such as above doors, above pictures, or on horizontal edges.

The design allows for reliable attachment without the need for drilling or gluing.

Thanks to its precise construction, the mount securely holds the sensor even upside down (provided the mount has been printed precisely).

The wide contact surface provides additional stability and prevents slippage, even in demanding positions.

Compatible with various Tuya models such as WL-TH02/02Z, ZY-TH02, and others (length up to 71mm), this mount offers an elegant solution for any environment where horizontal mounting is required.

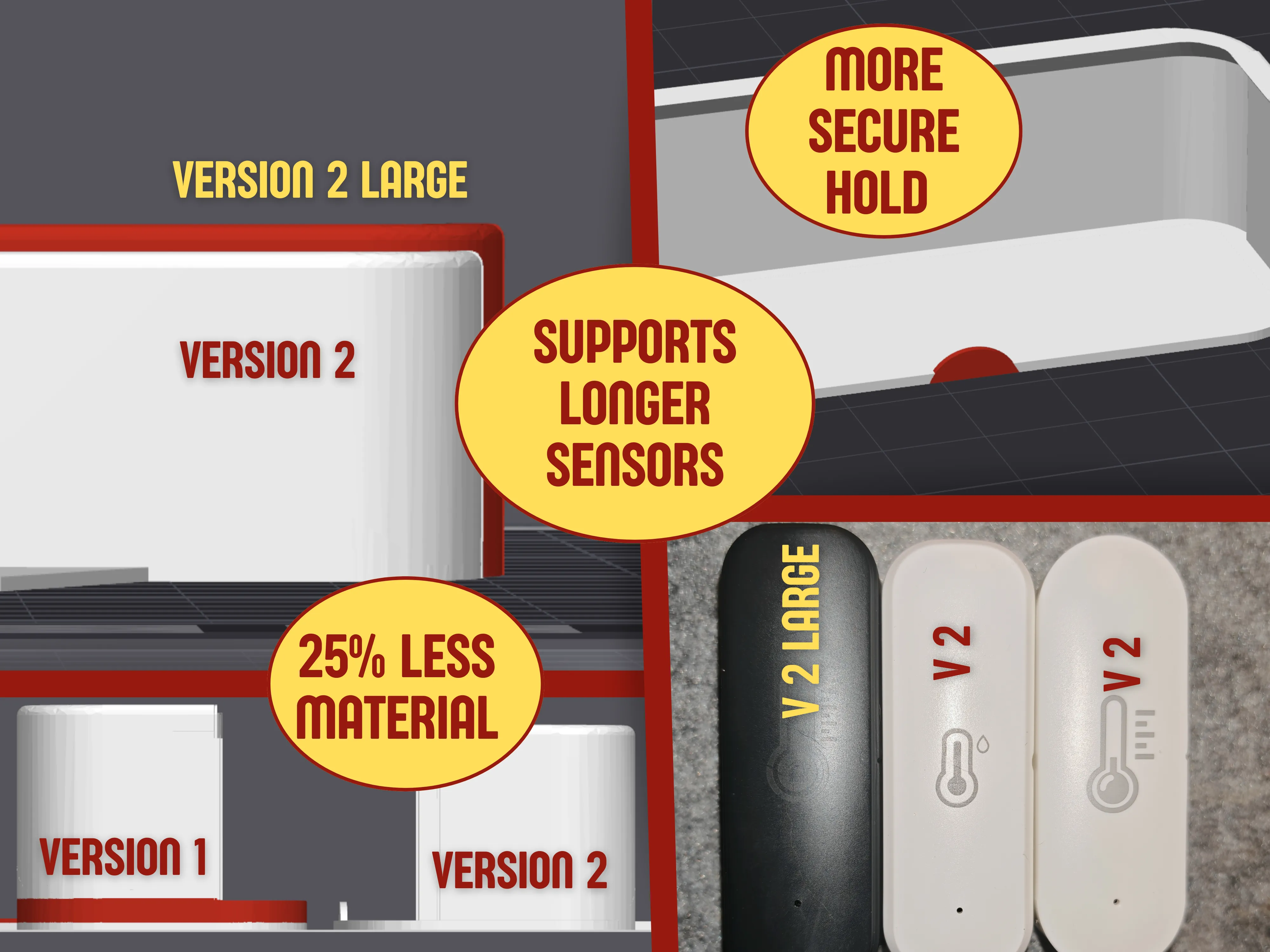

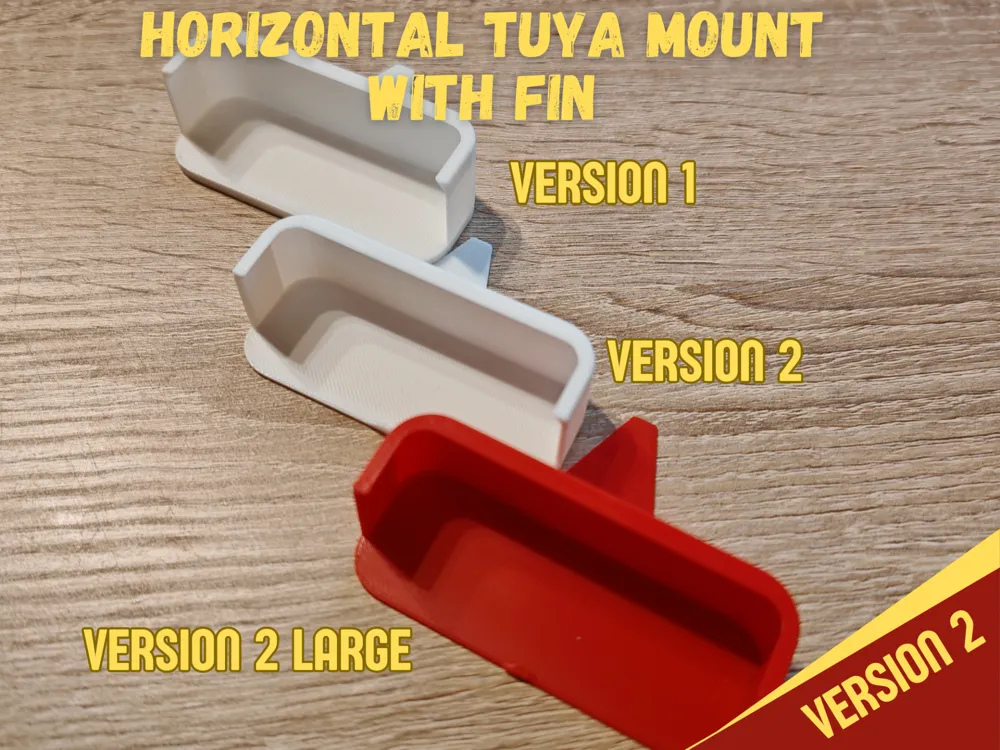

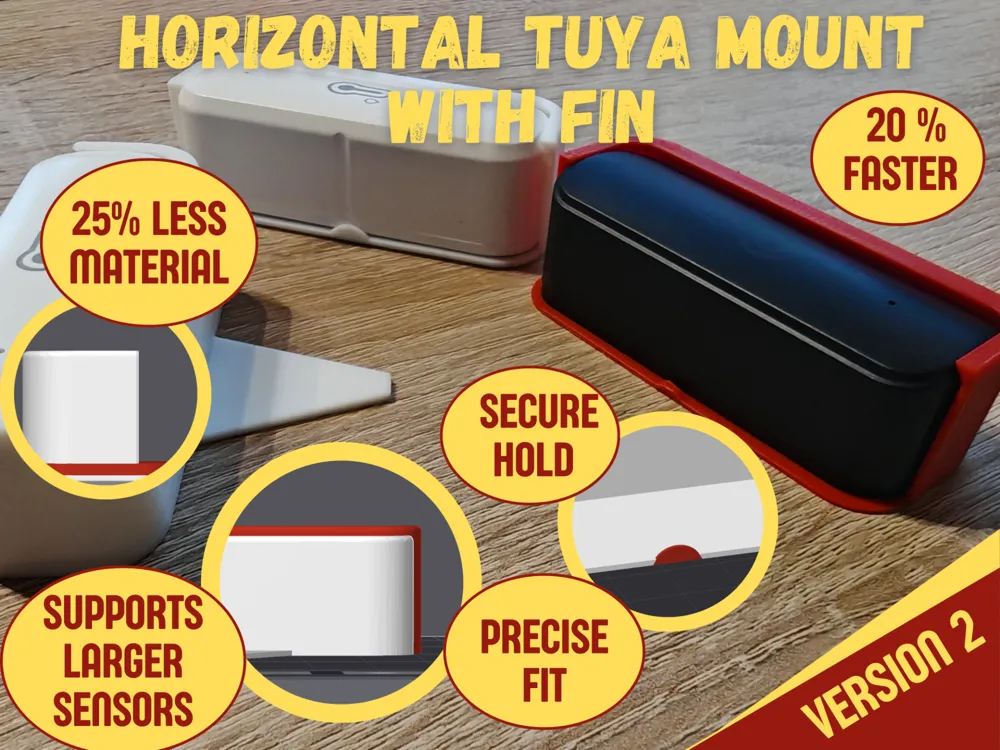

Version 2

Changes:

• 25% less material consumption due to a redesigned structure.
• More secure hold thanks to an additional "lip".
• Now also supports 72mm long sensors (Profile Version 2 LARGE)

Print Profiles

Version 2 provides different print profiles with:

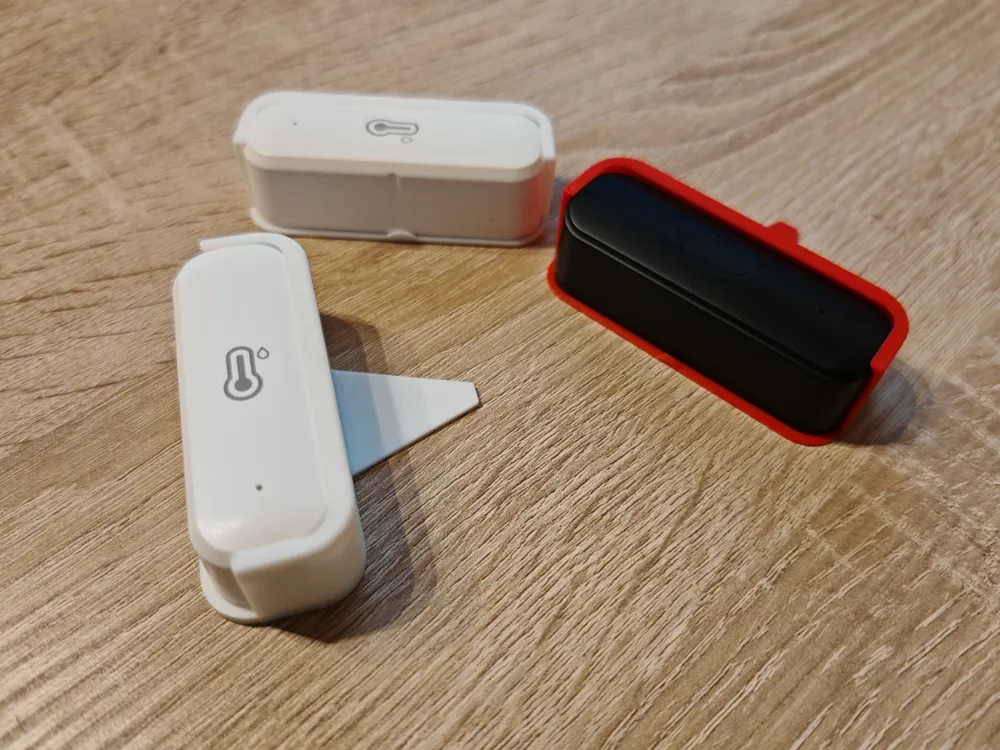

• Profile Version 2 is for sensors with a length of 69-70mm. The most common variant. Often the sensors with rounded corners.

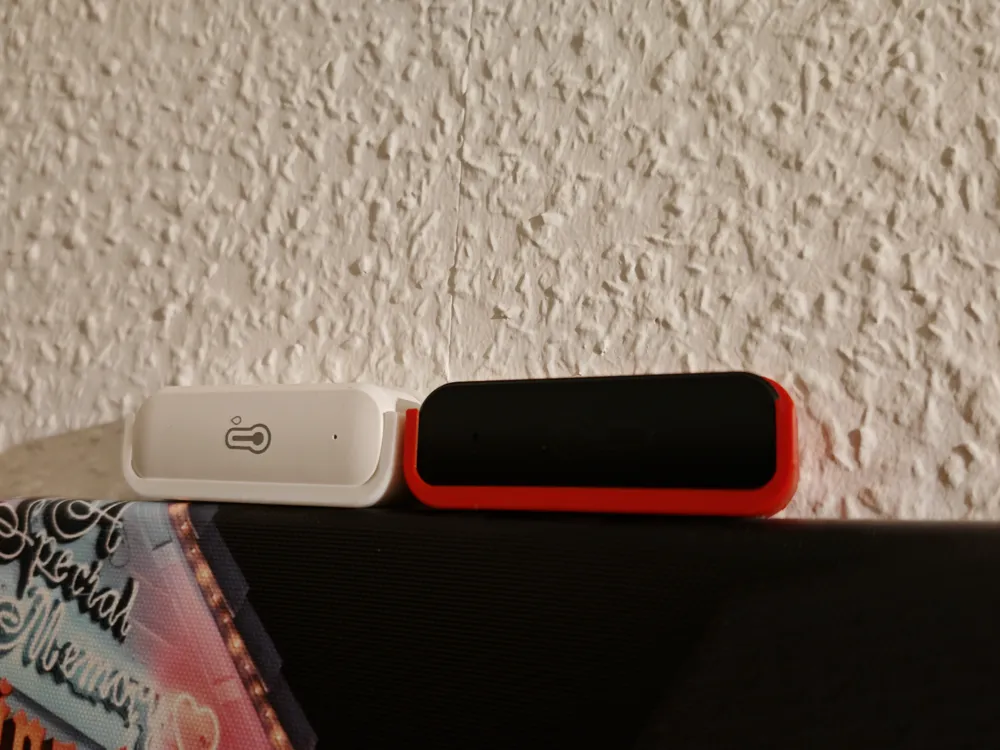

• Profile Version 2 Long is for sensors with a length of 72mm. Often the sensors with clearly visible square corners.

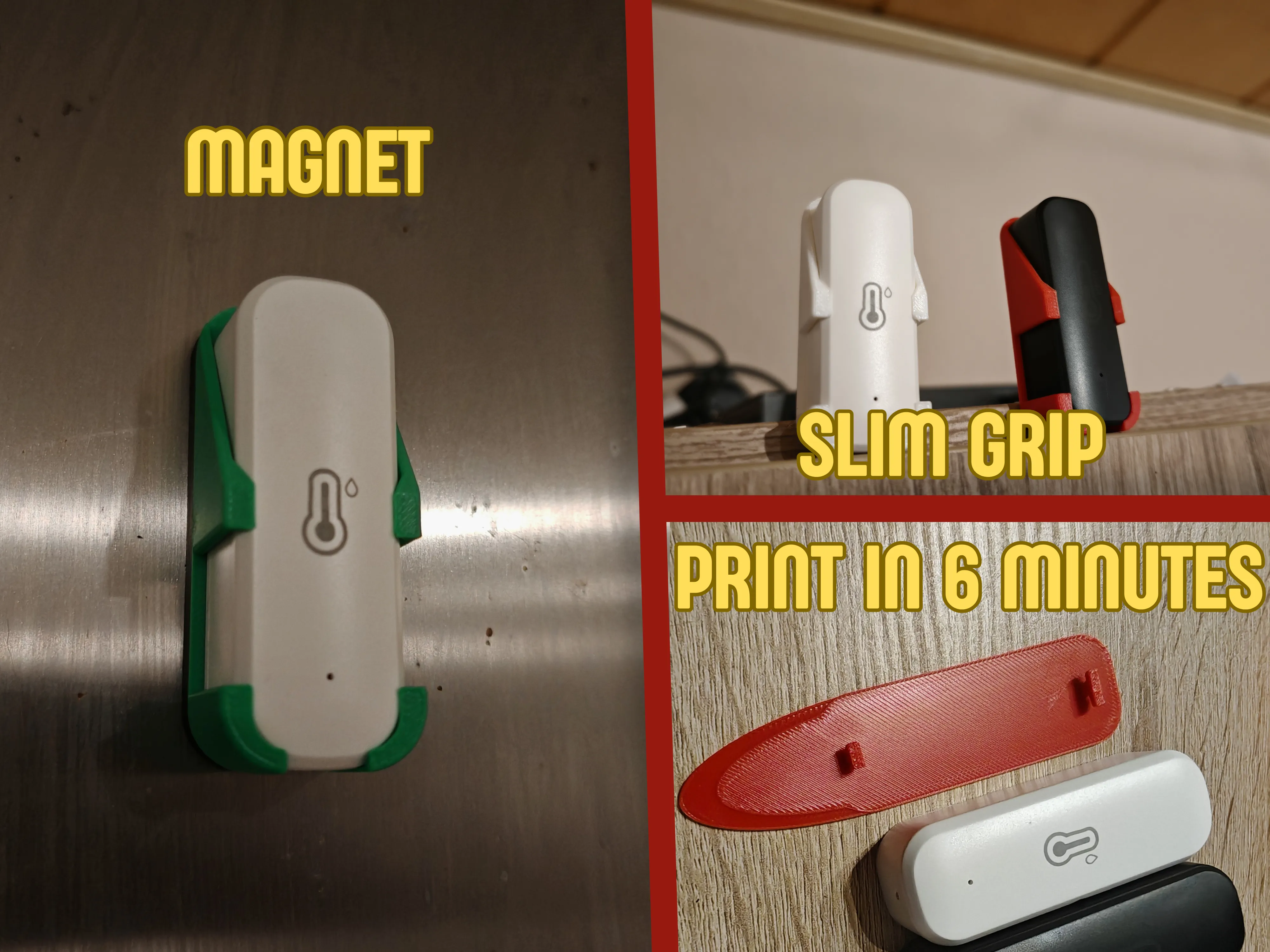

Also check out my other mounts:

Do you want to attach the sensors using a magnet? Then continue here… https://makerworld.com/en/models/919605#profileId-881531

Do you want to use even less material? Print in 6 minutes? Then continue here… https://makerworld.com/en/models/923572#profileId-886219

Do you want to attach the sensors vertically instead of horizontally? Then continue here… https://makerworld.com/en/models/919850#profileId-881791
