Dodge Viper GTS Coupé (SR II) Kit Card 1:24 scale

Summary

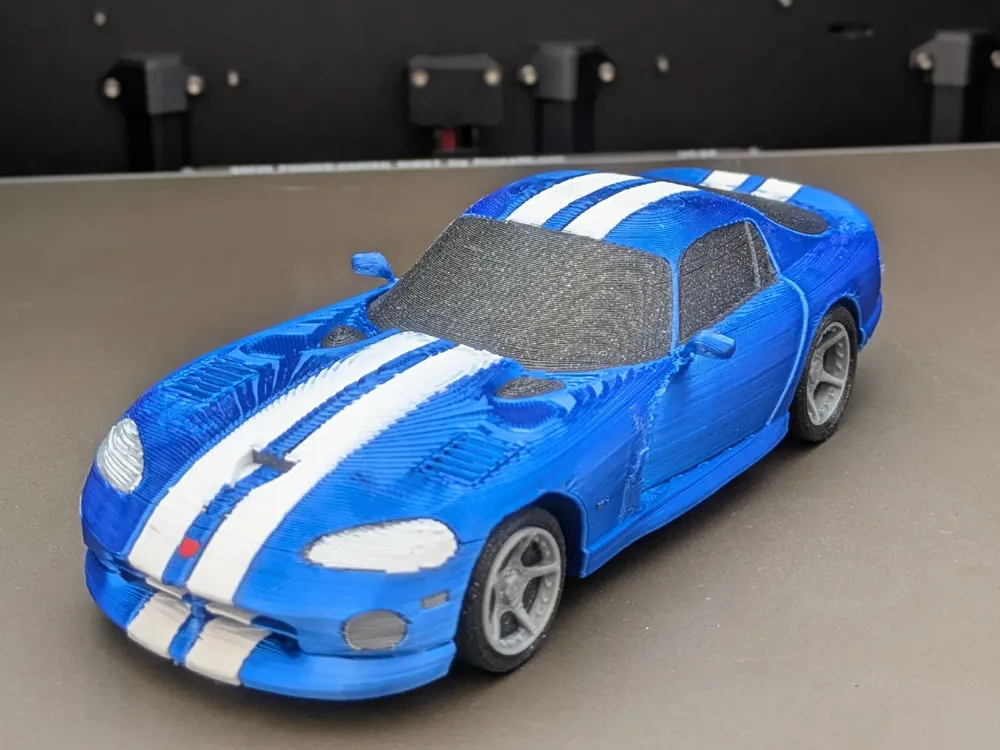

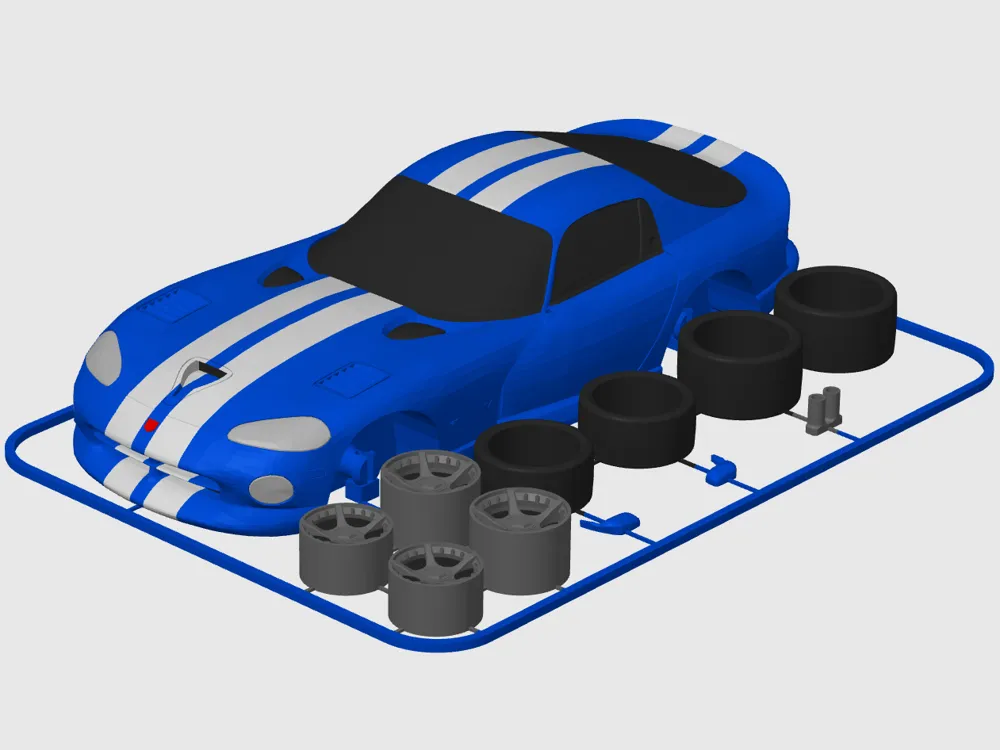

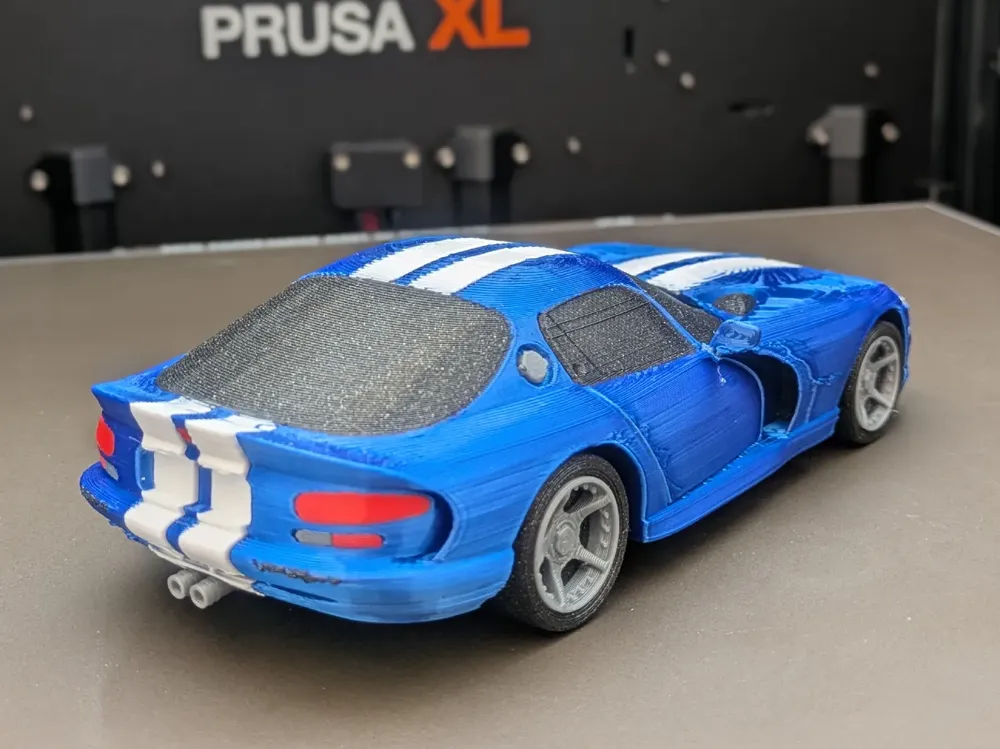

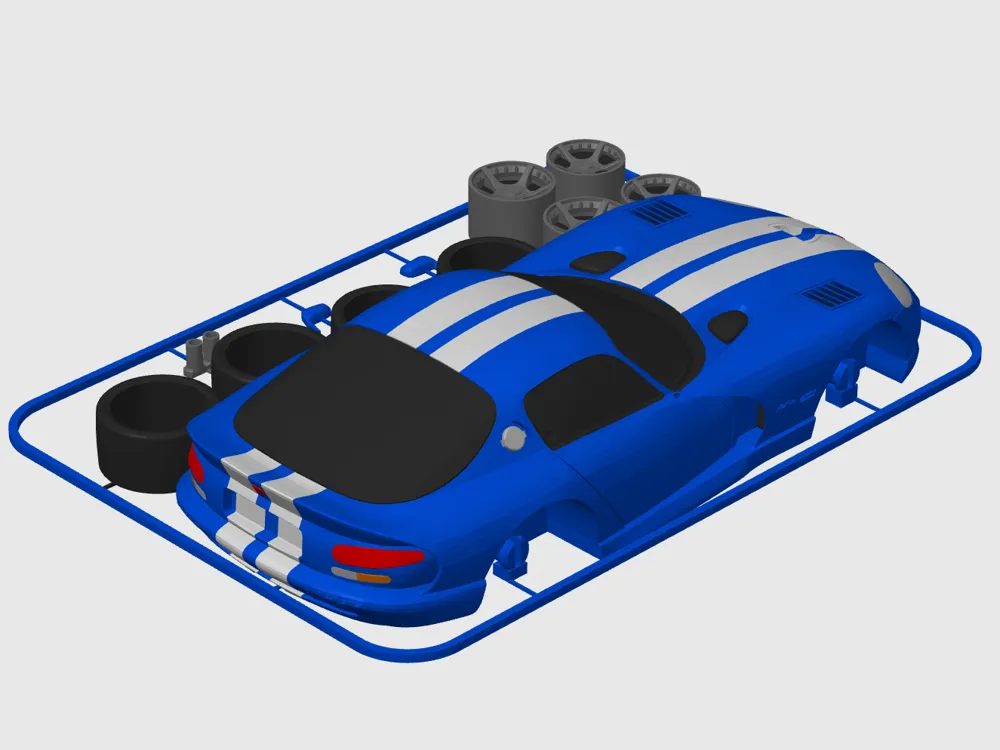

This is a model of a Dodge Viper GTS Coupé (SR II) in a kit card style. Some characteristic details can be discovered. Equipped with seperate exhausts ;-)
After printing, the model can be assembled with the help of integrated connectors.
The wheels can be turned, but the car will not roll.

Versions

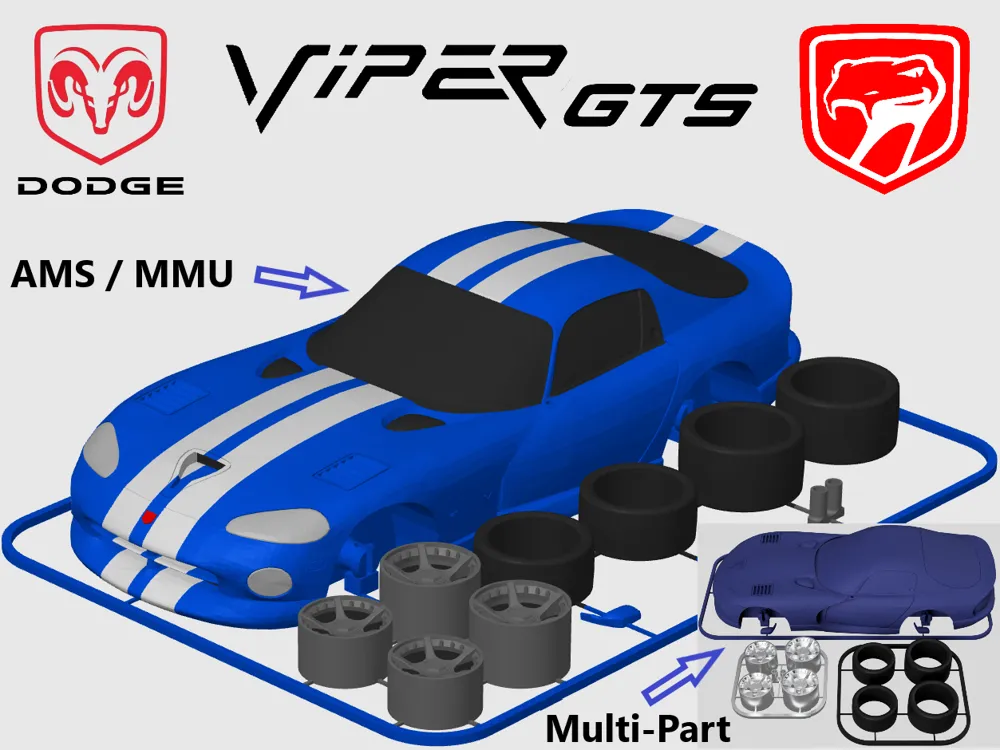

The complete set is available in a STL file for a one-color print.
There is a 3MF-file with predefined colors intended for users of AMS or MMU.

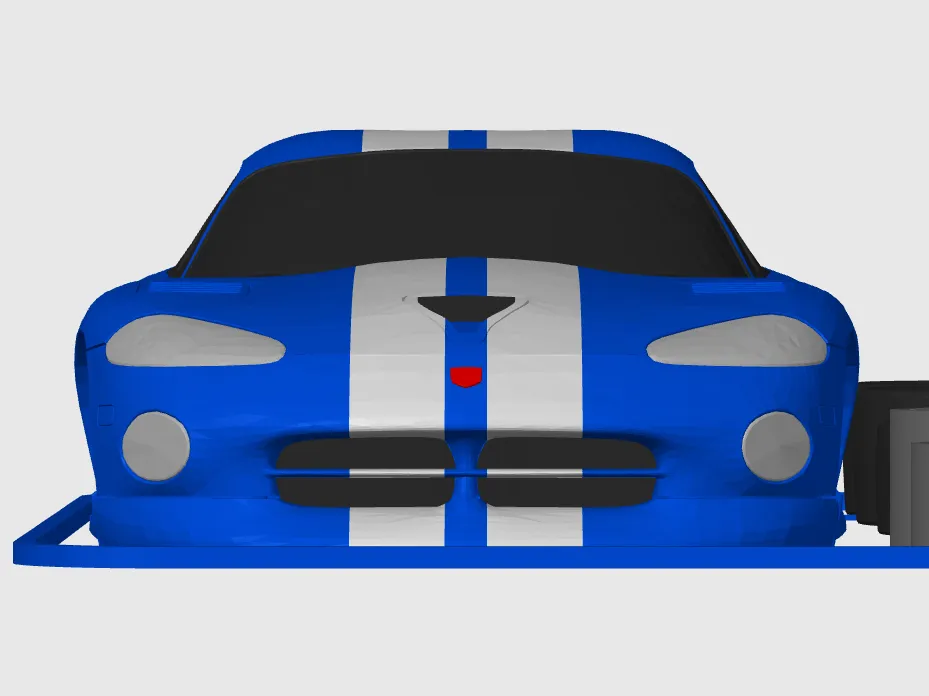

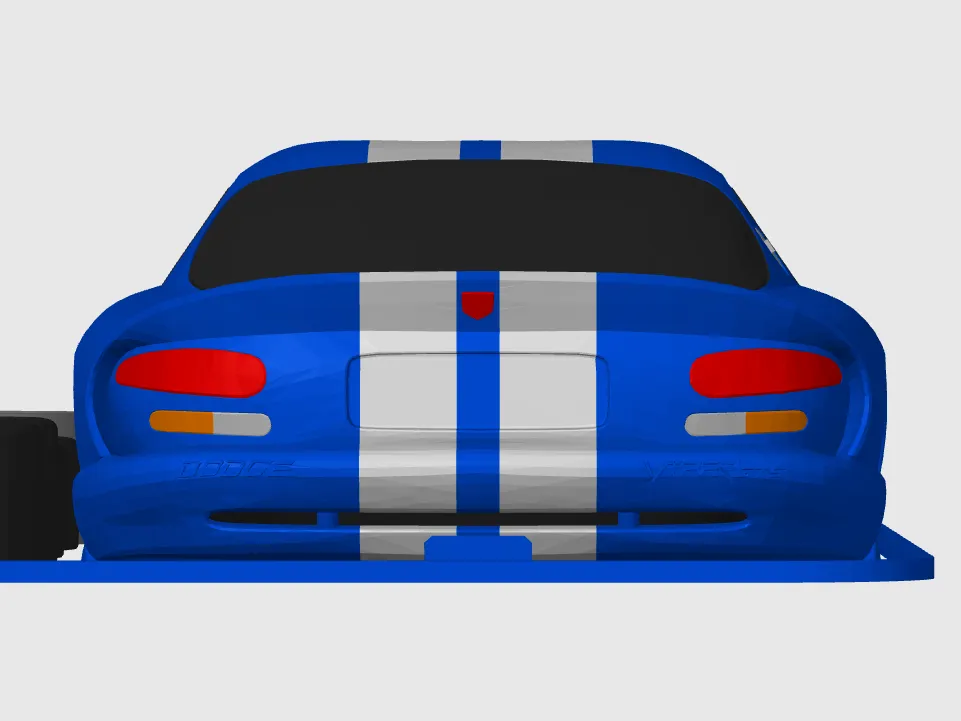

Versions with and without racing stripes available.

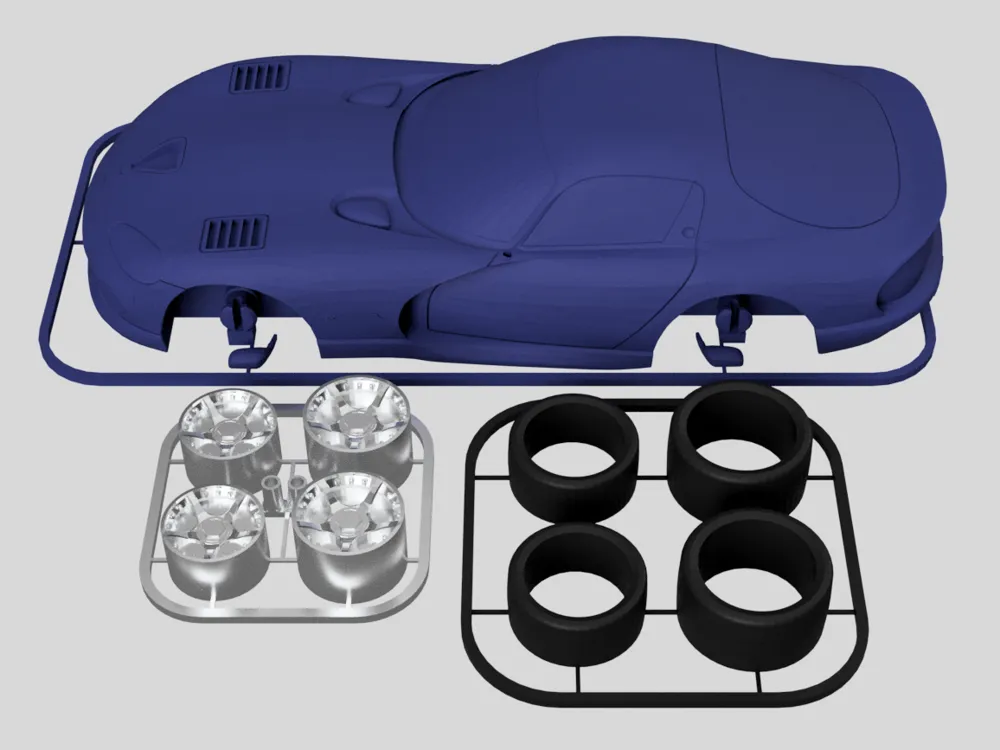

Otherwise, the chassis, rims & exhaust and the tires must be printed separately.

Print
Print with 0.12 layer hight or lower to bring up the details.
No supports are needed.
Use 3 perimeters and 10% infill.

Post processing
The small struts can be removed really quickly and cleanly using a side cutter.
Please remove the predesigned supports carefully under the axles.

Assembly
The kit is easy to assemble. All parts fit together very well.
Use some grease for the hole in the rim so that the wheel turns more easily.
If a part should be loose, superglue can be used.

Dimensions at 100% scale (1:24)
The fully assembled model has the following dimensions
Height: 50mm
Depth: 186mm
Width: 80.5mm (including side mirrors)

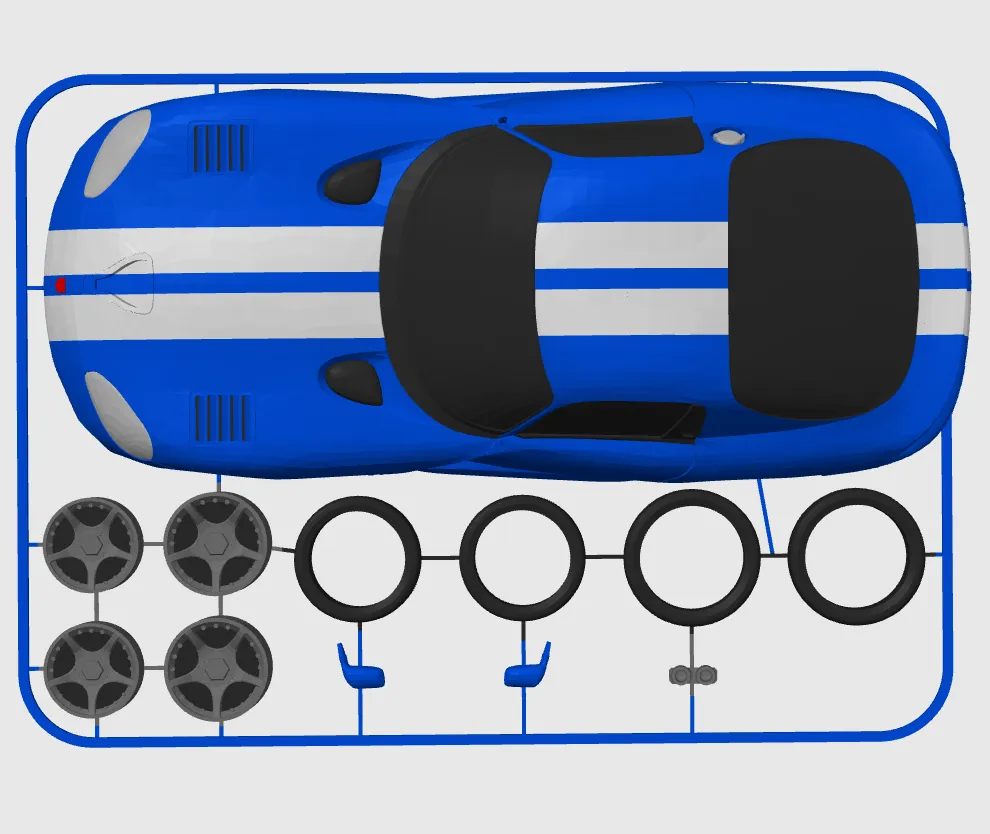

The complete kit card has the following dimensions when printed
Height: 42.1mm
Depth: 192mm
Width: 135.6mm
Scaling will work in a low range due to the tolerances.

Other models
I will also try to publish other car models. Stay tuned!

I hope you had as much fun printing and assembling it as I did :-)

Get more information about this amazing car here.

Do you like my work? I would be very happy if you would support my work on Ko-fi.

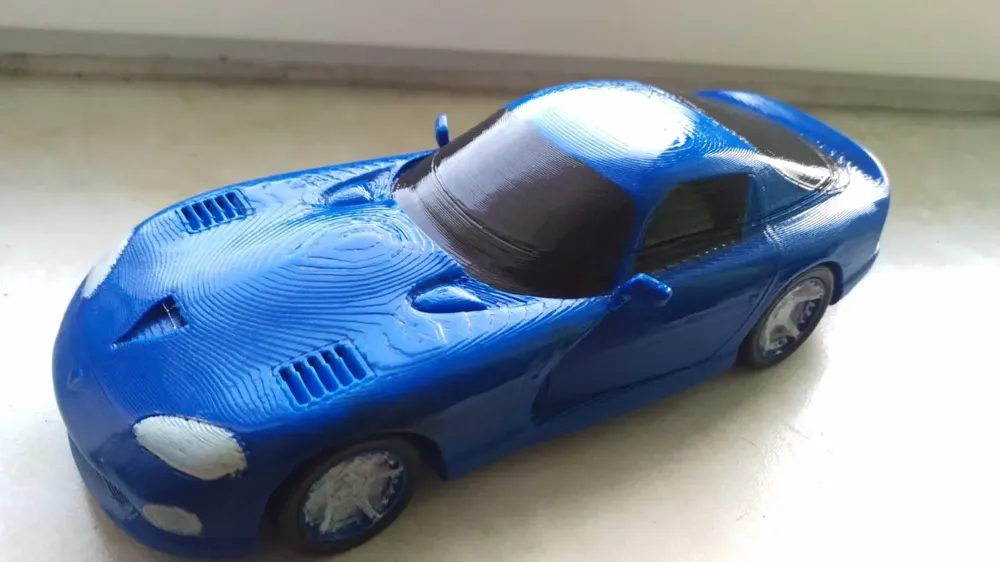

Differences of the remix compared to the original

• scaled up
• model disassembled into individual parts and arranged
• redesigned exhaust
• connectors added
• connected in kit card style and framed
• painted for AMS / MMU
