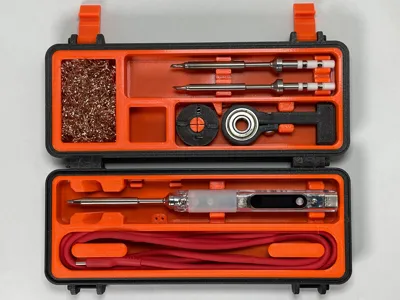

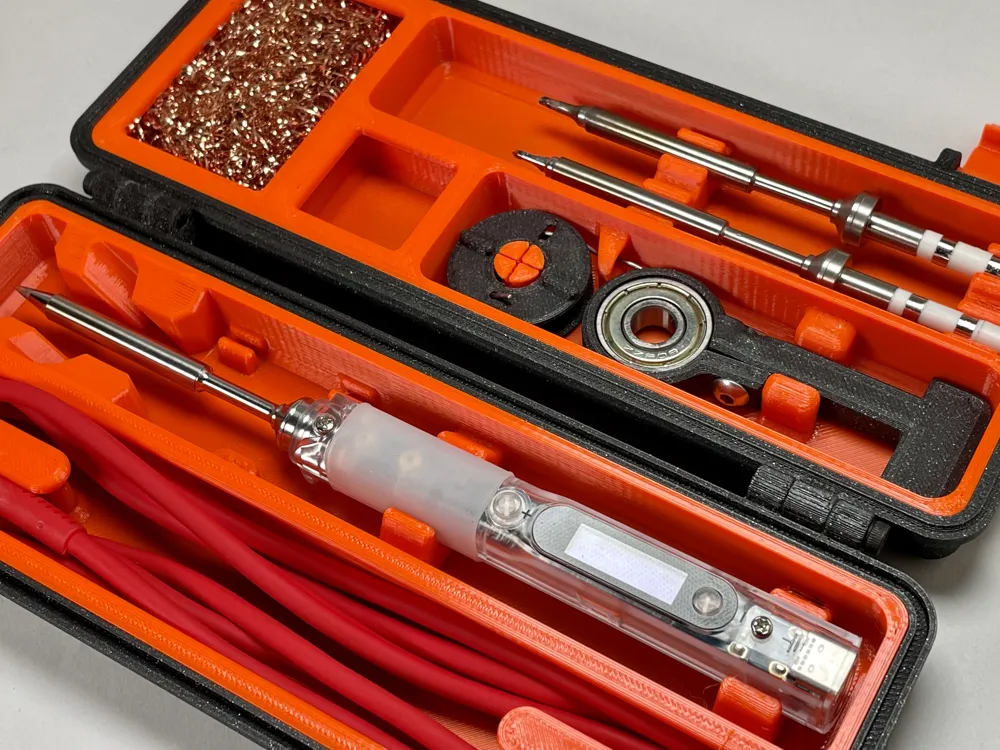

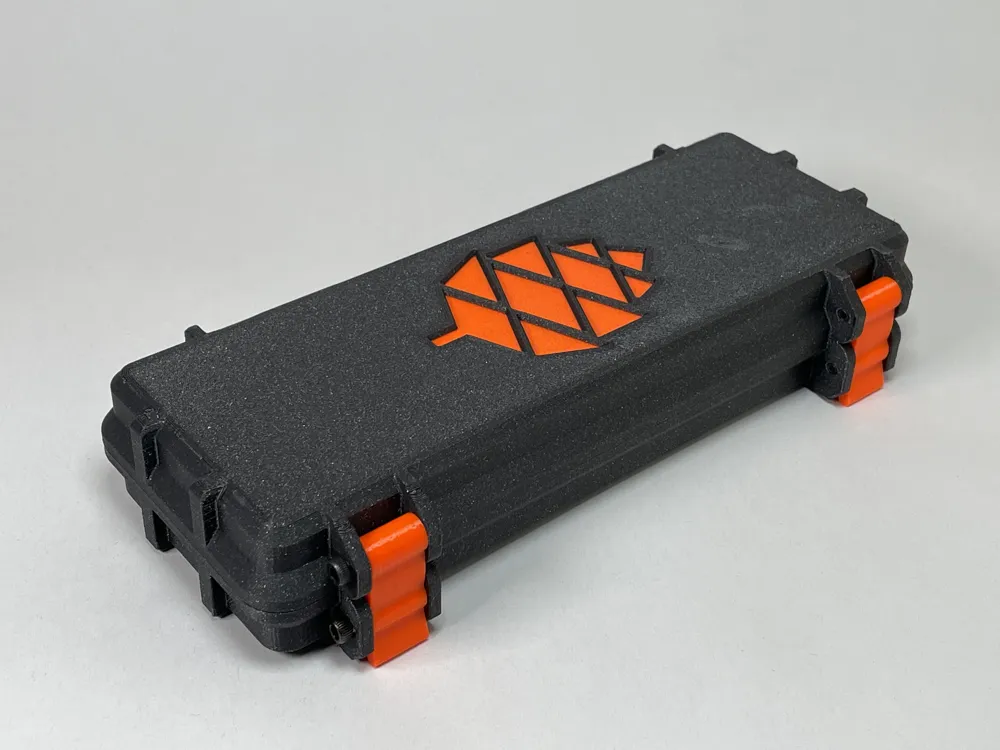

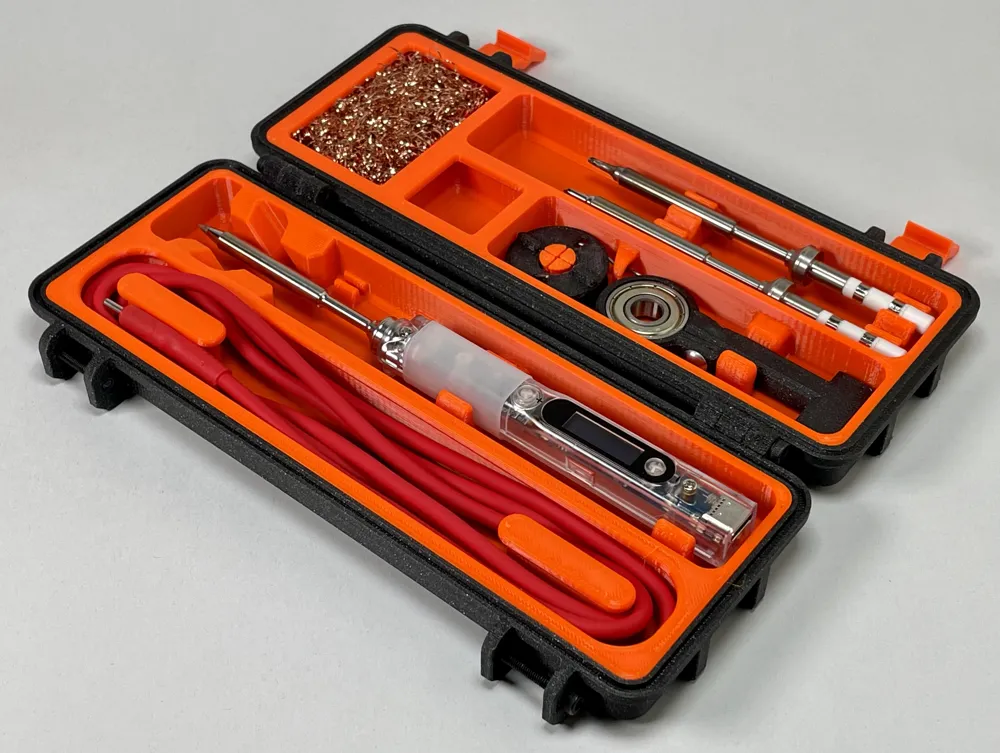

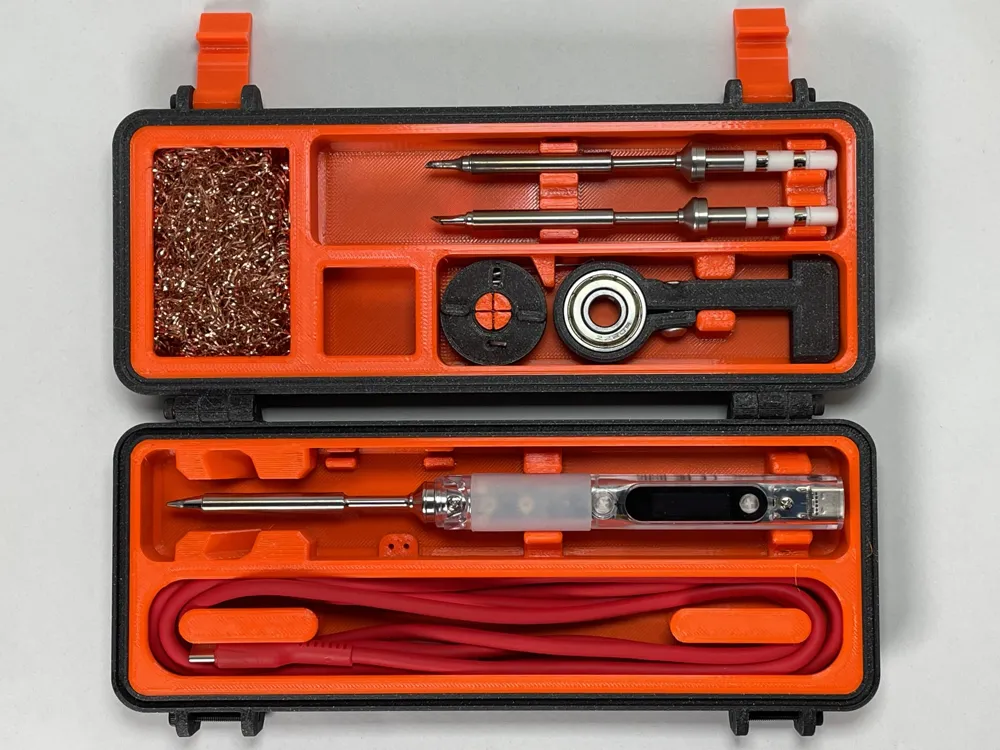

Rugged Multipart Pinecil/TS100/TS80 Case (V2)

Design

I've created my personal version of a Rugged Multipart Pinecil/TS100/TS80 Case. Check the links in the remix section to check out the great designs I used as base/inspiration. Also check the less rugged but still aesthetically pleasing Multipart Pincecil Case. That version doesn't need any additional hardware.

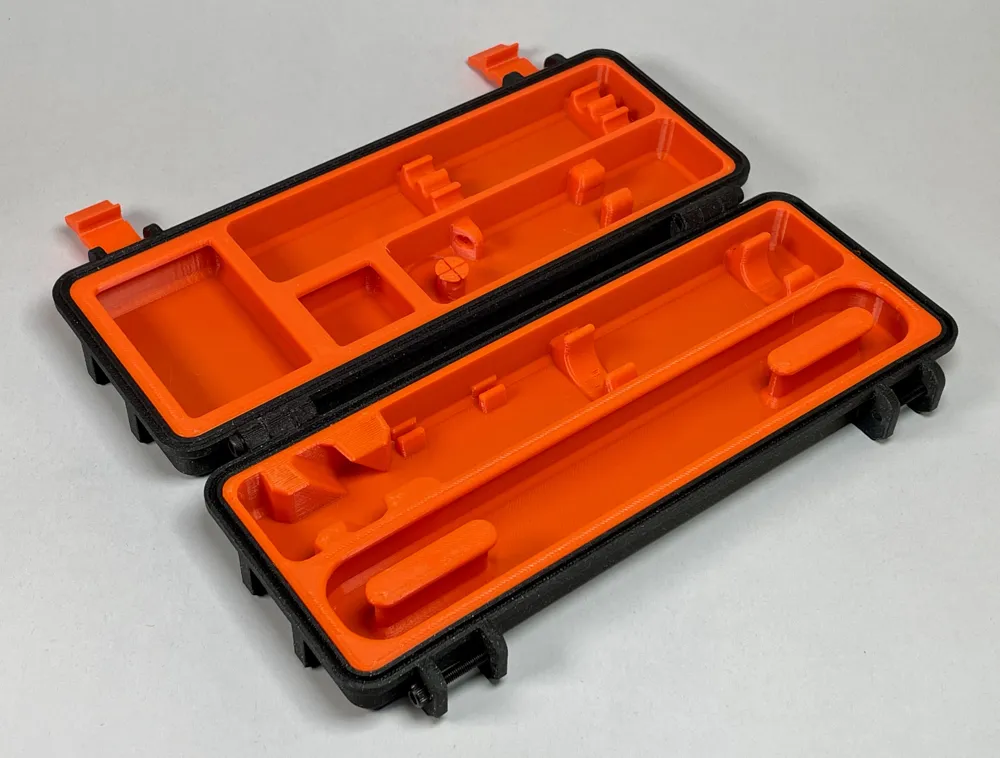

Printing & Assembling

I would recommend printing at a 0.2mm layer height. 2 latches are needed. Printing the TPU seal isn't needed unless you want to water tighten the case. The latches and hinges are made to fit M3x20screws. CA glue can be used to fit the inserts and case halves together. However in my case the inserts fit the case so well, I didn't even need to glue the two together.

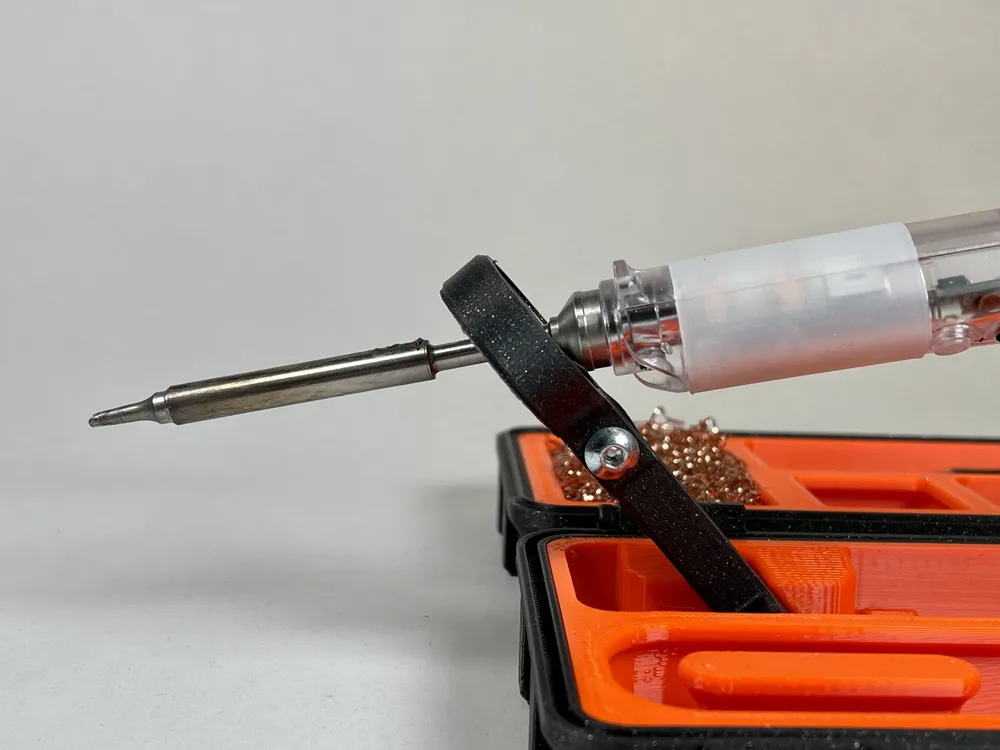

Additional parts like the stand and spool can be downloaded from Termiman's page. Also check out his step file for making your own version.

Update:

28/12/2022

Uploaded a remixed version of the TS100 insert. I've not printed it yet so please send me a message if there any problems with it. The top inserts are all compatible as the tips of both Pinecil and TS100 are the same.

12/1/2023

Due to request by xenos added inserts with room for two more tips instead of the cable compartment.

14/1/2023

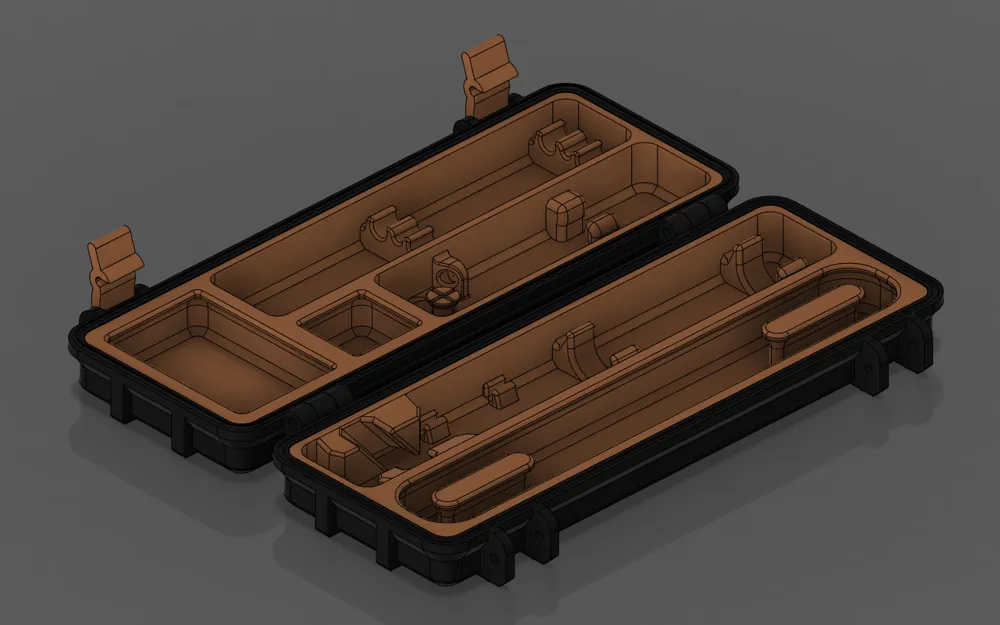

V2. I made an overhaul to efficiently fit in most of Termiman's designs (Large, Medium and Small). This includes TS80 compatible inserts.

19/1/2023

• Fixed error in outer case hinges.
• Added inserts with room for 4 tips. These can be used in both halves of the case to house 8 tips in total.

28/1/2023

Added a cable only insert for the small versions of the box. This version collided with the soldering iron though so I had to revise it by lowering the inside studs.

8/3/2023

Changed the 4x Tip inserts to give more clearance to the iron.

14/4/2026

Added different sizes of the stand due to user feedback. They come with thicker stems to prevent them from falling out. File names correspond with the size increase. For instance: 02 means it is 0.2mm thicker.
