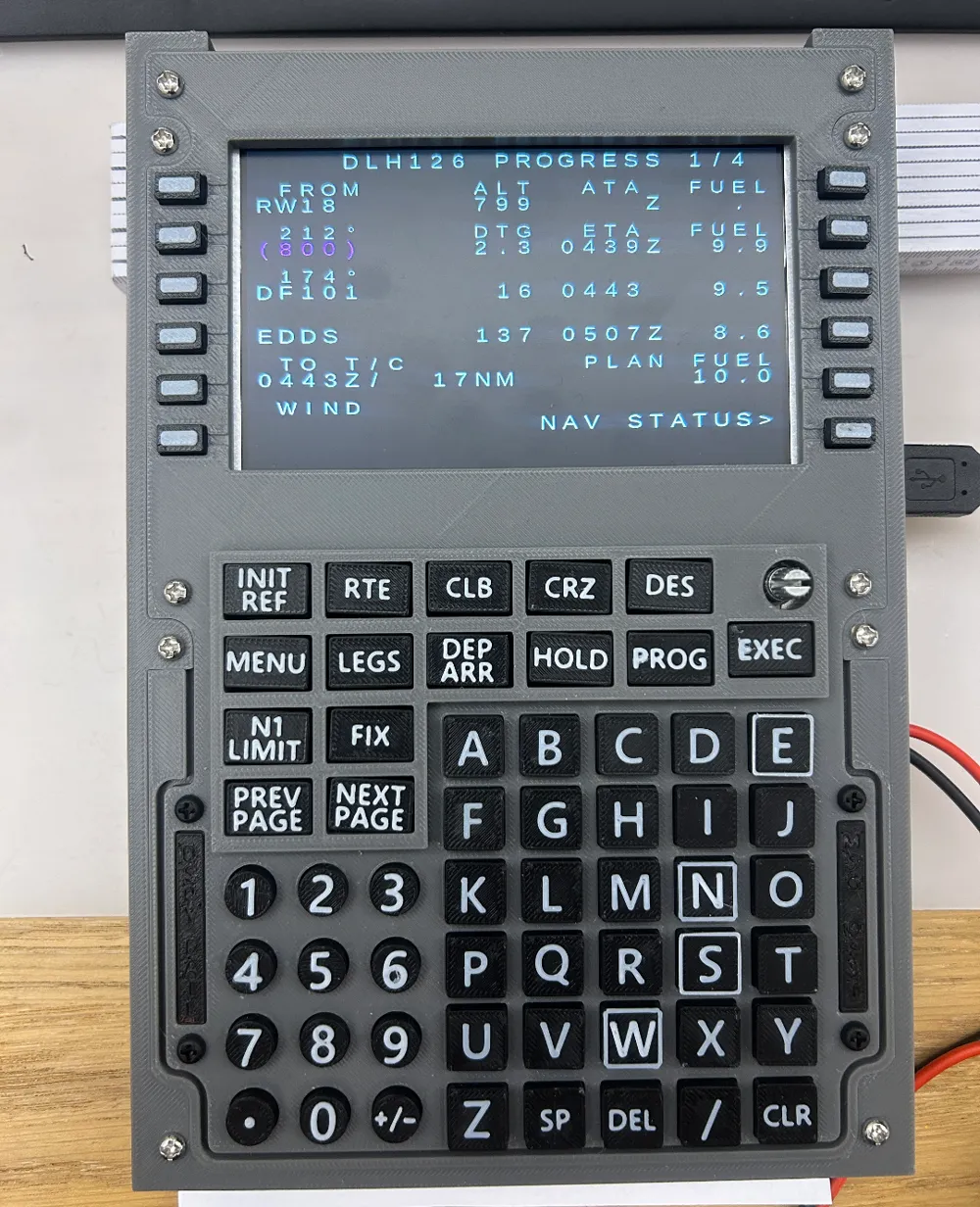

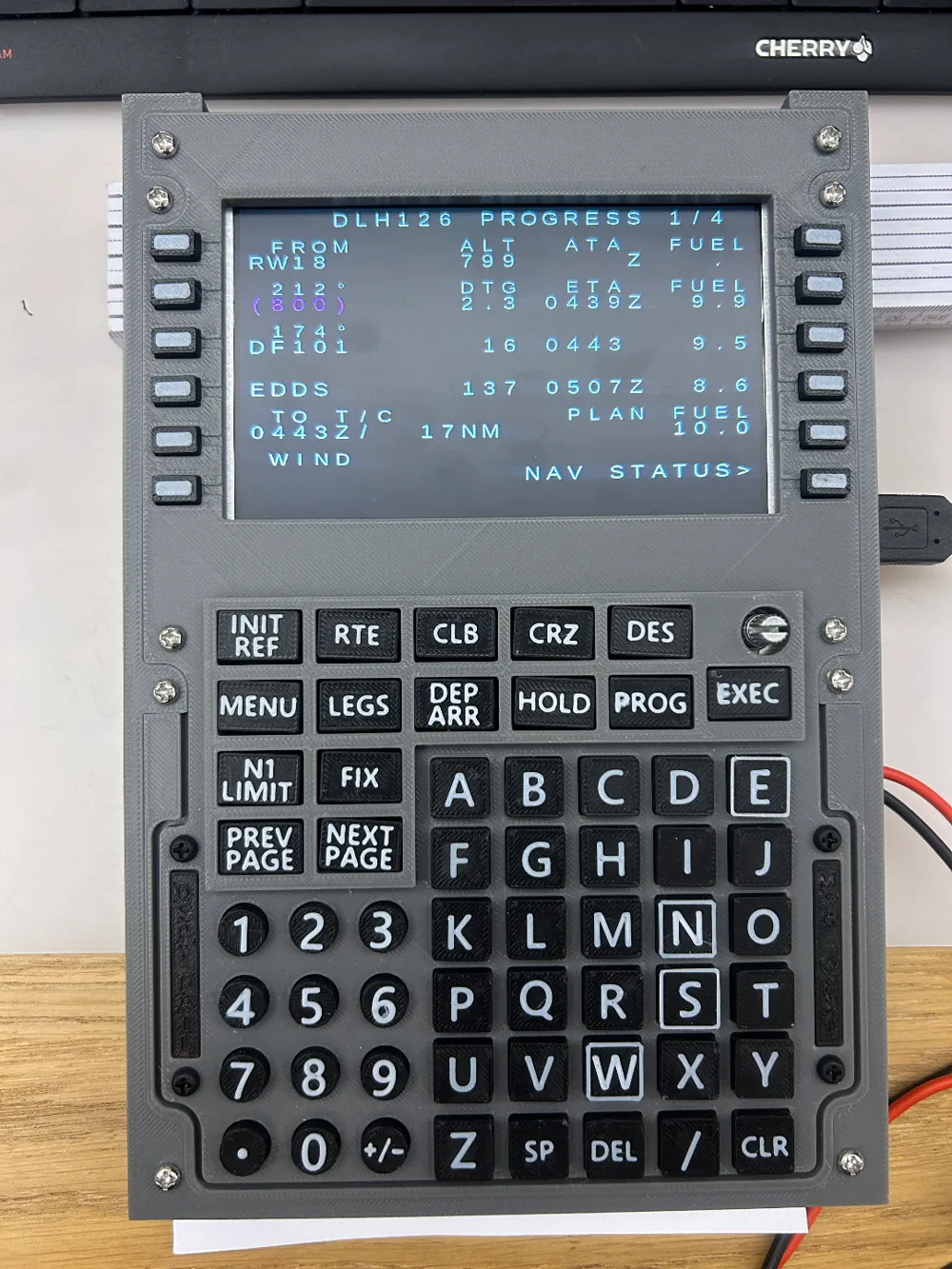

FMC for 737

FMC for Boeing 737 (i. e. for use in XPlane 11,…)

Adjusted lower key setting Z -CLR to fit dotsha747's board.

Added frames to keep electronics safe.

All 4mm holes are made to fit M3 x 5.7 brass inserts.

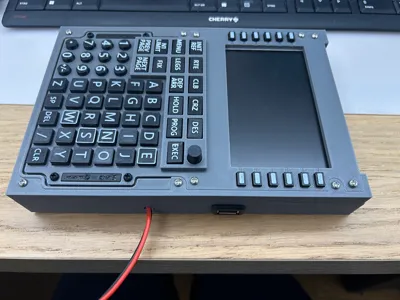

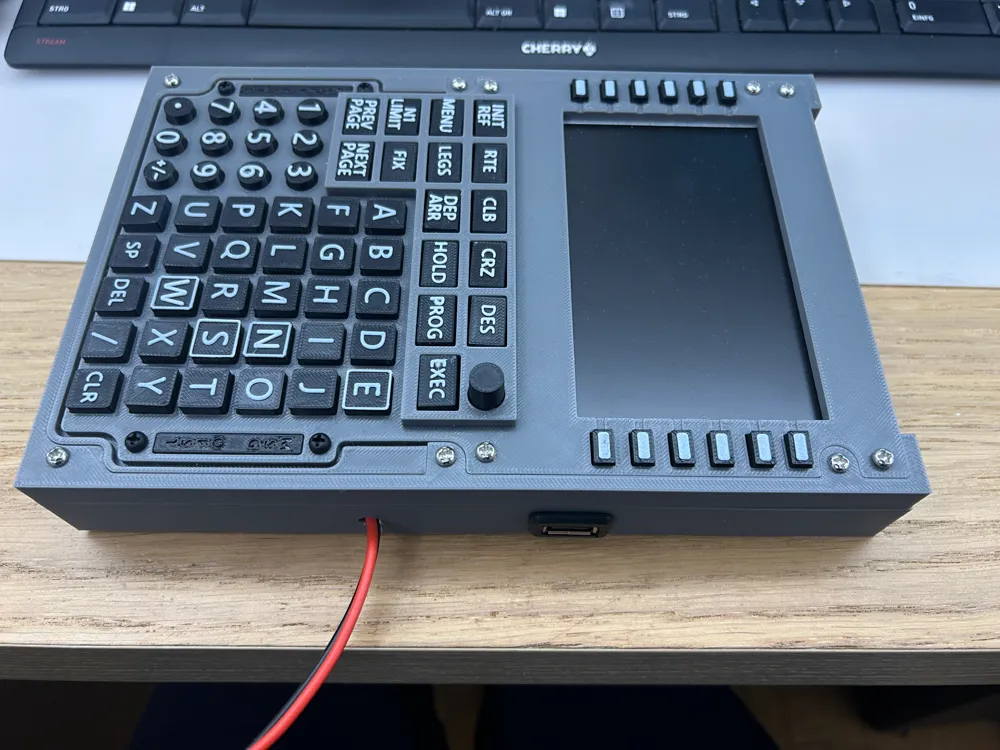

I added a USB A female plug to the frame for a keyboard (not mandatory).

Model is printed mainly in grey PLA+.

Buttons have black PLA bottom, letters in white PLA.

They are not made to be lighted!

It's a remix of the original files found here: https://www.thingiverse.com/thing:774564 and https://www.thingiverse.com/thing:2723282

Added the Frames to fit a 5" TFT-LCD with HDMI, including all necessary boards (800x480 px, Panel size 118,5mm × 77.55mm × 3,7mm) - i. e. https://de.aliexpress.com/item/4001197186380.html

Board needed: https://oshwlab.com/dotsha747/737fmccdu-v3 (XPlane 11 only, see BOM for parts list!!)

Information on assembly: https://blog.shahada.abubakar.net/?p=8211 (incl. following pages) and https://github.com/Snakey02/Pi-XPlane-FMC-CDU for the software (XPlane11 only, maybe works also for XP 12).
